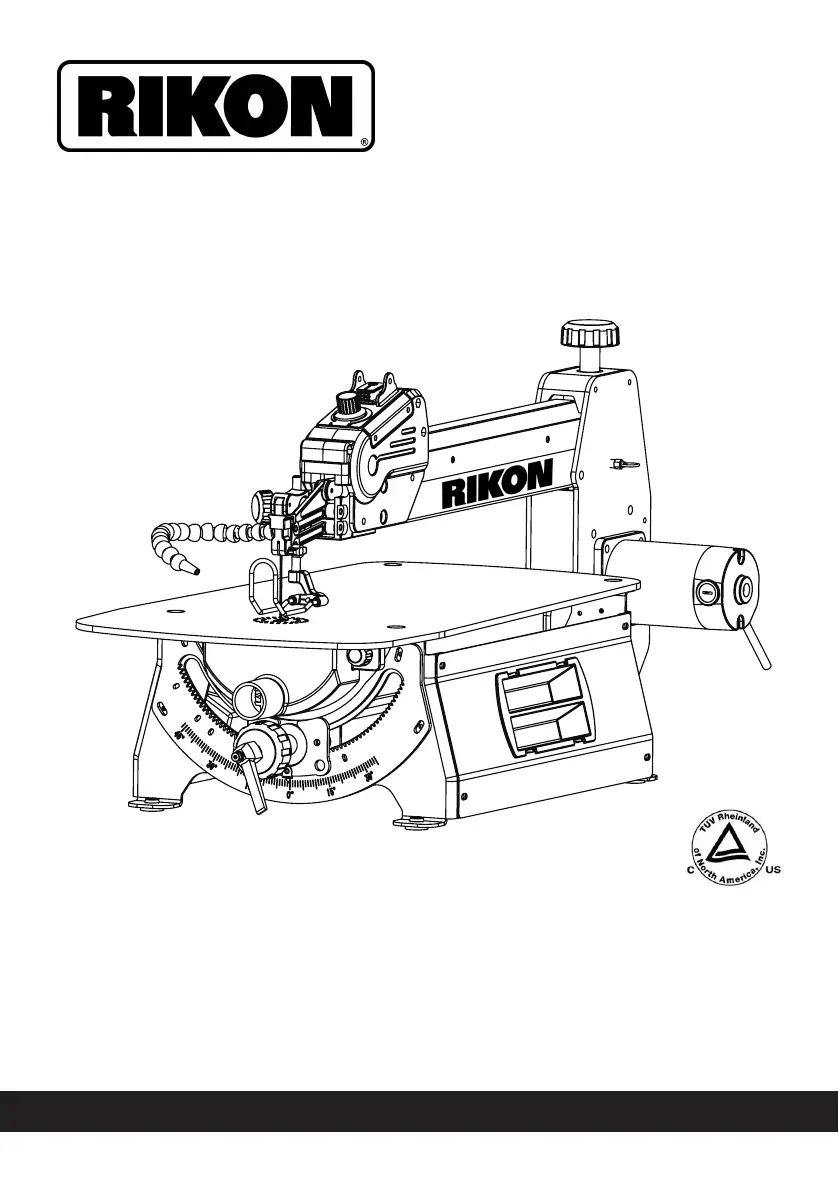

Side 1/20

22” VARIABLE SPEED

SCROLL SAW

#10-622VS

Operator’s Manual

Record the serial number and date of purchase in your manual for future reference.

The serial number can be found on the specification label on the rear of your machine.

Serial Number: Date of purchase: ________________________ _________________

For technical support or parts questions, email techsupport@rikontools.com

or call toll free at (877) 884-5167.

www.rikontools.com

10-622VSM1

TABLE OF CONTENTS

Specifications ........................................................................................ 2

Safety ............................................................................................... 3 - 7

Key Parts Overview ............................................................................... 8

Attachment Parts ................................................................................... 9

Assembly ......................................................................................... 9, 10

Adjustments .................................................................................. 10 - 13

Operation ...................................................................................... 11 - 13

Maintenance ........................................................................................ 14

Troubleshooting ................................................................................... 15

Parts Diagram ...................................................................................... 16

Parts List ........................................................................................ 17, 18

Notes ................................................................................................... 18

Warranty .............................................................................................. 19

SPECIFICATIONS

Motor Amps, Volts, Hertz .......................................... 1.6A, 120V, 60Hz

Electronic Variable Speed (SPM) ....................................... 550 - 1,550

Pinless Blade Length .......................................................... 5” / 130mm

Maximum Cutting Height ...................................................... 2“ / 50mm

Stroke ................................................................................ 3/4” / 20mm

Throat Depth .................................................................... 22” / 560mm

Table Size (LxW) ...............................25-5/8” x 13-3/4” / 650 x 350mm

Table Tilting ...................................................... 30° Left, 0°, 45° Right

Base to Table Height .................................................. 7-9/16“ / 192mm

Dust Port Diameter (O.D.) ............................................. 1-3/8” / 35mm

Maximum Sound Level (at 0.3m / 11.8“) .................................... <80dB

Overall Size (LxWxH)............ 34"x14-1/8"x16-9/16" / 865x360x420mm

Base Size (approx. LxW) .................. 18-5/8” x 13-1/4” / 475 x 335mm

Net Weight ................................................................................. 68 lbs.

NOTE: The specifications, photographs, drawings and information in this manual represent the

current model when the manual was prepared. Changes and improvements may be made at any time,

with no obligation on the part of Rikon Power Tools, Inc. to modify previously delivered units.

Reasonable care has been taken to ensure that the information in this manual is correct, to provide

you with the guidelines for the proper safety, assembly and operation of this machine.
