650 Free Standing Gas Fireplace
Installation and Flueing Manual
Model:
650FS

Rinnai 2 650FS FIM
Congratulations on the purchase of your Rinnai 650FS Free Standing gas log amere. We trust you will have
many years of comfort and enjoyment from your appliance.
IMPORTANT
BEFORE USING THIS APPLIANCE
Before proceeding with the operation or installation read this manual and the other manuals
supplied with the engine thoroughly to gain a full understanding of the appliance and to ensure
safe and correct use.
For details on how to use this appliance refer to the Operation Manual.
Use only Rinnai genuine parts.
This appliance must be installed in accordance with:
• Manufacturer’s Installation Instructions
• Current AS/NZS 3000, AS/NZS 3500 & AS/NZS 5601
• Local Regulations and Municipal Building Codes
including local OH&S requirements
This appliance must be installed, maintained and removed
ONLY by an Authorised Person.
For continued safety of this appliance it must be installed
and maintained in accordance with the manufacturer’s
instructions.
All Rinnai gas products
sold in Australia are
A.G.A. certified.

Rinnai 3 650FS FIM
WARNING
This appliance be installed, maintained and removed MUST ONLY by an Authorised Person.
For continued safety of this appliance it be installed and maintained in accordance with MUST
the manufacturers instructions.
Warnings & Important Information 4
Before Using or Installing this Appliance 4 .........................................................................................................................
Regulatory Information 4 .......................................................................................................................................................
Notice to Victorian Consumers 4 ..........................................................................................................................................
Mandatory Inspection Prior to Installation 4 ........................................................................................................................
Modications ........................................................................................................................................................................ 5
General Safety Warnings 5 ....................................................................................................................................................
Installation Requirements 5 ...................................................................................................................................................
Before You Start 6
Carton contents / Item Checklist 6 ........................................................................................................................................
Additional Tools Required (Not Supplied) 6 .........................................................................................................................
Clearance Considerations 6 ..................................................................................................................................................
Selecting a Position ............................................................................................................................................................. 6
Flueing Requirements 6 .........................................................................................................................................................
General Installation Information 7
Clearances ............................................................................................................................................................................ 7

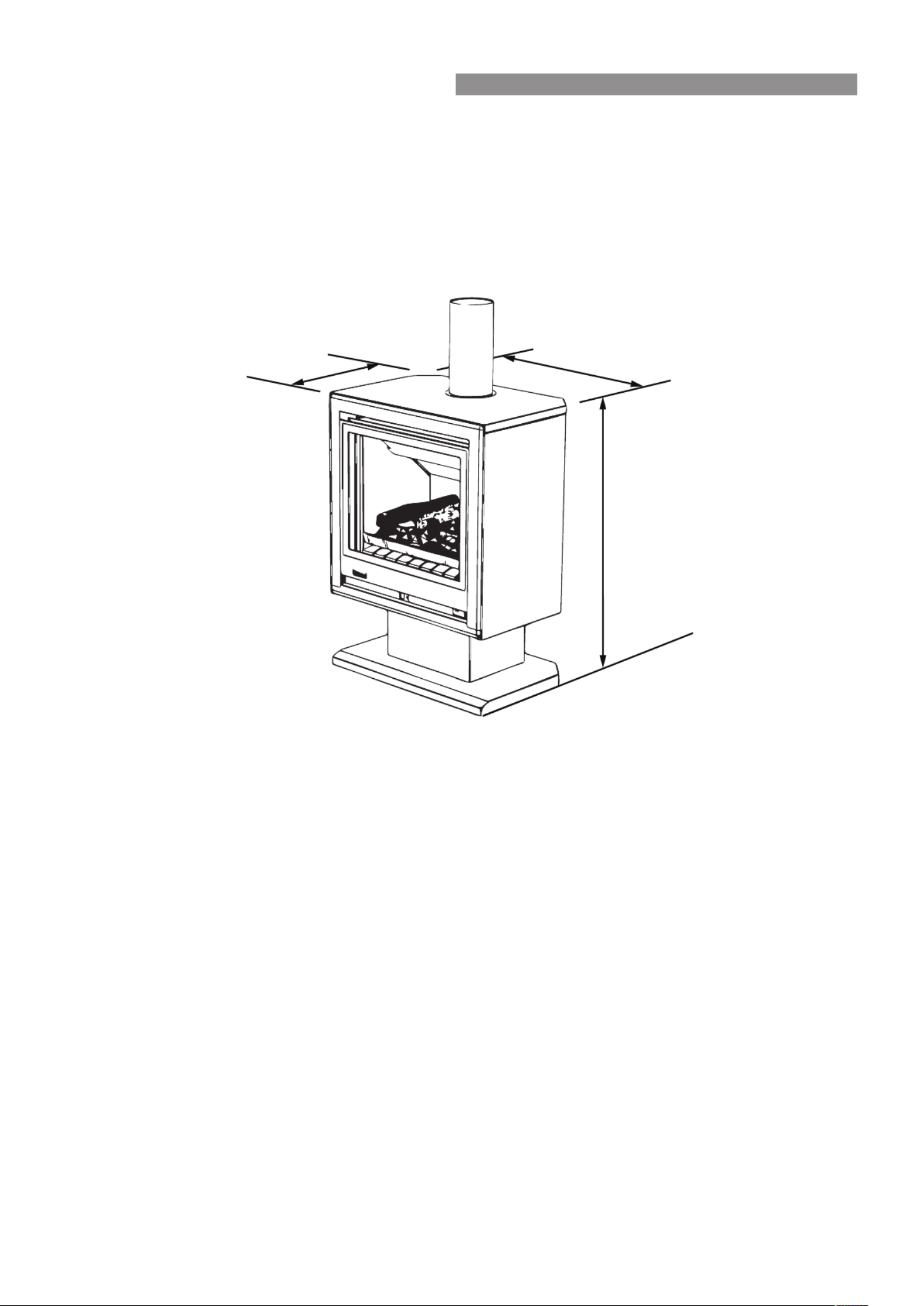

Dimensions & Weights 8 ........................................................................................................................................................
Cabinet Installation 9
Step by Step Cabinet Installation 9 .......................................................................................................................................
Flue Installation 12
Flue Installation Options 12 ...................................................................................................................................................
Cutting the Flue Components 12 ..........................................................................................................................................
Flue Kit Components 13 .........................................................................................................................................................
Basic Flue Kits 14 ...................................................................................................................................................................
Flue Installation 15 .................................................................................................................................................................
Commissioning 18
Commissioning Instructions 18 ............................................................................................................................................
Contacts 20
TABLE OF CONTENTS

Rinnai 4 650FS FIM
IMPORTANT
BEFORE USING OR INSTALLING THIS APPLIANCE
Before proceeding with the operation or installation read this manual thoroughly and gain a full
understanding of the appliance, to ensure safe and correct use.
Failure to carefully read and follow all instructions in this manual can result in equipment
malfunction, re or explosion, property damage, personal injury and/or death.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in
personal injury or death.
WARNINGS: Indicates a potentially hazardous situation which, if not avoided, could result in
personal injury or death.
CAUTIONS: Indicates a potentially hazardous situation which, if not avoided, could result in
minor or moderate injury or damage to the appliance. It may also be used to alert against unsafe
practices.
WARNING
REGULATORY INFORMATION
This appliance and ue system shall be installed in accordance with:
Manufacturer’s Installation Instructions supplied by Rinnai.
Current AS/NZS 3500 & AS/NZS 5601.
Local Regulations and Municipal Building Codes including local OH&S requirements.
Your Rinnai 650FS gas re and ue system has been certied by the Australian Gas Association.
The A.G.A. Certication Number is shown on the data plate.
This appliance MUST be installed, maintained and removed ONLY by an Authorised Person.
For continued safety of this appliance it MUST be installed and maintained in accordance with
the manufacturer's instructions.
Flue components MUST be installed correctly by an appropriately licensed tradesperson. The
installation of gas, water and electricity must conform to local regulations.
NOTICE TO VICTORIAN CONSUMERS
This appliance MUST be installed by a person licensed with the Victorian Building Authority.
ONLY a licensed person will have insurance protecting their workmanship.
So make sure you use a licensed person to install this appliance and ask for your Compliance
Certicate. For further information contact the Victorian Building Authority on 1300 815 127.
WARNING
MANDATORY INSPECTION PRIOR TO INSTALLATION
Immediately report any damage or discrepancies to the Supplier of the appliance. This
appliance was inspected and tested at the time of manufacture and packaging, and released for
transportation without known damage. Upon receipt, inspect the exterior for evidence of rough
handling in shipment. Ensure that the appliance is labelled correctly for the gas and electrical
supply, and/or other services it is intended to be connected to.
For safety and warranty purposes, appliances that may be damaged or incorrect MUST NOT be
installed or operated under ANY circumstances. Installation of damaged or incorrect appliances
may contravene local government regulations. Rinnai disclaims any liability or responsibility
whatsoever in relation to the installation or operation of damaged or incorrect appliances.
Take care when opening or unpacking this appliance. Failure to do so may result in serious injury
or product failure.
Check the label for the correct gas type (refer rating plate, inside the appliance). Refer to local gas
authority for conrmation of the gas type if you are in doubt.
WARNINGS & IMPORTANT INFORMATION

Rinnai 5 650FS FIM
WARNING
MODIFICATIONS
DO NOT MODIFY THIS APPLIANCE, modifying from original specications may create a
dangerous situation and will void your warranty. Failure to comply with these instructions could
result in a re or explosion, which could cause serious injury, death or property damage.
DO NOT modify the electrical wiring of this appliance.
If the power cord is damaged or deteriorated it MUST be replaced by an authorised person.
Failure to do so may result in electric shock, re, serious injury or product failure.
Improper installation, adjustments, service or maintenance can cause serious injury, death or
property damage. Such work MUST ONLY be performed by an authorised person.
No parts or functions should be modied or permanently removed from the heater.
WARNING
GENERAL SAFETY WARNINGS
This appliance is HEAVY, during installation the use of a mechanical lifting aid is recommended,
noting that improper lifting may result in serious injury.
WARNING MUST: This heater NOT be used if any of the glass panels are damaged.
Flue terminal always vent directly to outdoors. MUST DO NOT extend the ue vertically
or horizontally in ways other than prescribed in this appliance manufacturer’s installation
instructions. ONLY MUST the ue components specied by Rinnai be used.
When considering installation ensure minimum clearances as follows are adhered to, refer Fig. 1.
Heat radiating from the front of this heater may over time aect the appearance of some materials
used for ooring such as carpet, vinyl, cork or timber. This eect may be amplied if the air
in the room contains cooking vapours, candle vapours and cigarette smoke, etc. To avoid this
possibility, it is recommended that a mat or similar protective sheet be placed in front of the
appliance, extending at least 750 mm.
This appliance MUST NOT be installed where curtains or other combustible materials could
come into contact with it. In some cases curtains may need restraining.
DO NOT attempt to dry clothes on this heater while it is in operation.
This appliance is NOT intended for use by persons (including children) with reduced physical,
sensory or mental capabilities or lack of experience and knowledge, unless they have been given
supervision or instruction in use of the appliance by a person responsible for their safety.
The appliance is NOT intended for use by young children or inrm persons without supervision.
Young children and the inrm be supervised at all times when in the vicinity of this SHOULD
heater while it is in operation.
The heater MUST NOT be located immediately below a power socket outlet.
A dedicated 230 V earthed 10 Amp power point must be used with this appliance.
Refer to local gas authority for conrmation of the gas type if you are in doubt.
Suitable ONLY for indoor installation.
DO NOT operate this appliance before leak checking hoses and gas cylinder connection.
This heater MUST NOT be used if the glass panels are damaged.
NOT to be connected to an LP gas cylinder located indoors.
All dimensions referred to in these instructions are in millimetres, unless otherwise specied.
Please keep this instruction booklet in a safe place for future reference.
WARNING
INSTALLATION REQUIREMENTS
This heater MUST be installed ONLY by an authorised person.
The installation conform to local regulations.MUST
The installation MUST also comply with the instructions supplied by Rinnai.
Service and removal MUST be carried out ONLY by an authorised person.
WARNINGS & IMPORTANT INFORMATION

Rinnai 6 650FS FIM

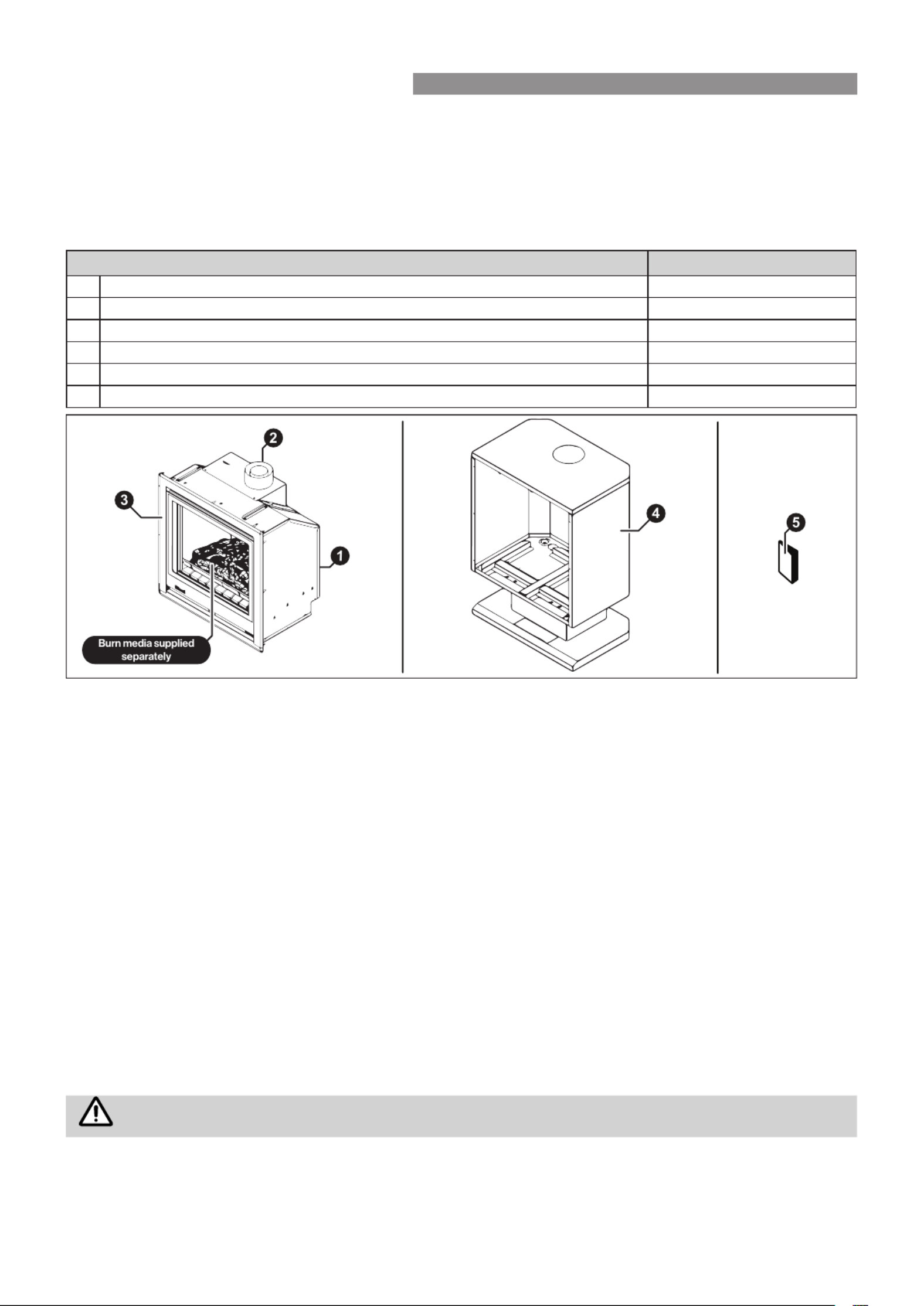

CARTON CONTENTS / ITEM CHECKLIST
• The Engine, Fascia and Flue Adapter for the Rinnai 650FS Gas Fire is supplied in one carton.
• The Flue is available as a kit, 650FSKIT01 and is supplied separately.
• Burn Media; Logs R2423 or Stones R2422 are supplied separately.
Ensure that the components listed below are present in the carton before proceeding with the installation.
Major component descriptions and carton contents Qty
Rinnai 650 Engine (inside Cabinet) 1
Co-axial Flue Adapter (pre-tted to the heater engine). 1
Four sided 650 Fascia - Black 1
Free Standing Cabinet. 1
Operation and Installation manual. 1
- Various labels n/a
ADDITIONAL TOOLS REQUIRED (NOT SUPPLIED)
• 7mm AF Spanner (for fascia top attaching screws)
• No. 2 Phillips (unless specied otherwise, all screws are No. 2 Phillips)
CLEARANCE CONSIDERATIONS
Refer to "Clearances" on page 7 for detailed clearance allowances. A minimum of 50mm clearance is required
for all surfaces of the cabinet to allow for adequate ventilation. Consideration must be given for gas and electrical
connections located at the lower rear of the cabinet.
SELECTING A POSITION
Please consider the following when deciding on a position for the heater:
• This 650 Freestanding appliance is suitable only for indoor installation.
• It is not intended as an outdoor appliance.
• It is not intended as a built-in appliance.
• Gas and electrical connections are at the rear. It is essential therefore to allow adequate room at the back of the
appliance for access to the gas and electrical inlets and the pedestal cover plate for these connections.
• This appliance is suitable for a corner installation.
FLUEING REQUIREMENTS
IMPORTANT
No Flue bends are authorised with this heater.
• Consider the location of the vertical ue when choosing a position for your heater.
• Use in conjunction with ue kit FS650KIT01.
• Only use a vertical ue with a maximum length of 7.5 metres with zero bends. The heater will not function with
a horizontal ue. No bends are permitted with this heater.
BEFORE YOU START

Rinnai 7 RDV 600_700ER IM

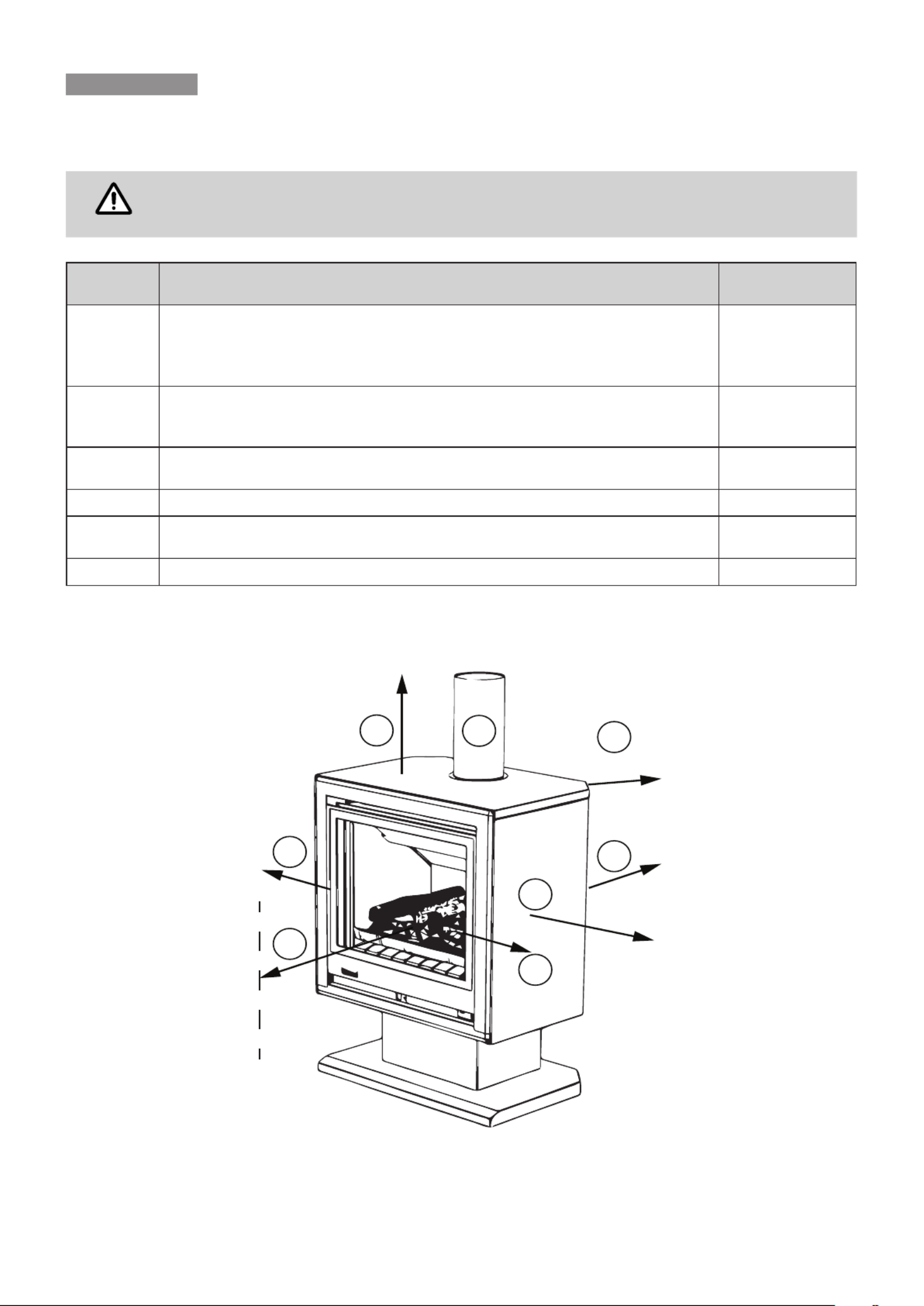

CLEARANCES
When positioning the heater, the main variables governing the location are Flueing and Warm Air Distribution.
This heater MUST NOT be installed where curtains or other combustible materials could come into
contact with it. Refer to the table below for clearances to furnishings, adjacent walls, curtains
and combustibles.
Dimension Description Minimum
Clearance (mm)
ACabinet top - Leave Open Space. Not recommended to place items on top of
this panel.
DO NOT drape items over the front of this panel.
See Description
LH, RH and Rear Cabinet Ventilation Clearance.
Note: Installation Access Required at Rear.
50
LH and RH Side Fascia Edge Clearance - from edge of glass to combusti-
bles.
150
Front Clearance - From front of glass to objects. 1000
Corner Installation Clearance - LH and RH rear corners at 45º to nearest
surface.
50
Flue clearance - Flue is cool to touch. 0
WARNING
A
B
B
C
C
D
E
F
GENERAL INSTALLATION INFORMATION

Rinnai 8 RDV 600_700ER IM
DIMENSIONS & WEIGHTS
Cabinet dimensions are as shown below. Refer to Rinnai 650 Installation and Operation manuals for full engine
details.
Gross Weight: 85 kg
445 645
895
(+25 for flue spigot)
All dimensions in mm
650 FS - Overall Dimensions
GENERAL INSTALLATION INFORMATION

Rinnai 9 650FS FIM
STEP BY STEP CABINET INSTALLATION
Step 1. Prepare Site.
IMPORTANT
Ensure that gas and electrical supplies have been prepared in accordance with the heater engine
Installation Manual.
Step 2. Unpacking.
Gross weight of appliance is 85kg. Two person lift required for this step.
1. Remove the plastic strapping and lift the cardboard box directly
up o from the appliance. Remove all packing materials.
2. Ensure to locate and keep the Engine Accessories pack and
labels.
3. Lift the appliance from the pallet and place in position.
Step 3. Remove fascia.
1. Locate and LOOSEN the 3 x M4 (7mm AF) hex head screws at the top of the discharge vent A. The fascia
holes are slotted. Leave the screws loose in the panel.
2. .Locate and remove the screws at the bottom left and right of the inlet vent
3. Firmly draw fascia out and away and place carefully aside.
Remove all Labels and the
Accessories Pack
CAUTION
CABINET INSTALLATION
Produkt Specifikationer
Mærke: | Rinnai |
Kategori: | Varmeapparat |
Model: | 650FS |
Har du brug for hjælp?
Hvis du har brug for hjælp til Rinnai 650FS stil et spørgsmål nedenfor, og andre brugere vil svare dig
Varmeapparat Rinnai Manualer
20 Juni 2025
10 Juni 2025
9 April 2025
27 Marts 2025
24 August 2024
23 August 2024
23 August 2024
23 August 2024
23 August 2024
23 August 2024
Varmeapparat Manualer
- Oceanic
- Heidenfeld
- Supra
- Breville
- Unold
- Ariete
- Swan
- AlorAir
- Martec
- Sinbo
- Zephir
- ElectriQ
- Prem-i-air
- Velleman
- Kaden
Nyeste Varmeapparat Manualer
13 August 2025
13 August 2025
13 August 2025
13 August 2025
13 August 2025
13 August 2025
13 August 2025
12 August 2025
12 August 2025
12 August 2025
