ISO POWER BLOCK V10
Manual
English
DESCRIPTION
The RockBoard® ISO Power Block V10 is a multi power supply
for eects pedals that oers 10 transformer isolated and highly
ltered power slots - 8 x 9 volts (isolated) with a max. current
output of 150 mA each and 2 x 18 volts (isolated) with a max.
current output of 400mA each - for separately powering a total of
up to 10eects pedals simultaneously without any noise.
The advanced ltering technology used in each of the power slots
prevents high frequency noise. Through individual short circuit
protection for each slot, connected eects pedals are eectively
protected in case of a short circuit. Individual LEDs indicate short
circuits for each of the 9V outputs. In case of a short circuit, only the
aected slot is being turned o, so undisturbed use of the rest of the
eects pedals is guaranteed.
POWER SUPPLY
The RockBoard®ISOPower BlockV10 is powered by an included
18V DC power adapter, with a current output of 2000mA. It comes
with a regulated 18V DC power supply rated at 2 000 mA. It is
rated for an input voltage of 100 to 240 V and 47 to 63 Hz alternate
current.
CAUTION: Please only use the included power adapter or one
with identical specifications to avoid overheating and damage to
the unit.
CONNECTIONS & USAGE
1. Connect the included power adapter with the input socket of the
ISO Power Block V10.
2. Insert the correct regional plug adapter into the power adapter.
3. Connect the power adapter with mains power - the power
indicator LED will light up.
4. Connect the included power connection cables to your eects
pedals and the ISO Power Block V10.
IMPORTANT NOTES: Take care to use only eects pedals with a
polarity of (-) center / (+) outside and with the correct input voltage,
to prevent damage to your eects pedals. Also please check that the
current draw of your eects pedals does not exceed the maximum
current output of each slot and the maximum total current output.
5. Should you want to power eects pedals with higher input
voltage, you can use the blue RockBoard® Power Ace Voltage
Doubler Y-Cable for bridging two outputs.
6. Should you want to power eects pedals with higher current draw,
you can use the white RockBoard® Power Ace Current Doubler
Y-Cable for bridging two outputs. Take care to use power slots with
matching output voltage!
INCLUDED ACCESSORIES
• 1 x power adapter 18V DC, 2A with exchangeable regional plug
adapters (EU, UK, US/CA, AU/NZ), input voltage 100-240 V AC
• 10 x RockBoard® Flat Power Cable, 60 cm - for connecting eects
pedals to the device
• 1 x RockBoard® Power Ace Voltage Doubler Y-Cable,
20 cm / 7 7/8" (blue) - for bringing two slots and doubling/
combining the volt output
• 1 x RockBoard® Power Ace Current Doubler Y-Cable,
20 cm / 7 7
/8
" (white) - for bringing two slots and doubling/
combining the current output
SPECIFICATIONS
• 10 transformer isolated power slots (8 x 9V @ 150 mA each,
2 x 18V @ 400 mA each ), 2.1 x 5.5 mm barrel plug, polarity (-)
center
• Individual status LEDs and short circuit protection for all 9V DC
slots
• Max. total current output: 2 000 mA
• Input Voltage: 18V DC
• Dimensions (L x W x H): 123 x 70 x 26 mm / 4 13
/16" x 2 3/4" x 1"
• Weight: 180 g / 0.4 lb.

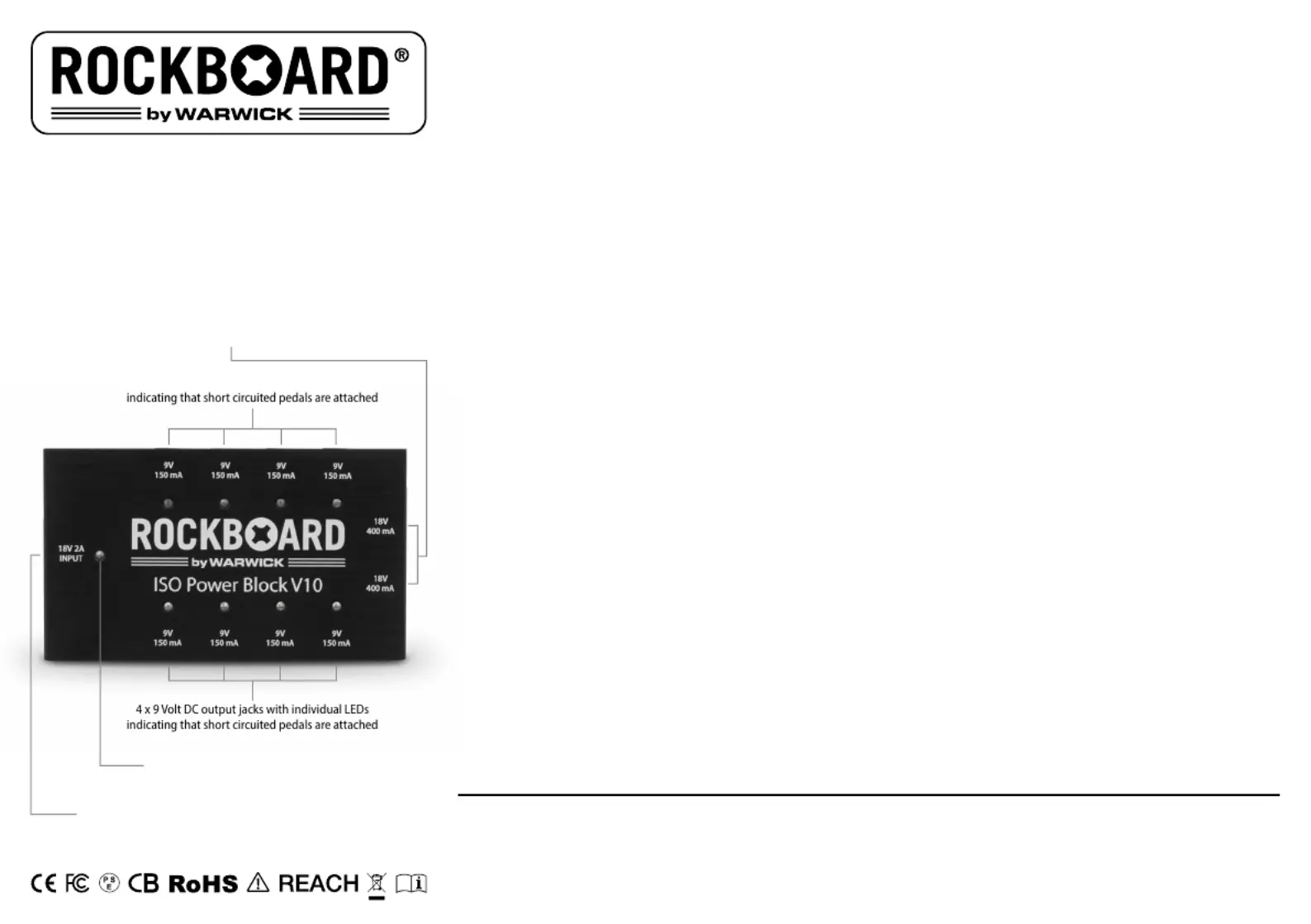

18V input jack; plug in
power adapter here
4 x 9Volt DC output jacks with individual LEDs
Blue LED indicating
if unit is powered
2 x 18Volt DC output jacks for pedals
with 18Volt power supply
USA DISTRIBUTION: Framus & Warwick Music USA, Inc. | info@rockboard.net | 629.202.6790
CHINESE DISTRIBUTION: Warwick Music Equipment Trading (Shanghai) Co. Ltd. | info@warwick.cn | +862134060110
NORTH EUROPEAN DISTRIBUTION: www.rockboard.de | info@rockboard.de | www.w-distribution.de | www.facebook.com/warwickmusicdistribution
Headquarters: Warwick GmbH & Co. Music Equipment KG | 08258 Markneukirchen / Germany | +49 (0) 37422 / 555 - 0
Family Owned • Solar Powered • Sustainably Manufactured in a Green Environment
