Introduction
Thank you for purchasing a RockBoard® LED Light V2 or LED Light UNI!
This easy-to-use LED light for your RockBoard pedalboard illuminates your eects ®
setup with six dierent colors (white / red / green / blue / yellow / pink) and four
brightness levels (100% / 75% / 50% / 25% / o). Put a stop to stomping your eects
in the dark once and for all with subtle, ambient lighting!
The LED Light V2 has been specically designed for use with RockBoard pedalboards. ®
With a simple, three hole mounting clamp, xing the light to illuminate your
eects on a dark stage can be done in seconds. The adjustable lock allows precise
adjustments of the orientation of the light. The LED Light UNI is designed for use
on all types of pedalboards, music stands, desks, cases or any other sturdy surface.
Power Supply
Connect the power cable to a 9V DC, center negative (-) power supply. Incorrect
voltage or polarity may cause irreparable damage to the LED Light and will void the
warranty. Unplug your power supply when not in use or during electrical storms.
Important note: The RockBoard® LED Light uses a digital micro controller for controlling
color and brightness of the LEDs. This may cause interference to sensitive analog circuitry.
To prevent noise interference, we suggest connecting the power plug to an isolated
transformer power slot on your multi-power supply.
Connections
Always turn o the power to the device as well as all other equipment before con-
necting or disconnecting. This will help to prevent malfunction and damage to any
of the devices used.
Cleaning
Clean only with a soft, dry cloth.
Handling
Do not apply excessive force to the switches or controls. Do not let paper, metal,
dirt or other objects have contact with the device or its connections. Take care not
to drop the device and do not subject it to shock or excessive pressure. To avoid
deformation, discoloration, or other serious damage, do not expose this unit to any
of the following conditions:
• Direct sunlight
• Strong magnetic elds
• Excessively dusty or dirty environments
• Strong vibration or shock
• Heat sources
• Extreme temperature
• High humidity or moisture
Interference with other electrical devices / RF Exposure Statement
Radios and televisions placed nearby may experience reception interference. Oper-
ate this unit at a suitable distance from radios and televisions.
Main Features
• Multi-color LED Light for RockBoard® pedalboards
• 6 selectable colors (white / red / green / blue / yellow / pink)
• 4 brightness levels (100% / 75% / 50% / 25% / o)
• Power supply via optional 9V DC power supply, 2.1 x 5.5 mm barrel plug,
polarity (-) center
• Adjustable lock allows the precise adjustment of the orientation on the
horizontal and vertical axis (LED Light V2)
• Fixed clamp allows mounting on any pedalboard or music stand
(LED Light UNI)
Controls
• Power / Brightness Switch: This button will turn on the LED light to the
brightest setting, repeated pressing of this button will cycle through the
4 brightness settings (100% / 75% / 50% / 25% / o).
Pressing the button 5 times will turn o the light.
• Color Switch: This button cycles through the 6 selectable colors
(white / red / green / blue / yellow / pink)

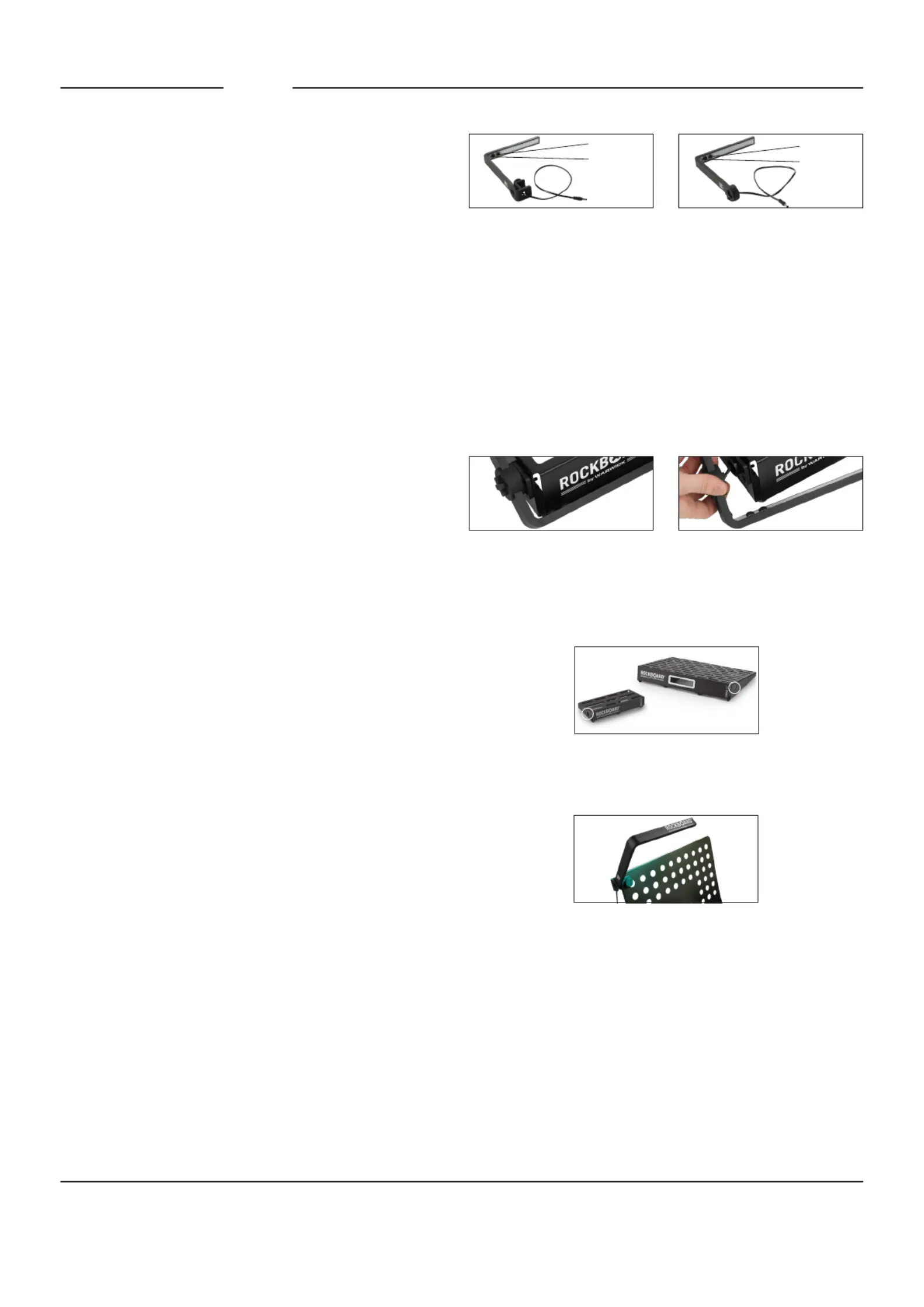

Mounting
ROCKBOARD® LED LIGHT V2
Use the included mounting screws, nuts and wrench to mount the RockBoard®
LED Light V2 tightly to the side of your pedalboard. Run its power cable through the
large mounting opening, so it does not protrude from the side of your board. For
mounting your RockBoard® pedalboard, there are pilot openings in the side of your
RockBoard®. The adjustable lock allows the precise adjustment of the orientation on
the horizontal and vertical axis and can be slided in close to the board (1) or removed
(2) for transport.
This RockBoard® LED light V2 has been specically designed for use with RockBoard®
pedalboards. Immediately compatible with all RockBoard® pedalboards, its simple
3-hole mounting clamp can be xed to virtually any pedalboard of the RockBoard®
range. The RockBoard® DUO 2.0, DUO 2.1, TRES 3.1 and QUAD 4.1 pedalboards
feature one set of mounting holes on the right side. On the RockBoard® Pedalboards
DUO 2.2, DUO 2.3, TRES 3.0, TRES 3.2, TRES 3.3, QUAD 4.2, QUAD 4.3, QUAD 4.4,
CINQUE 5.2, CINQUE 5.3, and CINQUE 5.4 there are mounting holes on both sides of
the pedalboard.
ROCKBOARD® LED LIGHT UNI
The RockBoard® LED Light UNI is designed for universal use (on pedalboards, music
stands, mixing desks, ight cases). The xed clamp allows the LED Light UNI to be
attached to almost any surface and aligned universally.
Light Specications
• LEDs: 16 x tricolor
• Colors: white / red / green / blue / yellow / pink
• Power requirements: 9V DC (-) center
• Power Connector: 2.1 x 5.5 mm barrel plug
• Current Draw: less than 100 mA
• Dimensions (W x H x D): 220 x 220 x 25 mm (8
21
/
32
" x 8
21
/
32
" x
63
/
64
")
• Weight: 150 g
RockBoard® LED Light V2 & LED Light UNI
Manual
USA DISTRIBUTION: Framus & Warwick Music USA, Inc. | info@rockboard.net | 629.202.6790
CHINESE DISTRIBUTION: Warwick Music Equipment Trading (Shanghai) Co. Ltd. | info@warwick.cn | +862134060110
NORTH EUROPEAN DISTRIBUTION: www.rockboard.de | info@rockboard.de | www.w-distribution.de | www.facebook.com/warwickmusicdistribution
Headquarters: Warwick GmbH & Co. Music Equipment KG | 08258 Markneukirchen / Germany | +49 (0) 37422 / 555 - 0
Family Owned • Solar Powered • Sustainably Manufactured in a Green Environment
Note: The manufacturer reserves the right to change these specications without notice
Color Switch
Power/ Brightness
Switch
Color Switch
Power/ Brightness
Switch
1
2
