Original Rock Speakers

INSTALL INSTRUCTIONS

Ultra-Fidelity Outdoor Speakers

Contact: MSE Audio, 855.663.5600 / 913.663.5600 / sales@mseaudio.com

Please read the following instructions carefully before

installing your Rockustics

Rock speaker. If you have any

questions regarding installation that are not answered in

the following directions, please contact your local sound

contractor, or the Rockustics

/MSE Audio

technical

support team.

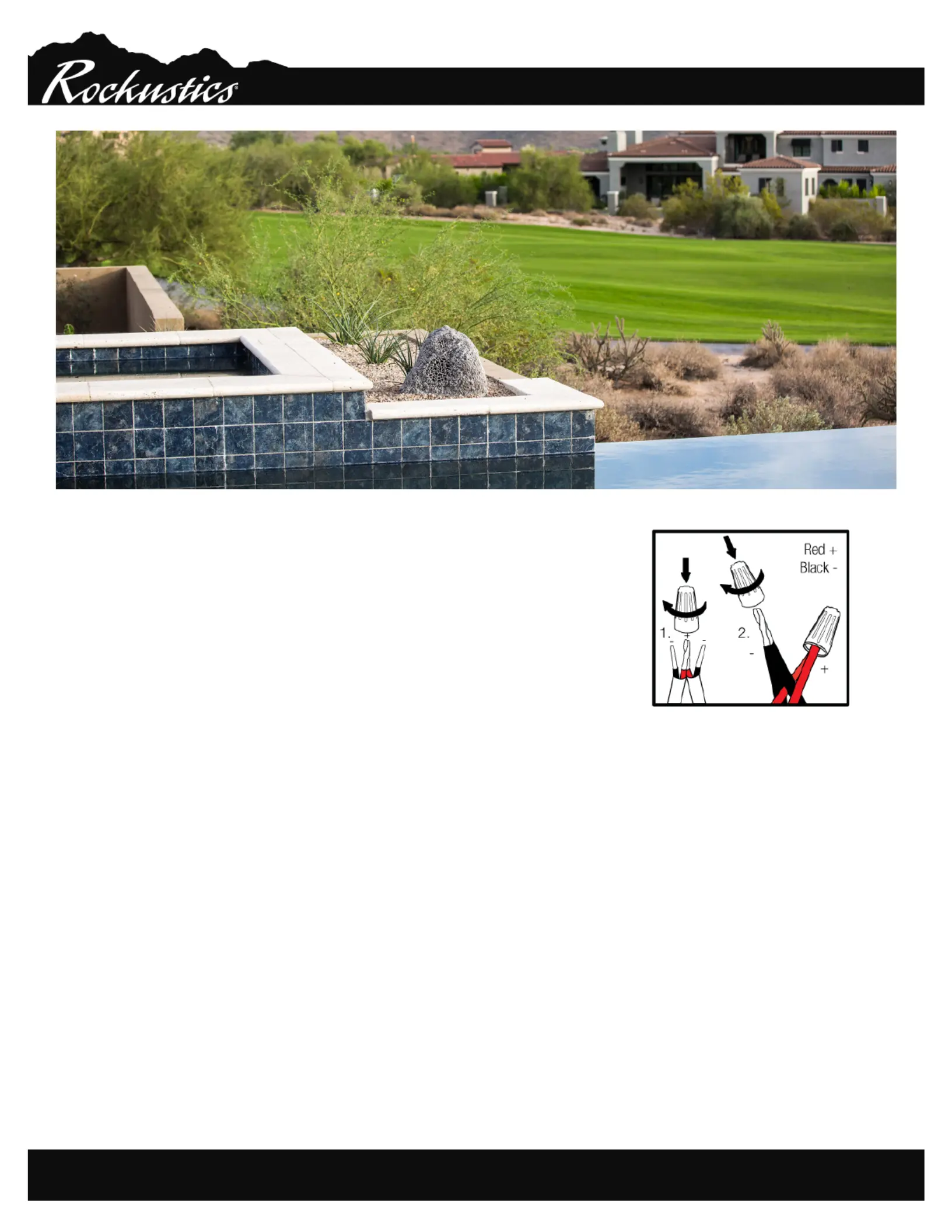

Basic Wiring

(Diagram A) Locate speaker wire on the underside of the

rock. If necessary, strip the wire ends and trim the wire to the

appropriate length. Use the supplied silicone wire nut

to connect the positive (red) leads of the speaker and

input wires. Repeat this step with the negative (black) leads.

Rockustics recommends using 14ga or heavier Direct

Burial cable for the connection between the amplier and

speakers.

NOTE: The provided wire nuts are meant for permanent

installation use only. If you are temporarily wiring the

speakers, do not use these wire nuts. In the event

you have used wire nuts, and need to re-wire your

system, do not attempt to unscrew the nuts. In-

stead, clip the wires below the nut, and follow the

steps in the section with a new pair ofBasic Wiring

waterproof wire nuts (available at most hardware stores).

Optimizing Speaker Placement for

Best Sound

All Rockustics speakers can generate a high SPL (sound

pressure level). Be ready to rock, but be considerate of

your neighbors! Maximum acoustic performance should

be an important factor in determining speaker placement.

Here is how to achieve it:

1) Establish where the most likely or average listening

position will be.

2) The speakers should be placed at or close to the

same distance from that point.

3) The actual distance between the listening position

and the location of the speakers is not critical. How

ever, keep in mind that as the distance between

listening area and speaker is increased, there will be

a noticeable decrease in perceived volume.

4) Be sure to conrm amp power matches the power

rating on the speaker. Over-driving the speaker can

lead to permanent damage that is not covered under

warranty.

Optimizing Aesthetics with

Speaker Placement

All Rockustics products are designed with a boost in high

frequency response to accommodate for placement near

plants and other landscaping features. Feel free to position

the product within your landscaping, camouaged near

bushes or shrubs. Rockustics products strive to blend into

Diagram A

Original Rock Speakers

INSTALL INSTRUCTIONS

Ultra-Fidelity Outdoor Speakers

Contact: MSE Audio, 855.663.5600 / 913.663.5600 / sales@mseaudio.com

the natural aesthetic of their surroundings.

Be sure to account for the wires which will run from the

rock to your stereo or audio source. Camouage wires by

running them an inch below ground level when possible.

Cautions and Maintenance

All Rockustics Rock Series speakers are sealed and

fully weatherproof. However, DO NOT place speakers

where the grille will be in the path of a sprinkler system.

Sprinklers typically have a high water pressure level that can

damage speaker cones if hit directly.

DO NOT place soil or wood chips over the speaker grille. If

the grilles accumulate a build up of soil, the speaker may

become damaged. If build up does occur, simply rinse

the grille with a garden hose set to a low pressure level.

Accumulated soil may also promote undesired insect

trafc into the speaker. Insects may eat through the

speaker cone. Chemical sprays may also cause

damage to the rubber of the speaker surround. This includes

bug spray, deck sealant, some fertilizers and oil based

products. Speakers MUST be covered when applying

these treatments or chemicals in your yard.

For environments that get snow and ice during the winter

months, be sure to check that the openings and woofer

cone are clear and there is no hard-packed snow or ice

built up in these areas before playing. If there is ice or snow

present on the cone, use a hair dryer set on a low setting to

melt it away. If the speakers are not going to be used during

the winter months, it is recommended that they either be

disconnected and brought indoors, or covered with a plas-

tic bag to help protect the speaker components.

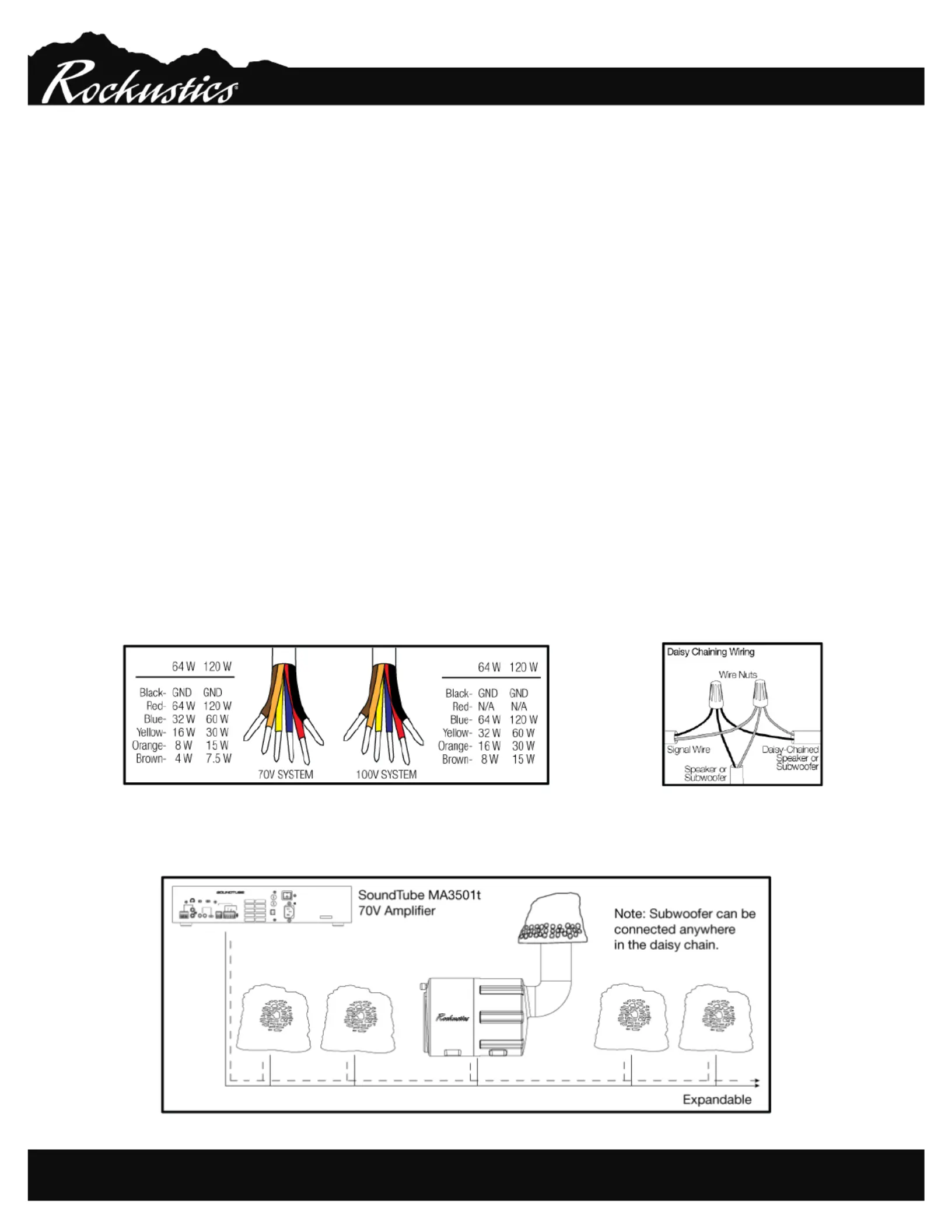

Wiring for 70V/100V Applications

For speakers with transformers, use to nd the Diagram C

proper wire selection for your desired tap setting. Once the

desired tap setting is conrmed, trim the unused wires to

minimize corrosion. For harsh and wet environments, it is

recommended to apply a bead of silicone to the end of the

unused wires for added protection.

If daisy-chaining, follow wire preparations as outlined in

the Basic Wiring Diagram E section. Review for a typical

daisy-chain wiring system for 70V and 100V applications.

Be sure to connect the wires going to the next speaker in

the chain as shown in . There should be three Diagram D

pairs of wires at each speaker, but the last speaker in the

chain will only have two pairs. Follow standard protocol for

polarity and make sure all units are wired with the same

polarity.

Diagram E

Diagram D

Diagram C
