User Manual
ROLINE HDMI over IP Extender 4K30Hz Rx+Tx, 120m, W/IR
14.01.3642
Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference.
Introduction
With this HDMI™ video extender, you can extend HDMI™ signals or DVI signals (with an
HDMI™-DVI adapter, not included) up to 120 m for Ultra HD (4K@30Hz) video over a
single Cat 5e/6 cable. An ideal solution for sharing a screen or projector over a LAN
network, allowing a video source to be connected without a digital video output. IR signals
from the remote control of the video source can also be redirected - perfect for controlling
your video source from your video destination.
Features
2 extension modes: simple mode (1:1), allocation mode (1: N)
Following TCP/IP standard
Resolutions up to 480p/720p/1080i/1080p/4K@30Hz
Max video bandwidth to 3.4Gbps/340MHz per channel (10.2Gbps all channels)
Cat 5e/6 cable needs to follow the standard of IEEE-568B
Supports 3D
Package Content
Main Unit Transmitter (TX) 1x
Main Unit Receiver (RX) 1x
Adapter 2x

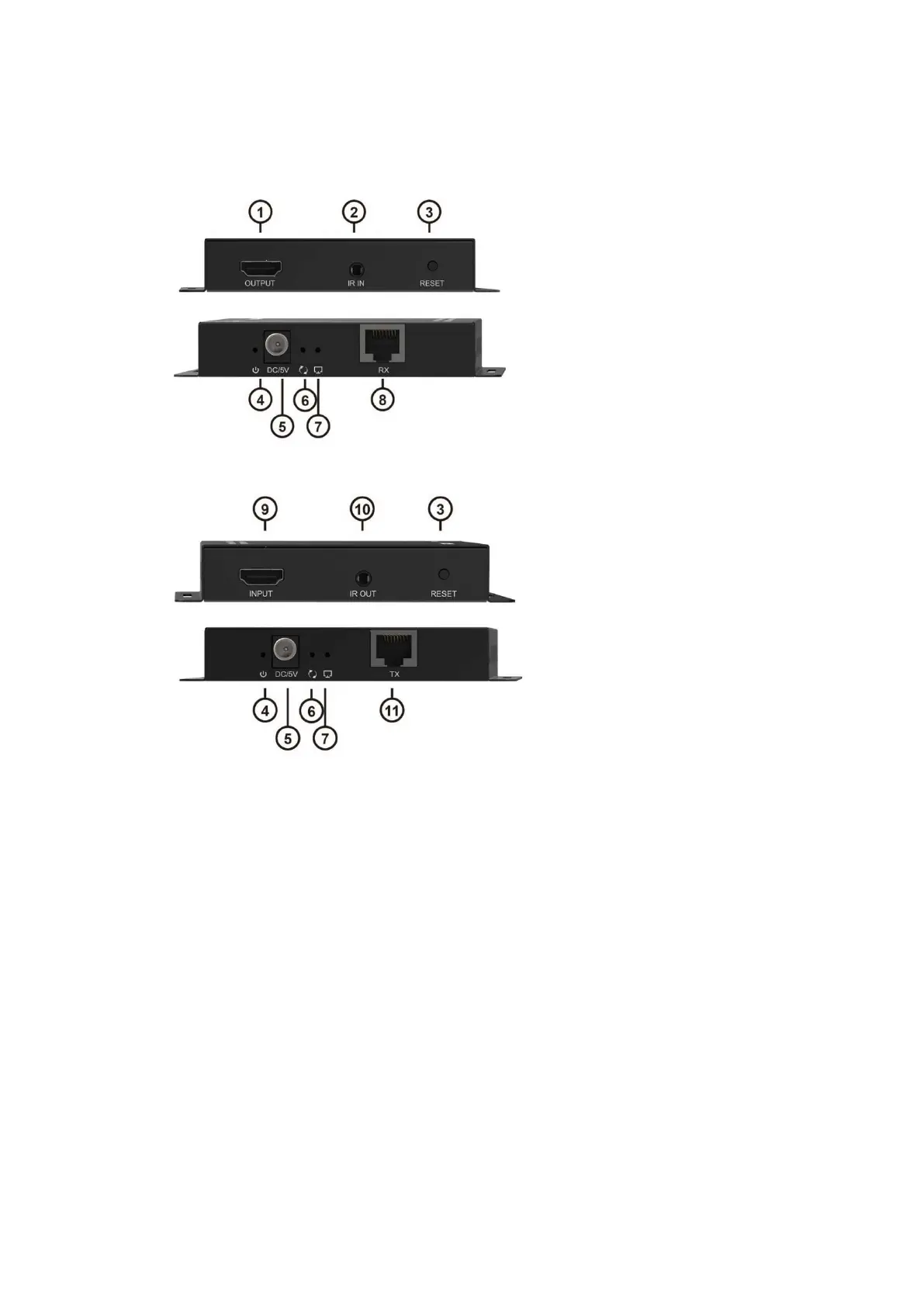

Ports and Interfaces
Receiver (RX)
Transmitter (TX)
1. OUTPUT: HDMI Output
2. IR IN: IR Signal Input
3. RESET: Restart
4. DC 5V: Power LED Indicator
5. DC/5V: DC 5V In
6. HDMI Signal Status LED Indicator
If the HDMI signal is being transmitted normally, the LED indicator is on
If there is no HDMI signal, the LED indicator is off.
7. Cat 5e/6 cable Link LED Indicator
When a Cat 5e/6 Cable is connected, the LED Indicator is on
When no Cat 5e/6 Cable is connected, the LED Indicator is off
When a Cat 5e/6 Cable is connected and the video signal is transmitted normally, the LED
indicator flashes quickly.
8. RX: Port for Cat 5e/6 Cable
9. INPUT: HDMI Input
10. IR OUT: IR Signal Output
11. TX: Port for Cat 5e/6 Cable
