Owners Manual

Rolls Corporation

Salt Lake City, UT 10/05

MX56c

MiniMix A/V

4-Channel Mixer

OPERATION

Connect your various devices such as a laptop computer, wireless microphone,

or other line level devices to Inputs 3 and 4. Remember Channel 4 is MONO,

and Channel 3 is STEREO.

Connect a stereo signal source such as a CD player, cassette player, or a video

player's audio output to Channel 1, and a microphone to Channel 2. If the micro-

phone requires phantom power, move the phantom power jumper as described

on the previous page.

Adjust the levels of each channel for a desired balance of signals. Since the

MX56c has no master level, you will need to be aware of the setting of your am-

plifier. Check each mic/source level individually first for

proper level, then adjust

them for a desired mix.

SCHEMATIC

INTRODUCTION

Thank you for your purchase of the MX56c MiniMix A/V. The unit is ideal for A/V

presentations where a microphone must be mixed with a variety of sources such

as a CD player, MP3 player, laptop computer, etc.

INSPECTION

1. Unpack and Inspect the MX56c package

Your MX56c was carefully packed at the factory in a protective carton. Nonethe-

less, be sure to examine the unit and the carton for any signs of damage that

may have occurred during shipping. If obvious physical damage is noticed,

contact the carrier immediately to make a damage claim. We suggest saving

the shipping carton and packing materials for safely transporting the unit in the

future.

2. Please visit our website at

www.rolls.com

, and follow the Register Your War-

ranty Here link, or complete the Warranty Registration Card and return it to the

factory.

SPECIFICATIONS

Connectors: Input: 1/4" unbal.

1/8" (3.5 mm) stereo

XLR bal.

Stereo RCA

Output: Stereo RCA Line Level

1/8" TRS Stereo Phone

1/4" TRS Instrument or Mic Level, bal.

Max Gain: Ch 1; 15 dB

Ch 2; 60 dB

Ch 3; 15 dB

Ch 4; 40 dB

Channel Crosstalk: -70 dB

Phantom Power: 9 - 16 VDC depending on power source

Max Output: + 12 dB

S/N Ratio: >80 dB

THD: <.05%

Box Size: 6.5" x 2.7" x 1.55"

Weight: 2 lbs.

DESCRIPTION

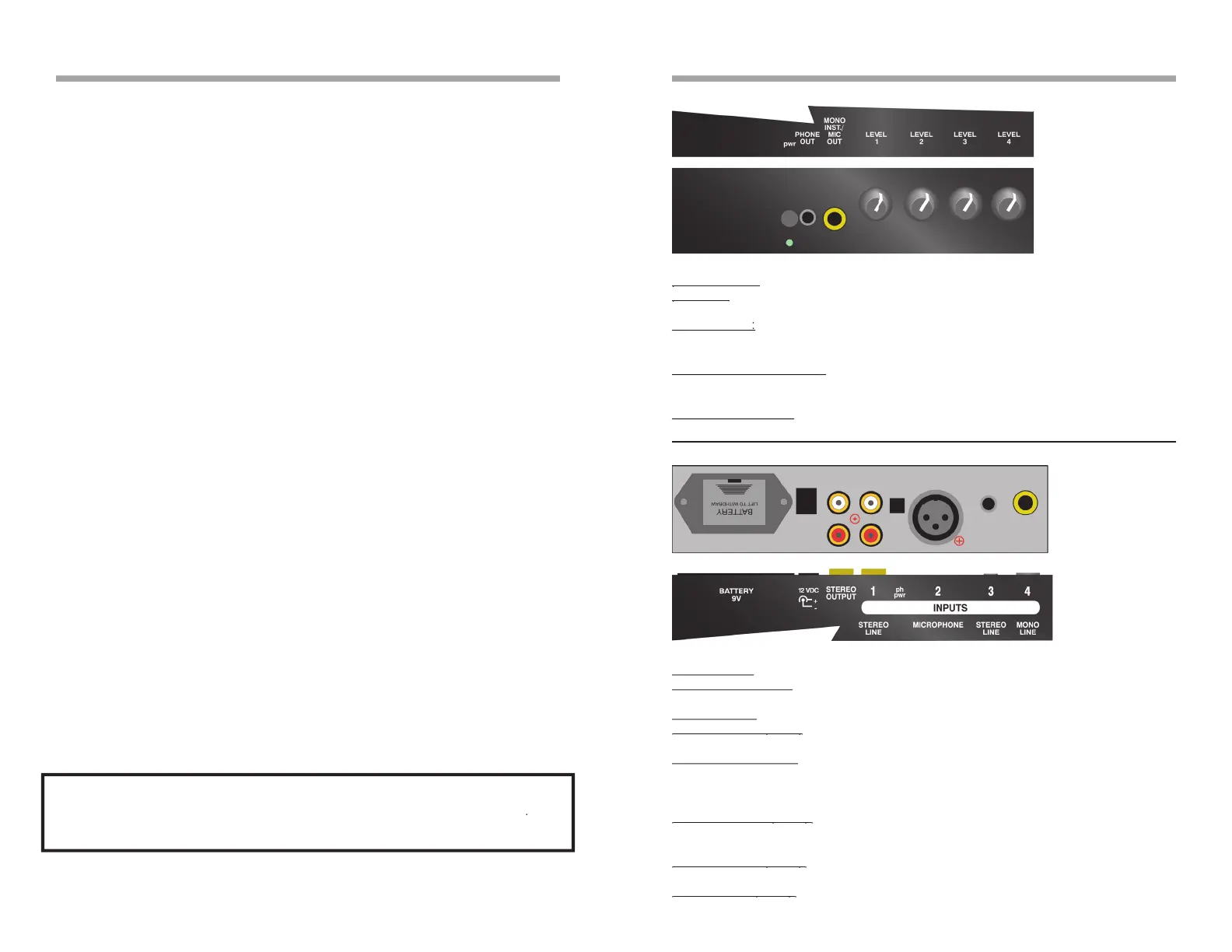

FRONT PANEL

pwr SWITCH:

When pressed IN, applies power to the MX56c

pwr LED:

Located just below the Power Switch, this LED Indicates the MX56c is

connected to a power source (battery or AC adapter), and the unit is on.

PHONE OUT

1/8" (3.5mm) TRS stereo jack for connection to stereo headphones

or earphones. NOTE: DO NOT CONNECT A MONO PLUG TO THIS JACK. DO-

ING SO WILL DAMAGE THE MX56c.

MONO

INST / MIC OUT

1/4" TRS balanced mic level output jack for connection

to another mixer's microphone input, or to an instrument amplifier.

LEVEL 1 - LEVEL 4:

Adjusts the signal level of the corresponding input channel.

REAR PANEL

BATTERY 9V:

Compartment for housing the 9V alkaline battery.

DC POWER INPUT:

Connects to the Rolls PS27; 12 - 16 VDC 150 mA power

supply. The inside of the jack (the post) is negative, the outside is positive.

TEREO OUT

: Stereo RCA jacks with the main mixed signal at line level.

STEREO LINE (Ch 1)

: Stereo RCA jacks for connection to a line-level source

such as a CD, cassette or video player.

PHANTOM POWER:

The square hole between Line In 1 and Mic In 2 has the

phantom power jumper. To engage the phantom power, carefully pull out the

jumper with a pair of needle-nose pliers and replace it in a horizontal position so

the jumper shorts the two pins together.

MICROPHONE (Ch 2):

XLR input jack for connection to a dynamic or condenser

microphone. If you are using a condenser type microphone make sure the Phan-

tom Power jumper is shorted together as described above.

STEREO LINE (Ch 3):

1/8" (3.5mm" Tip-Ring-Sleeve stereo jack for connection to

a line-level stereo signal source such as a laptop computer.

MONO LINE (Ch 4):

1/4" Tip-Sleeve mono jack for connection to a mono line-lev-

el source such as the output of an instrument, or wireless microphone receiver.

LIMITED WARRANTY

For war

ranty information and registration, see our website at

www.rolls.com
