MX410

Field Mixer

Quick Start Guide

ROLLS CORPORATION

SALT LAKE CITY, UTAH

3/16

+20

+20+20

+20

LEVEL

left

right

MX410

HEADPHONE

ENG MIXER

SOUND MAN

Four Channel Stereo

Field Mixer

MX410

PWR

AUX

INPUT

MIC

LINE

CH EL

LEFT

RIGHT

Low Cut

Phantom

Low Cut

INPUTS

OUTPUTS

POWER

OFF - ON

3.5mm

PUSH

ROLLS CORPORATION

5968 South 350 West

Salt Lake City, UT 84107

Phone (801) 263-9053

FAX (801) 263-9068

www.rolls.com

NOTE: THIS MANUAL ASSUMES THE USER HAS A WORKING KNOWLEDGE OF

AUDIO ELECTRONICS, BALANCED AND UNBALANCED CONNECTIONS, AND

PROPER SIGNAL LEVEL SETTINGS. FOR PROPER SETUP AND USE CONTACT

YOUR DEALER.

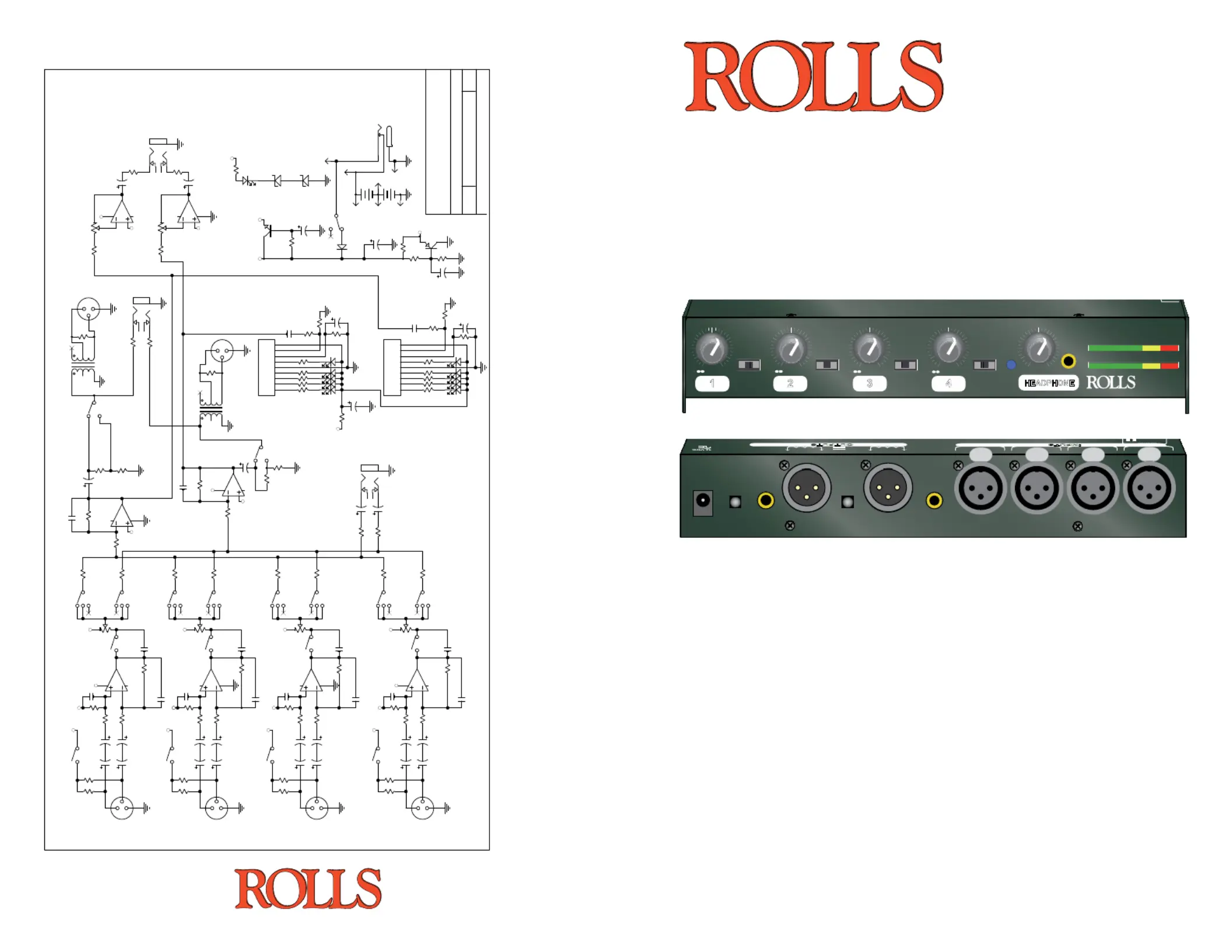

SCHEMATIC

Rolls Corporation

5968 S 350 W

Murray, Utah 84107

MX410.SCH A

21 September 2009

Title

Size: Document Number:

Date:

Rev:

Sheet of

MX410 Sound Man

FXa

LINE IN

CH 1

IN 9-15 VDC

OUT

+VB

Vph

+VB

CLIP

JAPDC

R107

22K

47U

1 2

3J5

XLR M PC

47U

R2 100K

C1 27PF

R102

4.99K 1%

R101

4.99K 1%

R104332 1%

1 2

J1 XLR F PC

P100K

C107

R105332 1%

R103

33K

C105

220PF

R106

33K

C106

220PF

SW2

SPST

BT2

BAT 9V

BT1

BAT 9V

22K

1N4001

LDRG

R11

22K

U1B

4560

U3A

4556

WIRE

P/N 829

R10

680

1K UF

RIGHT OUT

OUT

+VB

1 2

XLR M PC

47U

100K

1K 6

U3B

4556

P/N 829 LEFT OUT

27PF

+VB R108

22K

R109

10K

WIRE

C101

47U

C102

47U

C103

47U

C104

47U

5.1V

CH 2

+VB

R207

22K

R202

4.99K 1%

R201

4.99K 1%

R204332 1%

1 2

J2 XLR F PC

P100K

C207

R205332 1%

R203

33K

C205

220PF

R206

33KC206

220PF

U1A

4560

+VB

R19

47K

R208

22K

R209

10K

C201

47U

C202

47U

C203

47U

C204

47U

CH 3

+VB

Vph

R307

22K

R302

4.99K 1%

R301

4.99K 1%

R304332 1%

1 2

J3 XLR F PC

P100K

C307

R305332 1%

R303

33K

C305

220PF

R306

33K

C306

220PF

U2B

4560

+VB

R310

R308

22K

R309

47K

C301

47U

C302

47U

C303

47U

C304

47U

CH 4

+VB

Vph

R407

22K

R402

4.99K 1%

R401

4.99K 1%

R404332 1%

1 2

J4 XLR F PC

P100K

C407

R405332 1%

R403

33K

C405

220PF

R406

33KC406

220PF

U2A

4560

+VB

R16

R408

22K

R15

47K

C401

47U

C402

47U

C403

47U

C404

47U

1 16

SW1A

SW DIP-8

2 15

SW1B

SW DIP-8

3 14

SW1C

SW DIP-8

4 13

SW1D

SW DIP-8

5 12

SW1E

SW DIP-8

6 11

SW1F

SW DIP-8

7 10

SW1G

SW DIP-8

8 9

SW1H

SW DIP-8

2N3906

R12

22K

2N3904

47UR13

10K

Vph

R14

680

SW7B

DP3THOR

SW7A

DP3THOR

SW6A

DP3THOR

SW6B

DP3THOR

SW5B

DP3THOR

SW5A

DP3THOR

SW4A

DP3THOR

SW4B

DP3THOR +VB

+VB

BATT

AUX OUT/

HDPHN

P5B

P100K X2

U6B

4556

U6A

4556

R23

10K

P5A

P100K X2

C11

47U

R39

R40

50C12

47U

R24

10K

C27

.047

C38

.047

R20

47K

J13

3.5STJK

C408

C409

D10 D11

D12

D13

D14

10U

BA6144

R18

10K

R17

10K

R51

100

C13 47U

D5 D6D7

D8 D9

C10

10U

BA6144

R21

10K

R22

10K

R46 4.7K

R47 4.7K

R48 4.7K

R49 4.7K

R50 4.7K

R41 4.7K

R42 4.7K

R43 4.7K

R44 4.7K

R45 4.7K

HDPHN

3.5STJK

0/-30 LINE OUT

3.5STJK

SW3A

DPDT

SW3B

DPDT

R26

R25

1E5

WIRE

1 E6

WIRE

1E7

WIRE

1E4

WIRE

Vph

5.1V

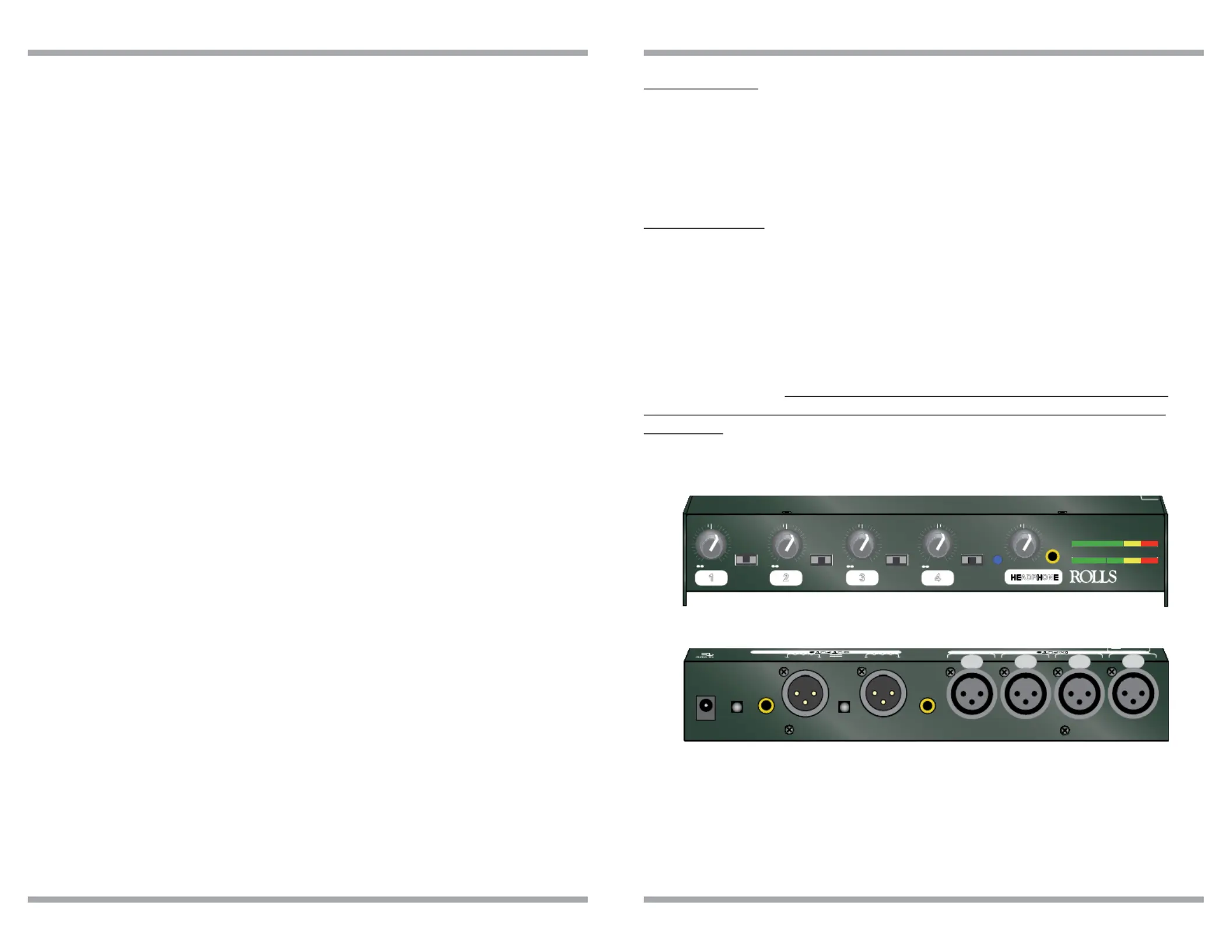

INTRODUCTION

Thank your for your purchase of the Rolls MX410 Field Mixer; Professional ENG

mixer. Please read and review this manual carefully as it contains important

information regarding the proper use and care of the MX410.

INSPECTION

1. Unpack and inspect the MX410 box and package.

If obvious physical damage is noticed, contact the carrier immediately to make a

damage claim. We suggest saving the shipping carton and packing materials for

safely transporting the unit in the future.

2. Please visit our web site at www.rolls.com and click on the Register Your

Warranty Here button.

www.rolls.com

Input Impedance: Mic: 600 Ohms XLR balanced

Output Attenuator: -30 dB

Self Noise: -65 dB maximum

-90 dB typical

Max Gain: +55 db

S/N Ratio: 115 dB

THD: .05%

Frequency Response: 20 Hz - 20 kHz | +0, -3 dB

Low Cut: 100 Hz

Max Input: -20 dBV

Current Draw: 30 mA with no Phantom Power or Signal.

Phantom Power: +18 VDC

Typical Battery Life: 18 Hrs. (2 mics, phan on, with headphone)

Connectors: 4 ea. Female XLR, 2 ea. Male XLR,

3 ea. 1/8 (3.5mm), 1 Center Negative power jack.”

Power Adapter: 12-15VDC / 300-500 mA

Size: 9 W x 6.75 D x 1.5 H” ” ”

Weight: 2.45 lbs

www.rolls.com

page 6

page 1

LOW-CUT FILTERS

Each channel of the MX410 features a switchable Low-Cut lter set at 100Hz.

These Low-Cut lters (sometimes called “High Pass”) cut frequencies below

100Hz signal and are eective for reducing wind noise. For several audio appli-

cations engaging the Low-Cut lter is benecial, since little usable audio informa-

tion exists below 100 Hz. Especially for speech recording.

PHANTOM POWER

The MX410 can provide up to 10 mA of current to each input, sucient for the

most power-hungry condenser microphones. The MX410 Phantom Power utilizes

a xed DC voltage which is resistively applied to pin-2 and pin-3 of an XLR input

connector relative to pin-1 (there is no voltage dierence between the signal on

pins 2 and 3; a dynamic microphone may or may not operate normally in the

presence of phantom power).

It is generally a good practice to turn o phantom powering when not using a

condenser microphone, as it can capacitively couple noise into the mic inputs

with poor mic cables. Also, be sure to turn o phantom powering when using rib-

bon microphones since an improperly wired cable can permanently damage the

microphone.

OPERATION AND SET UP CONT.

SPECIFICATIONS

+20

+20+20

+20

LEVEL

left

right

MX410

HEADPHONE

ENG MIXER

SOUND MAN

Four Channel Stereo

Field Mixer

MX410

PWR

AUX

INPUT

MIC

LINE

CH EL

LEFT

RIGHT

Low Cut

Phantom

INPUTS

OUTPUTS

POWER

OFF - ON

3.5mm

PUSH

Trouble shooting: The MX410 is designed to be an easy to use full func-

tion mixer. PLEASE MAKE SURE THAT THE REAR MIC/LINE

SWITCH IS IN THE CORRECT POSITION FOR YOUR INTENDED

USE.
