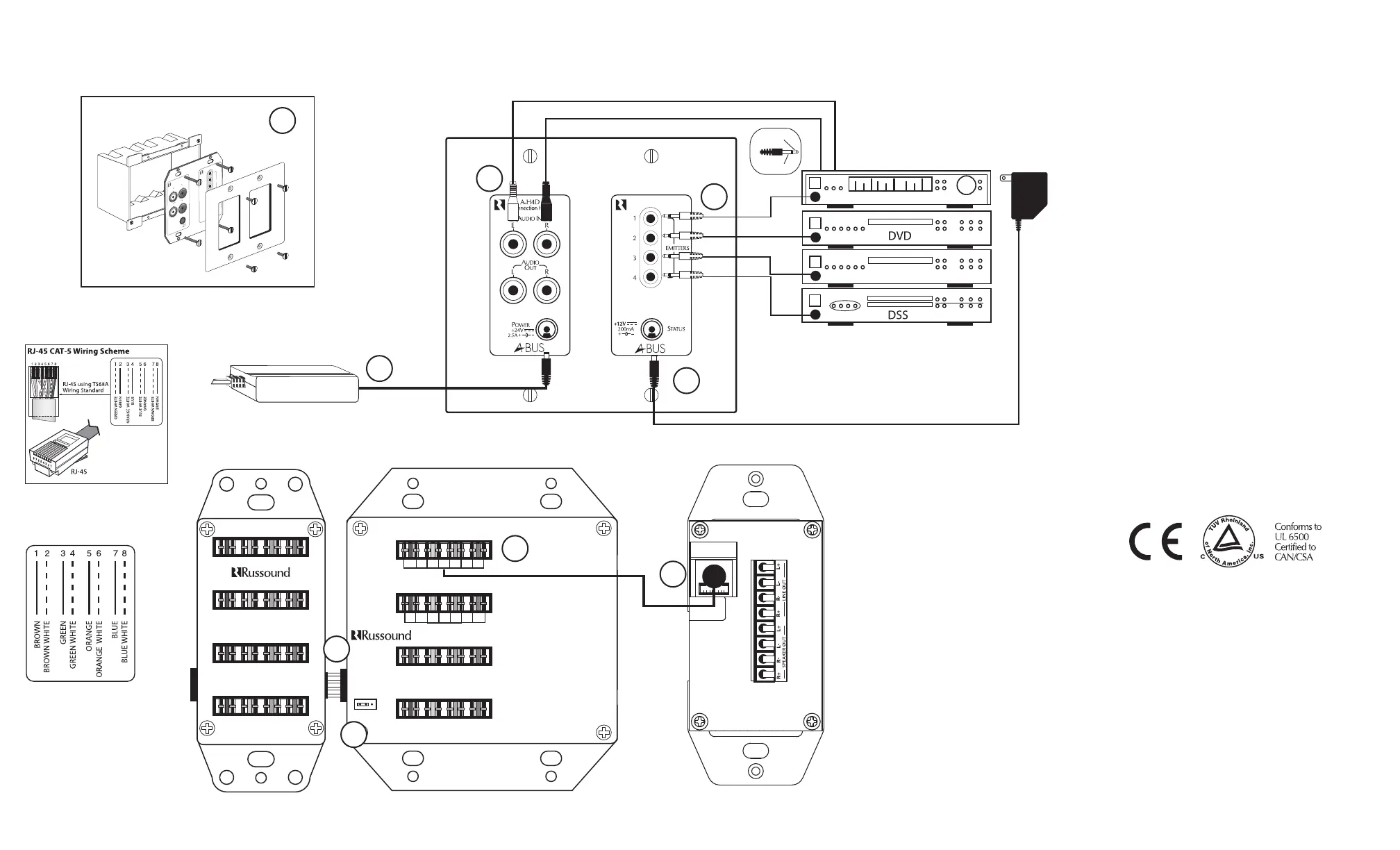

CONNECTION DIAGRAM FOR A-H4D. REFER TO THE NUMBERED INSTRUCTIONS ON REVERSE. DIAGRAMS ARE NOT TO SCALE.
A-H4DX
KP1
BBWGGWOOWBLBLW
BBWGGWOOWBLBLW
BBWGGWOOWBLBLW
BBWGGWOOWBLBLW
KP2
KP3
KP4
Pos (+)
Neg (–)
CD Changer
Receiver
KP1
BBWGGWOOWBLBLW
BBWGGWOOWBLBLW
BBWGGWOOWBLBLW
BBWGGWOOWBLBLW
KP2
KP3
KP4
12
STATUS
3
A-H4D
L GAIN R
Hub
A-K4 (back)
RCA cables
Emitter attaches
to each source
component’s
IR window
Optional Status power supply
to switched AC outlet
A-PS power supply
A-H4D (back)
A-H4Dx (back)
A-H4D (front)
CAT-5 cable
E
MITTER
S
S
TATUS
A
UDIO
I
N
L
R
A
UDIO
O
UT
L
R
P
OWER
1
EMITTERS
2
3
4
S
TATUS
CAT-5 110 punchdown
connection detail
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference
by one of or more of the following measures: reorient or relocate
the receiving antenna; increase the separation between the
equipment and receiver; connect the equipment into an outlet on
a circuit di erent from that to which the receiver is connected, or
consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
2
5
3
3
1
1
6
8
4
