Side 1/8

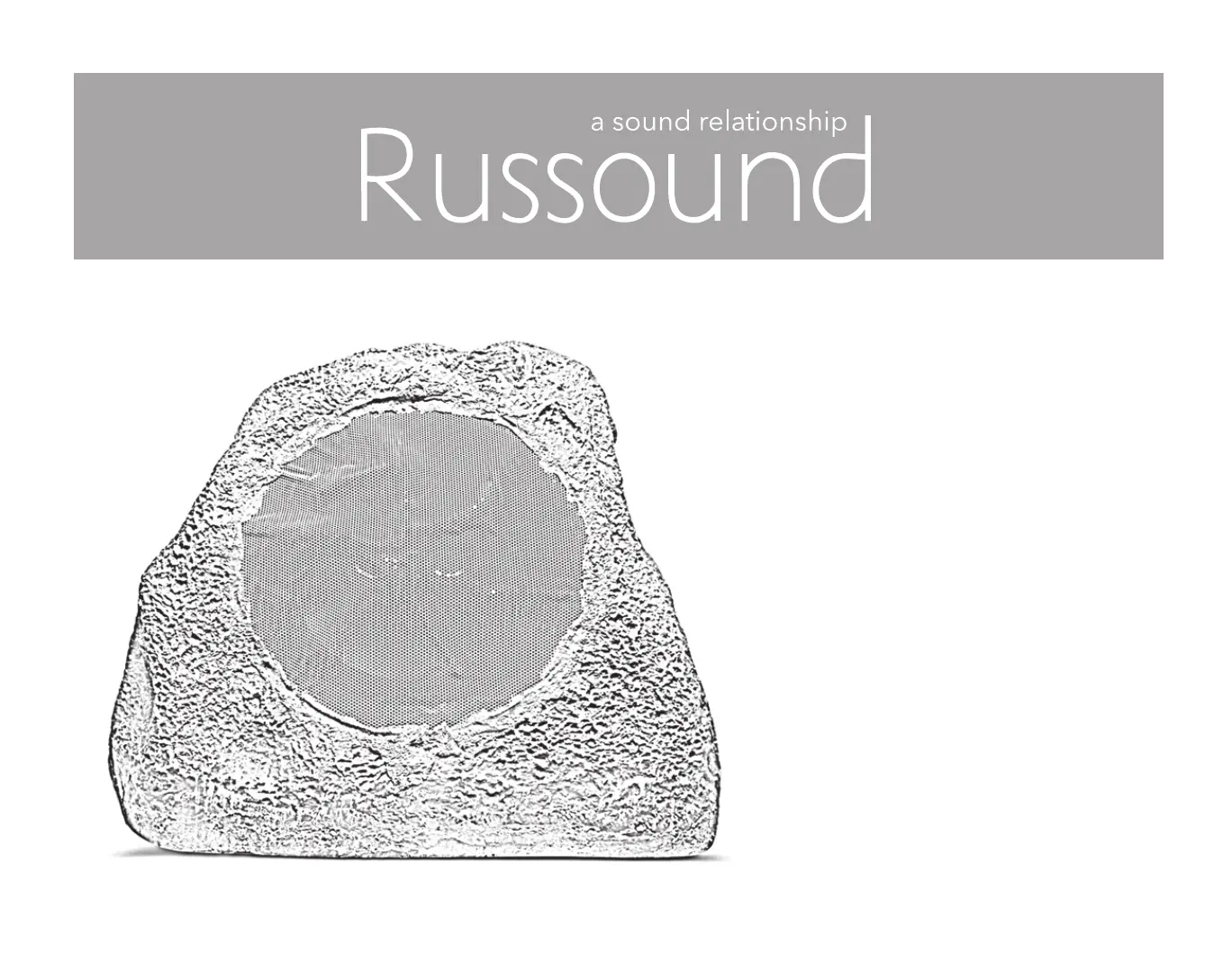

Acclaim

™

5 Series OutBack

Outdoor Rock Loudspeaker

and Rock Subwoofer

Installation Manual

Russound Acclaim OutBack Rock Speaker Installation Manual

INTRODUCTION

Introduction

Thank you for selecting an outdoor rock speaker from Russound. Like all

Russound speakers, they combine acoustic technology with durability and

will provide years of musical enjoyment.

These Rock Speakers are designed to look like natural outcroppings of rock

instead of bulky aluminum and plastic speakers that detract from nature’s

beauty. Russound Rock Speakers are a distinctive addition to your yard

and blend into any landscape for a convenient and practical outdoor audio

solution.

The realistic rock speakers are oered in three styles to match your landscape:

Gray Granite, Weathered Granite and Sandstone. These shapes and nishes

closely mimic rocks found in nature for a quality, believable look. The secret

to the realistic look of the rock speakers is in the way they are crafted. The cast

enclosure process produces more lifelike shapes and surfaces. This process is

more expensive, but the three-layer berglass and resin construction results

in an acoustically better speaker with low resonance for better sound. The

process also creates an environmentally stable and durable speaker housing.

The resulting Rock Speaker has a sturdy, waterproof cabinet tough enough

for use in all types of weather and environments. The enclosure is silicone

sealed and equipped with a water drain for the speaker opening. For added

convenience an attached security eyelet is provided to prevent the speaker

from getting ‘carried away.’

Each speaker has an 8” coaxial two-way or single-point stereo driver with a

polypropylene cone and fully painted aluminum grille.

With 10 – 125 watt power handling, Russound Rock Speakers t any outdoor

speaker necessities, for monaural or stereo applications.

Amplier Considerations

The Rock Speakers should be powered by an amplier that provides a

minimum of 10 watts per channel. An amplier that has both stereo and mono

capability is a plus, as you may want to use mono for large areas.

If you intend to use more than one pair of speakers at a time it’s important

to consider both the impedance of the speakers and the capabilities of the

amplier or receiver. Not all ampliers or receivers can safely operate two sets

of speakers at once.

Number of Speaker Pairs

First, determine the size of the listening area, and identify any gathering

areas where folks will sit or stand. The typical coverage area is 20 feet from the

front of the speaker for normal listening levels. There should be a maximum of

20 feet between speakers for better stereo imaging. Too far away from each

other creates an acoustic void when used for stereo. Monaural will not be

aected to the same degree.

Use as many pairs of speakers as needed to achieve the desired coverage and

dispersion of sound. Getting more sound with more speakers is better than

cranking the volume, which may lead to amp clipping. Large areas are better

served by monaural audio instead of stereo. In most outdoor environments,

there is no ideal listening area to give stereo image or separation.

Speaker Placement

An important factor for speaker placement is the location elevation. Select a

spot wires can be run to from the audio system. The speakers should face the

listening area and be spaced for best sound coverage for the area.

The realistic rock shape and nish will blend in best if placed in a manner

that mimics nature, such as near a rock wall or amidst ground plantings. Be

sure to avoid placing the speaker in low spots that collect water.

Elevation and Slope

Speakers should be placed on the same level for balanced sound delivery.

Speakers on dierent elevations will have dierent sound characteristics. The

acoustic design is optimized to provide the best sound when placed on level

ground at the same elevation as the listening area. Placing the speaker on

higher elevations or tilting it upwards will provide less than optimal sound.

Speakers should be placed for best sound delivery with the base of the

speaker as level as possible. Never lean a speaker back to aim the sound up as

this could allow it to retain water.

The Rock Speakers have been optimized to provide the best response when

placed on the same elevation as the listening area and sitting at on the

ground. Tilting the speaker up can potentially create a problem with proper

rainwater drainage also.

SPEAKER PAIRS / PLACEMENT

Ideal placement

Poor placement

Optimum

sound eld

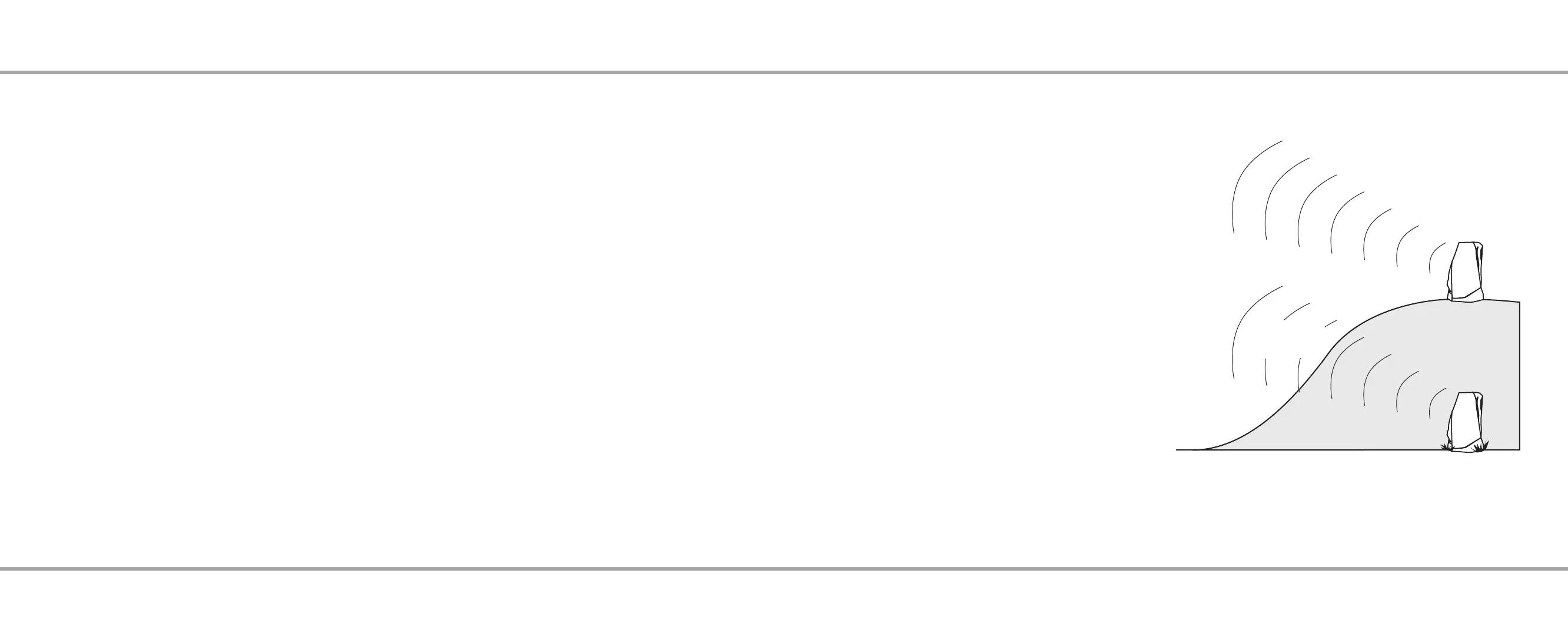

Example of speaker elevation placement
