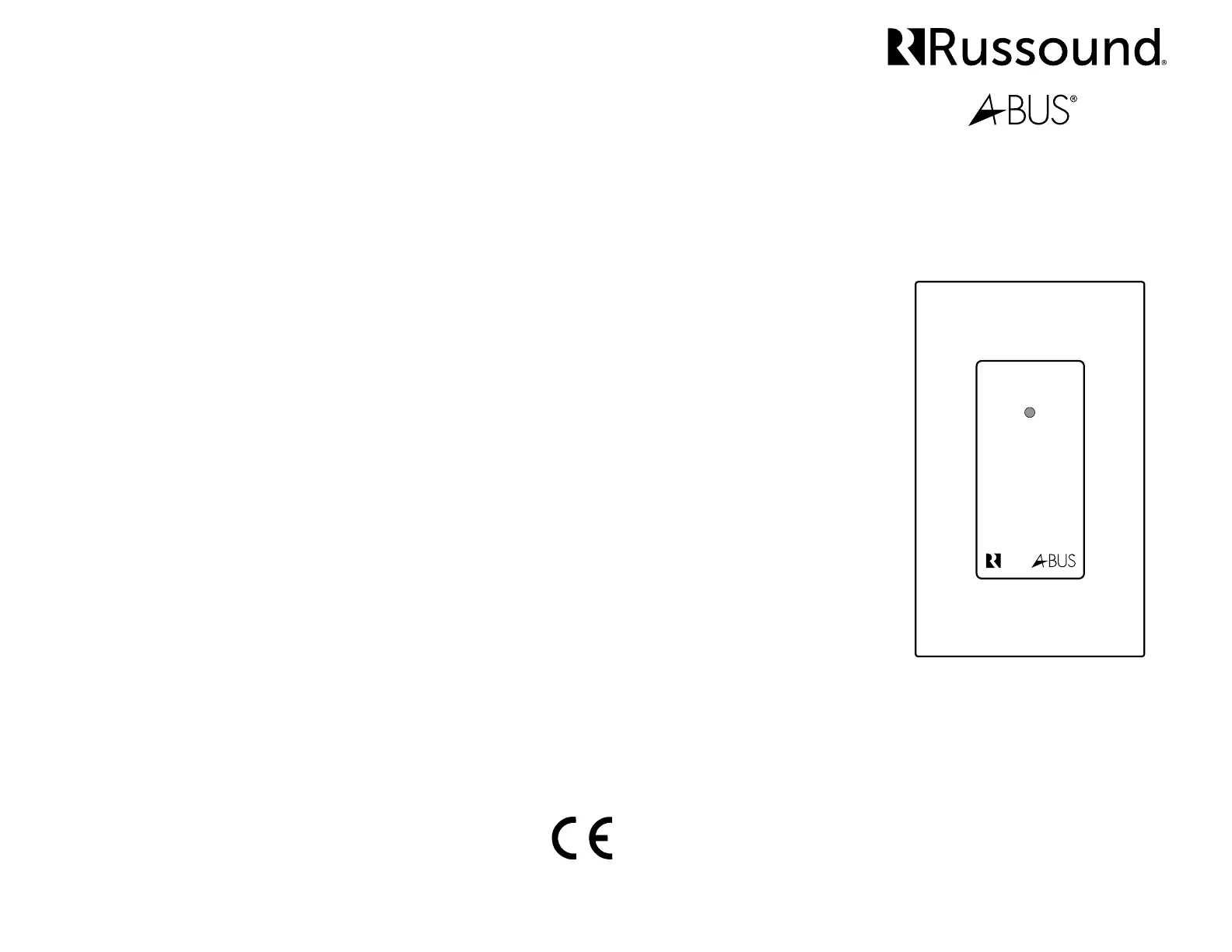

BTA-2
Inline Bluetooth® Local Input Module
for A-BUS® Systems
Installation Manual
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modications to this device not explicitly
approved by manufacturer could void your authority to operate this
equipment.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
This equipment complies with FCC RF radiation exposure limits set
forth for an uncontrolled environment.
This device and its antenna must not be located or operated in
conjunction with any other antenna or transmitter.
Overview
The BTA-2 provides a local wireless input connection
for the purpose of streaming audio from sources such as
smart phones, tablets and computers, etc. with Bluetooth®
capability, to individual A-BUS® equipped rooms. When the
BTA-2 is paired, it will automatically switch the music source
from the main system source to the local Bluetooth source.
This local connection will remain until pairing is disconnected
or the Bluetooth device is out of range for longer than 3
minutes.
Russound, Inc. 1 Forbes Rd., Newmarket, NH 03857, USA
tel 603.659.5170 • fax 603.659.5388 www.russound.com
technical support: 866.888.7466 e-mail: tech@russound.com
28-1398 03.16.15
INPUT
USB
OUTPUT
BTA-2
Local Input Module
Limited Warranty
The Russound BTA-2 is guaranteed for two (2) years from the date
of purchase against all defects in materials and workmanship. During
this period Russound will replace any defective parts and correct any
defect in workmanship without charge for either parts or labor. For
this warranty to apply, the unit must be installed and used according
to its written instructions. If service is necessary, it must be performed
by Russound. Russound assumes no responsibility for defects
resulting from abuse or servicing performed by an agency or person
not specically authorized in writing by Russound. Damage to or
destruction of components due to improper use voids the warranty.
In these cases the repair will be made at the owner’s expense.
Accidental damage and shipping damage are not considered defects
under the terms of the warranty. To return for repairs, the unit must
be shipped to Russound at the owner’s expense, along with a Return
Authorization number and documentation explaining the nature
of the service required. Any product returned without prior written
permission will be returned to sender. Russound sells products only
through authorized Dealers and Distributors to ensure that customers
obtain proper support and service. Any Russound product purchased
from an unauthorized dealer or other source, including retailers,
mail order sellers and online sellers will not be honored or serviced
under existing Russound warranty policy. Any sale of products by an
unauthorized source or other manner not authorized by Russound
shall void the warranty on the applicable product.
Safety Instructions
1. Read Instructions - All the safety and operating instructions
should be read before the equipment is operated.
2. Retain Instructions - The safety and operating instructions
should be retained for future reference.
3. Heed Warnings - All warnings on the equipment in the
operating instructions should be adhered to.
4. Follow Instructions - Follow all operating and user
instructions.
5. Water and Moisture - The equipment should not be used
near water; for example, near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming
pool. Not for outdoor use.
6. Heat - The equipment should be situated away from heat
sources such as radiators, heat registers, stoves, or other
equipment (including ampliers) that produce heat.
7. Power Sources - The product should be connected to a
power supply only of the type described in the operating
instructions or as marked on the equipment.
8. Grounding or Polarization - Precaution should be taken
so that the grounding or polarization means of the product
is not defeated.
9. Avoid spills and foreign objects. Ensure liquids and objects
don’t get into the product enclosure through any openings.
10. Damage Requiring Service - The equipment should
be serviced by qualied service personnel when: the power
supply cord or the plug has been damaged; objects have
fallen, liquid has been spilled into the equipment; the
equipment has been exposed to rain; the equipment does
not appear to operate normally; or the equipment has been
dropped or the enclosure is damaged.
11. Servicing - The user should not attempt to service
the equipment beyond that described in the operating
instructions. All other servicing should be referred to qualied
service personnel.
12. Care – From time to time you should wipe any dust
accumulation from the equipment with a soft dry cloth.
Copyright ©2015 Russound® All rights reserved. All trademarks are
the property of their respective owners. Russound is not responsible
for typographical errors or omissions. Specications are subject to
change without notice.
Bluetooth® is a registered trademark of Bluetooth SIG, Inc. Other
trademarks and trade names are the property of their respective owners.
A-BUS® is a registered trademark of LeisureTech Electronics Pty
Ltd Australia. This product may be covered by one or more of the
following patents: US 7,181,023; 7,668,318; 6,389,139;
AU 739808; NZ 502982; MX 241196; Canada CA 2301062.
Connection Instructions
The BTA-2 is connected to the CAT-5 cable line between the hub
and the A-BUS Keypad using RJ-45 connectors (TIA568A). It also can
be wired in series with other local input modules along the CAT-5
cable. The local input module closest to the room’s A-BUS amplied
module, will be the master.
Bluetooth® as a Main Source
The BTA-2 can be used as an input device in small installations, such
as hotel rooms, where transmission range is not a problem. The BTA-2
is connected from its output socket to any A-BUS hub with an input
or Expansion Input. It can also be inserted in a main source CAT-5
cable between input module and hub, overriding the main source
when paired.
Operating Range
Bluetooth devices are intended to provide wireless communication
between enabled devices within a room. The BTA-2 has been
designed to provide reliable operating range in dicult situations.
In good situations, its range can be up to 15 meters (50’); however,
this distance can be reduced signicantly by a number of local
factors such as transmission interference from other communication
devices, electrical wiring and room construction materials, such as
brick walls and concrete oors, etc. When the BTA-2 is operating near
maximum range, the signal may intermittently drop in and out, as
signal strength varies.
Bluetooth Source Volume Level Compatibility
The audio output level from Bluetooth enabled devices can vary
from brand to brand. The BTA-2 has been adjusted to be equal to
the output of most Bluetooth devices; in some cases the level may be
higher. Most devices have their own adjustable volume level and it is
recommended that this is used to adjust the output level to match
the main audio source’s volume level.
Room Identication
Each BTA-2 is identied by an individual code number beginning
with the prex AB (ABxxx). The identication code can be replaced
with individual room name identication (eg. Bedroom, Study, Patio,
etc,) prior to installation. Visit www.russound.com to download
renaming software onto a computer and connect the BTA-2 with the
mini USB cable supplied and follow the on-screen prompts.
Security Pairing Code
When pairing for the rst time, a security code is required. The
default code is 1234. The four digit number can be changed or
switched o in the room naming software. Individual room naming
and discrete security pairing code, must be changed with the
renaming software prior to installation.
Troubleshooting Check List:
Establish an appropriate listening level with the main source before
pairing.
• If no sound is heard, do not adjust output level, as damage may
occur to your speakers.
• Check the music source is active before pairing.
• The blue LED indicates when devices are paired.
• Check source device is connected to WiFi.
• Change music source or app.
• Make sure device is in play mode.
/
/
/
/
Specications
Bluetooth Input: A-BUS (RJ-45 Socket TIA568A) Ver.4+ EDR,
A2DP, AVRCP, AptX, SBC
Output: A-BUS (RJ-45 Socket TIA568A)
Operating Range: >49’ (15m) - subject to local conditions
Connection: Not paired : Connected to main source
Paired : Bluetooth streaming
Indicator: When paired : Blue LED
Re-Naming: via PC (mini-USB)
Mounting: Single gang (US)
Size: 107 H x 43 W x 25 D (overall 30 D) mm
Common IR
12VDC
Trigger Out
100mA
Outputs to Keypads
1 2 3 4
5 6 7
8
Page
In
Page
Trim
Mute In
Source Audio Connections
1 2 3 4 5 6
R
L
Out
In
IR
R
L
Out
In
IR
R
L
Out
In
IR
R
L
Out
In
IR
R
L
Out
In
IR
R
L
Out
In
IR
Control Link
In Out
Src Trim Src Trim Src Trim Src Trim Src Trim Src Trim
A-C68 (or any A-BUS hub)
CAT-5
A-K6L Amplied Keypad. (Also works with A-K4 Keypad)
BTA-2
CAT-5
CAT-5 Cable 150’ Max Length (Total)

Produkt Specifikationer

Mærke: Russound
Kategori: Hi-Fi system
Model: BTA-2

Har du brug for hjælp?

Hvis du har brug for hjælp til Russound BTA-2 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Hi-Fi system Russound Manualer

Russound

Russound SDB-4.1 Manual

8 Juli 2025
Russound

Russound SDB-6.1 Manual

8 Juli 2025
Russound

Russound SDB-2.1 Manual

8 Juli 2025
Russound

Russound SMZ8 Manual

21 Februar 2025
Russound

Russound SMZ16-PRE Manual

21 Februar 2025
Russound

Russound CAA66 Manual

1 September 2024
Russound

Russound USRC Manual

1 September 2024
Russound

Russound MCA-66 Manual

1 September 2024
Russound

Russound XTS5.5 Manual

1 September 2024
Russound

Russound BTA-2 Manual

1 September 2024

Hi-Fi system Manualer

Nyeste Hi-Fi system Manualer

Sony

Sony CMT-EH10 Manual

27 September 2025
Cherub

Cherub WSM-240 Manual

26 September 2025
Focusrite

Focusrite iTrack Dock Manual

25 September 2025
Focusrite

Focusrite Saffire PRO 26 Manual

25 September 2025
Focusrite

Focusrite Red 16Line Manual

25 September 2025
Hercules

Hercules DJMonitor 32 Party Manual

25 September 2025
DreamGEAR

DreamGEAR FM Transmitter Manual

24 September 2025
Samsung

Samsung AV-R610 Manual

24 September 2025
DreamGEAR

DreamGEAR iSound Manual

24 September 2025
Fantech

Fantech VALOR MH86 Manual

23 September 2025
