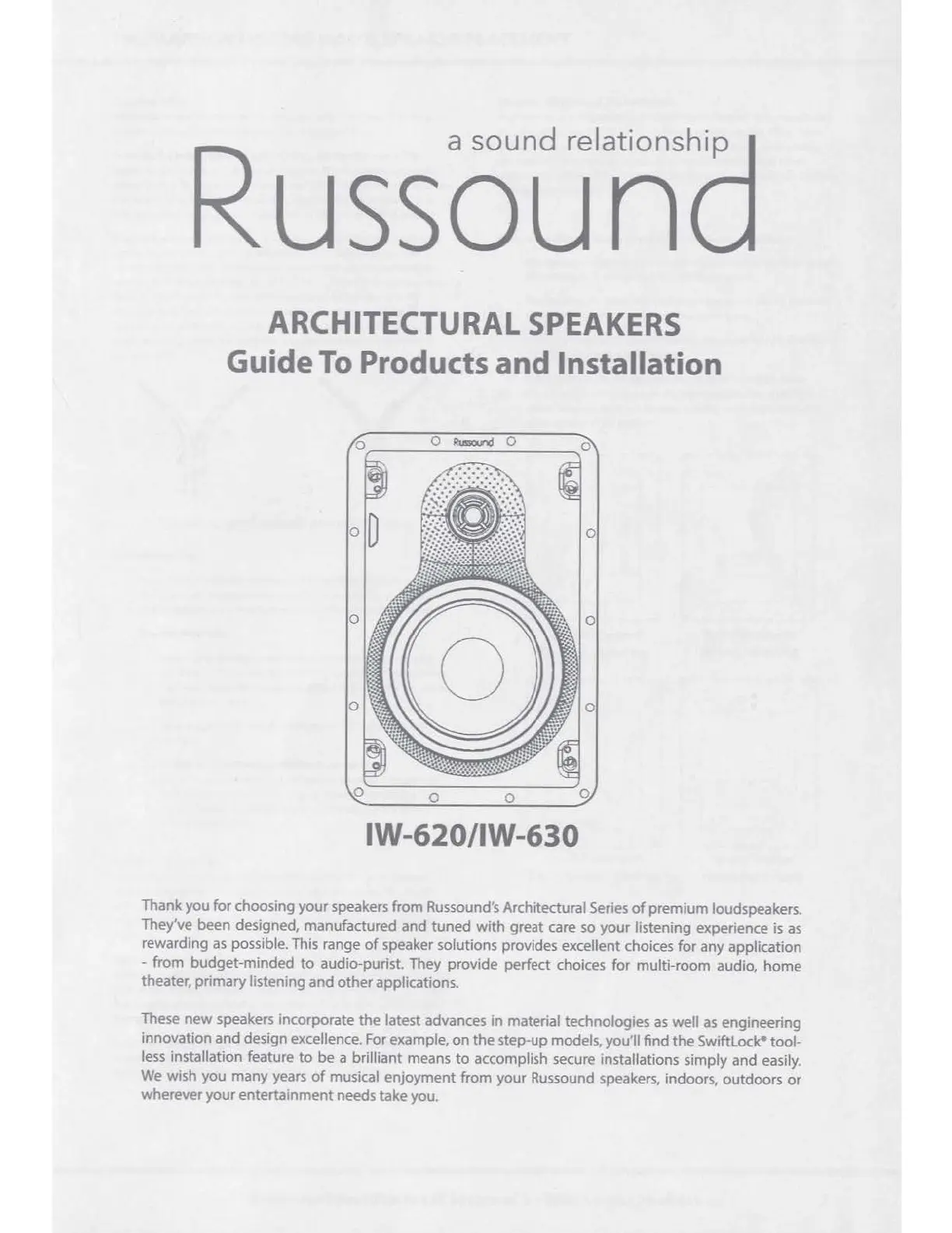

ARCHITECTURAL SPEAKERS

Guide To Products and Installation

Thank you for choosing your speakers from Russound’s Architectural Series of premium loudspeakers.

They’ve been designed, manufactured and tuned with great care so your listening experience is as

rewarding as possible. This range of speaker solutions provides excellent choices for any application

- from budget-minded to audio-purist. They provide perfect choices for multi-room audio, home

theater, primary listening and other applications.

These new speakers incorporate the latest advances in material technologies as well as engineering

innovation and design excellence. For example, on the step-up models, you’ll nd the Swiftlock™ tool-

less installation feature to be a brilliant means to accomplish secure installations simply and easily.

We wish you many years of musical enjoyment from your Russound speakers, indoors, outdoors or

wherever your entertainment needs take you.

IW-620

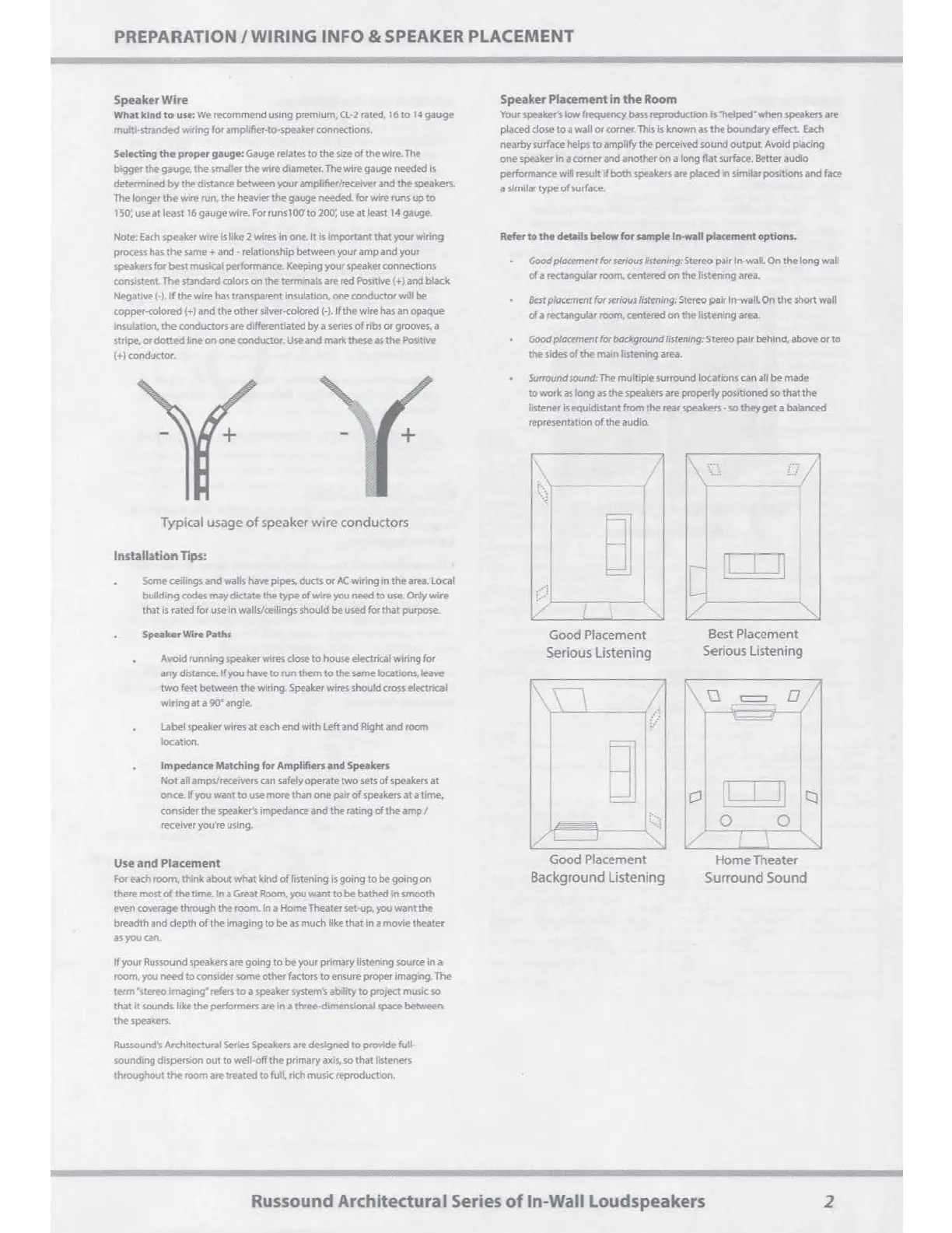

2Russound Architectural Series of In-Wall Loudspeakers

Speaker Placement in the Room

Your speaker’s low frequency bass reproduction is “helped” when speakers are

placed close to a wall or corner. This is known as the boundary eect. Each

nearby surface helps to amplify the perceived sound output. Avoid placing

one speaker in a corner and another on a long at surface. Better audio

performance will result if both speakers are placed in similar positions and face

a similar type of surface.

Refer to the details below for sample In-wall placement options.

• Good placement for serious listening: Stereo pair In-wall. On the long wall

of a rectangular room, centered on the listening area.

• Best placement for serious listening: Stereo pair In-wall. On the short wall

of a rectangular room, centered on the listening area.

• Good placement for background listening: Stereo pair behind, above or to

the sides of the main listening area.

• Surround sound: The multiple surround locations can all be made

to work as long as the speakers are properly positioned so that the

listener is equidistant from the rear speakers - so they get a balanced

representation of the audio.

Speaker Wire

What kind to use: We recommend using premium, CL-2 rated, 16 to 14 gauge

multi-stranded wiring for amplier-to-speaker connections.

Selecting the proper gauge: Gauge relates to the size of the wire. The

bigger the gauge, the smaller the wire diameter. The wire gauge needed is

determined by the distance between your amplier/receiver and the speakers.

The longer the wire run, the heavier the gauge needed. for wire runs up to

150’, use at least 16 gauge wire. For runs100’ to 200’, use at least 14 gauge.

Note: Each speaker wire is like 2 wires in one. It is important that your wiring

process has the same + and - relationship between your amp and your

speakers for best musical performance. Keeping your speaker connections

consistent. The standard colors on the terminals are red Positive (+) and black

Negative (-). If the wire has transparent insulation, one conductor will be

copper-colored (+) and the other silver-colored (-). If the wire has an opaque

insulation, the conductors are dierentiated by a series of ribs or grooves, a

stripe, or dotted line on one conductor. Use and mark these as the Positive

(+) conductor.

Installation Tips:

• Some ceilings and walls have pipes, ducts or AC wiring in the area. Local

building codes may dictate the type of wire you need to use. Only wire

that is rated for use in walls/ceilings should be used for that purpose.

• Speaker Wire Paths

• Avoid running speaker wires close to house electrical wiring for

any distance. If you have to run them to the same locations, leave

two feet between the wiring. Speaker wires should cross electrical

wiring at a 90° angle.

• Label speaker wires at each end with Left and Right and room

location.

• Impedance Matching for Ampliers and Speakers

Not all amps/receivers can safely operate two sets of speakers at

once. If you want to use more than one pair of speakers at a time,

consider the speaker’s impedance and the rating of the amp /

receiver you’re using.

Use and Placement

For each room, think about what kind of listening is going to be going on

there most of the time. In a Great Room, you want to be bathed in smooth

even coverage through the room. In a Home Theater set-up, you want the

breadth and depth of the imaging to be as much like that in a movie theater

as you can.

If your Russound speakers are going to be your primary listening source in a

room, you need to consider some other factors to ensure proper imaging. The

term “stereo imaging” refers to a speaker system’s ability to project music so

that it sounds like the performers are in a three-dimensional space between

the speakers.

Russound’s Architectural Series Speakers are designed to provide full-

sounding dispersion out to well-o the primary axis, so that listeners

throughout the room are treated to full, rich music reproduction.

PREPARATION / WIRING INFO & SPEAKER PLACEMENT

-+-+

Typical usage of speaker wire conductors

Good Placement

Background Listening

Best Placement

Serious Listening

Good Placement

Serious Listening

Home Theater

Surround Sound
