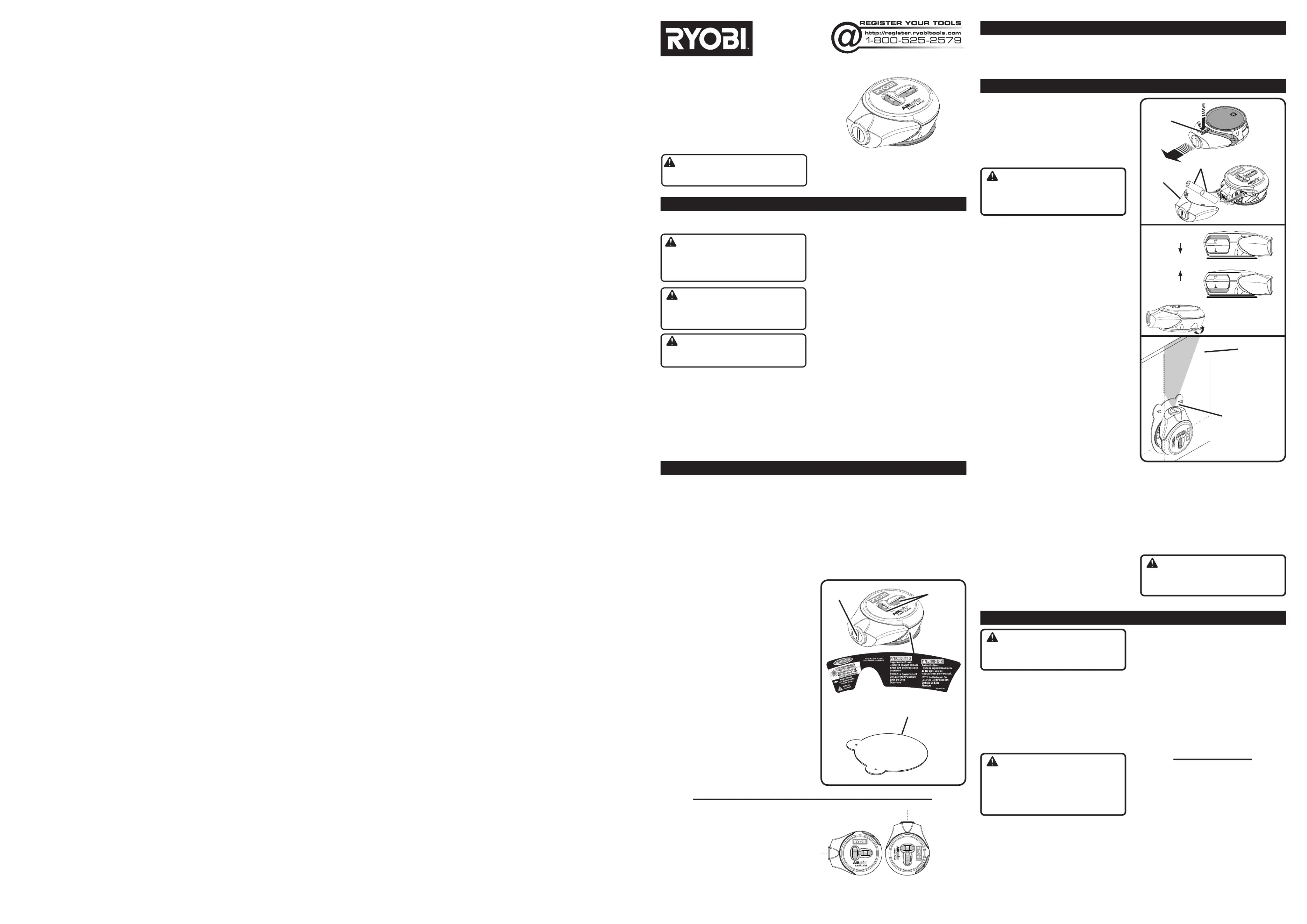

OPERATOR’S MANUAL
COMPACT LASER LEVEL
WITH AIRgrip
™
ELL1002/ELL1002ID
SAVE THIS MANUAL
FOR FUTURE REFERENCE
user must read and understand the operator’s
manual before using this product.
WARNING!
READ AND UNDERSTAND ALL INSTRUC-
TIONS. Failure to follow all instructions listed
below, may result in electric shock, fire and/or
serious personal injury.
CAUTION:
Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
CAUTION:
The use of an optical instrument with this product
will increase eye hazard.
The laser guide radiation used in this laser level is Class
IIIa with < 5mW and 650 nm wavelengths. These lasers
do not normally present an optical hazard although
staring at the beam may cause flash blindness.
Avoid direct eye exposure when using the laser
and do not project the laser beam directly
into the eyes of others. Serious eye injury could
result.
Do not remove or deface any product labels.
Removing product labels increases the risk of
exposure to laser radiation.
Do not place the laser level in a position that
may cause anyone to stare into the laser beam
intentionally or unintentionally. Serious eye injury
could result.
Do not operate the laser level around children
or allow children to operate the tool. Serious
eye injury could result.
Always turn the laser level off when not in use.
Leaving the tool on increases the risk of someone
inadvertently staring into the laser beam.
Do not operate the laser level in combustible
areas such as in the presence of flammable
liquids, gasses, or dust.
Always ensure the laser beam is aimed at a
surface without reflective properties. Shiny
reflective materials are not suitable for laser use.
Handle the laser level with care. Treat it as you
would any other optical device such as a camera
or binoculars.
Avoid exposing the laser level to shock,
continuous vibration or extreme hot or cold
temperatures. Damage to the tool and/or serious
injury to the user could result.
Save these instructions. Refer to them frequently
and use them to instruct others who may use this
laser level. If you loan someone this laser level,
loan them these instructions also.
SAFETY RULES
Fig. 1
FEATURES
PRODUCT SPECIFICATIONS
Recommended Use......................................................................................................................................Indoor
Length of Laser Line Up to 30 ft., Horizontal or Vertical ..........................................................................................
Laser Class IIIa, <5mW, 650 nm .............................................................................................................................
Power Supply 2 AAA, 1.5 Volt Batteries* .................................................................................................................
Battery Life 2.5 Hours Continuous Use — included Alkaline Batteries (Vacuum) ...................................................
1 Hour Continuous Use — included Alkaline Batteries (Laser)
Operating Temperature...................................................................................................................... 32˚F to 104˚F
Dimensions 3-1/2 in. x 2-7/8 in. x 1-3/8 in. .............................................................................................................
Accuracy ± 1/2 in. at 16 ft. ......................................................................................................................................
* Laser level performance is greatly enhanced when using premium-branded alkaline batteries.
KNOW YOUR LASER LEVEL
See Figure 1.
The safe use of this product requires an understanding
of the information on the tool and in this operator’s
manual as well as a knowledge of the project you
are attempting. Before use of this product, familiarize
yourself with all operating features and safety rules.
AIRgrip
™
VACUUM TECHNOLOGY
Your laser level uses a vacuum base that can adhere to
smooth surfaces. Using the vacuum seal prevents wall
damage caused by nails, pins, or adhesive tape.
MOUNTING AID
The AIRgrip vacuum may be ineffective on some sur-
faces. Use the mounting aid to increase the number of
surfaces on which the AIRgrip vacuum can be used.
ASSEMBLY
UNPACKING
This product has been shipped completely assembled.
If any parts are damaged or missing, please call
1-800-525-2579 for assistance.
OPERATION
INSTALLING BATTERIES
See Figure 2.
Depress the ridged area on the bottom of the bat-
tery cover and pull the cover off the laser level.
Install batteries according to polarity indicators
(+ or –) inside the battery compartment.
Place the lens cover back onto the laser level and
secure.
WARNING:
When turning on the laser level, always protect
the eyes of yourself and those around you. Never
point the laser beam at anyone’s face, including
your own.
TURNING ON/OFF
See Figure 3.
The on/off switch is located on the side of the laser level.
Pushing the switch down will turn the laser level and ON
activate the vacuum pump; pushing the switch up will
turn the unit . Always wait for at least 5 seconds OFF
between stopping and restarting the laser level.
USING THE AIRgrip VACUUM
See Figures 3 - 4.
The laser level’s vacuum grip technology allows attach-
ment to most smooth surfaces.
Place the laser level on the surface you want it
secured to and push in slightly to seal.
Continue to hold the laser level against the surface
while turning on the laser.
Release the laser level slowly when you hear a
change in motor sound.
NOTE: To release the vacuum seal, turn the laser
level’s power off. For fast release, press the protrusion
on the side of the unit opposite the power switch.
Pulling the laser level off the wall without releasing the
vacuum could damage the tool.
The laser will automatically shut off 15 minutes prior
to battery failure, but the motor will remain on. Press
the on/off switch to power down the unit and replace
the batteries.
OPERATING THE LASER LEVEL
See Figure 4.
Place the laser level in the area where you want
the laser line projected.
Rotate the unit so that the laser lens points in the
direction in which you want the line projected.
When a vertical line or level horizontal line is
desired, level the tool by centering the bubble
inside the appropriate vial located on top of the
laser head.
Turn on the laser.
USING THE MOUNTING AID
See Figure 4.
Using the mounting aid, you can use the laser level’s
AIRgrip feature to position the unit on many non-smooth
surfaces, including brick, painted cinderblock, textured
wallpaper, and stucco walls.
NOTE: The AIRgrip feature cannot be used with stucco
or unpainted cinderblock.
Fig. 2
PACKING LIST
Laser Level Mounting Aid
AAA Batteries (2) Operator’s Manual
WARNING:
To avoid serious personal injury, always remove the
batteries from the tool when cleaning or perform-
ing any maintenance.
GENERAL MAINTENANCE
Before initial use, wipe grip vacuum base with AIR
a damp cloth to remove any residue.
Store the laser level indoors.
Keep the laser level free of dust and liquids. Use
a damp cloth and mild soap to clean the outside
casing. Avoid using solvents when cleaning plastic
parts. Most plastics are susceptible to damage
from various types of commercial solvents and
may be damaged by their use.
WARNING:
Do not at any time let brake fluids, gas-
oline, petroleum-based products, pen-
etrating oils, etc., come in contact with
plastic parts. Chemicals can damage, weaken, or
destroy plastic, which may result in serious per-
sonal injury.
Fig. 3
MAINTENANCE
To clean the laser lens, if needed, use ONLY a
soft cloth or cotton swab moistened with glass
cleaner.
Check the batteries regularly to avoid deterioration.
Remove the batteries from the laser level if it is not
going to be used for an extended time.
Do not disassemble the laser level. This could
cause exposure to hazardous laser radiation.
Do not attempt to change any part of the laser
lens.
SERVICE
This laser level has no serviceable parts. If the unit
fails due to normal wear and tear within two years of
purchase, return with original receipt for a replacement
unit at no charge.
ALWAYS BE AWARE of the location where
the laser light is emitted when using the
level. ALWAYS MAKE SURE that any
bystanders in the vicinity of use are made
aware of the dangers of looking directly
into the laser beam.
ONE WORLD TECHNOLOGIES, INC.
P.O. Box 1288, Anderson, SC 29622
Phone 1-800-525-2579
États-Unis, Téléphone 1-800-525-2579
USA, Teléfono 1-800-525-2579
www.ryobitools.com
990000925
3-11-19 (REV:04)
Fig. 4
Position the mounting aid on the surface where
you want to use the laser level. Secure with pins
or tape (not provided).
Place the laser level against the mounting aid and
push in slightly to engage the seal.
Continue to hold the laser level against the surface
while turning the unit and unit is adhered to ON
surface.
Release the laser level slowly when you hear a
change in motor sound.
CAUTION:
Use of controls or adjustments or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
RIDGED
AREA
BATTERIES
POROUS
SURFACE
LEVELS
LASER
LENS
MOUNTING
AID
BATTERY
COVER
ON
OFF
RYOBI is a trademark of Ryobi Limited and is used pursuant to a license granted by Ryobi Limited.
MOUNTING AID
LIFT TO RELEASE
SUCTION
This product has a three-year Limited Warranty.
For Warranty details go to www.ryobitools.com
