English-1

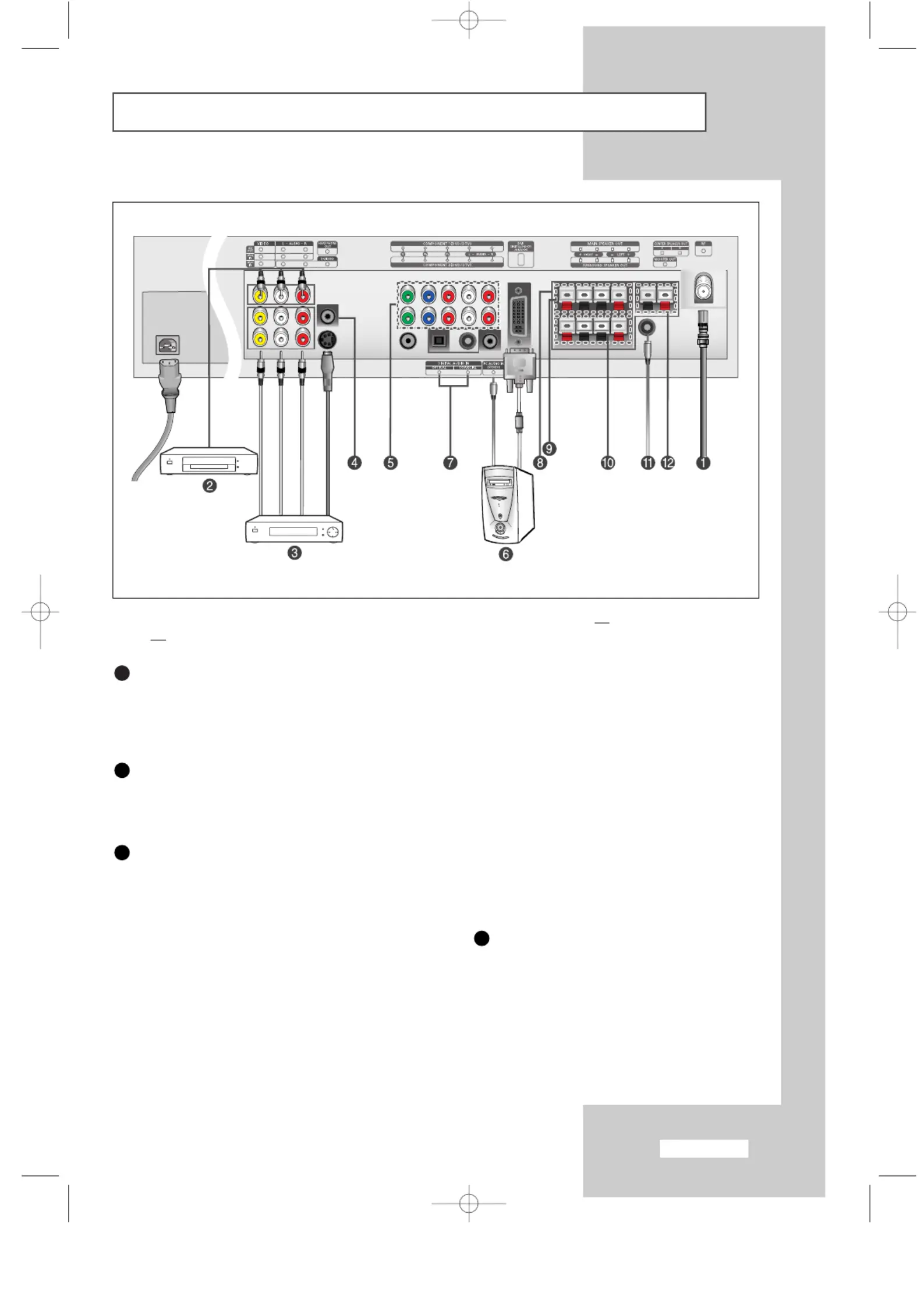

Viewing the Connection Panel

☛Whenever you connect an audio or video system to your set, ensure that all elements are switched

off.

Connecting an Aerial or Cable Television Network

To view television channels correctly, a signal must be received by the set from one of the following sources:

- An outdoor aerial

- A cable television network

- A satellite network

Connecting DVD, VCR or DTV Set-Top Box

- Connect the RCA Cable to “AUDIO(L)” and “AUDIO(R)” on the rear of your set and the other end to

“Audio Out” connector of the DVD, VCR, or DTV Set-Top Box.

- Connect the RCA Cable to “Y”, “Pb”, and “Pr” on the rear of your set and the other end to “Component Out”

connector of the DVD, VCR, or DTV Set-Top Box.

Connecting External A/V Devices

- Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.

- Connect RCA audio cables to “AUDIO(L) AUDIO(R)” and “ ” on the rear of your set and the other ends to

corresponding audio out connectors on the A/V device.

- Headphone may be connected to the headphone output ( ) on the rear of your set.

While the headphone

is connected, the sound from the built-in speakers will be disabled.

Power Input

BN68-00448G-00Eng.q 9/24/03 4:10 PM Page 7

English-2

Viewing the Connection Panel

Connecting Component Devices (DTV/DVD)

- Connect component video cables to component connector ( Y , , )“ ” “Pb” “Pr”on the rear of your set and the

other ends to corresponding component video out connectors on the DTV or DVD.

- If you wish to connect both the Set-Top Box and DTV (or DVD), you should connect the Set-Top Box to the

DTV (or DVD) and connect the DTV (or DVD) to component connector ( Y , , )“ ” “Pb” “Pr”on your set.

- The Y, Pb and Pr connectors on your component devices (DTV or DVD) are sometimes labeled Y, B-Y and

R-Y or Y, Cb and Cr.

- Connect RCA audio cables to “AUDIO(L) AUDIO(R)” and “ ” on the rear of your set and the other ends to

corresponding audio out connectors on the DTV or DVD.

Connecting Computer

- Connect the DVI connector to the PC video connector.

- Connect the stereo audio cable to “PC AUDIO IN (STEREO)” on the rear of your set and the other end to

“ ”Audio Out of the sound card on your computer.

Connecting Digital Audio Inputs

Connect optical digital audio cable or coaxial cable (RCA audio cable) to “DIGITAL AUDIO IN” on the rear of

your set and the other end to “DIGITAL OUT” of the equipment with a digital output to enjoy digital sound

(Multi-Channel Surround Sound, Stereo or Dolby Pro-Logic II).

Source Video Horizontal Frequency Vertical Frequency Resolution

(kHz) (Hz) (Lines)

TV/VIDEO PAL 15.625 50 575

SECAM 15.625 50 575

NTSC4.43 15.734 60 483

NTSC3.58 15.704 60 483

Component 1/2 480/60i 15.734 60 483

480/60p 31.469 60 483

576/50i 15.625 50 576

576/50p 31.250 50 576

720/60p 45.000 60 720

1080/50i 28.125 50 1080

1080/60i 33.750 60 1080

BN68-00448G-00Eng.q 9/24/03 4:10 PM Page 8
