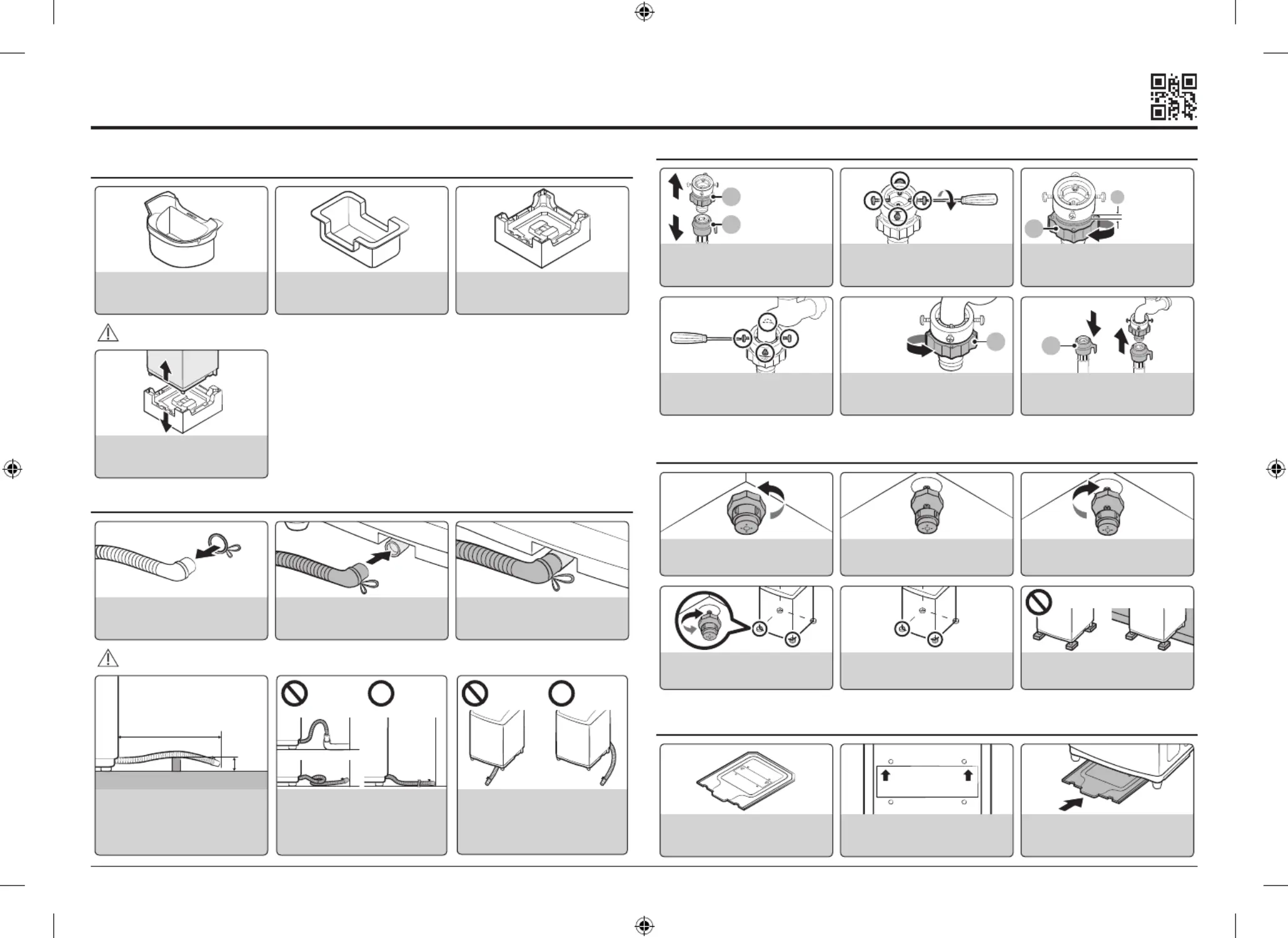

Installing a Washing Machine /
Remove all the packing materials prior to use /
Caution /
Use the machine without removing the foam bottom or the motor
base (some models) causes the machine to malfunction and
damage the internal components.
( )
Drain Hose Connection /
Caution /
Anti-rat panel (applicable models only) /
- ( ) ( )
Water Supply Hose Connection /
Leveling the Unit & Adjusting for Vibration /
DC68-03931B-02
Inner Cushion Plastic Motor Base
Remove foam before use
Insert the joint ring
Hose drain arrange
less than 5cm
5
cm
Less than 3 m
3 m
Less than 5 cm
5 cm
Join to a drain of Unit
Beware for
the folded hose
Join them tightly
Don’t install the hose
drain underneath
Cushion Bottom
Adaptor
Water supply hose
Remove B from A
B
A
Loosen 4 screws of A
A 4
Turn Part C firmly
C
Tighten 4 screws of A
A 4
Lift the unit & Adjust Legs
Height by turning clockwise
Prepare the panel
Put the washer
Check the machine to level
Turn the panel side correctly
Readjust Legs to lock
Don’t install above material
Turn C for gap 5 mm
C
5 mm
Insert panel till a lock sound
Assembly B to A
B A
Following
the arrow
Following
the arrow
