Side 1/5

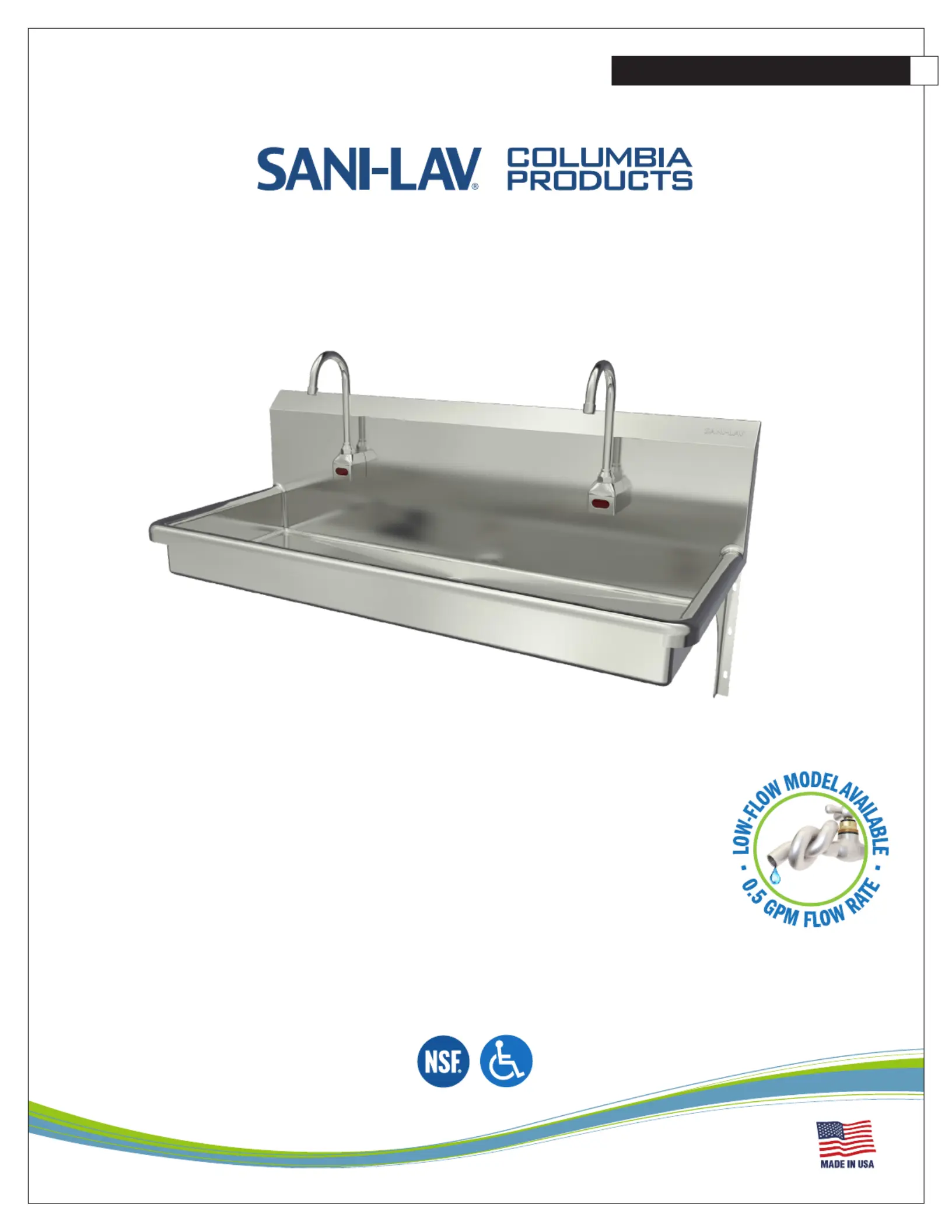

WASH STATION WITH ELECTRONIC SENSOR

AC OR BATTERY POWERED

of Domestic and Foreign Parts

Columbia does not recommend use with harsh chemicals.

Product Compliance

NSF/ANSI 2 Food Equipment, NSF/ANSI 61, Section 9, ASME A112.18.1, ADA Compliant

ADA Compliant

Operating Manual for 2-Person Hands-Free Wall Mount

Stainless Steel Wash Station

AC Models 5A2A and 5A2A-0.5

Battery Models 5A2B and 5A2B-0.5

800.626.2117 columbiasinks.com info@columbiasinks.com

COLUMBIA SPECIFIC ATIONS

WASH STATION WITH ELECTRONIC SENSOR

AC OR BATTERY POWERED

Parts List

(1) Wall mount wash station

(2) AC or battery powered sensor faucet assembly

(2) Wall mounting brackets

(2) Support brackets

(4) Support bracket mounting bolts and washers

(2) Mixing check valve

(1) Strainer assembly with basket

Installation Instructions

Step 1

1. Establish sink location on the wall.

2. Determine desired height for the top of the backsplash from finished floor and draw a level

line which will be the top edge of the wall mounting bracket.

3. Hold the wall mounting bracket against the wall and mark the wall where the holes are. Drill

holes and secure bracket to the wall as shown in illustration A. Screws are not provided.

Step 2

1. Install strainer assembly.

2. Install faucets to the sink following the instructions provided with sensor unit.

3. Attach supply tube with elbow to back of faucet.

4. Install mixing check valve and compression fitting to control box of each sensor faucet.

Step 3

1. Position the sink onto wall bracket.

2. Loosely attach support brackets under sink and push against wall then mark holes for

drilling as shown in illustration B.

3. Remove support brackets from sink and drill holes for mounting fasteners (not provided).

4. Re-mount support brackets to sink and fasten to wall.

Step 4

1. Connect waste line to strainer assembly (s).

2. Mount sensor control box at desired location on wall.

3. Connect power line from sensor to control box.

4. Attach supply tube from faucet to control box.

5. Connect hot and cold water from the source to mixing check valve (s).

6. Remove aerator from the spout assemblies and flush water system. (see step 7 sensor

installation instructions)

7. Check connections for leaks.

8. Replace aerator onto the spout (s).

9. We recommend sealing top of backsplash to wall as shown in illustration C.

Tools Required

Tape measure

Adjustable wrench

Drill motor and drill bits

Pipe wrench

Level

Safety glasses

Screw drivers: phillips and standard

Pencil

Socket wrench

WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds),

Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects

or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

NOTE: Lead content originates from Brass components in valves and faucets and is certied under

NSF/ANSI 372 as containing less than 0.25% lead in wetted surfaces.

Notice for California Consumers

Go to for more information on replacement parts and installation videos.columbiasinks.com

Illustration A

Illustration B

Illustration C
