CS-3e

Location and Studio Shotgun Featuring Exceptional Off-axis Rejection

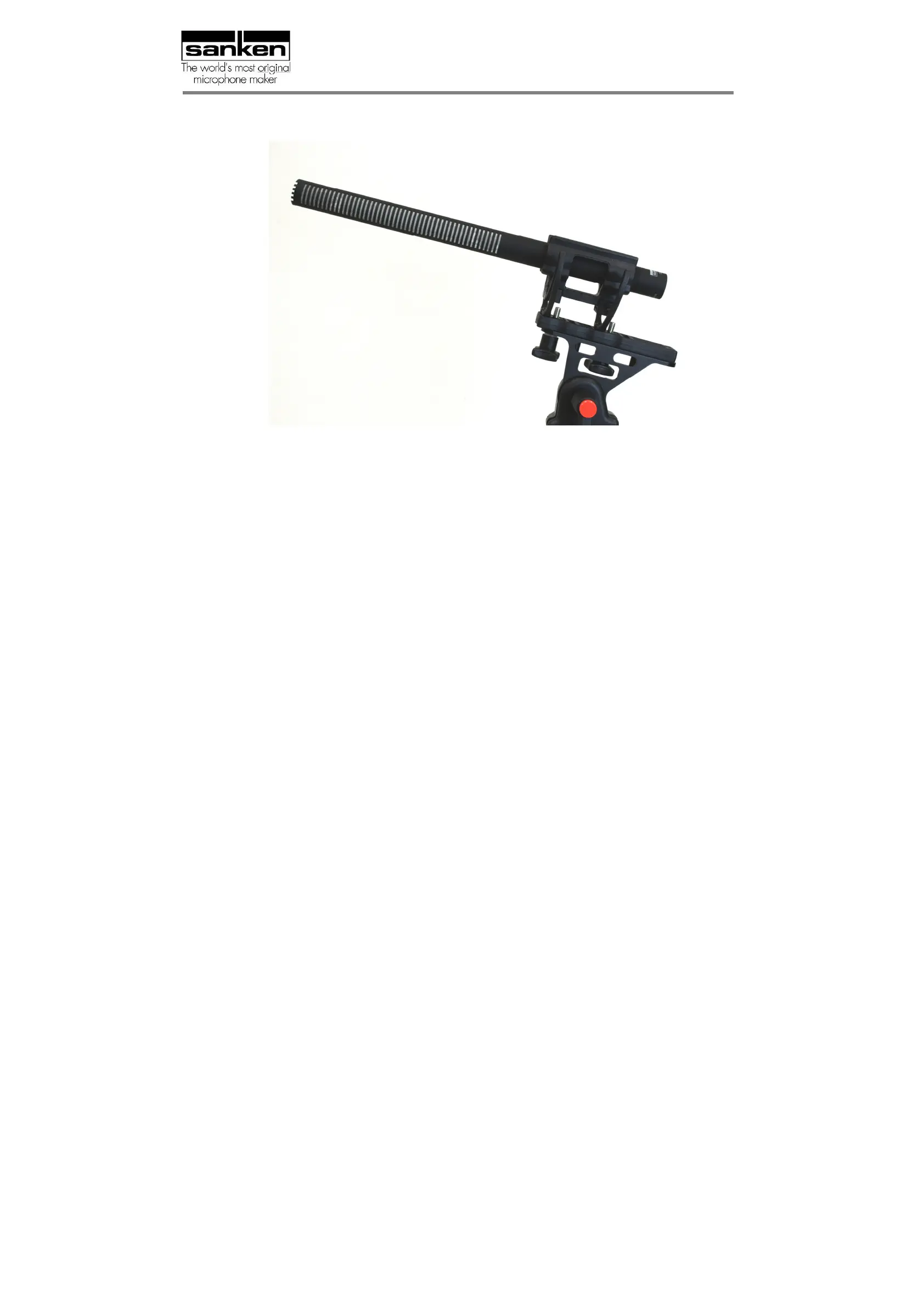

The handgrip is an optional accessory.

・ Location and studio shotgun featuring exceptional off-axis rejection

・ Unique design combination of line mic array and second pressure gradient method

・ Very sharp pinpoint directivity

・

Provides rich human voice characteristics

The CS-3e stands out among s

hotgun microphones because it maintains directivity over an extremely wide frequency

range, especially in the low frequencies. Because of its unique design, the CS-

3e is an excellent choice for use in difficult

applications, such as close-to-ceiling positi

ons or locations near a noisy camera. Even in such challenging situations, the

excellent side and rear rejection of the CS-

3e helps to capture only the targeted dialogue without ambient reverberation

problems. The CS-3e delivers sharp directional sound eve

n in the lower frequencies. Sanken's original design results in a

low proximity effect which facilitates working in a scene close-

up and wide, while producing little change in sound

character. In the CS-3e, three directional capsules are arranged in a front-

back array to combine line microphone

performance and second-order pressure gradient response in a single system. With this unique design, the CS-

achieves phenomenal super-cardioid directivity in the lowest frequencies and throughout the full range in

a microphone

only 27cm (10 inches) in length. It is significant that the CS-

3e picks up the targeted frontal sound sources with

exceptional clarity over a wide frequency range - even in noisy ambient environments or in long reverberation spaces -

rejecting undesired noise and sounds coming from the rear and sides. The CS-3e is small and lightweight with a low-

cut

switch to satisfy the various needs of location and studio recording. The standard 19mm diameter permits use of a wide

range of accessories de

veloped for enhanced performance and field mobility. When a conventional shotgun microphone is

near the sound source, proximity effect results in a boosting of certain low frequencies and slight masking of others. The

CS-3e virtually eliminates the proximi

ty effect and maintains sharp directivity, while the sonic characteristics do not change

with varied distances between sources and microphone. This is a significant advantage over all other directiona

microphones.

CS-3e

Directivity Super Cardioid / lobar

Transducer DC biased condenser

Frequency range 50Hz - 20kHz

Sensitivity (nominal at 1kHz) 50mV/Pa (-26dB,0dB=1V/Pa)

Equivalent noise level (A-weighted) 15dB-A

Max SPL (1% THD) 120dB SPL

Output impedance at 1kHz Ω 120

Powering +48±4V phantom

Current consumption less than 3mA

Weight 120g

Dimensions 270mm X 19mm (diameter)

Surface finish matte black

Connector XLR-3M
