Assembly Instructions for Model: AFV48

Sanus 6436 City West Parkway, Eden Prairie, MN 55344 03.09.12 (6901-100073 <01>)

Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com

Thank you for choosing the Sanus AFV48. If you do not

understand these directions, or have any doubts about

the safety of the installation, please contact Sanus at

800.359.5520 or www.sanus.com. Check carefully to make

sure that there are no missing or defective parts. Our

customer service representatives can quickly assist you

with installation questions and missing or damaged parts.

Replacement parts for products purchased through authorized

dealers will be shipped directly to you. Never use defective

parts. Improper installation may cause damage or serious

injury. Do not use this product for any purpose that is not

explicitly speciﬁed by Sanus. Sanus can not be liable for

damage or injury caused by incorrect assembly, or incorrect

use. Please contact Sanus before returning products to the

point of purchase.

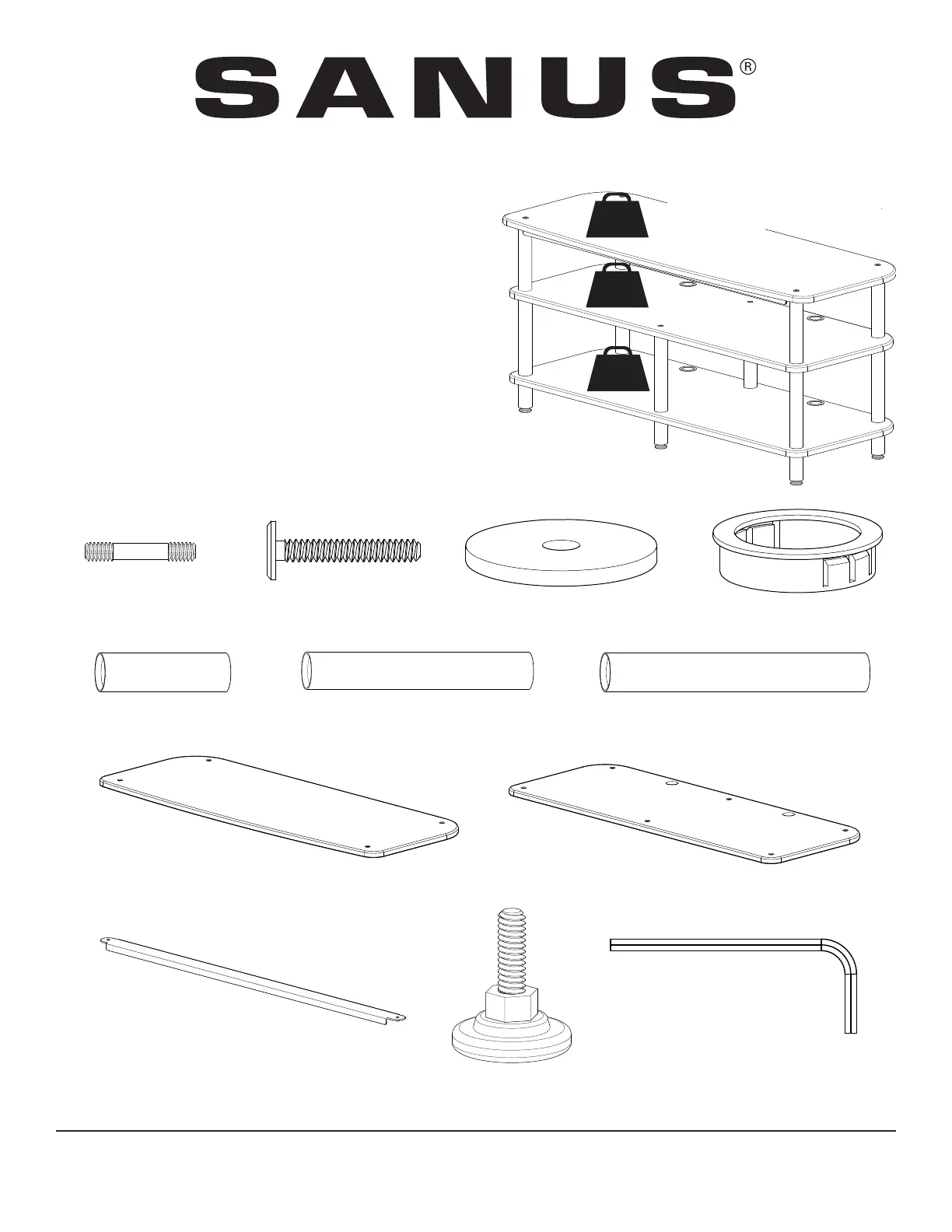

Supplied Parts and Hardware

1/4-20

Shelf Connector - A

Qty. 10

Grommet - D

Qty. 4

Spacer - C

Qty. 2

Top Bolt - B

Qty. 6

9” Pillar - G

Qty. 6

7” Pillar - F

Qty. 4

3” Pillar - E

Qty. 6

Bottom & Middle Shelf - I

Qty. 2

Top Shelf - H

Qty. 1

Allen Key - L

Qty. 1

Foot - K

Qty. 6

Front Brace - J

Qty. 1

200 lbs

90.9 kg

200 lbs

90.9 kg

200 lbs

90.9 kg

DO NOT EXCEED

WEIGHT LIMITS!

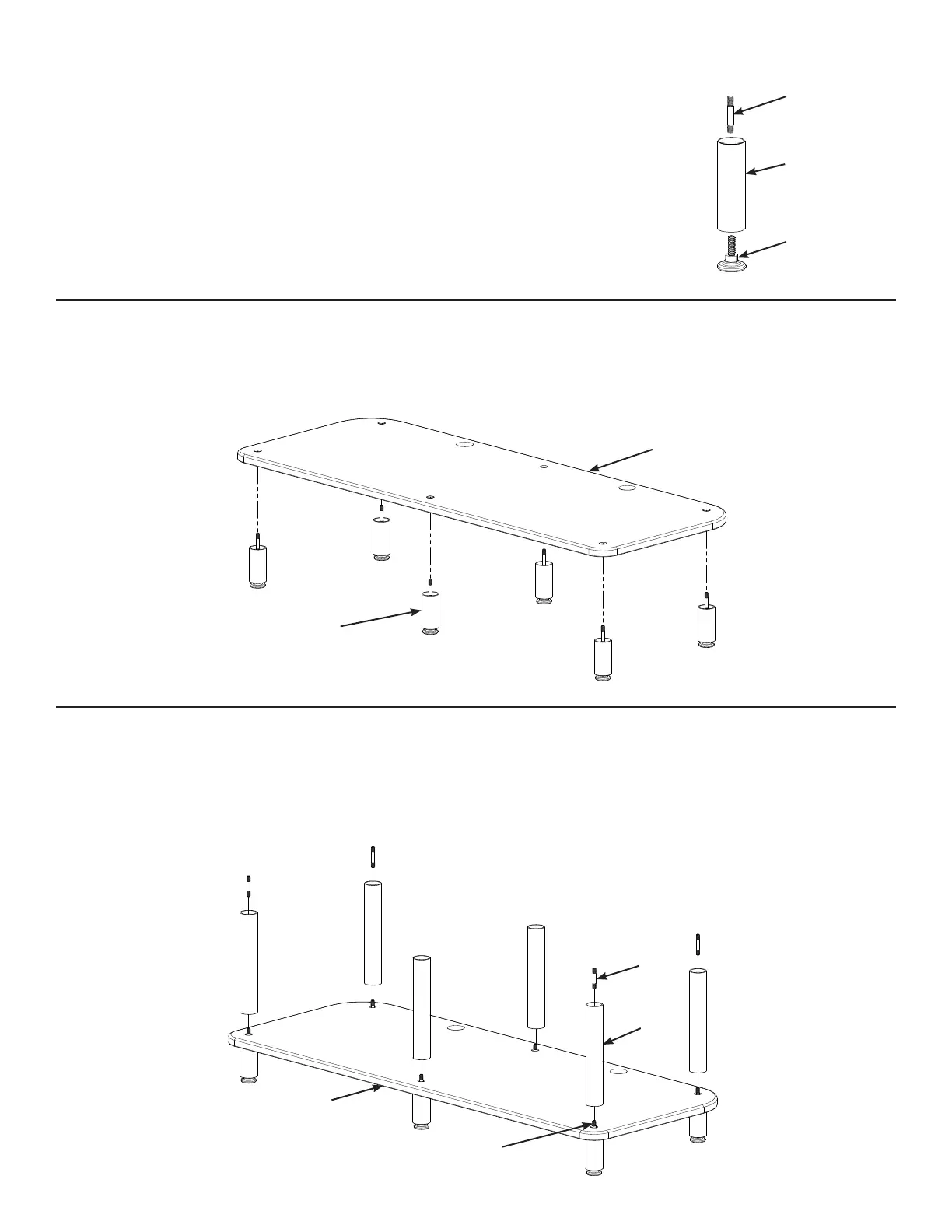

Step 1: Foot Assembly

Thread a Foot (K) into each 3” Pillar (E).

Thread a Shelf Connector (A) into the other end of the 3” Pillar (E) until tight.

Repeat this process for each remaining 3” Pillar.

Diagram 1

Step 2: Add Bottom Shelf

Insert each Foot Assembly from Step 1 through the Bottom Shelf (I) as shown in Diagram 2.

Step 3: Add 9” Pillars

Thread a 9” Pillar (G) onto each exposed Shelf Connector (A) until tight.

Thread a Shelf Connector (A) into the top of the four 9” Pillars (G) as shown in Diagram 3.

Diagram 2

Foot

Assembly

Diagram 3
