Assembly Instructions for Model: VMPO

Thank You for your purchase of a Sanus Systems Vision Mount! The VMPO is designed to securely attach a Flat Panel LCD to a cabinet

or an armoire. It will allow the ability to pull the TV out and swivel. It can also be used with a VM200 for tilting LCDs or a VMPL50

for Plasmas.

Safety Warning: If you do not understand these directions, or have any doubts about the safety of the installation, please call a qualiﬁed

contractor or contact Sanus at 800.359.5520 or www.sanus.com. Check carefully to make sure that there are no missing or defective

parts. Our customer service representatives can quickly assist you with installation questions and missing or damaged parts. Replace-

ment parts for products purchased through authorized dealers will be shipped directly to you. Never use defective parts. Improper instal-

lation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly speciﬁed by Sanus Systems.

Sanus Systems can not be liable for damage or injury caused by incorrect mounting, incorrect assembly, or incorrect use. Please call

Sanus Systems before returning products to the point of purchase.

Required Tools: Drill, 1/4” Drill Bit, wrench or socket set, phillips screw driver

Check carefully to ensure that no hardware or parts are missing

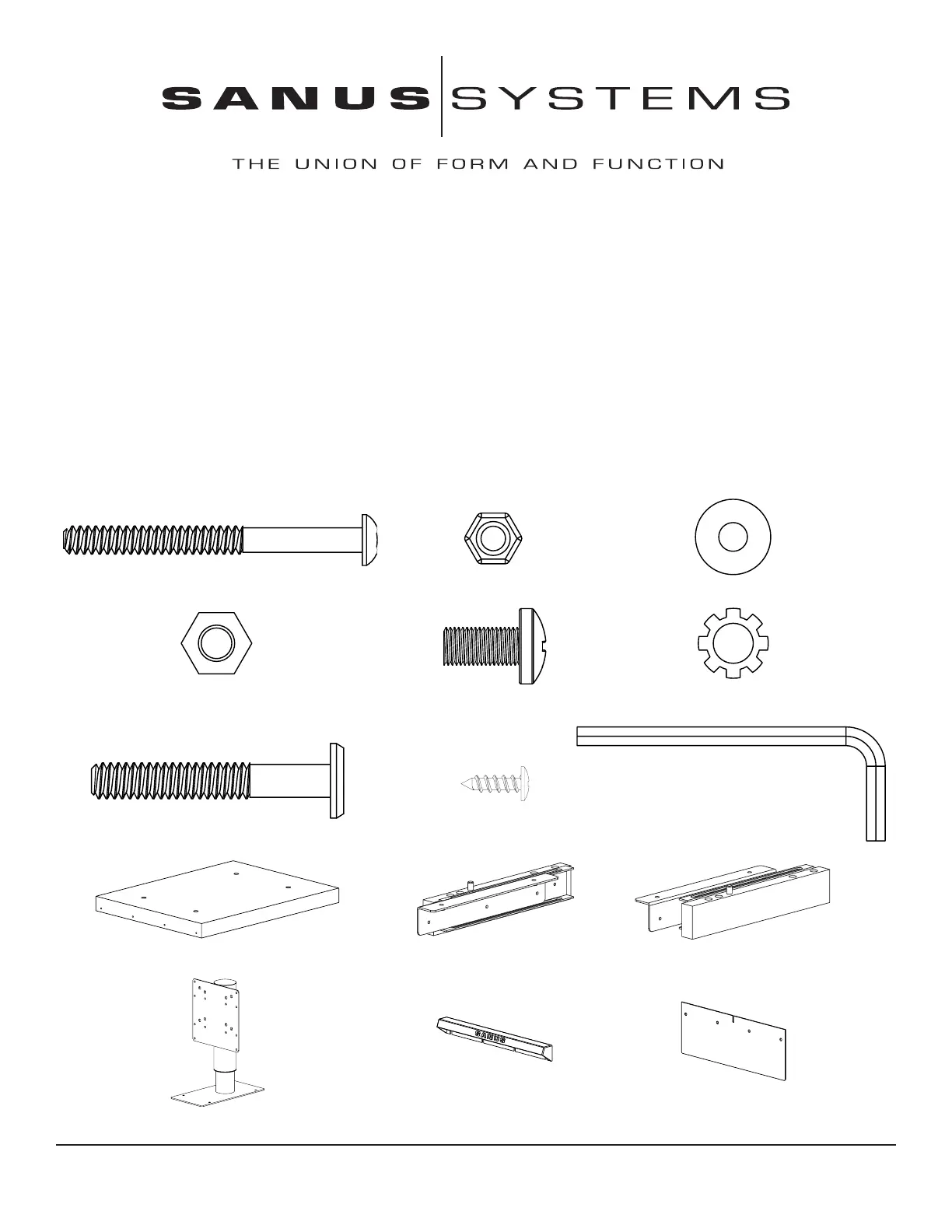

Note: Hardware shown at actual size *Some items not shown at same scale

(6) Button Head Bolt - a (6) 1/4 20 Nut - b (6) Washer - c

(4) M8 Nut - d (4) M8 x 16 Bolt - e (4) M8 Lock Washer - f

(4) Furniture Bolt - g (4) Wood Screw - h (1) Allen Key - i

(1) Base - j (1) Left Glide - k (1) Right Glide - l

(1) Top Assembly - m * (1) Handle - n (1) Front Cover - o

Sanus Systems 2221 Hwy 36 West, Saint Paul, MN 55113 4.05.05

Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com

TV Attachment Hardware:

(4) M4 x 10 Bolt - p (4) M4 x 30 Bolt - q (4) M6 x 12 Bolt - r (4) M6 x 35 Bolt - s

(4) M4 Lock Washer - t (4) M6 Lock Washer - u (4) M4 Spacer - v (4) M6 Spacer - w

Step 1: Prepare Holes in Mounting Surface

Section A: Mounting the VMPO to the Sanus CFAR47cb

On the bottom side of the Mid Shelf on the CFAR47cb you should see 6 starter holes that have been pre-drilled in a pattern that is shown

in Diagram 1. With a Drill and a 1/4” Drill Bit, proceed to drill out all 6 holes so they go all the way through the shelf.

Mounting the VMPO to any other surface

Tape the Paper Template provided to the desired shelf the VMPO is to be mounted on. Using a Drill and a 1/4” Drill Bit, drill a hole in

each marked location (6 total) in the Shelf. You should have 6 drilled holes that match the pattern shown in Diagram 1.

Note: Diagram 1 is a Cutaway View

Diagram 1

Mounting Surface

Hole Pattern

WARNING: It is the responsibility of the installer to verify the surface the VMPO is mounted to is secured so that it will NOT

tip forward when the television is pulled out into its extended position. The mounting surface must be capable of supporting 5

times the total weight of the television and the mount.
