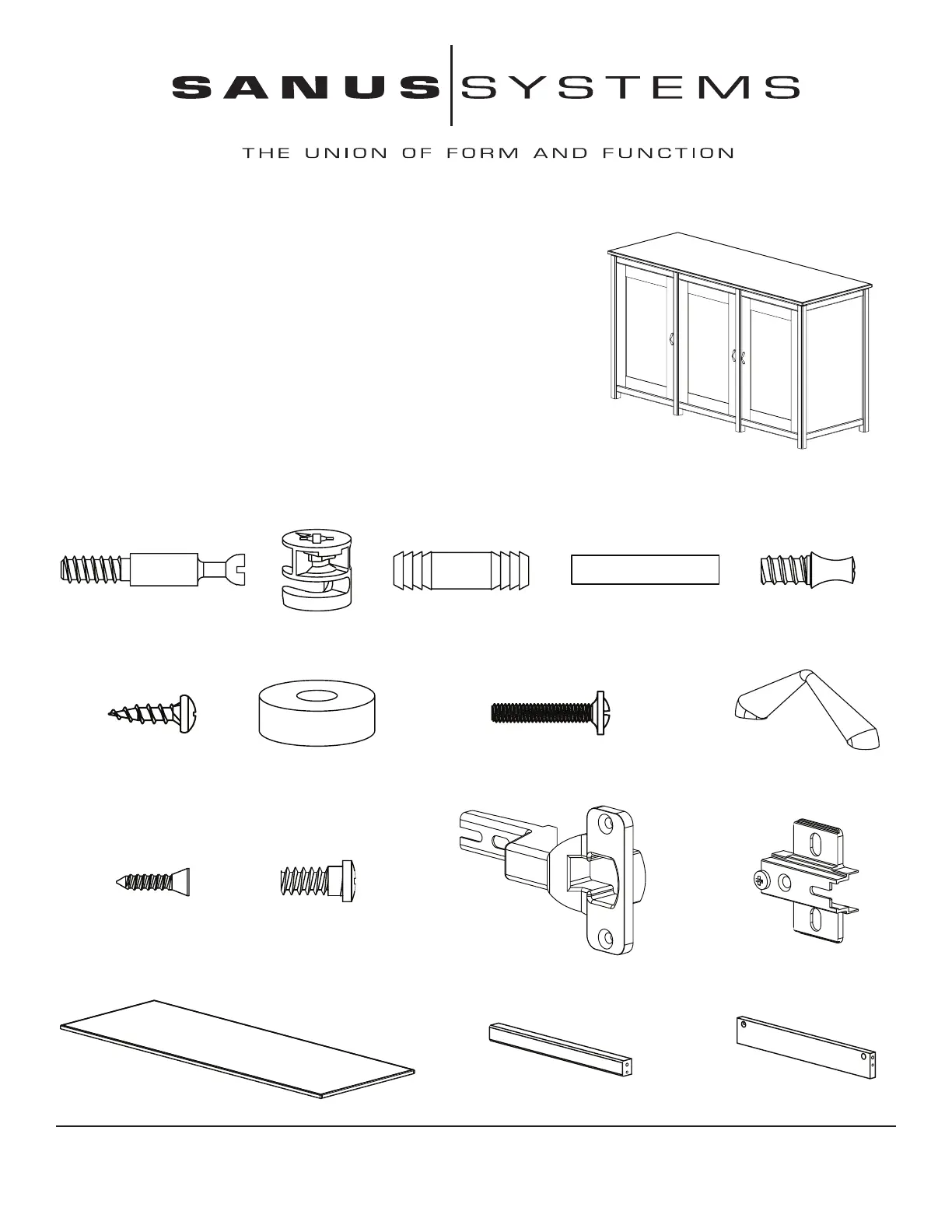

Hardware: Shown as actual size

(24) Cam Pin - a (8) Dowel Pin - c (24) Dowel - d (48) Shelf Pin - e

(24) Cam - b

(12) Wood Screw - f

(8) Spacer - g (6) Phillips Bolt - h (3) Door Handle - i*

(12) Hinge Screw - j (12) Hinge Plate Screw - k

Parts: Not Shown as actual size (6) Hinge - l* (6) Hinge Plate - m*

(6) Front Stretcher - o (6) Back Stretcher - p

(1) Top - n

Assembly Instructions for Model: WFAV66

Thank you for choosing Sanus Systems Woodbrook Furniture. The Woodbrook Furniture is

constructed of real hardwood and resonance dampening MDF.

Safety Warning: If you do not understand these directions, or have any doubts about the

safety of the installation, please call a qualied contractor or contact Sanus at 800.359.5520 or

www.sanus.com. Check carefully to make sure that there are no missing or defective parts. Our

customer service representatives can quickly assist you with installation questions and missing

or damaged parts. Replacement parts for products purchased through authorized dealers will be

shipped directly to you. Never use defective parts. Improper installation may cause damage or

serious injury. Do not use this product for any purpose that is not explicitly specied by Sanus

Systems. Sanus Systems can not be liable for damage or injury caused by incorrect assembly, or

incorrect use. Please call Sanus Systems before returning products to the point of purchase.

Required Tools: Phillips screw driver

Supplied Parts and Hardware: Some parts may be pre-assembled together*

Sanus Systems 2221 Hwy 36 West, St. Paul, MN 55113 12.28.05

Customer Service: 800.359.5520. See complementary Sanus products at www.sanus.com

Parts List (Cont)

(3) Bottom Shelf - q (9) Mid Shelf - r

(3) Door - s (2) Wood Panel Insert - t (3) Back Panel - u

(1) Left Side Panel - v (1) Right Side Panel - w (2) Center Panel - x

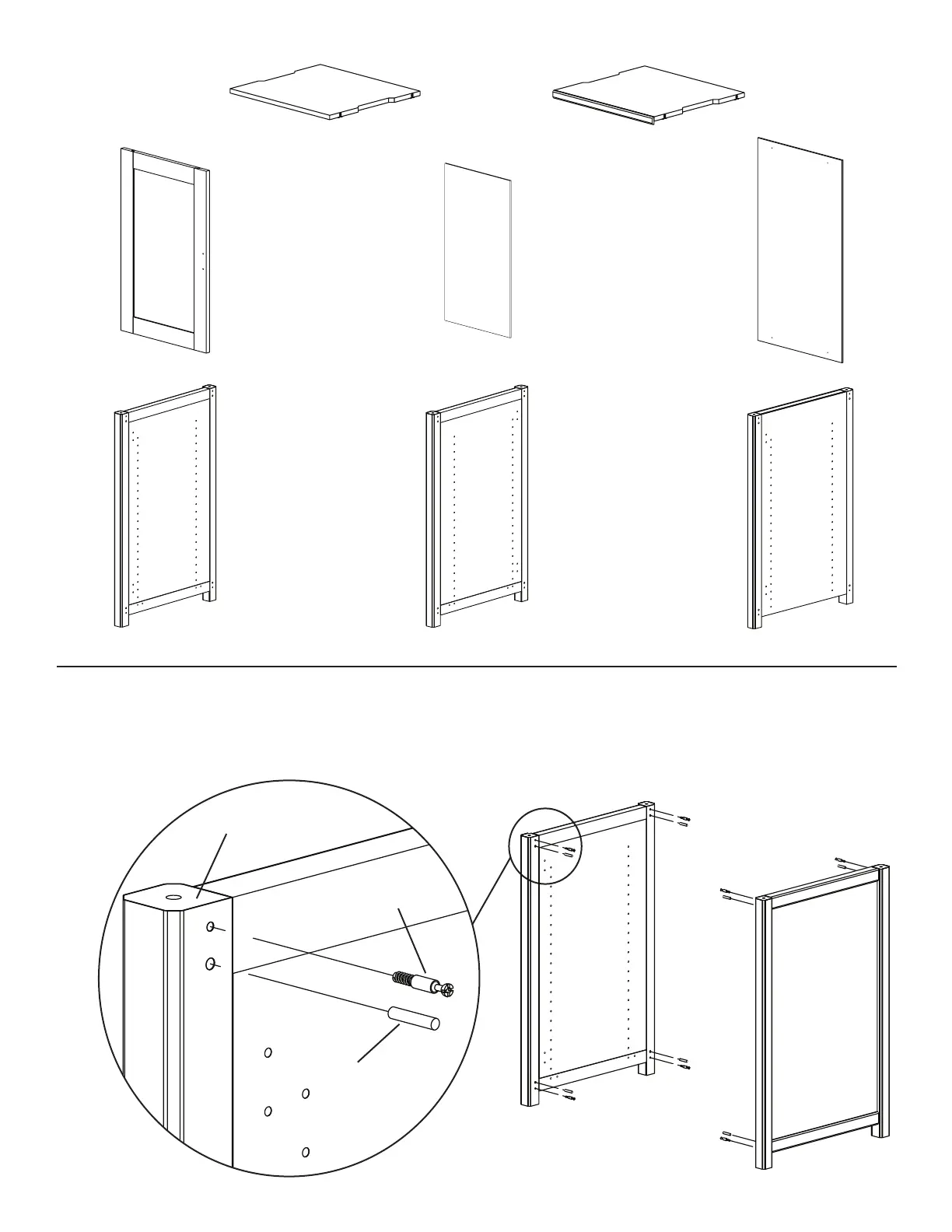

Step 1: Prepare the Side Panels

Thread a Cam Pin (a) into each of the smaller holes in each Side Panel (v,w). Tighten each Cam Pin with a Phillips screw driver. Insert

a Dowel (d) into the larger adjacent hole in the Panels. See Diagram 1 for assistance.

Detailed View Diagram 1
