ASSEMBLY AND INSTALLATION

INSTRUCTIONS

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

161120

Metal Pad (B) Allen (C)

Lock Nut (A)

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

L0001 / L0002 / L0003 / L0004

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

Hardware Package (inculded):

Turn off the power at fuse or circuit

Installation Steps (K0022/K0023)

1. Attach the column into the hole of base and tighten it with metal pad

and lock nut.

2. Pull the fixture wires and insert the arm into the hole of column and

tighten it with set screw.

Make sure the screw hole of column aligns with threaded hole

of arm and arm in the middle of the base.

Warning: LED electronics can be damaged by electro

static discharge (ESD)shock. Before installation,

discharge yourself by touching a grounded bare metal

surface to remove this hazard. To avoid damage, do

not touch the LED module.

3. Unscrew the lock screw from the arm to slide

the inner arm out from the arm. (Fig.1)

Note: Hold the inner arm up for suceeding in

unscrewing lock screw and to prevent

it from scuffing.

Set Screw

Arm

Inner Arm

Screw

Column

Lock Nut (A)

Metal Pad (B)

Base

Adjusting the length of the inner arm (Fig.1,2,3)

Arm

Plastic Clip

Inner Arm

Lock Screw

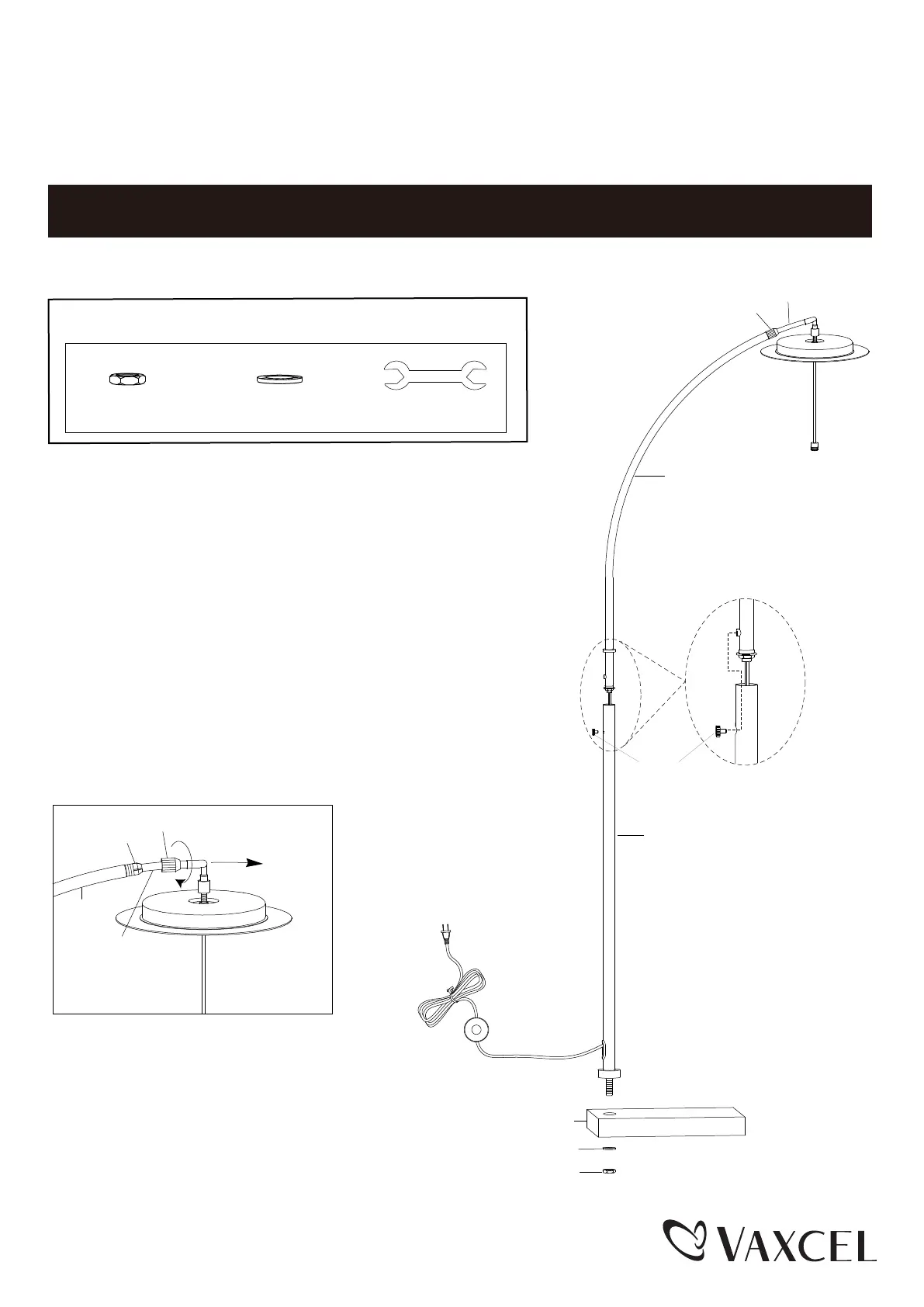

Fig.1
