Side 1/4

GRAPHITE

DIGITAL PASSIVE INFRARED DETECTOR

graphite_en 01/15

The GRAPHITE detector allows detection of motion in the protected area. This manual applies to the detector

with electronics version H (or newer).

1. Features

 Dual element pyrosensor.

 Digital motion detection algorithm.

 Digital temperature compensation.

 Adjustable detection sensitivity.

 Built-in EOL resistors.

 LED to indicate alarm status.

 Remote LED enable/disable.

 Alarm memory.

 Supervision of detector signal path and supply voltage.

 Tamper protection against cover removal.

2. Specifications

Supply voltage ...................................................................................................................................12 V DC ±15%

Standby current consumption......................................................................................................................... 12 mA

Maximum current consumption ...................................................................................................................... 14 mA

EOL resistors ............................................................................................................................................ 2 x 1.1 k

Relay contacts rati .....40 mA / 16 V DC ng (resistive load).........................................................................................

Detectable speed......................................................................................................................................0.3...3 m/s

Alarm signaling period .......................................................................................................................................... 2 s

Warm-up period.................................................................................................................................................. 30 s

Recommended installation height ....................................................................................................................2.4 m

Security grade according to EN50131-2-2 ...................................................................................................Grade 2

Standards complied with ........................................................ EN50131-1, EN50131-2-2, EN50130-4, EN50130-5

Environmental class according to EN50130-5 ........................................................................................................II

Operating temperature range ................................................................................................................ -30...+55 °C

Maximum humidity..........................................................................................................................................93±3%

Dimensions ..................................................................................................................................... 63 x 96 x 49 mm

Weight.................................................................................................................................................................94 g

3. Description

After motion is sensed by the detector y contacts will open for 2 seconds. in the coverage area, the alarm rela

Supervision features

In the event of the voltage drop below 9 V (± 5%) for more than 2 seconds or the signal path failure, the detector

will signal a trouble. The trouble is indicated by the activation of alarm relay and the steady light of LED

indicator. The trouble signaling will continue as long as the trouble persists.

Remote LED enable/disable

The LED can be enabled/disabled remotely, if the LED has not been enabled using the LED ON/OFF pins. The

LED terminal is provided to allow remote LED enable/disable. The LED is enabled, when the terminal is

connected to the common ground, and disabled, when the terminal is disconnected from the common ground.

2 GRAPHITE SATEL

You can connect to the LED terminal an OC type control panel output programmed e.g. as the SERVICE MODE

STATUS, . BI SWITCH or ZONE TEST STATUS

Alarm memory

If the LED is enabled, the detector can indicate the alarm memory. The MEM terminal is provided to allow the

alarm memory feature enable/disable. The feature is enabled, when the terminal is connected to the common

ground. The feature is disabled, when the terminal is disconnected from the common ground. If the alarm

memory feature is enabled and an alarm occurs, the LED will start blinking. Indication of the alarm memory will

continue until the alarm memory feature is enabled again (the MEM terminal is connected to the common

ground). Disabling the alarm memory feature will not stop the alarm memory indication. You can connect to the

MEM terminal an OC type control panel output programmed e.g. as the ARMED STATUS.

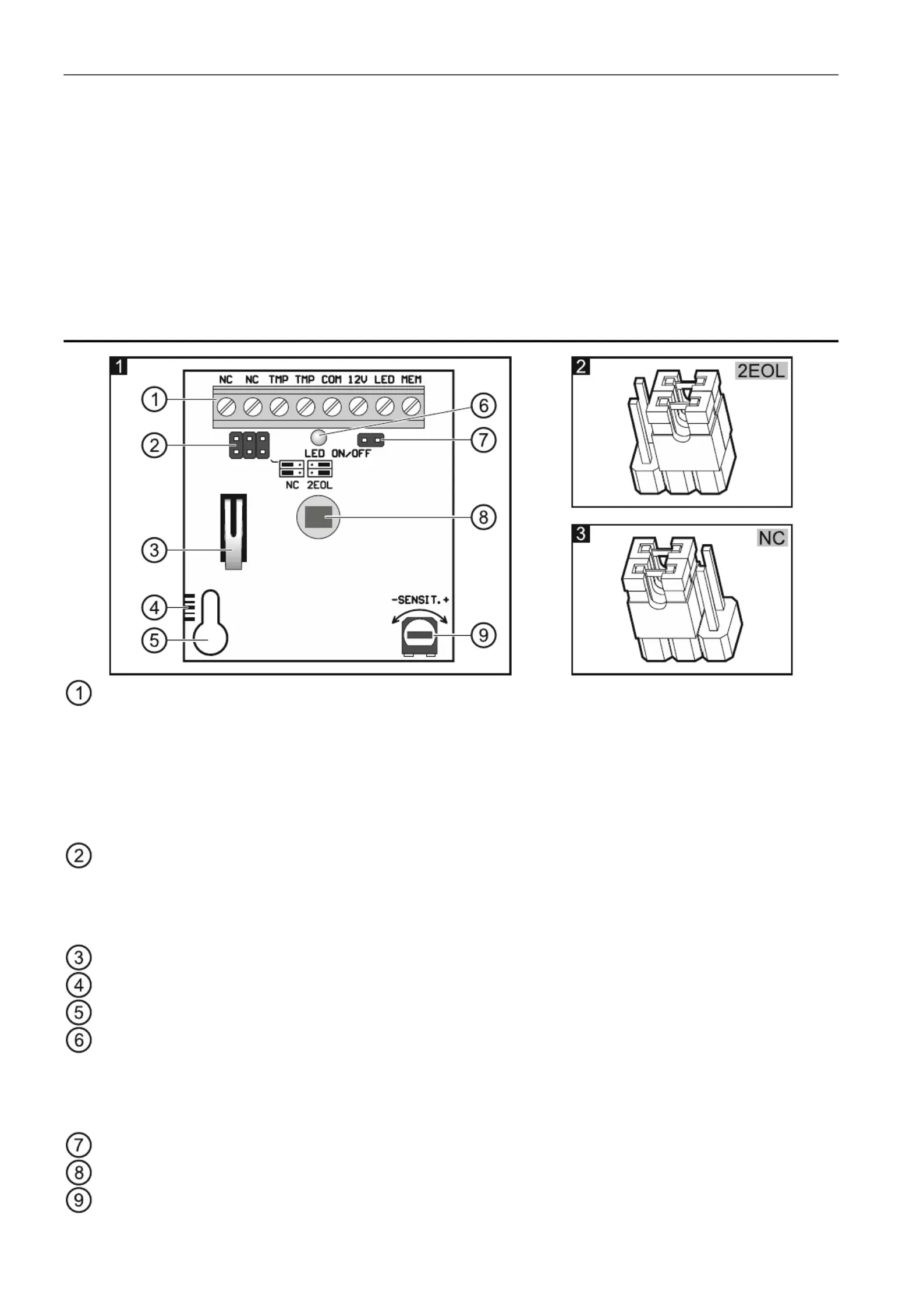

4. Electronics board

terminals:

NC - alarm output (NC relay).

TMP - tamper output (NC).

COM - common ground.

12V - power input.

LED - remote LED control.

MEM - alarm memory control.

configuration pins for detector outputs:

the built-in resistors are to be used – place the jumpers as shown in Fig. 2 (connect the outputs as shown

in Fig. 10),

the built-in resistors are not to be used – place the jumpers as shown in Fig. 3 (connect the outputs as

shown in Fig. 9).

tamper switch.

scale for positioning of pyroelectric sensor against the lens (see: Fig. 8).

fixing screw hole.

red color LED to indicate:

alarm – ON for 2 seconds,

alarm memory – blinking rapidly,

trouble – ON,

warm-up – blinking slowly.

LED enable/disable pins. The LED is enabled, if the jumper is placed over the pins (the pins are shorted).

dual element pyrosensor. Do not touch the pyroelectric sensor, so as not to soil it.

potentiometer for sensitivity adjustment.
