Flush-mount multifunction display unit

ATE 310

KEY POINTS

Front face

Brushed stainless steel 316 L

Back housing

Flush-mount in stainless steel 304 L

Protection

IP65 in front face

Weight

585 g

●

Alternating display of 1 to 3 parameters

●

3 audible and visual alarms

●

Configuration keyboard and acknoledgment of the alarm on the front face

●

3 analogue inputs 0-5/10 V or 0/4-20 mA

●

Ethernet communication (option)

●

RS485 MODBUS protocol communication

●

30 pre-programmed units and configurable units

●

Front face made of brushed stainless steel with electroluminescent display

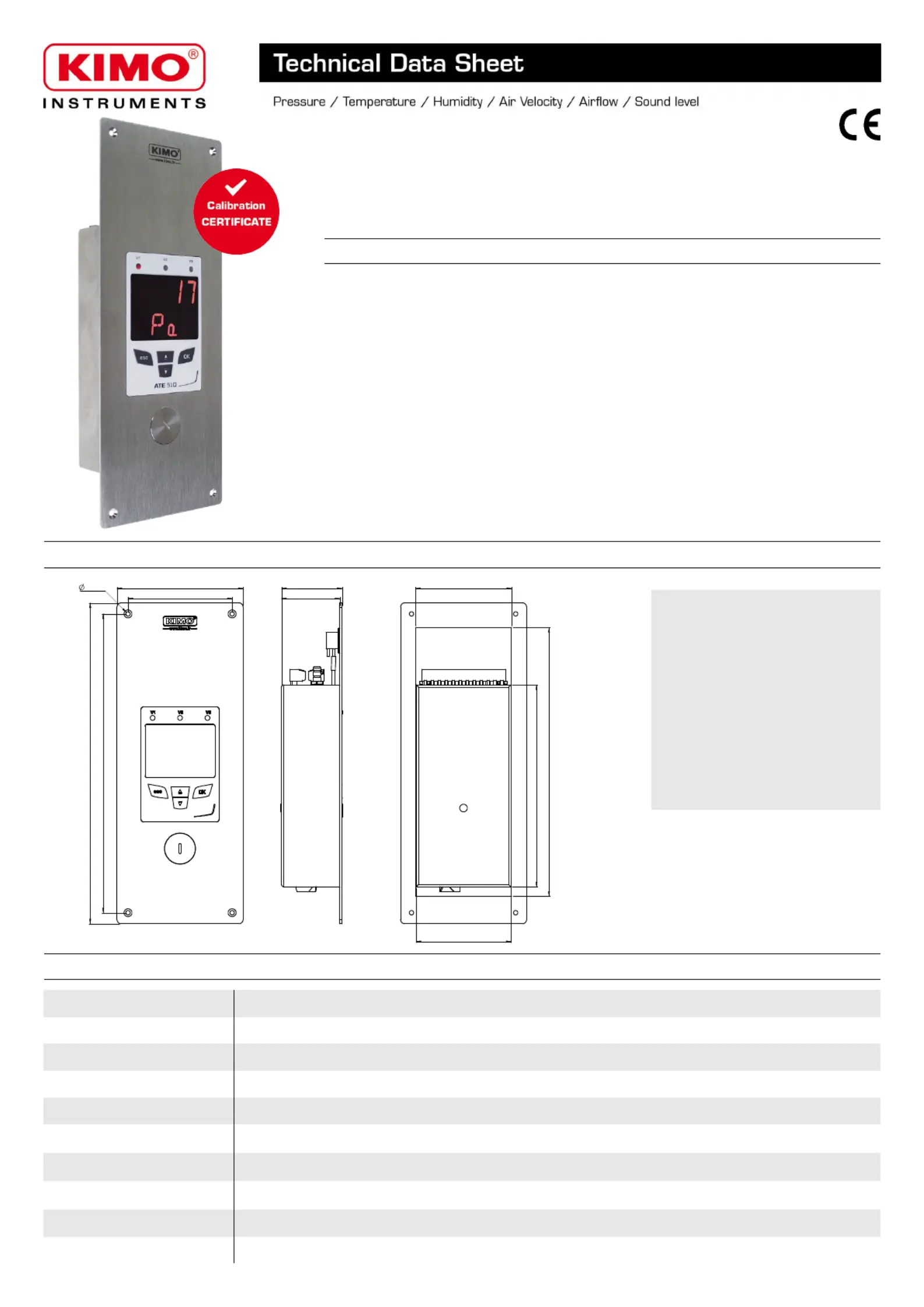

FEATURES OF THE HOUSING

DISPLAY FEATURES

Display Electroluminescent alphanumeric (38 x 48 mm). Protection glass in red inactinic PMMA .

First line (measurement) 4 digits of 8 segments each. Size: 14 x 48 mm.

Second line (unit) 4 digits of 14 segments each. Size: 14 x 48 mm.

Comma position Configurable: 0 / 0.0 / 0.00

Value of the measurement From -9.99 to 99.99 and from -999 to 999

Accuracy* ±0.1% of reading ±1 digit

Number of channels From 1 to 3 ways alternating

Location of channels By red Led V1, V2 and V3

Available units 30 pre-programmed units (see table) and configurable units

Response time < 1 second

*All accuracies indicated in this document were stated in laboratory conditions and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.

234 mm

92 mm

44 mm

42.5 mm

70 mm

196 mm

3.2 mm

218 mm

76 mm

69 mm

147.3 mm

Power supply

24 Vac / Vdc ±10%

Be careful, risk of electric shock

Inputs 3 x 0/4-20 mA or 3 x 0-5/10 V; Common mode voltage < 30 Vac; Input impedance: 100 Ohm

Galvanic isolation Between input and power supply

Consumption 4.32 VA

European directives 2014/30/UE EMC; 2014/35/UE Low voltage; 2011/65/EU RoHS II; 2012/19/UE WEEE

Electrical connection Screw terminal block for cables from 0.05 to 1.5 mm

or from 30 to 16 AWG. Carried out according to the code of good practice.

RS485 communication Digital: Modbus RTU protocol, configurable communication speed from 2400 to 115200 Bauds

Ethernet communication

(optional)

Ethernet communication module enables transmission, management and maintenance of the sensors through an Ethernet

network in 10 BASE-T and 100 BASE-TX LAN/WAN carrying the TCP/IP protocole

Additional consumption: 0.68 VA

Visual alarm Blinking of the value

Audible alarm Buzzer (70 dB at 10 cm)

Environment and type of fluid Air and neutral gases

Conditions of use (°C/%HR/m) From -10 to +50°C. In non-condensing condition. From 0 to 2000 m.

TECHNICAL SPECIFICATIONS

INNOVATIONS

➢

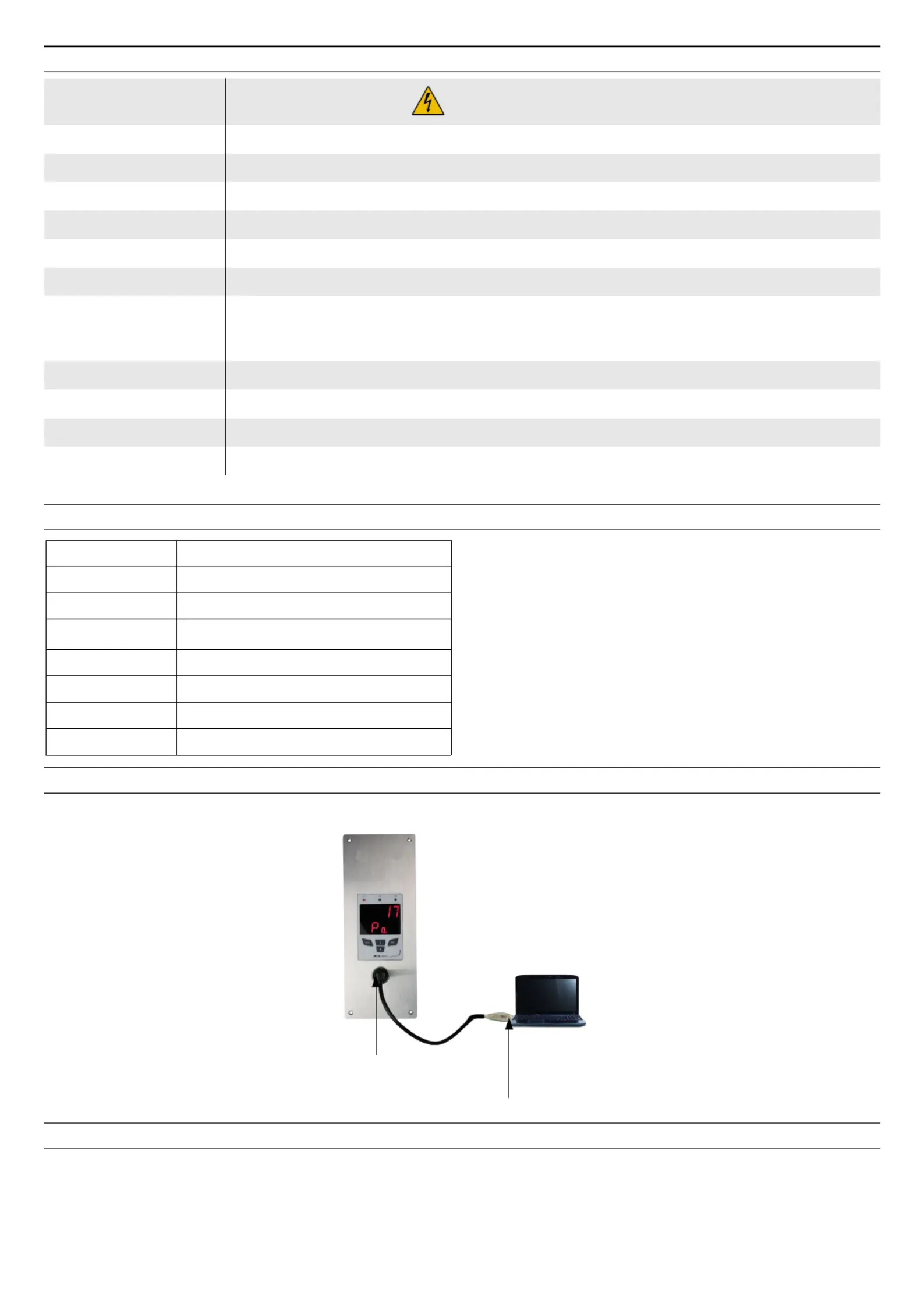

Connection to a computer in front face

Mini-DIN connection

USB connection

TABLE OF THE PRE-PROGRAMMED UNITS

Domain Unit

Temperature °C, °F

Hygrometry %HR, g/kg, Kj/Kg, °C td, °F td, °C Tw, °F Tw

Pressure kPa, inWg, hPa, mbar, mmHg, mmH

O, daPa, Pa

Air velocity m/s, fpm, km/h

Air flow

/h, l/s, cfm, m

Combustion ppm

Electricity mV, V, µA, mA, A

ALARMS

The mulit-channel display unit ATE310 has 3 visual and audible alarms independant and configurable. The available adjustments are:

●

Time-delay duration: from 0 to 600 s

●

Acknowledgement duration: from 0 to 60 minutes

●

Thresholds values

●

Alarm triggering: rising edge, falling edge or monitoring

●

Audible alarm activation (buzzer)
