CO2ST-S

Quick Start Guide

EN FR

www.sauermanngroup.com

English

Quick Start Guide

switch / CO

detector

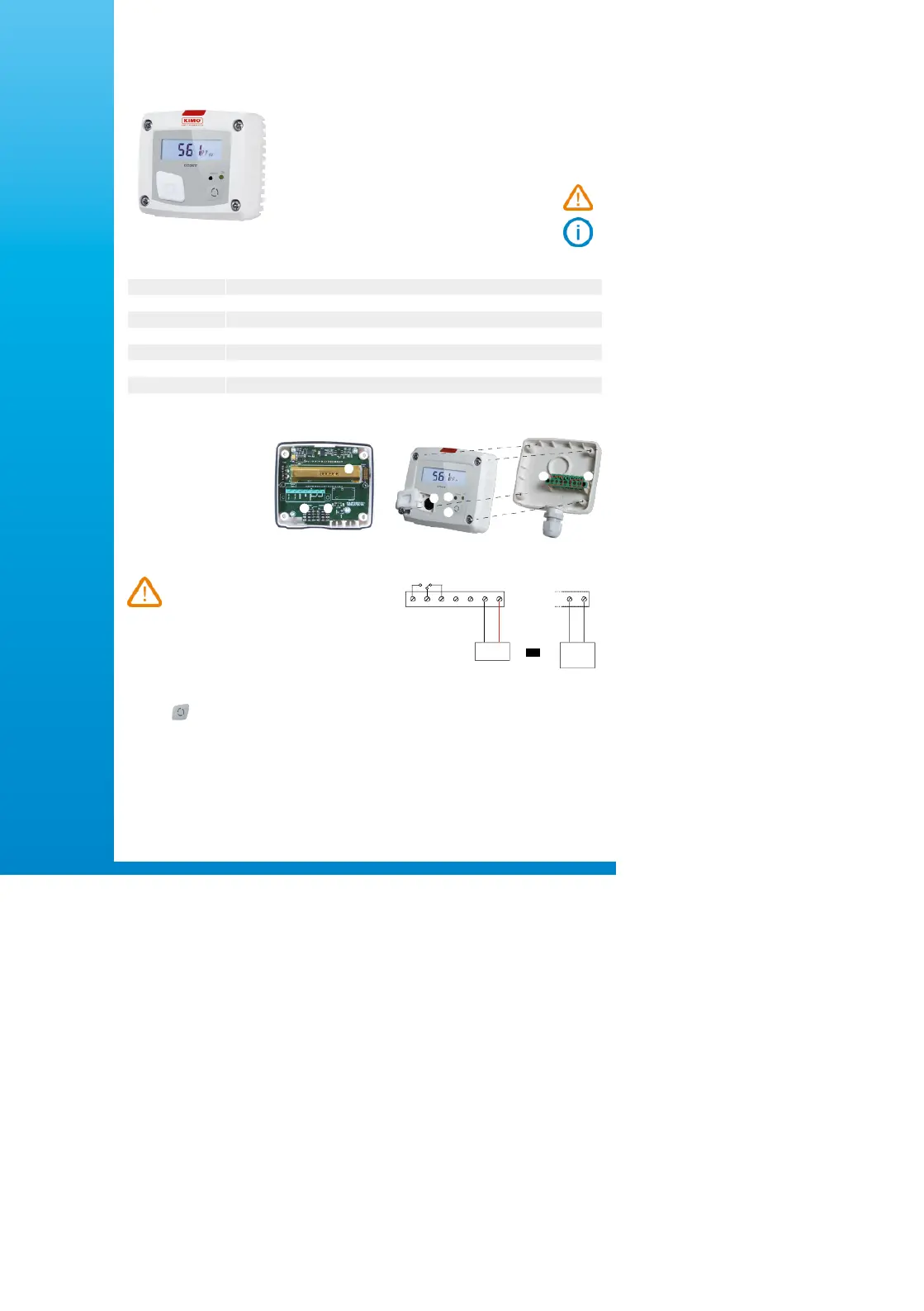

Connections

Electrical connections as per NFC15-100 standard

This connection must be made by a qualied

and trained technician. To make the connection,

the transmitter must not be energized.

Settings and use of the transmitter

NO: normally open

COM: common

NC: normally closed

Symbols used

For your safety and in order to avoid any damage of the device,

please follow the procedure described in this document and read

carefully the notes preceded by the following symbol:

The following symbol will also be used in this document, please

read carefully the information notes indicated after this symbol:

sensors allow you to measure carbon dioxide.

Output 1 RCR relay. NO (normally opened): 5A / NC (normally closed): 3A / 240 Vac. Common mode voltage <30 Vac

Power supply 24 Vac/Vdc ±10%

Consumption 3 VA

Relay and alarm status Red led in front and internal buzzer (70 dB at 10 cm)

European directives 2014/30/EU EMC; 2014/35/EU Low Voltage; 2011/65/EU RoHS II; 2012/19/EU WEEE

Electrical connection Terminal block for cables Ø0.05 to 2.5 mm

. Carried out according to the code of good practice

PC communication USB-mini Din cable

Environment Air and neutral gases

Inside the front housing

Removable front face

Fixed back housing

2 3

7 8

1. Infra-red sensor

2. Inactive switch

3. Active switch

4. LCC-S software connection

5. Alarm led

6. Button for settings

7. Relay terminal block

8. Power supply terminal block

NO COM NC

1 2 3 4 5 6 7

Power supply

24 Vdc

N L

~ ~

6 7

Power supply

24 Vac

Class II

• Threshold conguration

The button allows to activate or not an alarm (threshold), to set the action of the alarm (edge), to set the threshold(s)

value, to set the time-delay and to acknowledge the alarm.

Working principle:

- By pressing on the button more than 3 seconds, you can validate the setting and go to the next setting.

- By pressing quickly on the button, you can increment a value and scroll down the different option or values.

• Activate or deactivate an alarm

- Press the button for 3 seconds, is displayed then , meaning that the relay is in negative security, it is “CONF” “NEG”

excited during an alarm condition.
