CP 110

Quick Start Guide

EN FR

www.sauermanngroup.com

ES IT

English

Quick Start Guide

Output / Supply

Active sensor 0-10 V or 4-20 mA (alim. 24 Vac/Vdc ±10%), 3-4 wires

Passive loop 4-20 mA (power supply 16/30 Vdc), 2 wires

Common mode voltage <30 VAC

Maximum load: 500 Ω (4-20 mA) / minimum load: 1 K Ω (0-10 V)

Consumption

CP 111: 3 VA (0-10 V) or 3 VA (4-20 mA)

CP112, CP113, CP 114, CP 115: 2 VA (0-10 V) or 0.6 VA (4-20 mA)

European directives 2014/30/EU EMC; 2014/35/EU Low Voltage; 2011/65/EU RoHS II; 2012/19/EU WEEE

Electrical connection

Screw terminal block for cables from 0.05 to 2.5 mm

or from 30 to 14 AWG

Carried out according to the code of good practice

PC Communication USB-mini DIN cable

Environnement Air and neutral gases

Response time 1/e (63%) 0.3 s

Zero setting Manual autozero with push-button; self-calibration by solenoid valve (CP 111 only)

Type of uid Air and neutral gases

Conditions of use

(°C/%RH/m)

From 0 to +50 °C. In non-condensing condition. From 0 to 2000 m

Storage temperature From -10 to +70 °C

Differential pressure

transmitter

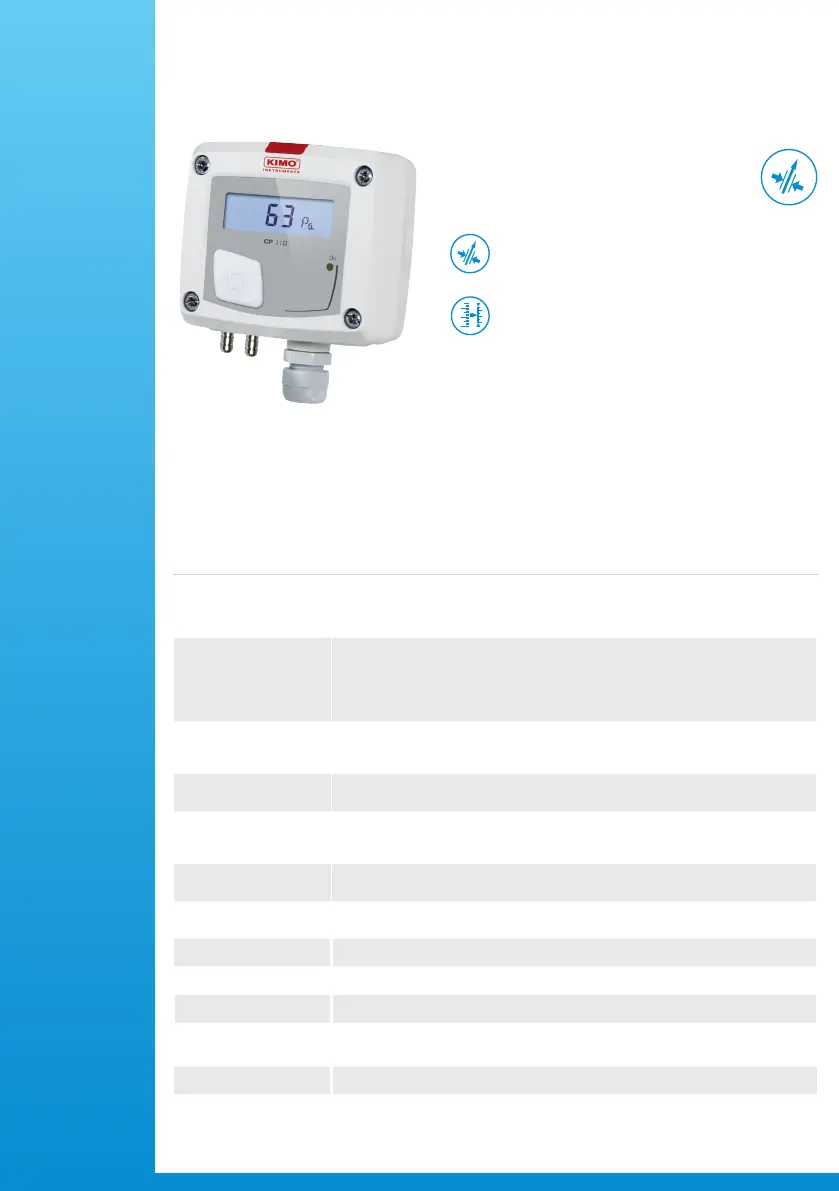

Features

• 0-10 V or 4-20 mA output, active, power supply

24 Vac/Vdc (3-4 wires) or 4-20 mA output, passive

loop, power supply from 16 to 30 Vdc (2 wires)

• ABS V0 housing, IP65, with or without display

• “¼ turn” system mounting with wall-mount plate

• Housing with simplied mounting system

• Solenoid valve for auto-calibration (only on

CP111 model)

Congurable intermediary

ranges

Ranges from -100/+100 Pa to

-2000/+2000 mbar (according to model)

General features

*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.
