Side 1/4

CR 110

Solar radiation transmitter

• 0-10 V active output, power supply

24 Vac/Vdc (3-4 wires) or 4-20 mA

output, passive loop, power supply

from 16 to 30 Vdc (2 wires)

• “¼ turn” system mounting with

wall-mount plate

• Housing with simplied mounting

system

DATA SHEET

Unit of measurement W/m²

Measuring range From 0 to 1500 W/m²

Accuracy* 5% of reading

Resolution 1 W/m²

Type of uid Air and neutral gas

Conditions of use

(°C/%RH/m)

From 0 to +50 °C. In non-condensing conditions.

From 0 to 2000 m.

Storage temperature From -10 to +70 °C

General features

Matierial ABS V0 as per UL94

Protection IP65

Display

LCD 10 digits.

Dimensions: 50 x 17 mm

Height of digits Values: 10 mm; Units: 5 mm

Weight 140 g

Cable gland For cables Ø 8 mm maximum

Remote probe Cable of 5 m length in PVC

Features of the housing

46 mm

90 mm

109 mm

*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed

for measurements carried out in the same conditions, or carried out with calibration compensation.

Part number

Power supply / Output

A: Active – 24 Vac/Vdc – 0-10 V

P: Passive – 16/30 Vdc – 4-20 mA

Display

O: With display

CR 110

Example: CR 110-PO

Solar radiation transmitter with 4-20 mA passive output and 5 m of probe cable length.

Range from 0 to

1500 W/m²

P O

ABS V0 housing,

with display

Interval thread

1/4’’

M6 thread

(notch side)

Ø 30 mm

Ø 25 mm

10 mm

Probe cable length

05M: cable length 5 m

10M: cable length 10 m

05M

Features of the solar cell

Measuring range From 0 to 1500 W/m²

Spectral response 400-1100 nm

Nominal sensitivity

100 mv for 1000 W/m² STC

(Standard Test Conditions 25 °C – Solar spectrum AM 1.5)

Response in cosine Corrected until 80°

Coefcient in temperature +0.1% / °C

Effective area 1 cm²

Operating temperature From -30 to +60 °C

Relative humidity dependence 100 %RH

UV performance Excellent (PPMA lter)

Mode Photovoltaic

Material Polycristallin silicon

Front face Translucent PPMA

Tightness Polyutethane resin and housing in PPMA and polyacetol

Weight 60 g

Dimensions 30 x 32 mm

Protection IP65

Connections

1. Inactive switch

2. Inactive switch

3. LCC-S software connection

4. Output terminal block

5. Power supply terminal block

6. Cable gland

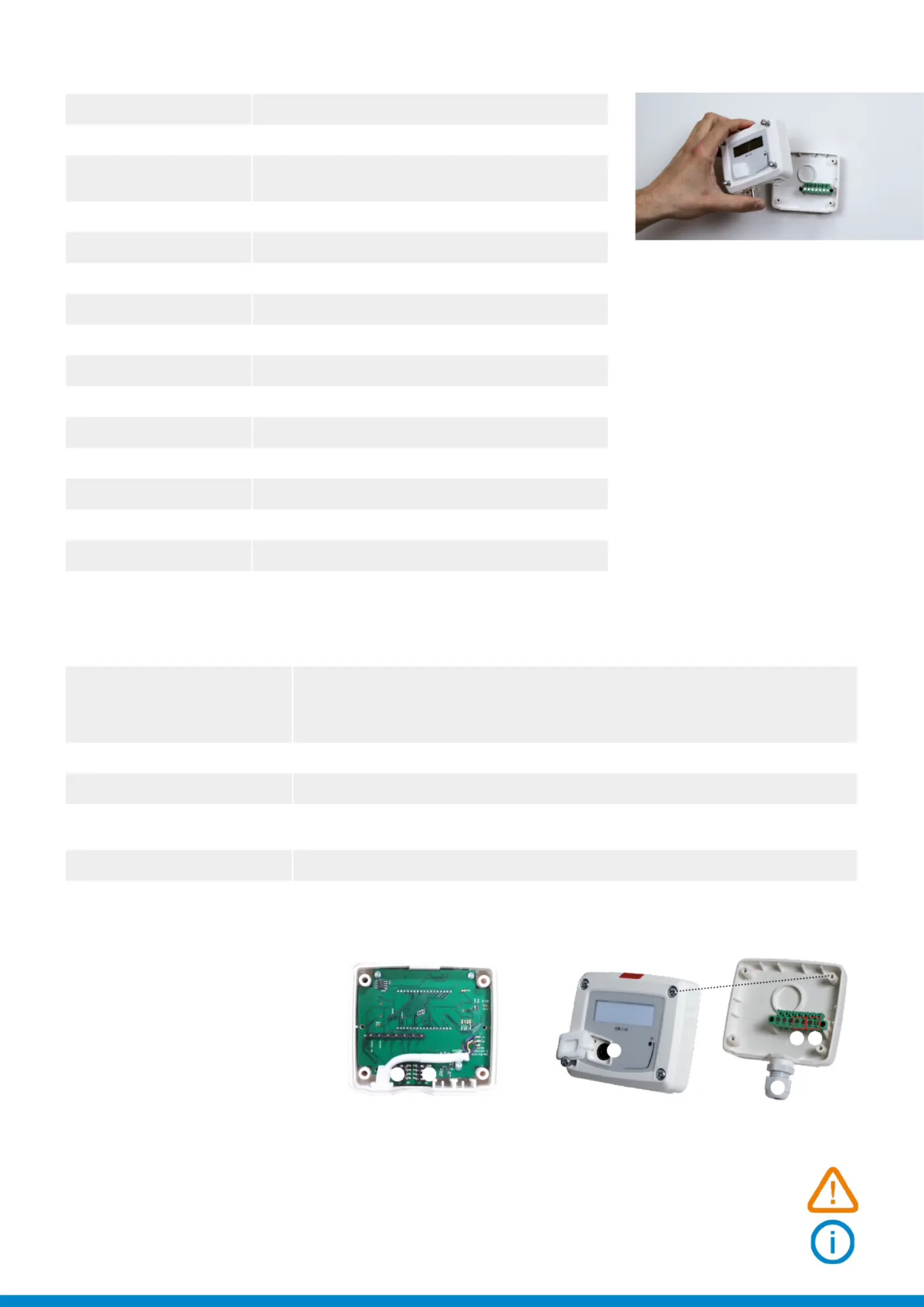

Simplied calibration

Electronic board and measuring element xed to

the front panel of the sensor, allowing you to leave

your installation intact to congure or calibrate your

instruments.

1 2

Inside the front housing Removable front face Fixed back housing

Symbols

For your safety and in order to avoid any damage of the device, please follow the procedure described in this document

and read carefully the notes preceded by the following symbol:

The following symbol will also be used in this document, please read carefully the information notes indicated after

this symbol:

Technical specications

Output / Power supply

Active 0-10 V (power supply 24 Vac/Vdc ±10%), 3-4 wires

Passive loop 4-20 mA (power supply 16/30 Vdc), 2 wires

Common mode voltage <30 VAC

Maximum load: 500 Ω (4-20 mA) / minimum load: 1 kΩ (0-10 V)

Consumption 2 VA (0-10 V) or 0.6 VA (4-20 mA)

European directives 2014/30/EU EMC; 2014/35/EU Low Voltage; 2011/65/EU RoHS II; 2012/19/EU WEEE

Electrical connection

Screw terminal block for cables from 0.05 to 2.5 mm

or from 30 to 14 AWG

Carried out according to the code of good practice

PC communication USB-mini DIN cable

Environment Air and neutral gases
