Side 1/4

KIRAY 200

Infrared thermometer

USER MANUAL

Spectral response 8 - 14 μm

Optical D.S: 30:1 (50 mm at 1500 mm)

Temperature range From -50 to +850 °C

Accuracy*

From -50 to -20°C: ±5 °C

From -20 to +200 °C: ±1.5% of reading ±2 °C

From +200 to +538 °C: ±2% of reading ±2 °C

From +538 to +850 °C: ±3.5% of reading ±5 °C

Display resolution 0.1 °C

Response time Less than 1 second

Emissivity Adjustable from 0.10 to 1.00 (pre-set at 0.95)

Over range indication

Display indication: "-0L" for a negative over range,

"0L" for a positive over range.

Laser sighting

Wavelength: 630-670 nm

Output < 1mW, Class 2 (II)

Positive or negative

temperature indication

Automatic (no indication for a positive temperature)

(-) sign for a negative temperature

Display 4 ½ digits with LCD backlighted display

Auto-extinction Automatic after 7 seconds of inactivity

High/low alarm

Flashing signal on display and beep signal with

adjustable thresholds

Power supply Alkaline 9 V battery

Autonomy

38 h (inactive laser and backlight)

15 h (active laser and backlight)

Operating temperature

From 0 to +10 °C for a short period

From 11 to +50 °C for a long period

Storage temperature From -20 °C to +60 °C

Relative humidity From 10% to 90%RH in operating mode and >80%RH in storage

Dimensions 175 x 110 x 45 mm

Weight 230 g (included battery)

Memory 20 temperature values with unit of measurement (°C or °F)

*Accuracy for an ambient temperature from 18 to 28 °C (with a relative humidity lower than 80% RH)

Infrared thermometer KIRAY 200 is an infrared thermometer used to diagnose,

inspect and check any temperature. Thanks to its elaborated optical system, it

allows an easy and accurate measurement of little distant targets. KIRAY 200

instrument has an internal memory which can save up to 20 measurements.

Technical specications

°C

°F

Distance from target

Make sure that the target is larger than the

size of the laser sighting.

Thermocouple K probe features

Temperature range From -40 to +400 °C

Display range From -50 to +1370 °C

Resolution 0.1 °C

Accuracy ±1.5% of reading ±3 °C

Cable length 1 m

Supplied with

thermocouple K probe

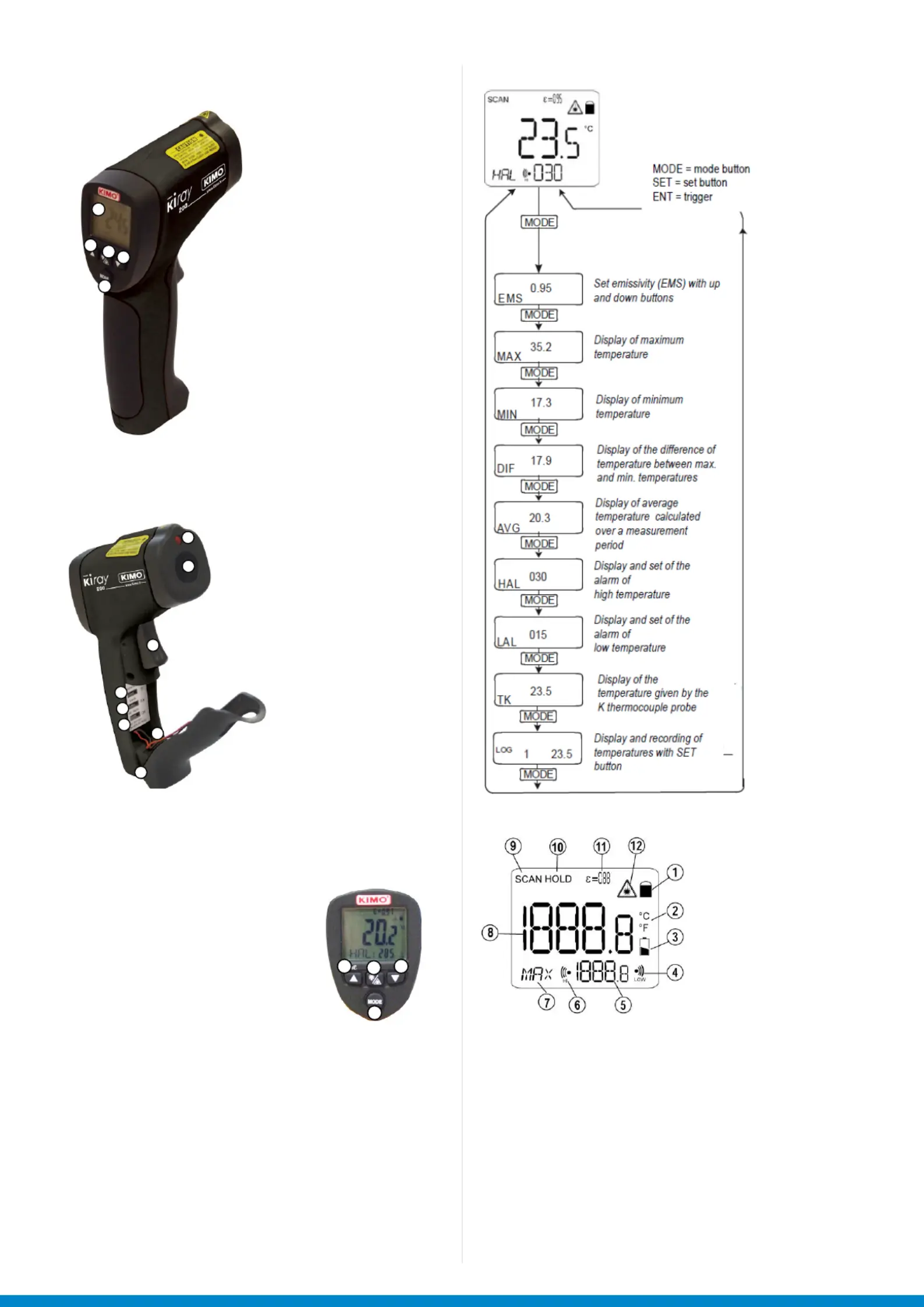

Modes ow chartDescription

1 - LCD backlighted display

2 - Up button

3 - Laser and backlight

button

4 - Down button

5 - Mode button

1 - Laser sighting output

2 - IR sensor (infrared)

3 - Trigger

4 - Set technical Unit

(°C/°F)

5 - Set continuous

measurement (On/Off)

6 - Set alarm (On/Off)

7 - Battery compartment

8 - External probe input

Kiray 200 buttons

1 – Up button: It allows to increment

emissivity and high/low alarm thresholds

and to move to the next recorded value.

2 – Set button: It allows to activate or

deactivate laser and display backlight. It

allows also to record a temperature.

3 – Mode button: It allows to navigate

through the modes (emissivity, max

value, min value, difference, average, high

alarm, low alarm, TK value and

recorded values).

4 – Down button: It allows to decrement

emissivity and high/low alarm

thresholds and to move to the previous

recorded value.

Display

1 – Continuous measurement indicator

2 – Technical unit (°C / °F)

3 – Low battery indicator

4 – Low alarm symbol

5 – MAX, MIN, DIF (difference between MAX and MIN values),

AVG (average), HAL (high alarm), LAL (low alarm), TK (TK

temperature) and LOG (recorded value)

6 – High alarm symbol

7 – EMS, MAX, MIN, DIF, AVG, HAL, LAL, TK and LOG indicator

8 – Temperature value

9 – Current measurement indicator

10 – HOLD indicator (xed measurement)

11 – Emissivity value

12 – Laser in operation indicator
