PST

Manostats

DATA SHEET

Parameter Accuracies* Measuring ranges Resolution

Pressure

PST-11: ±1% of reading ±2 Pa

PST-12: ±1.5% of reading ±3 Pa

PST-13: ±1.5% of reading ±3 mmH

PST-14 and PST-15: ±1.5% of reading ±3 mbar

From -100/+100 Pa to

-2000/+2000 mbar

(according to model)

PST-11, PST-12 and PST-13: 1 Pa, 0.1 mmH

O, 0.01inWG, 0.01mmHG,

0.1 daPa, 0.001 kPa (0.01 kPa for PST-13), 0.01 hPa, 0.01 mbar

PST-14 and PST-15: 1 mbar, 0.1 inWG, 1 mmHG,

0.1 PSI, 1 mmH

O, 1 daPa, 1 hPa, 0.1 kPa

Technical specications

*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.

Features

• RCR relay output 3A/240 Vac

(NC), power supply 24 Vac/Vdc

• ABS V0 IP65 housing

• “¼ turn” system mounting with

wall-mount plate

• Housing with simplied mounting

system

• Solenoid valve for auto-calibration

(only on PST-11 model)

Visual and audible alarm,

red led in front

Range from ±100 Pa to

±2000 mbar

(according to model)

Output 1 RCR relay. NO (normally opened): 5 A/NC (normally closed): 3 A/240 Vac. Common mode voltage <30 Vac

Power supply 24 Vac/Vdc ±10%

Consumption 3 VA

Relay and alarm status Red led in front and internal buzzer (70 dB at 10 cm)

European directives 2014/30/EU EMC; 2014/35/EU Low Voltage; 2011/65/EU RoHS II; 2012/19/EU WEEE

Electrical connection Terminal block for cables Ø 0.05 to 2.5 mm

. Carried out according to the code of good practice

PC communication USB-mini Din cable

Environment Air and neutral gases

Measured parameter

Measuring range

11: -100/+100 Pa

12: -1000/+1000 Pa

13: -10,000/+10,000 Pa

14: -500/+500 mbar

15: -2000/+2000 mbar

Part number

Example: PST – 13

Manostat PST with measuring range

from -10,000 to +10,000 Pa

PST

Unit of measurement

PST-11, PST-12 and PST-13:

Pa, mmH

O, inWG, mmHG, daPa, kPa, hPa, mbar

PST-14 and PST-15:

mbar, inWG, mmHG, PSI, mmH

O, daPa, hPa, kPa

Response time 1/e (63%) 0.3 s

Autozero

Manual by push-button

Automatic by solenoid valve (only on PST-11)

Type of uid Air and neutral gases

Tolerated overpressure

PST-11, PST-12: 21,000 Pa; PST-13: 69,000 Pa;

PST-14: 1400 mbar; PST-15: 4100 mbar

Conditions of use

(°C/%RH/m)

From 0 to +50 °C. In non-condensing condition.

From 0 to 2000 m.

Storage temperature From -10 to +70 °C

General features

Material ABS V0 as per UL94

Protection IP65

Display

LCD 10 digits. Size: 50 x 17 mm

Height of digits:

Values: 10 mm; Units: 5 mm

Connections

PST-11, PST-12, PST-13:

Ribbed Ø 6.2 mm

PST-14, PST-15:

Security Ø 6.2 mm

Cable gland For cables Ø 8 mm maximum

Weight 143 g

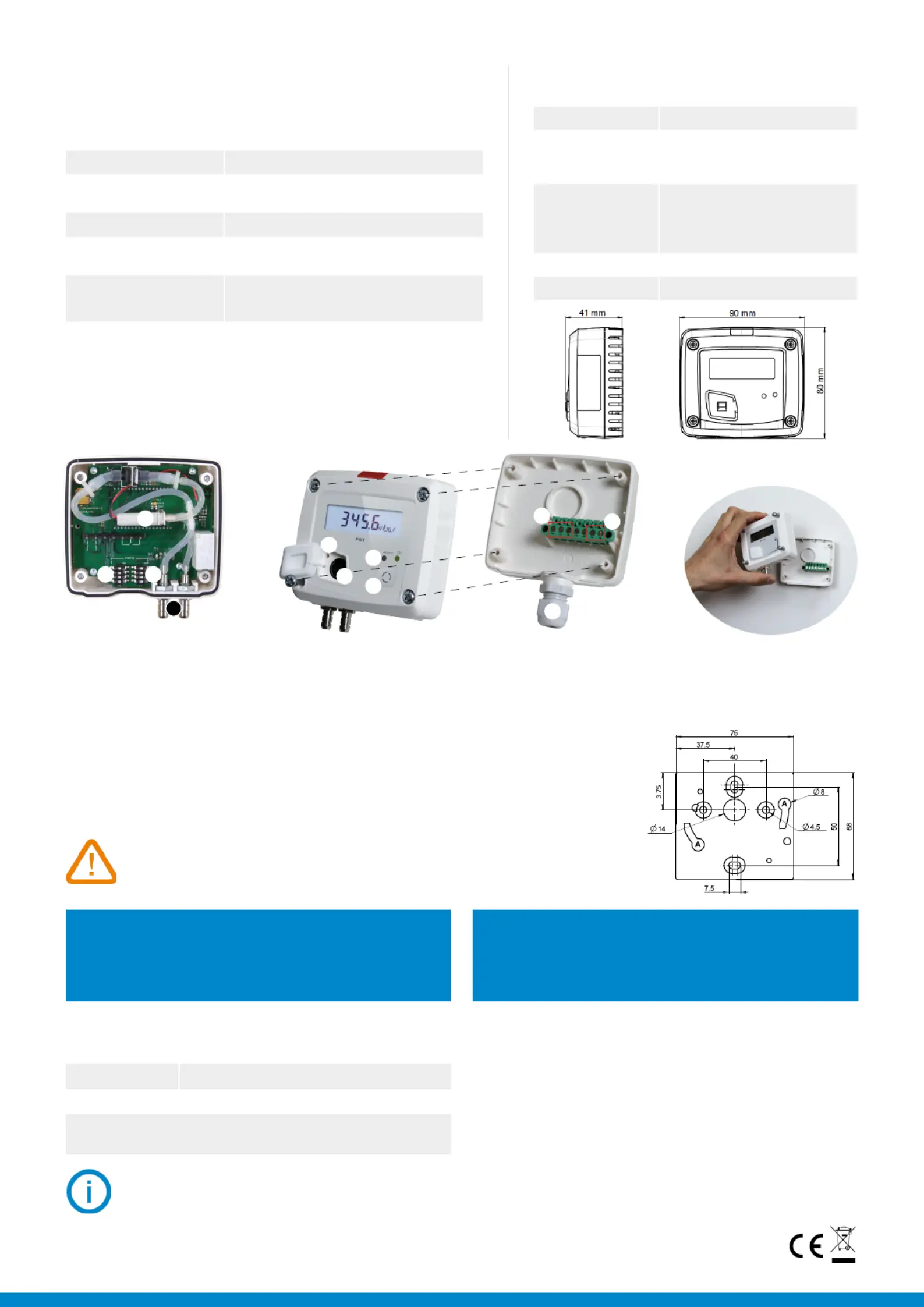

Features of the housing

Connections

1. Solenoid valve (only PST-11)

2. Switchs

3. Switchs

4. Pressure connections

5. Autozero

6. LCC-S software connection

7. Alarm Led

8. Button for settings

9. Relay terminal block

10. Power supply terminal block

11. Cable gland

FT_EN – PST – 14/01/2021 – Non-contractual document – We reserve the right to modify the characteristics of our products without prior notice.

Maintenance: please avoid any aggressive solvent.

Please protect the transmitter and its probes from any

cleaning product containing formalin, that may be used for

cleaning rooms or ducts.

Precautions for use: please always use the device in accor-

dance with its intended use and within parameters described

in the technical features in order not to compromise the

protection ensured by the device.

www.sauermanngroup.com

Part number Description

KIAL-100A Power supply class 2, 230 Vac input, 24 Vac output

LCC-S Conguration software with USB cable

Connection tubes / Connection ttings / Through-connections

Straight connections / Spherical coupling nut

Accessories

Only the accessories supplied with the device

must be used.

Mounting

To mount the transmitter, mount the ABS plate on the wall (drilling: Ø 6 mm, screws and pins are

supplied). Insert the transmitter on the xing plate (see A on the drawing beside). Rotate the housing in

clockwise direction until you hear a “click” which conrms that the transmitter is correctly installed.

Once the transmitter is installed and powered up, please make an

autozero to guarantee the correct working of the transmitter in

any position.

Warranty

Instruments have 1-year guarantee for any manufacturing

defect.

Inside the front housing Removable front face Fixed back housing
