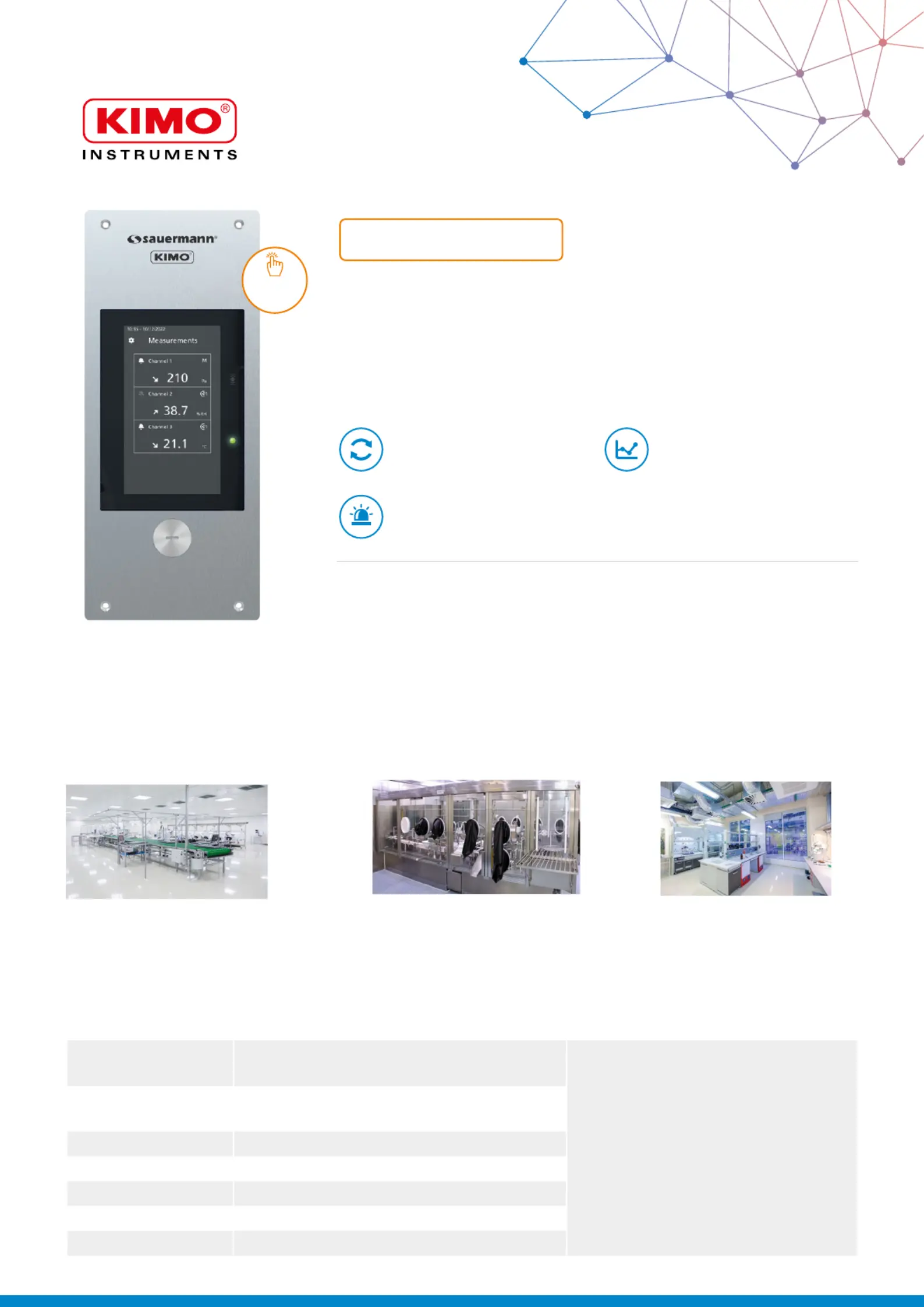

Si-ATE320

Flush-mount display

DATA SHEET

FEATURES

• RS485 MODBUS protocol

communication

• IP 66, VHP* resistant

• 30 pre-programmed units and custom

units

Graphic Touch display

Display of 1 to 3 parameters

Visual and acoustic alarms

EXAMPLES OF APPLICATION

Critical environments that require accurate

monitoring of differential pressure and

other key air parameters (clean rooms,

operating rooms, labs, prodution sites...)

Air parameters monitoring (in glove boxes,

fume hoods, isolation cabinets, liquid lling

machines...)

Monitoring the differential pressure,

relative humidity/temperature and

environmental CO

levels in labora-

tories where incubators are used

*Vaporized Hydrogen Peroxide

The are a good solution to integrate the measured by other ush-mount displays visualisation of the parameters

sensors/transmitters into a single display device and, simultaneously, transfer these measurements to a BMS or Scada

through modbus RTU.

TABLE OF THE PRE-PROGRAMMED UNITS

TOUCH

SCREEN

Domain Units Resolution

Pressure Pa, mmH

O, inwg, mbar, mmHg, daPa, kPa, hPa

1 / 0.1 / 0.01 / 0.001 / 0.0001 / 0.00001

Hygrometry %RH, g/m³ g/kg, kJ/kg, °C

, °F

, °C

, °F

tw,

°C

, °F

Temperature °C, °F

Air velocity m/s, fps

Airow m³/h, l/s, m³/s, dam³/h, cfm

Gas concentration ppm, ppm, ppb

Air change rate ACH

Power supply

24 V

/ V

±10%

Warning: risk of electric shock

Consumption 15 VA

Electrical

connections

Screw terminal block for cables from 0.05 to

1.5 mm

or from 30 to 16 AWG

Carried out according to the code of good practices

RS485 communication Modbus RTU protocol, congurable communication speed from 2400 to 115,200 Bauds

Input x3 modbus RTU protocol inputs

Output x1 modbus RTU protocol output

Audible alarm Buzzer (60 dB at 10 cm)

Environment and type

of uid

Air and neutral gases

Conditions of use

(°C/%RH/m)

From -10 to 50 °C (14 to 122 °F)

In non-condensing conditions

From 0 to 2000 m (0 to 6561’)

Storage

temperature

From -10 to 70 °C (14 to 158 °F)

Security Protection class 2 - Pollution degree 2 - Overvoltage category 2

European directives 2014/30/EU EMC - 2014/35/EU Low Voltage - 2015/863 EU (RoHS 3) - 2012/19/EU WEEE

GENERAL FEATURES

FEATURES OF THE HOUSING

Front face Brushed stainless steel 316 L

Back housing ABS V0

Protection IP66 in front face, resistant against VHP

Display

Graphic touchscreen

Size: 480 x 272 pixels

Height of the

digits

14 mm (0.56’’)

Weight 700 g (1.54 lb)

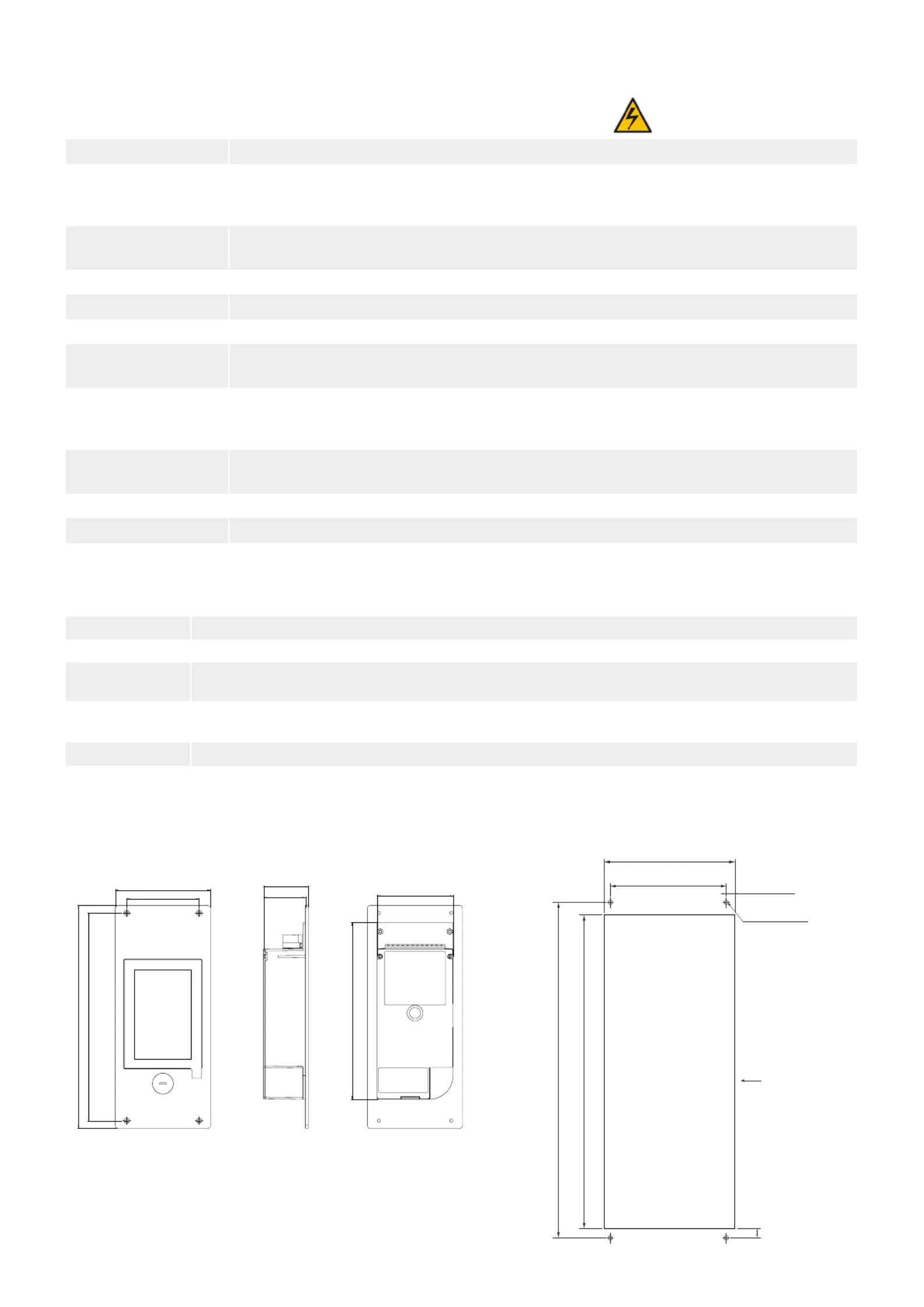

DEVICE DIMENSIONS

100 mm (3.94’’)

234 mm (9.21’’)

218 mm (8.58’’)

76 mm (3’’)

44 mm (1.73’’)

47 mm (1.85’’)

80 mm (3.15’’)

185.5 mm (7.28’’)

MOUNTING TEMPLATE

Ø2.2 mm (0.08’’)

Cut-out depth = 45 mm

(1,77’’)

76 mm (2.99’’)

82 mm (3.23’’)

200 mm (7.87’’)

218 mm (8.58’’)

9 mm (0.35’’)

3 mm (0.12’’)
