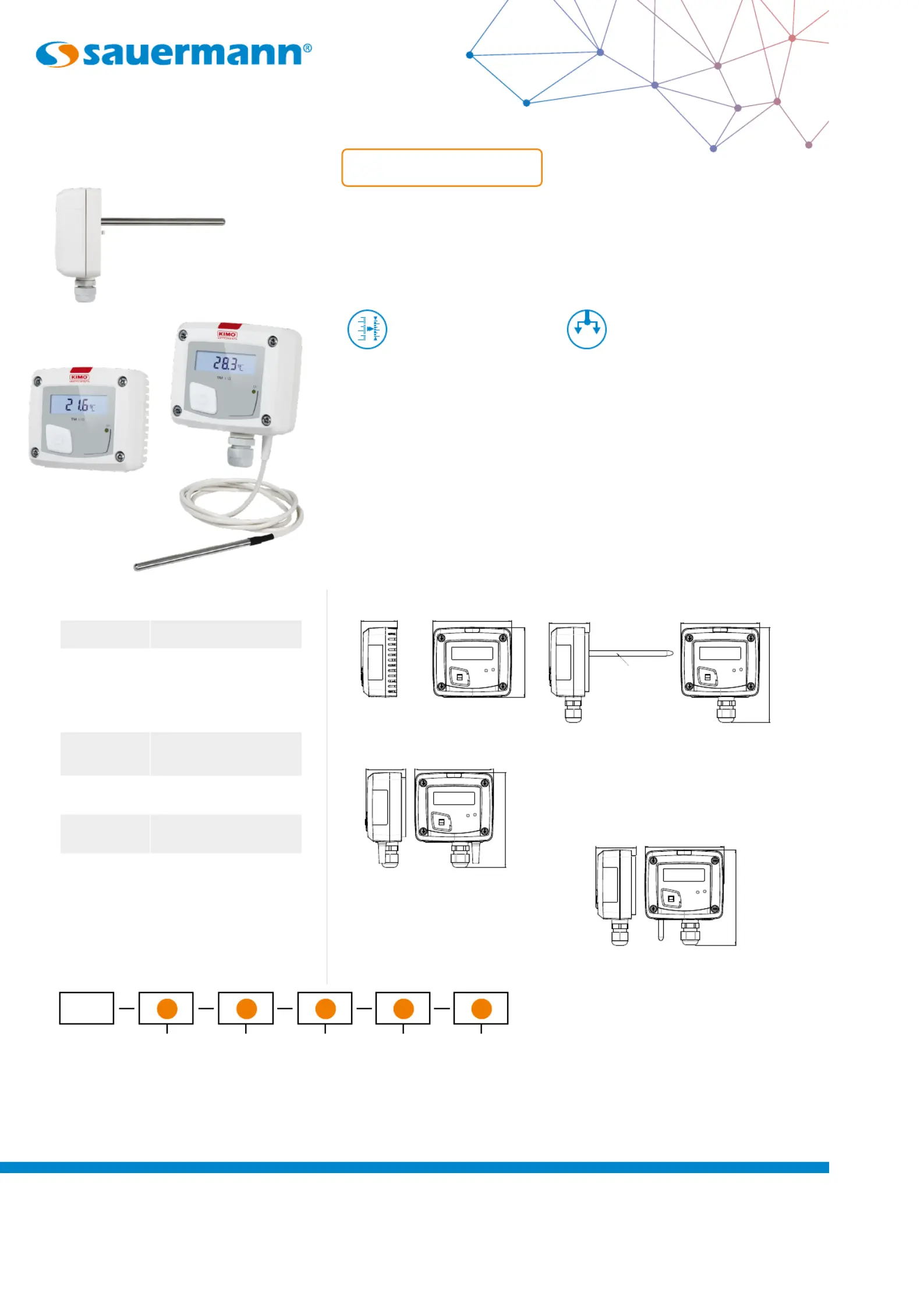

TM 110

Temperature transmitter

• Range from 0 to +50 °C (ambient

and airtight ambient models), from

-20 to +80 °C (duct model) and

from -100 to +400 °C (model with

Pt100 terminal block)

• 0-10 V output, active, power supply

24 Vac/Vdc (3-4 wires) or 4-20 mA

output, passive loop, power supply

from 16 to 30 Vdc (2 wires)

• ABS V0 housing, IP65 (remote,

airtight ambient and duct models)

or IP20 (ambient model), with or

without display

• “¼ turn” system mounting with

wall-mount plate

• Housing with simplied mounting

system

DATA SHEET

Material ABS V0 as per UL94

Protection index

IP65

Duct and airtight ambient models and

model with terminal block

IP20

Ambient model

Display

LCD 10 digits

Size: 50 x 17 mm

Height of digits Values: 10 mm; Units: 5 mm

Cable gland

For cables Ø8 mm maximum

Duct model and model with terminal block

Weight 162 g

Features of the housing

90 mm

41 mm

80 mm

46 mm

90 mm

109 mm

46 mm

90 mm

109 mm

Part number

Power supply / Output

A: Active – 24 Vac/Vdc – 0-10 V

P: Passive – 16/30 Vdc – 4-20 mA

Display

O: With display

N: Without display

Model

B: Terminal block

AI: Stainless steel

duct

S: Ambient

E: Airtight ambient

TM110

O AI

Congurable

outputs

1 or 2 analog

outputs

0-10 V

4-20 mA

Ambient model

Model with terminal block*

Airtight ambient model

* Several probes available in option

** Duct model only: stainless steel probe specications

Example: TM110-AOAI-6-100

Temperature transmitter, active, with display and

stainless steel duct mounting, 6 mm diameter

and 100 mm length stainless steel probe.

46 mm

Ø6 mm

90 mm

109 mm

Duct model, stainless steel probe*

Stainless steel probe technical

specications (duct model): Ø6 mm contact

tip; available lengths: 100 mm, 150 mm, 200 mm,

250 mm or 300 mm.

Stainless

steel probe

diameter**

6: Ø6 mm

Stainless steel

probe length**

100: 100 mm

150 : 150 mm

200 : 200 mm

250 : 250 mm

300 : 300 mm

100

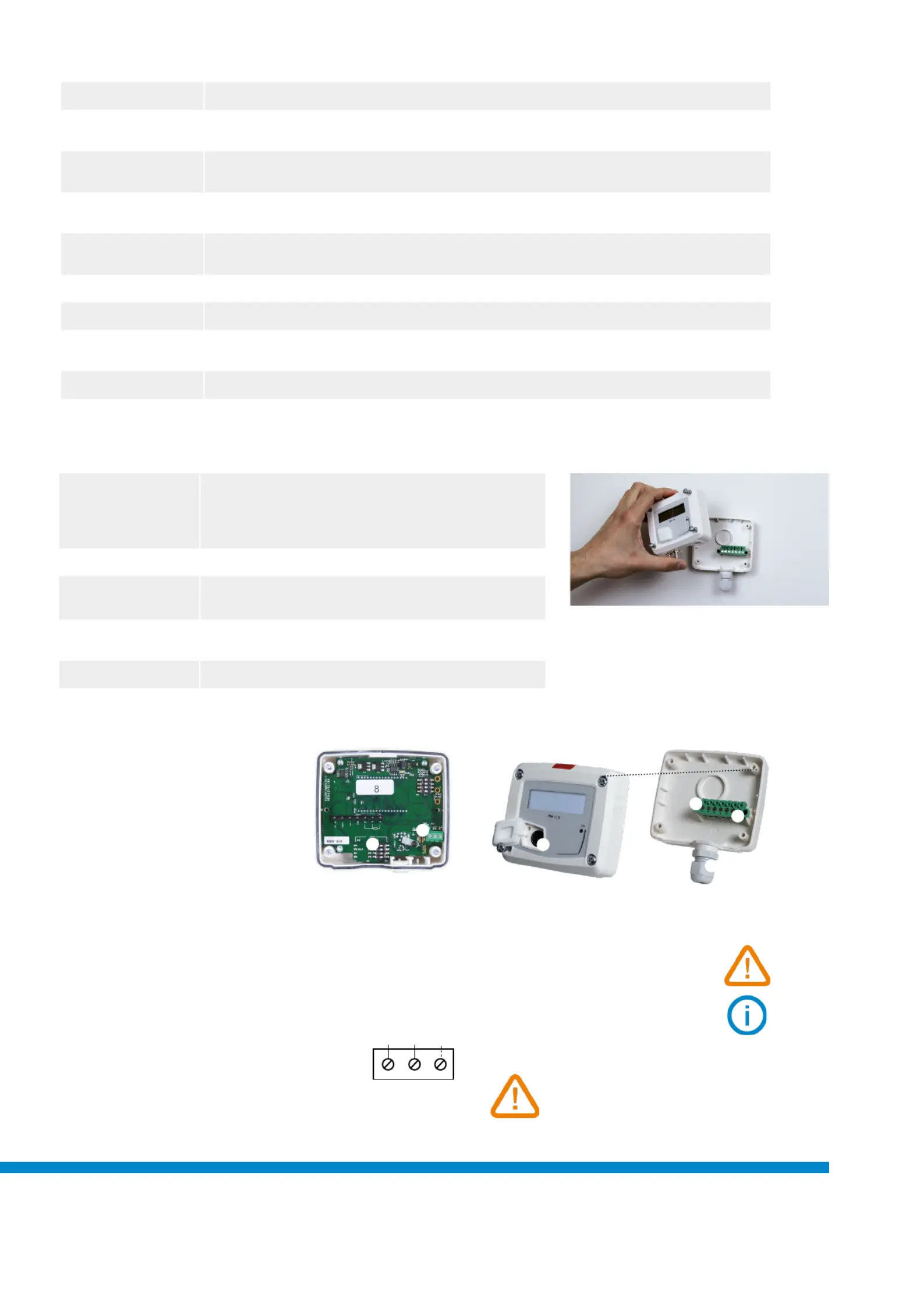

Technical specications

Output / Power supply

Active sensor 0-10 V (power supply 24 Vac/Vdc ±10%), 3-4 wires

Passive loop sensor 4-20 mA (power supply 16/30 Vdc), 2 wires

Common mode voltage <30 VAC

Maximum load: 500 Ohms (4-20 mA) / minimum load: 1 K Ohms (0-10 V)

Cunsumption 2 VA (0-10 V) or 0.6 VA (4-20 mA)

European directives

2014/30/EU EMC; 2014/35/EU Low Voltage

2011/65/EU RoHS II; 2012/19/EU WEEE

Electrical connection

Screw terminal block for cables from 0.05 to 2.5 mm

or from 30 to 14 AWG

Carried out according to the code of good practice

PC communication USB-mini DIN cable

Environment Air and neutral gases

Connections

Inside the front housing

1. Terminal block

(only for model with terminal block)

2. Switch

3. LCC-S software connection

4. Output terminal block

5. Power supply terminal block

6. Cable gland

Simplied calibration

Electronic board and measuring element xed to

the front panel of the sensor, allowing you to leave

your installation intact to congure or calibrate your

instruments.

Monostats / 110 range

Removable front face Fixed back housing

Units of measurement °C, °F

Measuring range

From 0 to 50 °C (ambient model and airtight ambient models), from -20 to +80 °C (duct model) and from

-100 to +400 °C (model with terminal block)

Accuracies*

Pt100: ±0.5% of reading ±0.5 °C

NTC: ±0.3 °C (ambient model: from -40 to +70 °C; duct model: from -20 to +70 °C); ±0.5 °C beyond

Type of sensors

Pt100 (model with terminal block, airtight ambient model and duct model)

NTC (ambient model)

Response time

1/e (63%) 5 sec. (ambient)

1/e (63%) 20 sec. (airtight ambient)

Resolution 0.1 °C

Type of uid Air and neutral gases

Conditions of use

(°C/%RH/m)

From 0 to +50 °C

In non-condensing condition. From 0 to 2000 m

Storage temperature From -10 to +60 °C

Technical features

*All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.

Connection of a Pt100 probe on terminal block
