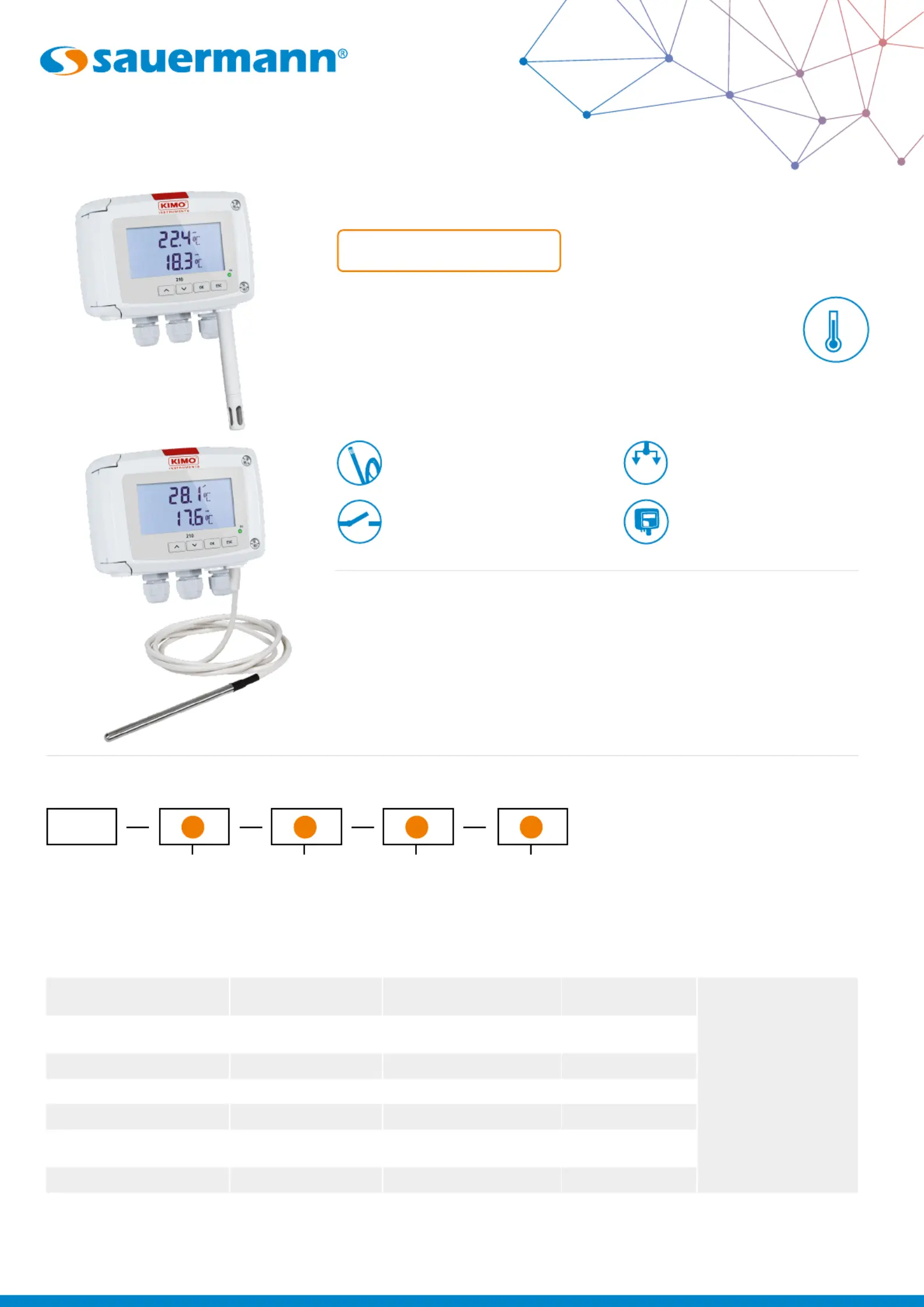

TM 210-R

Temperature transmitter

DATA SHEET

Parameter Accuracy

(1)

Measuring range Resolution Response time

Channel 1 Pt100 temperature (°C, °F)

±0.3% of reading ±0.25 °C

According to probe

From -20 to +80 °C (ambient model)

From -100 to +400 °C (remote model)

0.1 °C

= 0.9 second for V

air

= 1 m/s

Channel 2 Pt100 temperature (°C, °F) or

Wet temperature (°C

, °F

)

According to probe

From -100 to +400 °C

From -50 to 100 °C

0.1 °C

Relative humidity

(2)

(%RH) - From 0 to 100% RH 0.1% RH

Dew point

(2)

(°C

, °F

)- From -50 to +100 °C

0.1 °C

Absolute humidity

(2)

(g/m

)- From 0 to 600 g/m

0.1 g/m

Enthalpy

(2)

(kJ/kg) - From 0 to 15 000 kJ/kg

From 0 to 9999.9: 0.1 kJ/kg

From 10 000 to 15 000: 1 kJ/kg

Combination ratio

(2)

(g/kg) - From 0 to 9999.9 g/kg 0.1 g/kg

(1)

All the accuracies indicated in this technical datasheet were stated in laboratory conditions, and can be guaranteed for measurements carried out in the same conditions, or carried out with calibration compensation.

(2)

Calculated values.

Features

• Congurable ranges from 0 to 50 °C

(ambient model) and from -100 to

400 °C (model with terminal block)

• 24 Vdc/Vac power supply

• Display of the minimum and

maximum values and trend indicator

• “¼ turn” system mounting with

wall-mount plate

Technical specications

˚C

˚F

4 wires analogue outputs

0-5/10 V or 0/4-20 mA

Possibility of a second remote

probe on terminal block

ABS V0 IP65 housing,

with display

2 relay outputs

Part number

Example: TM 210 – BOS – R

Temperature transmitter, ambient probe and

relay outputs.

TM 210 transmitter can measure up to two temperatures (temperature 1 and temperature 2). When two temperature probes are connected, the transmitter can display the difference

between both measured temperatures. It can also calculate different parameters in psychrometry thanks to the KHP psycrometric probe available as option (only for models with two

Pt100 terminal blocks).

0-5 / 10 V

4-20 mA

Power supply /

Output

B: 24 Vac/Vdc

Display

O: with display

Type of probe

S: ambiant + Pt100

terminal block

B: two Pt100 terminal blocks

TM 210 B O D

Relay outputs

Power supply

24 Vac / Vdc ±10%

Warning: risk of electric shock

Output

2 x 4-20 mA or 2 x 0-20 mA

or 2 x 0-5 V or 2 x 0-10 V (4 wires)

Common mode voltage < 30 Vac

Maximum load: 500 Ohms (0/4-20 mA)

Minimum load: 1 K Ohms (0-5/10 V)

Relay outputs

2 changeover relays 3 A/230 V.

NO: 5A/NC: 3A/240 Vac

Galvanic isolation

Device fully protected by

DOUBLE ISOLATION or REINFORCED ISOLATION

Outputs

Consumption 6 VA

Electrical

connection

Screw terminal block for cable 2.5 mm²

Carried out according to the code of good practice

Type of sensor Pt100 1/3 as per IEC 60751 (2008)

Type of uid Air and neutral gases

PC communication USB-Mini Din cable

Environment Air and neutral gases

Conditions of use

(°C/%RH/m)

From -10 to +50 °C. In non-condensing condition.

From 0 to 2000 m.

Storage temper-

ature

From -10 to +70 °C

Security

Protection class II; Pollution degree 2;

Overvoltage category 2 (OVCII)

European

directives

2014/30/UE CEM; 2014/35/UE Basse Tension;

2011/65/UE RoHS II; 2012/19/UE DEEE

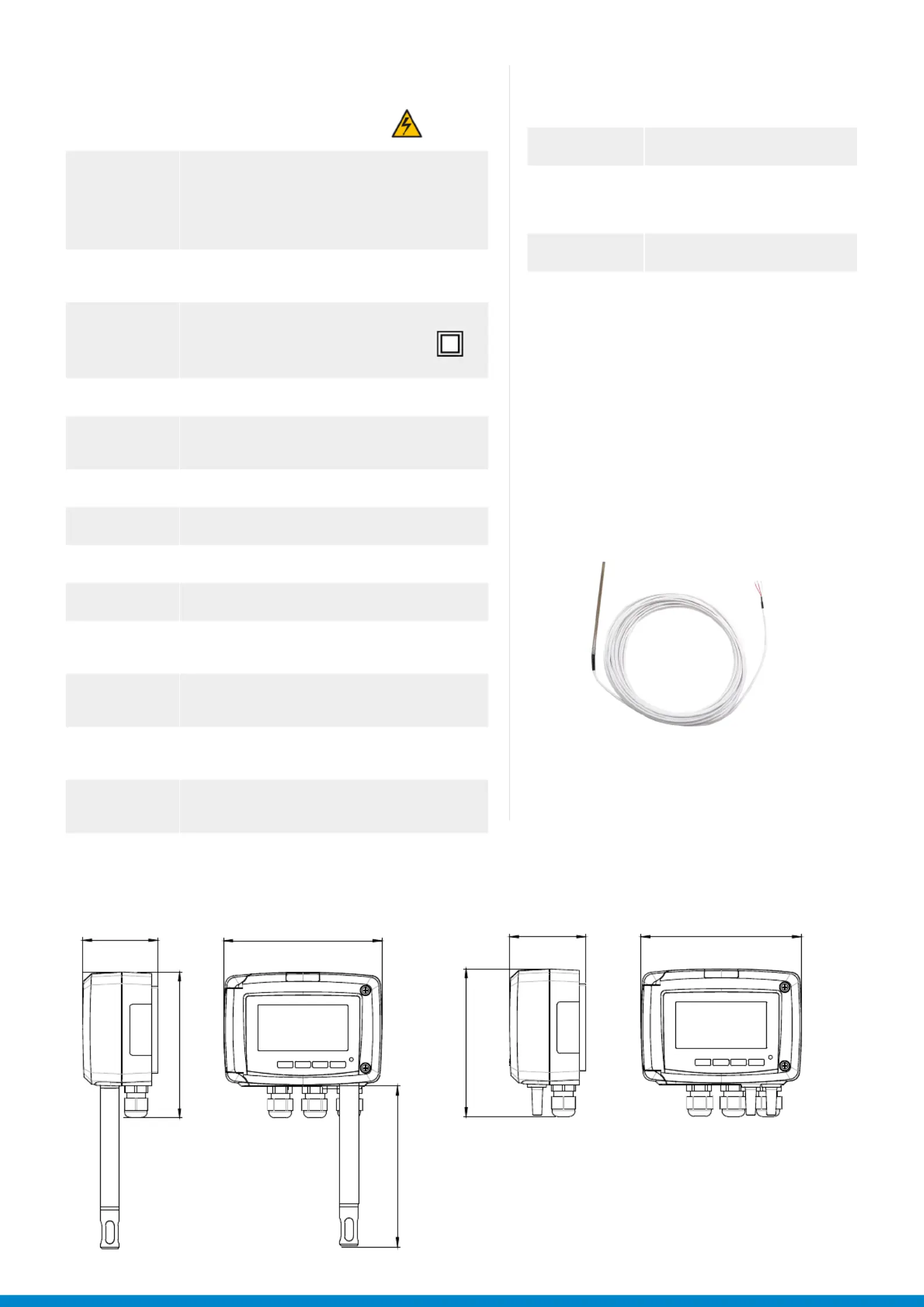

General features

Technical features of probes

Different Pt100 temperature probes are available on

the range from -100 à +400 °C.

Material ABS V0 as per UL94

Protection IP65

Display

75 x 40 mm, LCD 19 digits 2 lines.

Height of digits:

Values: 10 mm; Units: 5 mm

Cable gland For cables Ø 8 mm maximum

Weight 340 g

Features of the housing

125

115

125

115

100

All dimensions are in millimeters.

Ambient model

Remote model

Dimensions

Please contact us in order to dene the type of probe

that corresponds to your need.
