Side 1/2
106
12
* ** * **
SAUTER
CS 25-3P1 25 kg/250 N
CS 50-3P1
50 kg/500 N
CS 100-3P1
100 kg/1 kN
CS 150-3P1
150 kg/1,5 kN
CS 250-3P1 250 kg/2,5 kN
CS 500-3P1
500 kg/5 kN
CS 600-3P1
600 kg/6 kN
CS 750-3P1 750 kg/7,5 kN
CS 1000-3P1 1 t/10 kN
CS 1500-3P1
1.5 t/15 kN
CS 2000-3P1
2 t/20 kN
CS 2500-3P1 2.5 t/25 kN
CS 5000-3P1 5 t/50 kN
CS 7500-3P1
7.5 t/75 kN
CS 10000-3P1
10 t/100 kN
CS 15000-3P1 15 t/150 kN
CS 20000-3P1 20 t/200 kN
CS 30000-3P1
30 t/300 kN
SAUTER
CS 50-3Q1 50 kg/500 N
CS 100-3Q1
100 kg/1 kN
CS 150-3Q1
150 kg/1,5 kN
CS 200-3Q1
200 kg/2 kN
CS 300-3Q1 300 kg/3 kN
CS 500-3Q1
500 kg/5 kN
CS 750-3Q1
750 kg/7,5 kN
CS 1000-3Q1
1 t/10 kN
CS 1500-3Q1 1.5 t/15 kN
CS 2000-3Q1
2 t/20 kN
CS 3000-3Q1
3 t/30 kN
CS 5000-3Q1 5 t/50 kN
CS 6000-3Q1 6 t/60 kN
CS P2 0,5–7,5 t
CS P2 50–250 kg
*
SAUTER
CS 50-3P2 50 kg/500 N
CS 100-3P2
100 kg/1 kN
CS 250-3P2
250 kg/2,5 kN
CS 500-3P2
500 kg/5 kN
CS 1000-3P2 1 t /10 kN
CS 2000-3P2
2 t/20 kN
CS 5000-3P2
5 t/50 kN
CS 7500-3P2 7.5 t/75 kN
www.sauter.eu · Order Hotline +49 7433 9933 - 0Load Cells

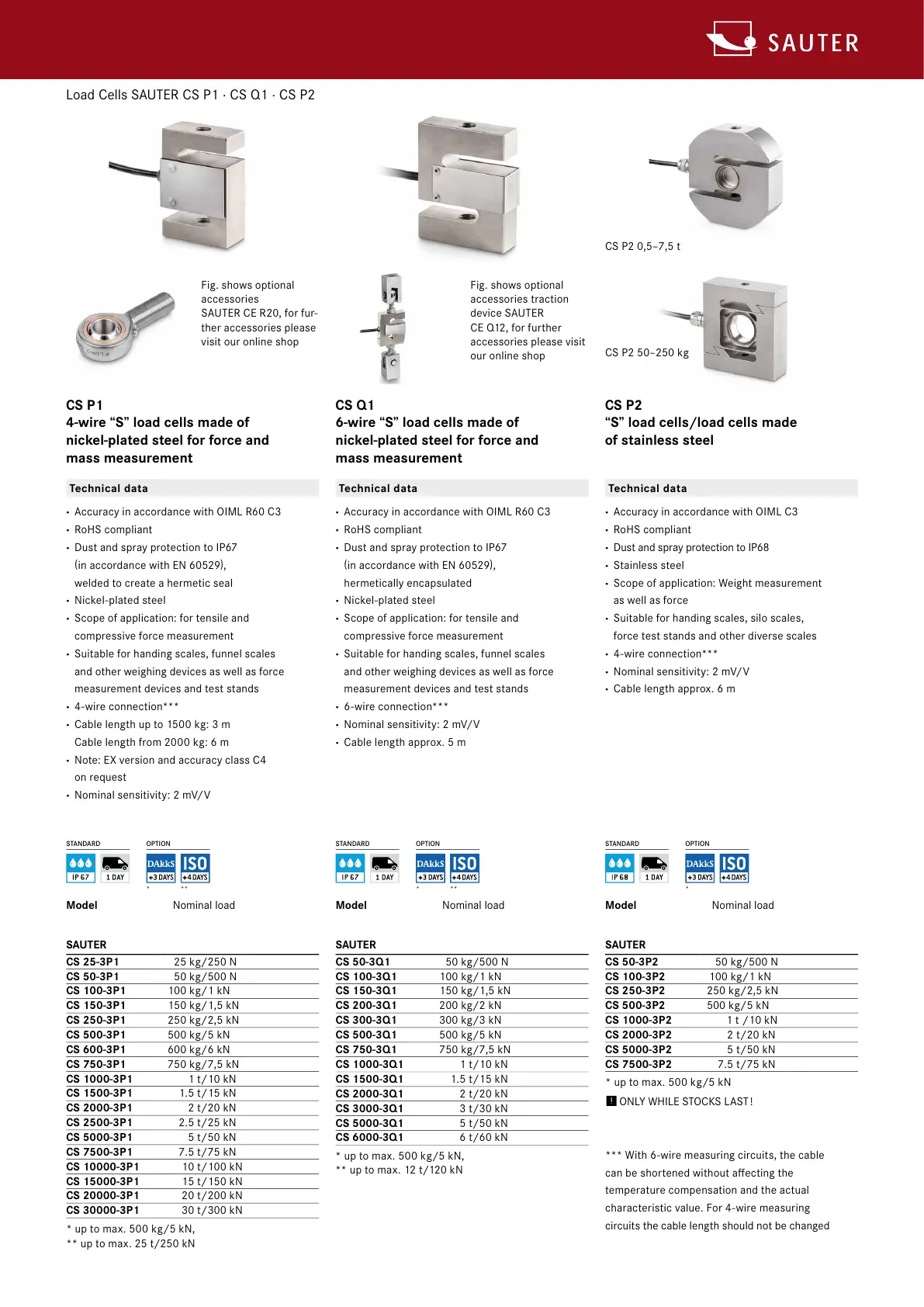

Load Cells SAUTER CS P1 · CS Q1 · CS P2
Model
Nominal load
Model
Nominal load
Technical data
· Accuracy in accordance with OIMLR60C3
· RoHS compliant
· Dust and spray protection to IP67
(
in accordance with EN 60529
)
,
welded to create a hermetic seal
· Nickel-plated steel
· Scope of application: for tensile and
compressive force measurement
· Suitable for handing scales, funnel scales
and other weighing devices as well as force
measurement devices and test stands
· 4-wire connection***
· Cable length up to 1500 kg: 3 m
Cable length from 2000 kg: 6 m
· Note: EX version and accuracy class C4
on request
· Nominal sensitivity: 2 mV/V
Technical data
· Accuracy in accordance with OIMLR60C3
· RoHS compliant
· Dust and spray protection to IP67
(
in accordance with EN 60529
)
,
hermetically encapsulated
· Nickel-plated steel
· Scope of application: for tensile and
compressive force measurement
· Suitable for handing scales, funnel scales
and other weighing devices as well as force
measurement devices and test stands
· 6-wire connection***
· Nominal sensitivity: 2 mV/V
· Cable length approx. 5 m
CS P1
4-wire “S” load cells made of
nickel-plated steel for force and
mass measurement
CS Q1
6-wire “S” load cells made of
nickel-plated steel for force and
mass measurement
Fig. shows optional
accessories
SAUTER CE R20, for fur-
ther accessories please
visit our online shop
Fig. shows optional
accessories traction
device SAUTER
CE Q12, for further
accessories please visit
our online shop
STANDARD OPTION STANDARD OPTION
* up to max. 500 kg/5 kN,
** up to max. 25 t/250 kN
* up to max. 500 kg/5 kN,
** up to max. 12 t/120 kN
*** With 6-wire measuring circuits, the cable
can be shortened without affecting the
temperature compensation and the actual
characteristic value. For 4-wire measuring
circuits the cable length should not be changed
Model Nominal load
Technical data
· Accuracy in accordance with OIML C3
· RoHS compliant
· Dust and spray protection to IP68
· Stainless steel
· Scope of application: Weight measurement
as well as force
· Suitable for handing scales, silo scales,
force test stands and other diverse scales
· 4-wire connection***
· Nominal sensitivity: 2 mV/V
· Cable length approx. 6 m
CS P2
“S” load cells/load cells made
of stainless steel
STANDARD OPTION
* up to max. 500 kg/5 kN
ONLY WHILE STOCKS LAST !
Order Hotline: Go to back page of catalogue
SAUTER GmbH · c/o KERN & SOHN GmbH · Ziegelei 1 · 72336 Balingen · Germany · Tel. +49 7433 9933 - 0 · info@sauter.eu · www.sauter.eu
MEASURING TECHNOLOGY & TEST SERVICE 2024
Load cells
SAUTER PictogramsSAUTER Pictograms
SAUTER GmbH · c/o KERN & SOHN GmbH · Ziegelei 1 · 72336 Balingen · Germany · Tel. +49 7433 9933 - 0 · info@sauter.eu · www.sauter.eu
* The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by KERN & SOHN GmbH is under license.
Other trademarks and trade names are those of their respective owners.
Adjusting program
(
CAL
)
For quick setting of the
instrument’s accuracy.
External adjusting weight
required
Calibration block
Standard for adjusting or
correcting the measuring
device
Peak hold function
Capturing a peak value
with in a measuring process
Scan mode
Continuous capture and
display of measurements
Push and Pull
The measuring device
can capture tension and
compression forces
Length measurement
Captures the geometric
dimensions of a test object
or the movement during a
test process
Focus function
Increases the measuring
accuracy of a device within
a defined measuring range
Internal memory
To save measurements in
the device memory
Data interface RS-232
Bidirectional, for connec-
tion of printer and PC
Profibus
For transmitting data,
e.g. between scales,
measuring cells, controllers
and peripheral devices over
long distances. Suitable
for safe, fast, fault-tolerant
data transmission. Less
susceptible to magnetic
interference
Profinet
Enables efficient data
exchange between de-
centralised peripheral
devices
(
balances, mea-
suring cells, measuring
instruments etc.
)
and a
control unit
(
controller
)
.
Especially advantageous
when exchanging complex
measured values, device,
diagnostic and process in-
formation. Savings potential
through shorter commis-
sioning times and device
inte gration possible
Data interface USB
To connect the measuring
instrument to a printer, PC
or other peripheral devices
Bluetooth* data interface
To transfer data from
the balance/measuring
instrument to a printer,
PC or other peripherals
WIFI data interface
To transfer data from
the balance/measuring
instrument to a printer,
PC or other peripherals
Data interface infrared
To transfer data from the
measuring instrument
to a printer, PC or other
peripheral devices
Control outputs
(
optocoupler, digital I/O
)
To connect relays, signal
lamps, valves, etc.
Analogue interface
To connect a suitable
peripheral device for
analogue processing
of the measurements
Analogue output
For output of an electrical
signal depending on the
load
(
e.g. voltage 0 V – 10 V
or current 4mA – 20 mA
)
Statistics
Using the saved values,
the device calculates
statistical data, such as
average value, standard
deviation etc.
PC Soware
To transfer the measure-
ment data from the device
to a PC
Printer
A printer can be connected
to the device to print out
the measurement data
Network interface
For connecting the scale/
measuring instrument to an
Ethernet network
KERN Communication
Protocol
(
KCP
)
It is a standardized
interface command set for
KERN balances and other
instru ments, which allows
retrieving and controlling
all relevant parameters and
functions of the device.
KERN devices featuring KCP
are thus easily integrated
with computers, industrial
controllers and other digital
systems
GLP/ISO record keeping
of measurement data
with date, time and serial
number. Only with SAUTER
printers
Measuring units
Weighing units can be
switched to e.g. non-metric.
Please refer to website for
more details
Measuring with
tolerance range
(
limit-setting function
)
Upper and lower limiting
can be programmed
individually. The process
is supported by an audible
or visual signal, see the
relevant model
Protection against dust
and water splashes IPxx
The type of protection is
shown in the pictogram cf.
DIN EN 60529:2000-09,
IEC 60529:1989
+A1:1999+A2:2013
ZERO
Resets the display to “0”
Battery operation
Ready for battery opera-
tion. The battery type is
specified for each device
Rechargeable
battery pack
Rechargeable set
Plug-in power supply
230V/50Hz in standard
version for EU. On request
GB, AUS or US version
available
Integrated power
supply unit
Integrated, 230V/50Hz in
EU. More standards e.g.
GB, AUS or US on request
Motorised drive
The mechanical movement
is carried out by a electric
motor
Motorised drive
The mechanical movement
is carried out by a synchro-
nous motor
(
stepper
)
Fast-Move
The total length of travel
can be covered by a single
lever movement
Conformity assessment
Models with type approval
for con struction of verifiable
systems
DAkkS calibration
possible
The time required for
DAkkS calibration is shown
in days in the pictogram
Factory calibration
(
ISO
)
The time required for factory
calibration is specified in
the pictogram
Package shipment
The time required for
internal shipping prepara-
tions is shown in days in
the pictogram
Pallet shipment
The time required for
internal shipping prepara-
tions is shown in days in
the pictogram
MEASURING TECHNOLOGY & TEST SERVICE 2024
