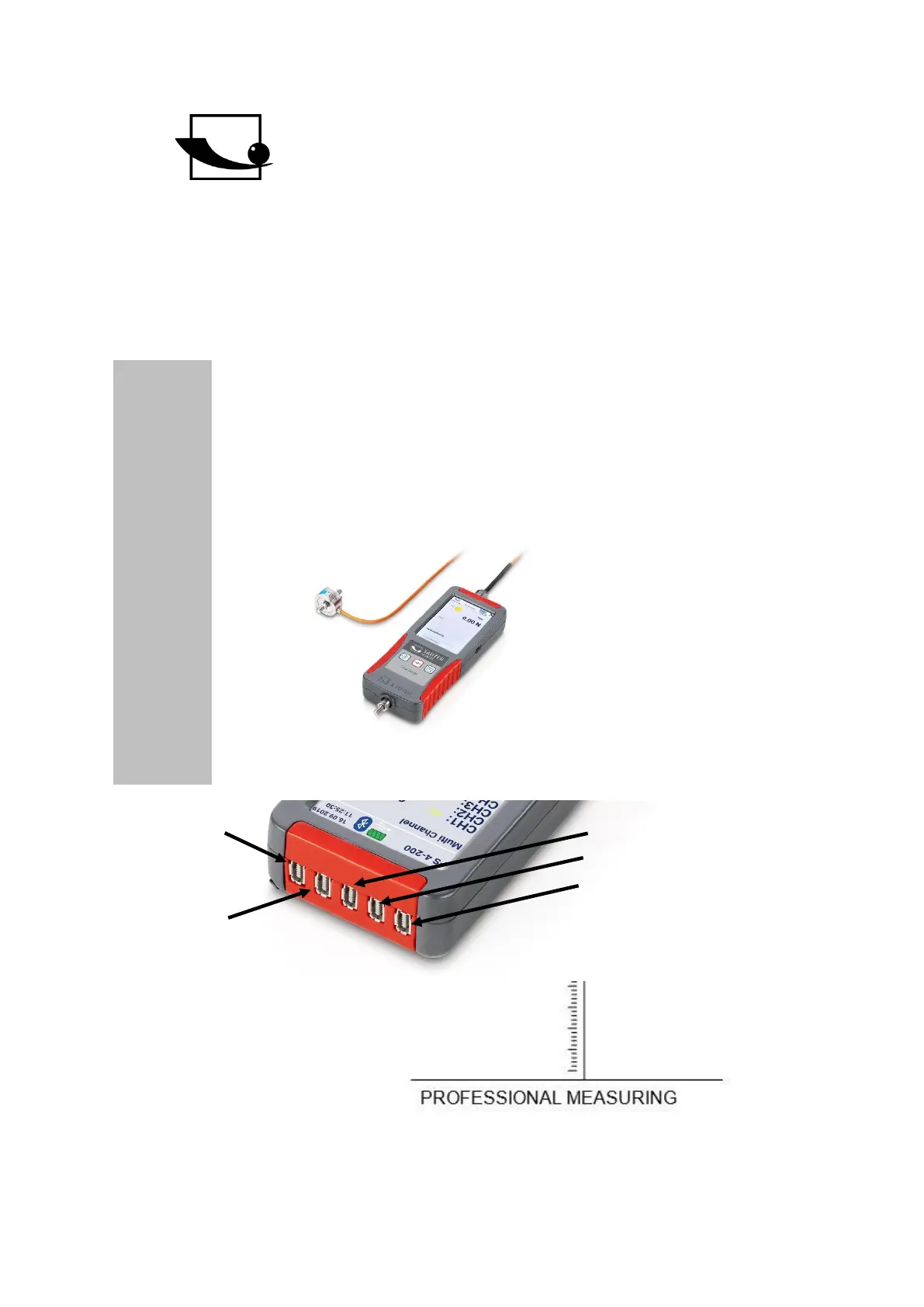

Instruction Manual

FL- -e-1411 1BA

Table of Contents

1. Introduction

2. Before Use

3. Operation Overview

4. Powering the FL

5. Battery Indicator

6. Fitting Accessories

7. Mounting to a Test Stand

8. Powering up

9. Basic Functions

10. Main Menus

AUTO-OFF

PASS-FAIL

MEMORY

CALIBRATION

DIAGNOSTIC

ABOUT

11. Measurement Practice

12. FL Specications

13. Conversion Factor

14. Declaration of Conformity

1. Introduction

Thank you for choosing the SAUTER FL series instrument.

With correct use and regular re-calibration it will give many

years of accurate and reliable service.

The FL can measure tensile and compressive forces

accurately, being simply used by the operator. It may be

used handheld or mounted a xture or test stand. on

SAUTER oers software and accessories to make the

force gauge even more versatile. Ask your SAUTER

distributor for additional information or visit our website at

www.kern-sohn.com

2. Before Use

After having receiv the unit please check that no ed

physical damage has occurred to the packaging material,

plastic case or the instrument itself. If any damage is

evident, please notify SAUTER immediately.

3. Operation Overview

The most common used features (such as displaying

force, peak hold, zero and changing of displayed units) can

all be done by pressing a single dedicated key identied on

the front panel-see the Basic Functions section.

You can press a menu key to access the gauge

conguration- see the Main Menu section.

4. Powering the FL

The FL is supplied with a set of 4 Nickel Metal Hydride AA

rechargeable batteries. For safety reasons during

transportation the batteries are shipped discharged. To

obtain maximum battery life we recommend that you

charge them with the charger/adaptor supplied for at least

14-16 hours when you rst receive the instrument.

5. Battery Indicator

If battery level is less than 3.9 V, The “battery empty”

message will be displayed and the gauge will power down

automatically.

Important: Only use the adaptor/charger supplied

6. Fitting Accessories

Couple ttings directly to the load cell stem or use an

extension rod. The threads are and have capacities up M6

to 2500 N.

Ensure that the xing does nor contact the force gauge

case. Ensure that anything coupled to the gauge is

screwed finger-tight only. Excessive torque can damage

the load cell and is not covered by warranty.

7. Mounting to a Fixture or Test Stand

The two 10-32 threaded holes, or fours thread holes on M3

the rear of the gauge can be used for mounting the gauge.

A versatile stand mounting plate is available to couple the

force gauge to many brands of test stands.

8. Powering up

As shown in Figure 1 the control panel has eight keys.

Sauter GmbH

Ziegelei 1

D-72336 Balingen

E-Mail: info@sauter.eu

Tel: +49-[0]7433- -199 9933

Fax: +49-[0]7433- -149 9933

Internet: www.kern-sohn.com

Instruction Manual

FL- -e-1411 4BA

Use UP and DOWN key to move the cursor. Press the

ENTER key to select auto-o option and return to main

menu page.

2) PASS-FAIL

The Pass-Fail feature used to set a dened acceptable

maximum and minimum forces gap for measuring. It is

activated by setting the lower level and upper level forces

limit. If the forces value is within the gap level, the display

will show message . Any reading values outside this PASS

gap (higher or lower), the display will show message FAIL.

If you activate this feature the symbol will be shown on PF

main display.

To access menu, Press UP and DOWN to PASS-FAIL

move the cursor point to PASS-FAIL and press the ENTER

key the display will show the Pass-Fail menu page. Press

ESC key to return to the main menu page.

Figure 6

Use LEFT ARROW keys to move the cursor point to the

desired value.

Use UP and DOWN keys to change the value, press and

hold to scroll values. Use RIGHT ARROW key to change

the unit. Press ENTER to save the settings and return to

main menu page.

*Pass-Fail feature will automatically disabled if you set be

LOWER and UPPER = 0 N.

*LOWER must be less than the UPPER.

Example LOWER LEVEL = 0 N, UPPER LEVEL = 20 N

Example LOWER LEVEL = 10 N, UPPER LEVEL = 20 N

3) MEMORY

This is used view the saved record, delete current to

record, delete all record and print data of the saved record.

To access menu, go to the main menu page MEMORY

press UP and DOWN to move the cursor point to

MEMORY and press ENTER key the display will show the

memory page. Press ESC key to return to main menu

page.

Figure 7a Memory Page

Press UP and DOWN to change memory page, press and

hold to scroll change memory page. Press PRINT key to

print the memory to the serial port. Press ZERO key to

access the DELETE menu.

Figure 7b Delete last Menu

Press UP and DOWN to select the delete option. If you

selected and press ENTER key, the gauge will return NO
