This product is designed to securely mount phones under normal usage conditions. The end-
user is entirely responsible for conditions in which their device is used. See WARRANTY section
for further details.
Scanstrut recommends installation is carried out by a
qualied electrician. No liability is accepted for damage and/or injury caused by
incorrect installation.
WARNING:
This product is to be connected to a 12V DC or 24V DC battery power source only.
An appropriate fuse or circuit breaker must be used between the battery / power source and
this product. Check for correct polarity of all wiring before switching the power on.
This product may contain high voltages. Do not tamper with the product.
This product is NOT approved for use in hazardous/ammable
atmospheres. Do NOT install in a hazardous/ammable atmosphere e.g. engine room.
Before drilling any holes, ensure the area behind the mounting location is clear of wires, fuel and
all other hazardous objects.
Ensure any holes cut will not signicantly weaken the structure of the mounting surface.
If the product needs to be mounted outside, it must be mounted in a location safely above the
waterline, where it is not at risk of being submerged.
CAUTION:
The product is designed specically for the charging of Qi
compatible devices.
The cable must be retained and not interfere with mechanical systems.
This product contains no user serviceable components. Do NOT attempt to repair or alter the product
in any way.
This product will charge through non-metallic phone cases up to ~3mm thick. Phone cases may alter
overall charge performance.
When used in a very high/low ambient temperature/direct or prolonged sunlight the product may
temporarily shut down, this is a safety feature of the electronics.
The IP rating is only valid if correctly installed as per these instructions and on a perfectly at, non-
porous, smooth surface.
When selecting a mounting location, avoid places exposed to heat-radiating appliances and poorly
ventilated areas.
EMC INSTALLATION GUIDELINES:
Scanstrut products conform to Electromagnetic Compatibility (EMC) regulations, to ensure that
electromagnetic interference between equipment is minimised.
Correct installation is required to ensure that electromagnetic
interference is kept to a minimum.
WIRING:
When extending the cable from battery/power source to the product, ensure there is consistently a
minimum of 10V being provided to the product. A wire gauge of 18AWG (0.82mm2) is recommended
for any length of cable extension.
The schematic in step 6 is to illustrate how the product should be connected to a 12V DC or 24V DC
battery/power supply.
ENVIRONMENTAL PROTECTION:
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
IMPORTANT:
Scanstrut Ltd. accepts no responsibility for any injuries or other damages arising from the use of their
products in any circumstances.
WARRANTY:
A 2 year, non-transferrable warranty covers this Scanstrut product only and not any devices that
are mounted in it or on it. No warranty is given for users’ devices and users expose their devices to
hazards, known or unknown, at their own risk.
Smart LED light guide:
Solid red
Product has power and ready to charge.
Solid green
Product charging.
Flashing red
1. Foreign object detection:
metallic object placed on top
that is not Qi compatible.
or
2. Thermal cutout:
internal temperature is too high/ low.
Wait for product to return to operating temperature.
Flashing green/red
Input current is too low.
IN EXTREME USAGE ENVIRONMENTS
PERFORMANCE MAY VARY.

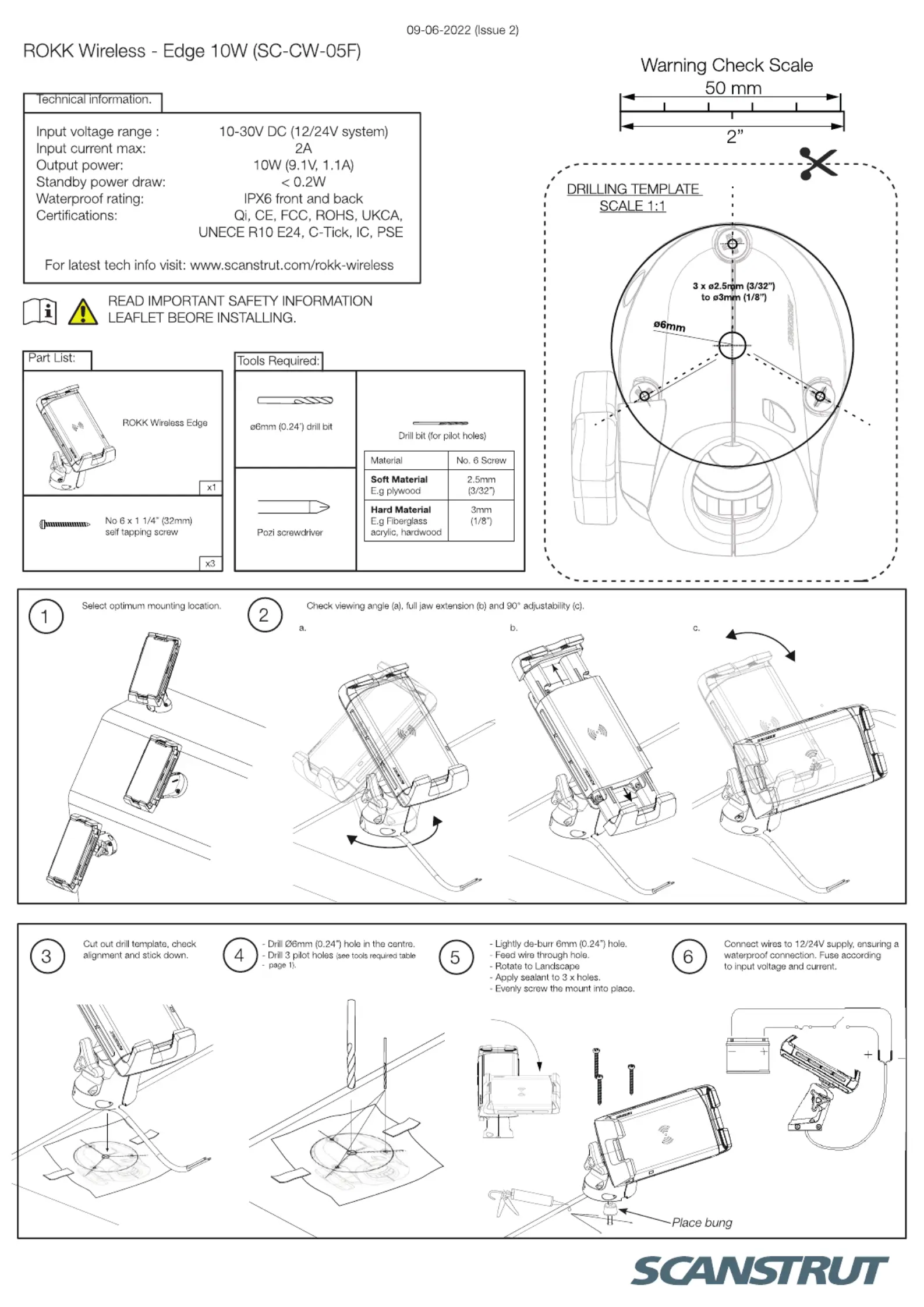

USER GUIDE:

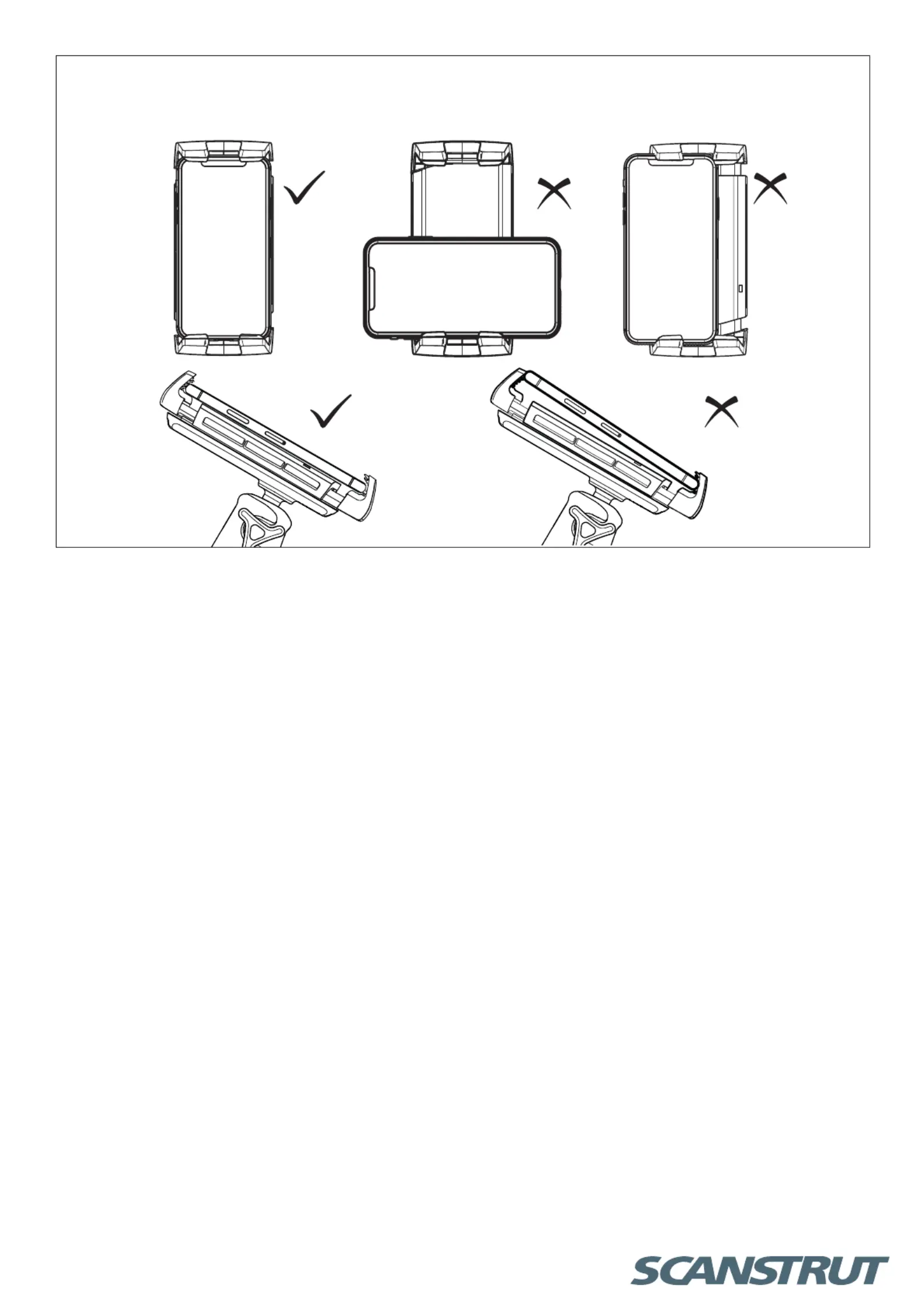

Place device centrally within the ROKK Wireless Edge jaws.
CARE: wash down carefully with fresh water.

Produkt Specifikationer

Mærke: Scanstrut
Kategori: Batterioplader
Model: SC-CW-05E
