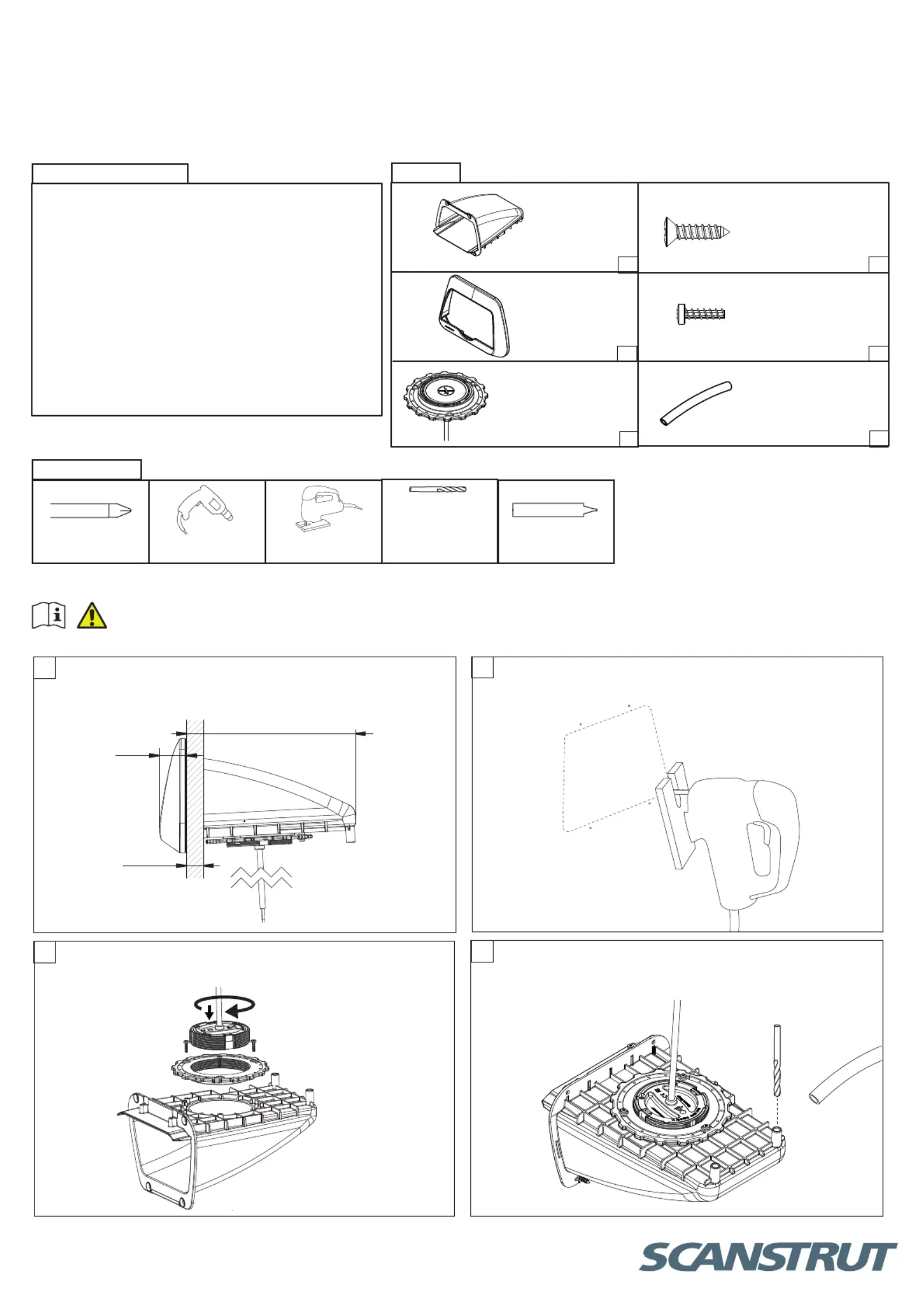

Choose mounting location ensuring there is adequate

space behind mounting surface.

Cut out hole and drill pilot holes using paper template.

Install wireless charger SC-CW-01E using p1-x3 3mm x 10mm

pan head Philips thread forming screws provided.

Input voltage range : 10-30V DC (12/24V system)

Input current max: 1.5A

Output power: 5W (5V, 1A)

Standby current draw: < 0.03W

Certications: Qi, CE, FCC, ROHS

Waterproof rating: IPX6 front and back

Max panel thickness

16mm

(0.63")

25mm

(0.98")

157mm

(6.18")

Max phone size: 176mm (6.92”) x 92mm (3.62”)

(Including case)

Technical Information

READ THE IMPORTANT SAFETY INFORMATION

LEAFLET BEFORE INSTALLING

Charge/Storage pocket

Wireless charger SC-CW-01E

**Caution**

Do not over tighten.

Tools Required

Jigsaw

Philips No. 2

screwdriver

Silicone Sealant

SC-CW-01E-005

Wireless Charger

Powerdrill

Drain Pipe 8mm (5/16”)

internal diameter

(Optional, not included)

Drill bits

5mm (3/16”)

2.5mm (3/32”)

3mm (1/8”)

Parts List

Pocket

Front bezel

No6 (3.5mm) x 3/4” (19mm)

self-tapping CSK

Philips screw

3 x 10mm Pan head

Philips Thread forming

screw

Installation Instructions

ROKK Wireless - Nest. (SC-CW-06E)

17-09-2020 Issue 2

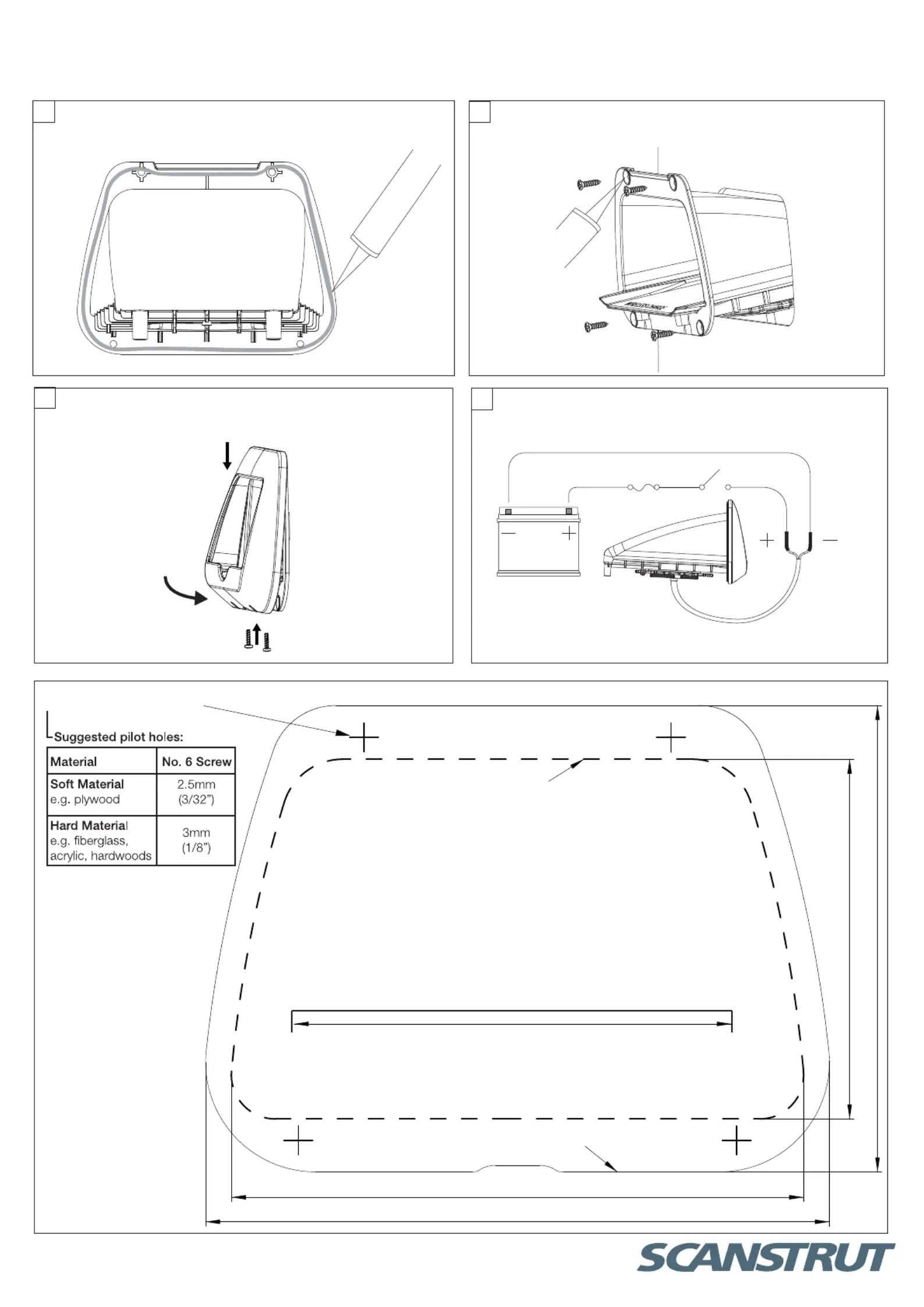

Optional Drain Pipe: Carefully drill drain holes using 5mm

(3/16”) drill bit. Attach drain pipe 8mm (5/16”) ID pipe, not

included.

Apply silicone sealent generously around ange, ensure

good coverage around perimeter.

Connect wires to 12/24V supply, ensuring a waterproof

connection. Fuse according to input voltage and current.

Attach front bezel using p2-x2 remaining 3 x 10mm Pan head

Philips thread forming screws provided.

Secure with p2-x4 No6. (3.5mm) x 3/4” (19mm) Self tapping

CSK philips screws provided. Add silicone sealent to screw

holes.

Installation Instructions

ROKK Wireless - Nest. (SC-CW-06E)

17-09-2020 Issue 2

Cut line

Product outline

Drill p2-x4 holes for No.6 Screws

130.5mm (5.13”)

142.0mm (5.59”)

82.0mm (3.22”)

106.0mm (4.17”)

Scale 1:1 template.

**Warning** Check scale is 1:1 before cutting.

100mm (3.93”)

Produkt Specifikationer

Mærke:	Scanstrut
Kategori:	Batterioplader
Model:	SC-CW-06E
