WATERPROOF WIRELESS CHARGER
COVE LED 3 COIL 15W SC-CW-10GT
06-06-2024 (Rev A)

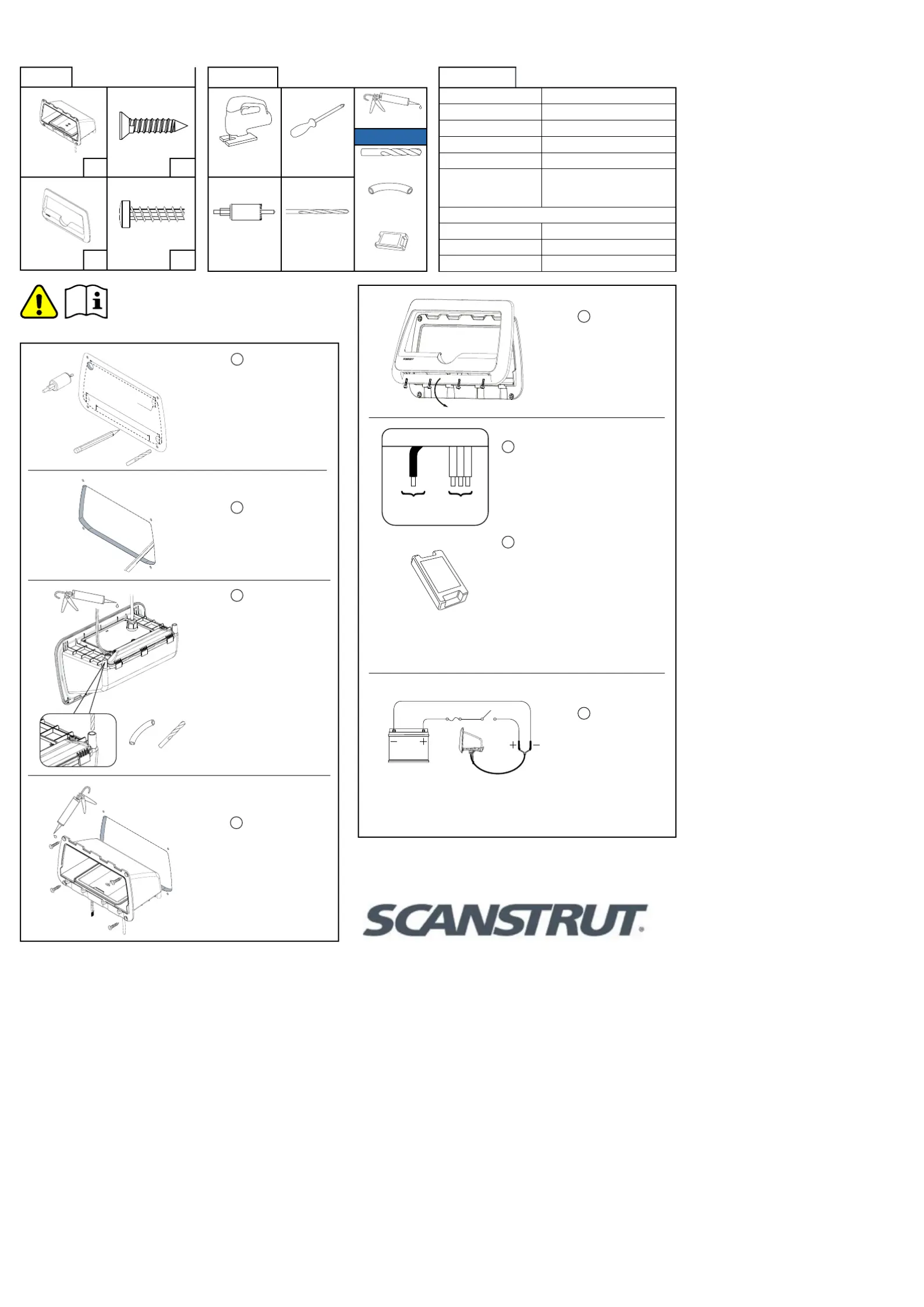

Installation Instructions
For further installation
and warranty information
please visit:
www.scanstrut.com
+1 860 308 1416
usasales@scanstrut.com
UK & International
+44 (0)1392531280
sales@scanstrut.com
Tools Required
Sealant
Optional
Jig Saw Pozi
screwdriver
Ø5mm (0.2”)
Drill Bit
Drain tube
Ø8mm (5/16”)
Hole saw
Ø20mm (0.79”)
Drill bit
(see table)
LED Driver
Technical
IP Waterproof Rating IPX5 Front and back
Input voltage 10-30V DC (12/24V System)
Input current max 2A
Output power max 15W (9V 1.25A)
Standby power max <1.2W
Certication
CE, UKCA, FCC, ROHS,
C-Tick, UN ECE R10, E24,
PSE Certied
RGB LED
Input voltage 9-15V DC
Input current max 0.2A
Standby power draw <0.0W
Part List
Pocket
Countersunk
screwx1 x4
Bezel
Pan head
screwx1 x4
1
2
3
– Check installation size
– Mark the cutting
boundary
– Use template to
• Drill 4x pilot holes (see
table)
• Hole saw 4x 15mm
(0.59”)
– Jig saw inside of the
cutting boundary.
DO NOT exceed the
boundary area.
– Connect wires
or connectors to
12/24V supply,
ensuring a waterproof
connection.
– Fuse according to
input voltage and
current.
– Attach front bezel.
– Secure in place using
4x pan head xings.
5
7
– Apply silicone sealant
generously around
ange, ensure good
coverage around
perimeter.
– Install drainage on
product.
• Drain holes: Ø5mm
(0.2") drill bit required.
• Drain pipe: ID Ø8mm
(5/16") required.
(Optional - Tools and parts
not included).
Note: The electrical schematic is to illustrate how the
product should be connected to a 12V DC or 24V DC
battery/power supply.
+
+
12V Input
(+) Black
cable
(-) RGB
cables
Optional
LED driver
(not included)
Caution: The RGB wiring should be used on a
12V system only.See technical information for
guidance.
– For a single light color, make a (+)
positive connection to the black
cable.
– Make a (-) negative connection
to any of the Red, Green or Blue
cables.
– Connect all three RGB cables to
an RGB Controller for multicolor
lighting control.
– Secure pocket in place
using 4x countersunk
xings.
– Apply silicone sealent
to xings holes.
4
6a
6b
(Optional)
READ THE IMPORTANT SAFETY
INFORMATION LEAFLET BEFORE
INSTALLING.
Waterproof Wireless Charger Cove LED 3 Coil 15W SC-CW-10G
Technical
Wireles Charger
IP Waterproof Rati
Cable Diameter
Cable bend Radius
Cable AWG
Cable Length
Input voltage
Input current max
Output power max
Standby power ma
Certication
RGB LED
Input voltage
Input current max
Standby power dra

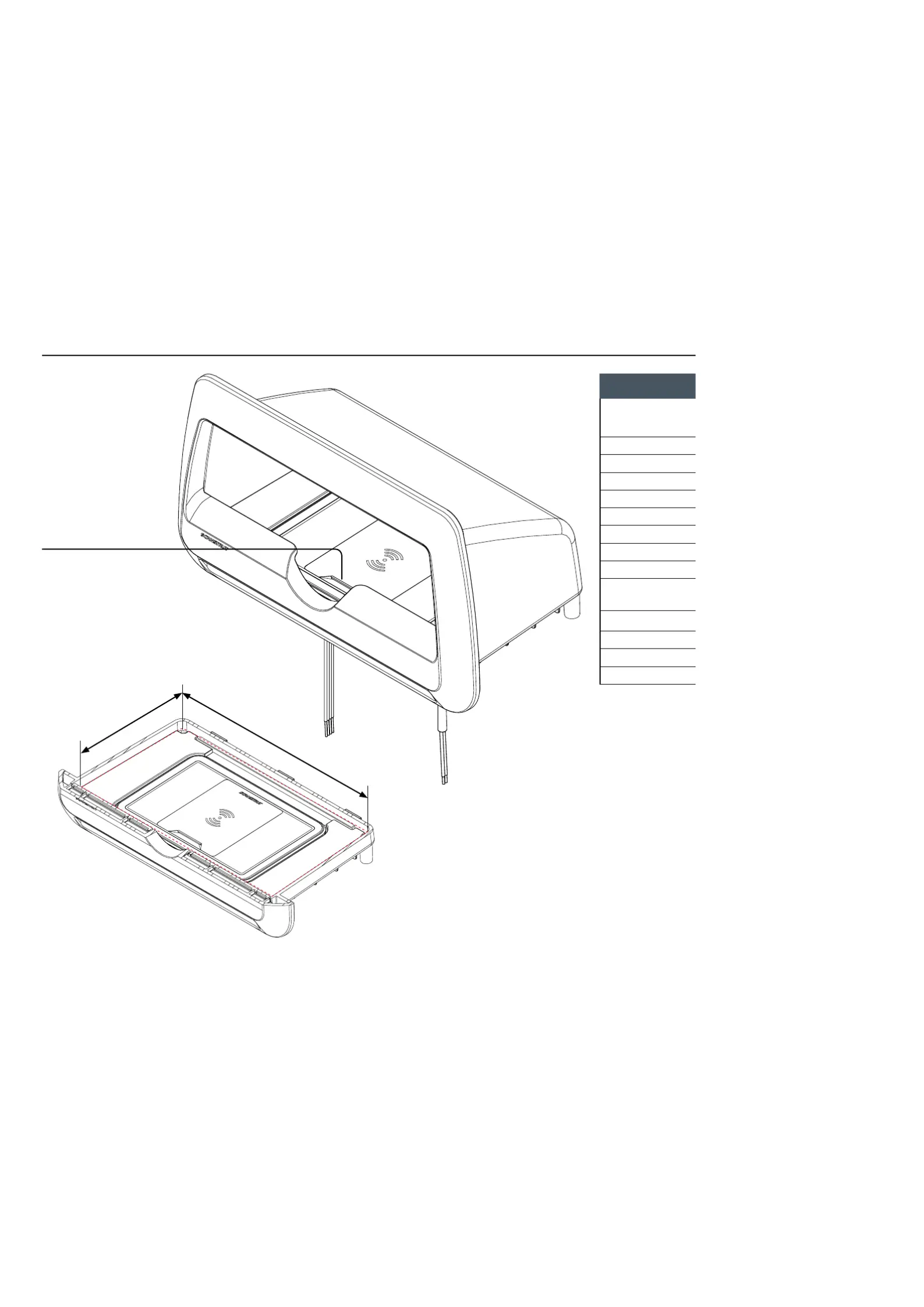

179mm
(7.05")
98mm
(3.85")
Max phone dimensions
LED charging
indicator
