Side 1/2
4 Specification
Output Voltage
500V DC (depending on battery
condition)
Output Current
10mA DC into 2k
Indicator
LED indication of voltage active
Dimensions
41mm (h), 82 (w), 157mm (d)
Power Supply
9V DC, PP3 Alkaline Battery
IP Rating
40
Compliance
BS EN 61010
5 Maintenance
Clean only with a dry cloth; do not use solvents.
Before use, ensure unit is clean and dry; visually
inspect test terminals and case. Any damage must be
rectified to preserve user safety.
Check the battery contacts and compartment is free
of electrolytic contamination.
Any contamination of the battery contacts or
compartment should be cleaned with a dry cloth.
Always confirm that the LED indicator on the proving
unit illuminates when the test is activated. Should the
item become faulty do not open, return it to the
manufacturer or an authorised Seaward Service
Agent.
6 Battery Replacement
• Disconnect all test leads.
• Remove the battery compartment cover
• Remove the discharged battery.
• Insert the replacement battery into the battery
compartment ensuring that the battery
polarity matches the battery connector.
• Replace the battery compartment cover.
7 Service and Calibration
To maintain the specified performance, the instrument
must be verified at regular intervals by either the
manufacturer or an authorised Seaward Service
Agent. We recommend a calibration period of one
year.
For help or advice on Service and Calibration contact:
Service Department
Seaward Electronic
Bracken Hill
South West Industrial Estate
Peterlee
Co Durham SR8 2SW
England
Tel: 0191 5878739 / 0191 5878737
Email: service@seaward.com
Web: www.seaward.com
PH3-LLT MK2
Proving Unit
Operating Instructions
Bracken Hill
South West Industrial Estate
Peterlee
Co Durham
SR8 2SW
ENGLAND
Tel: +44(0)191 5863511
www.seaward.com
sales@seaward.com
service@seaward.com
Part Number 423A651 Revision 4
© 2022 Seaward Electronic Ltd
Limited Warranty & Limitation of Liability
SEAWARD Electronic Limited guarantees this product to be free
from defects in material and workmanship under normal use and
service for a period of 1 year. The period of warranty will be
effective at the day of delivery.
(c) Copyright 2022
All rights reserved. Nothing from this edition may be multiplied, or
made public in any form or manner, either electronically,
mechanically, by photocopying, recording, or in any manner,
without prior written consent from SEAWARD Electronic Limited.
This also applies to accompanying drawings and diagrams.
Due to a policy of continuous development SEAWARD Electronic
Limited reserves the right to alter the equipment specification and
description outlined in this publication without prior notice and no
part of this publication shall be deemed to be part of any contract
for the equipment unless specifically referred to as an inclusion
within such contract.
1 Important Information
In the interest of safety the PH3-LLT MK2 should only
be used by competent suitably trained personnel after
due consideration of any hazard involved.
The following symbols are used in these operating
instructions and on the PH3-LLT MK2.
Warning of electrical danger!
Indicates instructions must be followed to avoid
danger to persons.
Important, follow the documentation! This
symbol indicates that the operating instructions
must be consulted and adhered to in order to
avoid danger.
Before use, ensure that both the PH3-LLT MK2 and
the LLT MK2 are clean and dry. Visually inspect all
parts of the PH3-LLT MK2, if any parts are damaged
do not use the PH3-LLT MK2.
Do not hold LLT (Live Line Tester) MK2
between the hand-guard and the contact
electrode.
Electrical shock risk!
Do not touch terminals!
Always prove the LLT MK2 before AND after
use.
Always check that the LED indicator on the
proving unit is illuminated whilst testing.
If the equipment is not used in a manner
specified in the manual, the protection
provided may be impaired.
Do not use without battery compartment
cover fitted.
Do not energise the proving unit for longer than 5
seconds, to preserve the battery.
WEEE Directive
This product has been designed and
manufactured with high quality materials and
components, which can be recycled and
reused.
When this symbol is attached to a product it
means it is covered by the WEEE Directive.
Please familiarise yourself with the appropriate local
separate collection system for electrical and electronic
products. Please dispose of this product according to
local regulations. Do not dispose of this product
along with normal waste. The correct disposal of this
product will help prevent potential negative
consequences for the environment and human health.
2 Environmental conditions
PH3-LLT MK2 was designed to perform tests:
• In a dry environment.
• At altitude of up to 2000M.
• At temperature of 5-40
o
C without moisture
condensation.
3 Proving
The PH3-LLT MK2 is intended to check if a LLT MK2
functions correctly.
1. Insert each probe of the LLT MK2 inside the
PH3-LLT MK2 terminals.
2. Press down on the right terminal (closest to
the battery compartment) to switch on the
PH3-LLT MK2.
3. Confirm the LED on the PH3-LLT MK2 front
panel is illuminating.
4. If LED does NOT illuminate, replace the
battery by following 6 Battery Replacement
instruction.
5. If LED still does NOT illuminate, this suggests
PH3-LLT MK2 is faulty. DO NOT USE.
6. Confirm the Dual LEDs on LLT-PH3 are
illuminating.
If Dual LEDs are NOT illuminating, this
suggests LLT MK2 is faulty. DO NOT USE.
7. Disconnect both probes from the terminals
after test is complete.

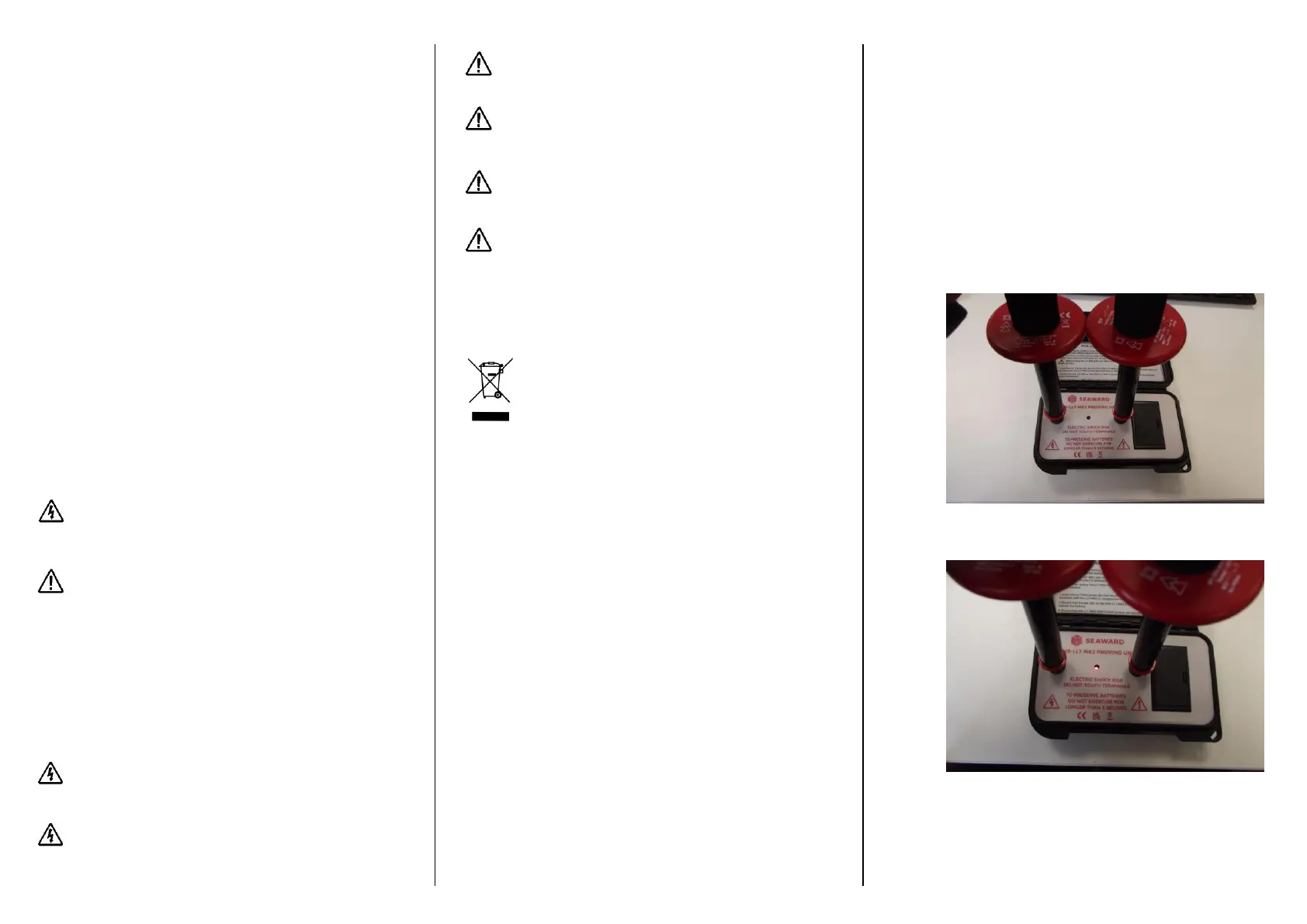

Image above shows PH3-LLT MK2 before
switched on.
Image above shows PH3-LLT MK2 switched
on when the right terminal is pushed down.
