Side 1/4

USER MA NUAL

W W W. SEUR A .COM

FOR SÉUR A OUTDOOR DISPLAYS

Slim Wall Mount

MODEL NUMBERS

SW-1

SWL-1

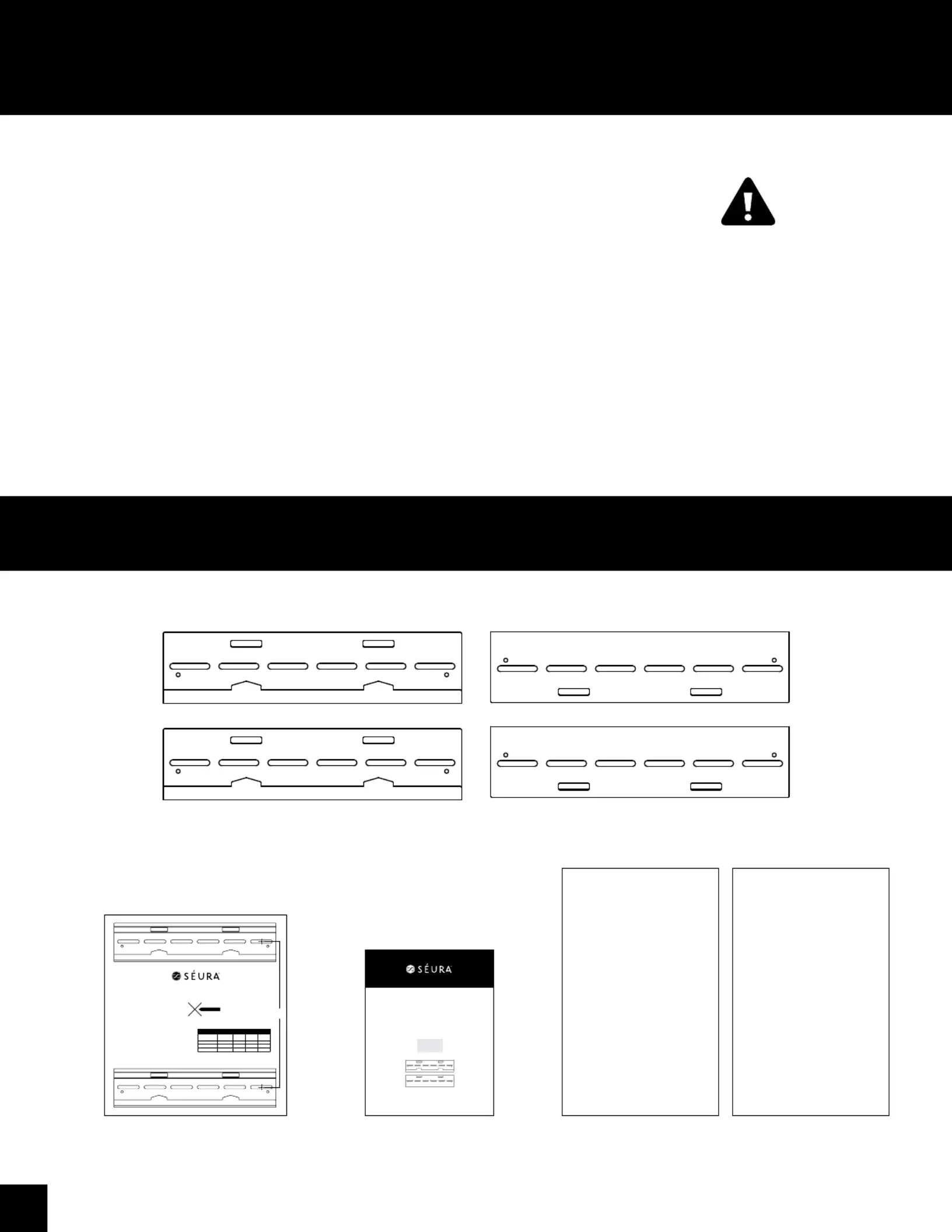

Supplied Parts

CAUTION

DO NOT EXCEED

MAXIMUM LISTED

WEIGHT CAPACITY.

SERIOUS INJURY OR

PROPERTY DAMAGE

MAY OCCUR

This product is designed to mount televisions weighing up to 200 lbs to a vertical rm wall.

Safety Warning: Ensure that there are no missing or defective parts upon receipt. Never use

defective parts. Improper installation may cause damage or serious injury.

Note: The included hardware is for mounting on walls. If you are uncertain about the nature of

your wall, consult an expert. Please consult your hardware or installation professional for proper

mounting to other types of walls.

Overall Dimensions (W x H x D): 17.5” x 4.19” x 0.5” (Model: SW-1 for 49” to 65” )

Overall Dimensions (W x H x D): 26” x 4.19” x 0.5” (Model: SWL-1 for sizes over 65”)

Safety

WALL MOUNTING

TEMPLATE

INSTALLATION

MANUAL

TV MOUNTING

HARDWARE

SW-1:

4 Stainless Steel

Lag Bolts

5/16”, 3” long

4 Plastic Anchors for

Concrete, Brick, and

Stone, 2.5” long

4 Stainless Steel

Flat Washers

4 Black Plastic Spacers

1/8” Thick

(needed for use with

Shade Series TVs)

SWL-1:

6 Stainless Steel

Lag Bolts

5/16”, 3” long

6 Plastic Anchors for

Concrete, Brick, and

Stone, 2.5” long

4 Stainless Steel

Flat Washers

4 Stainless Steel Vesa

Flanged Screws

M8, 12 mm long

NOTE: RECESSED OUTLET REQUIRED

BECAUSE THE SLIM MOUNT ALLOWS THE TV TO SIT TIGHTLY AGAINST THE WALL, TRADITIONAL WALL

OUTLETS DO NOT ALLOW ENOUGH CLEARANCE FOR CABLES. UTILIZE EITHER RECESSED OUTLETS OR

REMOTE POWER LOCATIONS THAT ARE COMPLIANT WITH YOUR LOCAL BUILDING CODES.

[400mm]

15-3/4in

WALL MOUNTING TEMPLATE

CENTER OF TELEVISION

Attaching Wall Plates to Wall

Note: This product should be mounted to concrete, stone, brick, or wood studs.

Measure the location for the template. The template will help guide the distance

from the edges of the TV to the center of the screen. Make sure to tape the

template securely to the wall. Use the wall mounting template to mark four

holes on the wall - two in the top plate, two in the bottom plate. Ensure that

the hole locations are level.

Solid Surface Wall Mounting (concrete, stone, or brick): Pre-drill holes through

the paper template with a 10mm masonry bit. Insert a concrete anchor into each

of these holes. Attach both wall plates to the wall using four lag bolts and four

lag bolt washers.

Drywall/Stud Wall Mounting: The wall plates must be mounted to at least two

wood studs. Use a stud sensor to locate three adjacent studs. Pre-drill a 55mm

deep hole using a 4.5mm drill bit. Use the wall plate drawing as a template to

mark the location of the second hole in each stud. Attach the wall plates to the

wall using the four lag bolts and four lag bolt washers.

Instructions

Television Location from Ed ge to Center

17"

14-9/16"

13-1/16"

17"

14-9/16"

13-1/16"

29-5/16"

25"

22-5/16"

29-5/16"

25"

22-5/16"

49"

55"

65"

Bottom

of TV

Television Size

Right Side

of TV

Left Side

of TV

Top of TV

WALL MOUNT BRACKETS x 2

4 SLIM MOUNT IDENTICAL BRACKETS:

TV MOUNT BRACKETS x 2

US E R MA N U A L

WW W. SE U R A. C OM

FO R S ÉUR A OU TD OOR DI SPL AYS

Slim Wall Mount

MODEL NUMBERS

SW-1

SWL- 1
