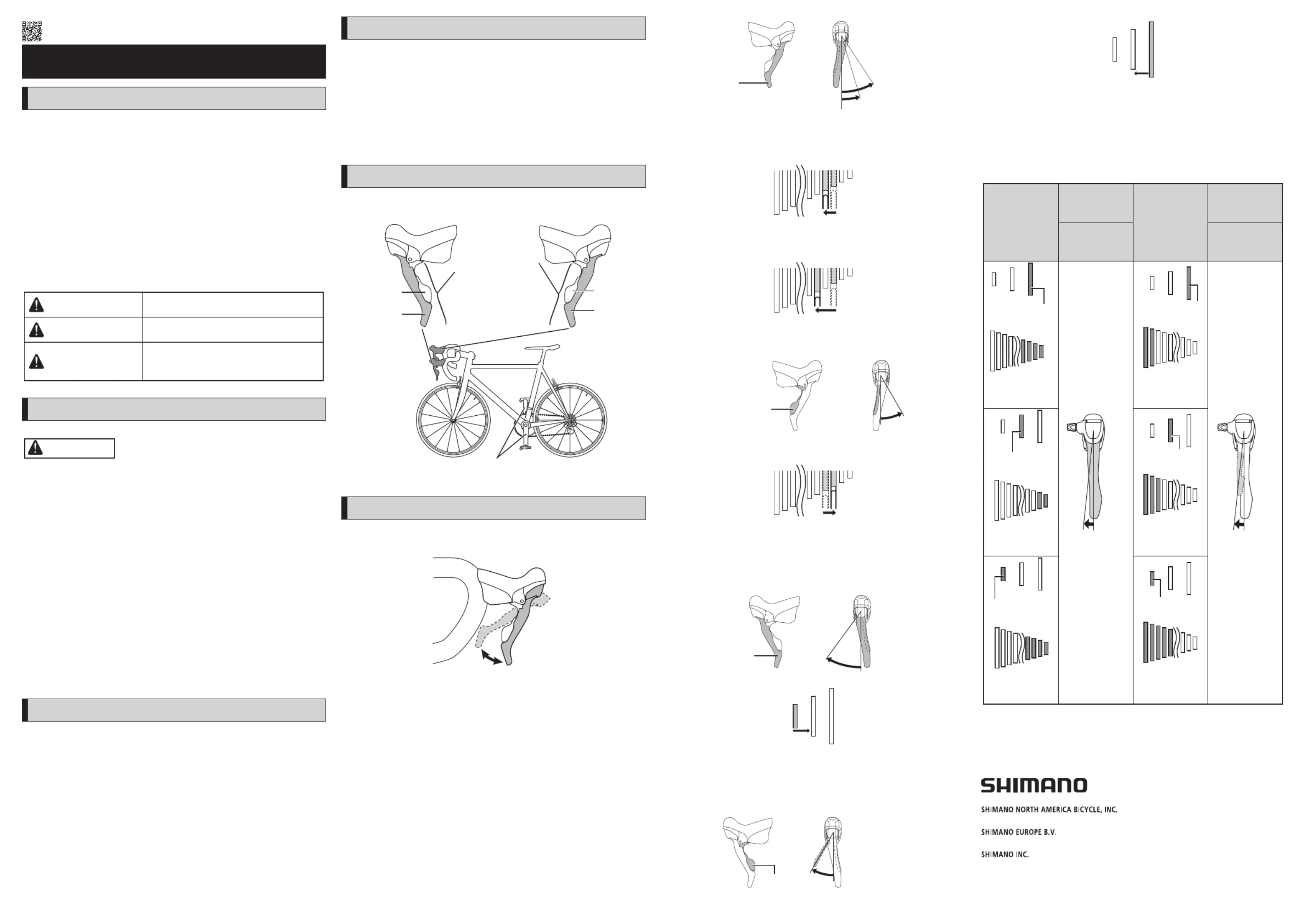

Dual Control Lever
IMPORTANT NOTICE
•
Contact the place of purchase or a distributor for information on
installation, adjustment, and replacement of the products which are not
found in the user's manual. A dealer's manual for professional and
experienced bicycle mechanics is available on our website (https://si.
For safety, be sure to read this “user's manual”
thoroughly before use, follow it for correct use, and
store it so that it can be referenced at any time.
The following instructions must be observed at all times in order to
prevent personal injury and physical damage to equipment and
surroundings. The instructions are classified according to the degree of
danger or damage which may occur if the product is used incorrectly.
DANGER
Failure to follow the instructions will result
in death or serious injury.
WARNING
Failure to follow the instructions could
result in death or serious injury.
CAUTION
Failure to follow the instructions could
cause personal injury or physical damage
to equipment and surroundings.
Important safety information
WARNING
•
Because each bicycle may handle slightly differently depending on the
model, be sure to learn the proper braking technique (including brake
lever pressure and bicycle control characteristics) and operation of your
bicycle. Improper use of your bicycle's brake system may result in a loss
of control or a fall, which could lead to severe injury.
•
Do not disassemble or modify the product. This may cause the product
to not operate correctly, and you may suddenly fall and be seriously
injured.
•
Do not apply the front brake too strongly. If you do so, the front wheel
may lock and the bicycle may fall forward, and serious injury may result.
•
Because the required braking distance will be longer during wet
weather, reduce your speed and apply the brakes early and gently. You
may fall or collide and be seriously injured.
•
A wet road surface may cause tires to lose traction; therefore, to avoid
this, reduce your speed and apply the brakes early and gently. If the
tires lose traction, you may fall and be seriously injured.
Notice
•
In the case of carbon levers, wash them with a soft cloth using a neutral
detergent. Otherwise, the material may be damaged and lose strength.
•
Avoid leaving the carbon levers in places where high temperatures are
present. Also keep them well away from fire.
•
Be sure to keep turning the crank during the lever operation.
•
Also read the user's manuals for the front derailleur, rear derailleur,
and brake.
•
Products are not guaranteed against natural wear and deterioration
from normal use and aging.
•
For maximum performance we highly recommend SHIMANO lubricants
and maintenance products.
Regular inspections before riding the bicycle
Before riding the bicycle, check the following items. If any problems are
found, consult your place of purchase or a distributor.
•
Do the front and rear brakes work correctly?
•
Is gear shifting carried out smoothly?
•
Are the levers securely installed to the handlebar?
•
Are there signs of cracks or peeling on the levers?
•
Do any abnormal noises occur during operation?
Names of parts
Rear
Lever (brake lever/shift
lever)
Lever B
Front
Lever B
Lever A
Lever A
Crank
How to operate
Operating the brakes
Gear shifting operations
Be sure to keep turning the crank during the lever operation.
Caution on operation
After gear shifting is completed, both levers A and B return to their initial
position.
Do not push levers A and B at the same time. Gear shifting is not
performed if the levers are pushed at the same time.
* Some models have two-step gear shifting.
Right-hand lever operation
•
Lever A: Shifts to a larger sprocket
Lever A clicks in the locations (1) and (2).
Lever A
Lever A initial
position
Click
(1)
Click
(2)
(1) Shifts one sprocket
Example: From the 3rd to 4th sprocket
4 3
(2) Quick-shifts two sprockets
Example: From the 3rd to 5th sprocket
35
•
Lever B: Shifts to a smaller sprocket
Press lever B once to shift to one smaller sprocket.
Lever B initial
position
Lever B
Example: From the 4th to 3rd sprocket
34
Left-hand lever operation
* The illustration is of the triple model, but the method is the same for
the double model.
•
Lever A: Shifts to a larger chainring
Lever A
Lever A initial
position
Push the lever in until it clicks then release it.
If gear shifting did not complete, push the lever in until it clicks one
more time.
•
Lever B: Shifts to a smaller chainring
Lever B initial
position
Lever B
Push the lever in until it clicks then release it.
Trimming operation (noise prevention mechanism)
When noise occurs due to the front derailleur contacting the chain,
perform the following operation.
* The illustration is of the triple model, but the method is the same for
the double model.
Chain
position
Trimming
operation
Chain
position
Trimming
operation
Lever
operation
Lever
operation
Largest chainring
High limit sprocket
Lever A
Click
(Make contact)
Low limit
sprocket
Largest chainring
Lever B
Click
(Make contact)
Middle chainring
High limit sprocket
Low limit
sprocket
Middle chainring
Smallest chainring
High limit sprocket
Low limit
sprocket
Smallest chainring
UM-6VX0A-003
User's Manual
Please note: specifications are subject to change for improvement without notice. (English)
© Aug. 2021 by SHIMANO INC. ITP
One Holland, Irvine, California 92618, U.S.A. Phone: +1-949-951-5003
High Tech Campus 92, 5656 AG Eindhoven, The Netherlands Phone: +31-402-612222
3-77 Oimatsu-cho, Sakai-ku, Sakai City, Osaka 590-8577, Japan
