A95U -- Line Matching Transformer

General Description

This reversible transformer matches low- or high-impedance microphones

to high- or low-impedance inputs. The transformer permits use of very long

microphone cables with either low- or high-impedance microphones. How-

ever, when connecting a high-impedance microphone, limit the cable

length between the microphone and the transformer to 4.6 m (15 ft). The

cable from the transformer to the low-impedance input can be any desired

length.

The transformer prevents high-frequency loss, level loss, and pickup of

noise and hum. The A95U comes furnished with a three-pin XLR connector

on the low-impedance end, with a 1/4 in. phone plug and phone jack

adapter on the high-impedance end.

Case: Full magnetic shield, steel with gray enamel finish

Dimensions: 19 mm (3/4 in.) diameter; 89 mm (31/2 in.) long without

adapters

Low-Impedance Selection

The A95U comes factory preset with the low-impedance end intended for use with microphones or inputs rated 75

to 300 ohms. For microphones or input rated at 19 to 75 ohms, make the following changes.

1. Remove the low-impedance XLR plug by turning the lock screw counter-clockwise and withdrawing the XLR

plug from the case.

2. Unsolder the YELLOW lead from pin 3 and insulate the bare wire at the end of the lead with the insulator from

the ORANGE lead.

3. Solder the ORANGE lead to pin 3.

4. Rotate the XLR plug three turns to twist the leads, then replace the XLR plug in the case. Tighten the lock

screw to secure the XLR plug in place (turning clockwise).

Shure Incorporated

2/4

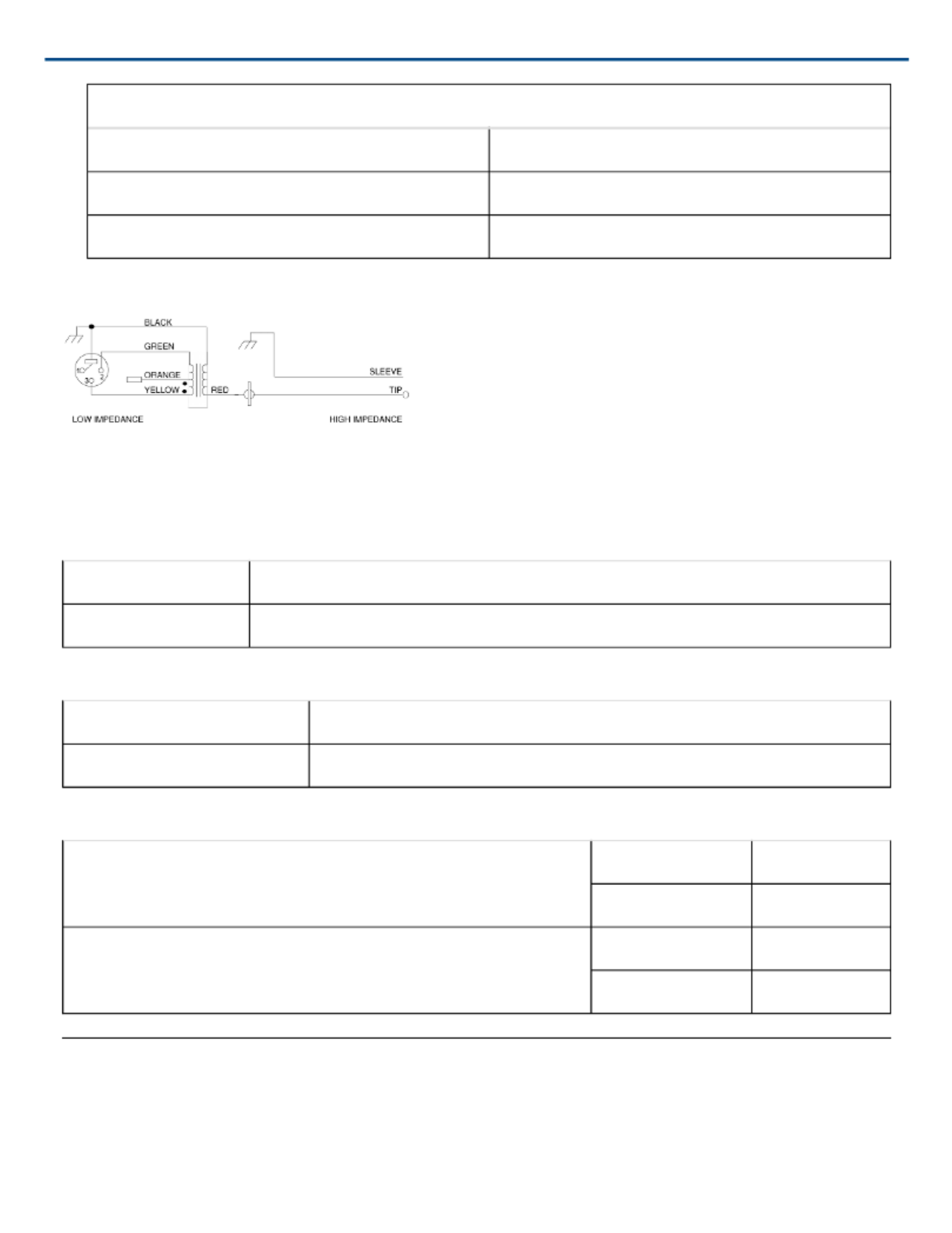

IMPEDANCES

GREN/YLW 75-300 Ω

GREN/ORN 19 - 75 Ω

BLK/RED HIGH

Frequency Response

20 to 20 kHz

Impedance

Low Impedance 75 to 300 Ω

Medium impedance High( )41 kΩ with 150-Ω source on 75-to-300 Ω winding

DC Resistance

Low Impedance 75 to 300 -75 , 19 to 75 -37.5 Ω Ω Ω Ω

High Impedance 4300 Ω

Voltage Ratio

Low-impedance to high-impedance +2819-75Ω dB

75-300Ω dB+22

High-impedance to low-impedance -2819-75Ω dB

75-300Ω dB-22

Maximum Recommended Input Levels
