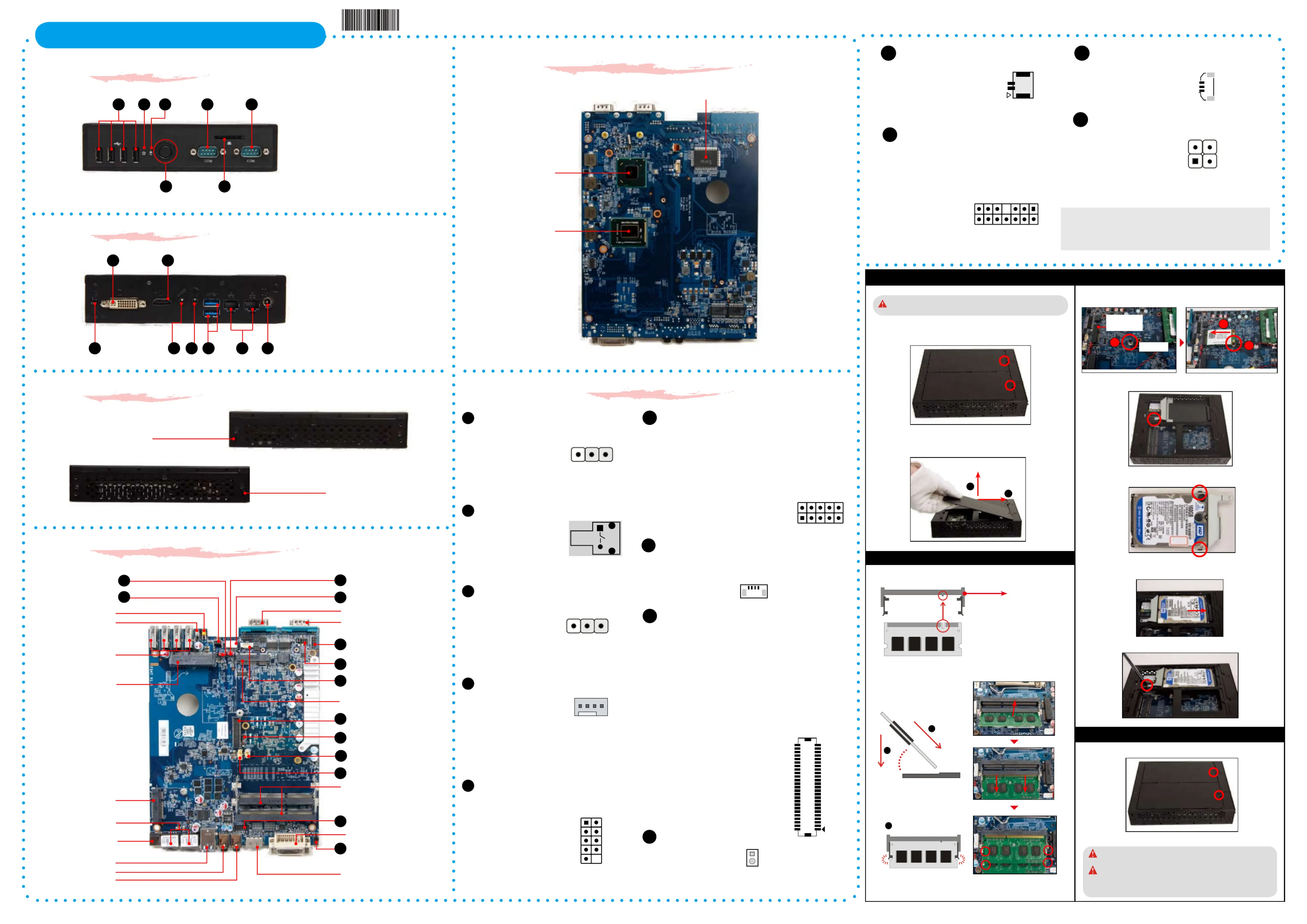

DS47 Quick Guide

【

English

】

53R-DS4703-1001

The product’s color and specification will depend on the actual shipping product.

C. Component Installation

D. Complete

1. As shown, unfasten the screw first. Install the Mini PCIe card

into the Mini PCIe slot and affix it with a screw.

4. Put the HDD in the chassis and push toward right untill it inserts into the

SATA&SATA Power Connector.

3. Place the HDD in the rack and secure with the two screws from the side.

1. Replace the covers and refasten the screws.

2 . Complete.

A. Begin Installation

1. Unscrew the two screws of the chassis cover.

For safety reasons, please ensure that the power cord is discon-

nected before opening the case.

2. Slide the cover forwards and upwards.

5. Refasten the screw.

Left / Right Panel

Back Panel

B1 B6

B1. C-MOS Port

B2. DVI-I Port

B3. HDMI Port

B4. Mic-In

B5. Headphone

B6. USB3.0 Ports x2

B7. LAN Ports p1-x2

B8. DC IN

B7 B8B4 B5

Front Panel

F1. USB2.0 Ports x4

F2. Power LED

F3. HDD LED

F4. Power Button

F5. COM 1 :

Support RS232/RS422/RS485

F6. COM 2 :

Support RS232

F7. SD Card Reader

F1 F5

F2 F3

Motherboard Illustration Front

USB 2.0 Ports x4

C11

COM Port 1

LAN Ports x2

USB 3.0 Ports x2

Headphone

Mic In

HDMI Port

DVI-I Port

Power connector - SW1

COM1&COM2

Power Switch - JP2

Fan Connector - Fan1

Power Button - SW3

Mini PCIe slot with

mSATA support - PCIE1

LVDS Connector - LVDS1

Mini PCIe Slot - CN3

CMOS Port - SW2

Battery Connector - CN1

Converter Voltage Select - JP4

Panel Voltage

Select - JP3

C12

Audio Connector - AUDIO2

DDR3 SODIMM slots

HDD LED

Power LED

B. Memory Module Installation

notch

SODIMM slot

45-degree

angle

Latch

1. Locate the SODIMM slot on the mainboard.

2. Align the notch of the memory module with the one of the memory slot.

3. Gently insert the module into the slot in a 45-degree angle.

4. Carefully push down the memory module until it snaps into the locking

mechanism.

5. Repeat the above steps to install additional memory modules, if required.

2. Unscrew the rack from the chassis.

Battery Connector

C10

Pin Assignments (CN1):

1=V_BAT

2=GND

Pin Assignments

(Audio2):

1=PULL AGND

2=LINE-R

3=N/C

4=LINE-L

5=PULL AGND

6=FRONT_L

7=N/C

8=PRONT_SENSE

9=PULL AGND

10=FRONT_R

Audio Connector

C12

13 11 9 7 5 3 1

14 12 10 8 6 4 2

11=BK_AUDIO-JD

12=MIC1_R

13=AGND

14=MIC1_L

Motherboard Illustration Back

Intel

Celeron

Processor 847

Intel

NM70 Chipset

Super I/O

Power Button

Pin Assignments (SW3)

Jumper Settings

Panel Voltage Select

Pin Assignments (JP3):

1=+3.3V

2=Panel_VDD

3=+5.0V

Converter Voltage Select

Pin Assignments (JP4):

1=+12V

2=INV_PWR_SRC

3=+5V

3 1 2

FAN_1 connector

Pin Assignments (FAN1):

1=Ground

2=+12V

3=SPEED_SENSE

4=PWM_CTRL

Pin Assignments (SW1):

1=+HD_LED

2=PWR_LED

3=-HD_LED

4=GND

5=RST_SW

6=PWR_SW

7=GND

8=GND

9=NUUL

Power Connector

COM1&COM2 Power Switch

JUMP1 Connector Pin 1 and Pin 2 = RI1 Signal.

JUMP2 Connector Pin 3 and Pin 4 = RI2 Signal.

IF JUMP1 Connector Pin 5 and Pin 7 = RI1 is VCC

IF JUMP2 Connector Pin 6 and Pin 8 = RI2 is VCC

IF JUMP1 Connector Pin 7 and Pin 9 = RI1 is 12V

IF JUMP2 Connector Pin 8 and Pin 10 = RI2 is 12V

Pin Assignments (JP2):

1=-XRI1 2=COM_-XRI1

3=-XRI2 4=COM_-XRI2

5=+5V 6=+5V

7=COM1_PWR 8=COM2_PWR

9=+12V 10=+12V

3 5 7 9

4 6 8 10

LVDS Connector

Pin Assignments (LVDS1):

1=N/C

2=Converter-PWR

3=N/C

4=Converter-PWR

5=N/C

6=Converter-PWR

7=GND

8=Converter-PWR

9=N/C

10=GND

11=GND

12=LVDS_DDAT

13=PWMO

14=LVDS_DCLK

15=GND

16=Panel_VDD

17=BKLTEN

18=Panel_VDD

19=PWMO

20=Panel_VDD

21=GND

22=GND

23=LVDS_A3P

24=LVDS_B3P

25=LVDS_A3N

26=LVDS_B3N

27=GND

28=GND

29=LVDS_ACK_P

30=LVDS_BCK_P

31=LVDS_ACK_N

32=LVDS_BCK_N

33=GND

34=GND

35=LVDS_A2P

36=LVDS_B2P

37=LVDS_A2N

38=LVDS_B2N

39=GND

40=GND

41=LVDS_A1P

42=LVDS_B1P

43=LVDS_A1N

44=LVDS_B1N

45=GND

46=GND

47=LVDS_A0P

48=LVDS_B0P

49=LVDS_A0N

50=LVDS_B0N

Safety Information

Read the following precautions before setting up a Shuttle XPC.

CAUTION

Incorrectly replacing the battery may damage this computer.

Replace only with the same or equivalent as recommended by Shuttle.

Dispose of used batteries according to the manufacturer's instructions.

Kensington® Lock Port

DC IN

3 1 2

1 2 3 4

CMOS Port

C13

Pin Assignments (SW2):

1=PWRSW-

2=+5V

3=GND

4=Clear Cmos

1 3

2 4

Screw

Mini

PCIe slot

COM Port 2

62R-DS4700-4801

English.Spanish.Korean.

Traditional Chinese.Japanese.

French. German Quick Guide

C13

SMBUS

J1 AUTO PWR_SW

C11

Fan2 Connector

C10

SMBUS

Pin Assignments:

1=SMBCLK_SB

2=SMBDATA_SB

3=+5V

4=GND

J1 AUTO PWR_SW

Pin Assignments:

SHORT=Disabled

OPEN=Enabled

FAN2 connector

C11

Pin Assignments:

1=-FANIO2

2=GND

3=FANPEM2

Please load the optimized BIOS settings.

Operation Position:

1) Device must only be used in vertical position with the DVI

port facing up.

2) Please make sure to use either the supplied feet or the VESA

mount.

2.5 inch HDD slot

Produkt Specifikationer

Mærke:	Shuttle
Kategori:	Skrivebord
Model:	D 4700BA
Bredde:	165 mm
Dybde:	200 mm
Højde:	39.5 mm
Vægt:	1430 g
Brugervejledning:	Ja
Produktfarve:	Sort
Produkttype:	Mini PC
Kompatible hukommelseskort:	SD, SDHC, SDXC
Wi-Fi:	Ja
Relativ luftfugtighed ved drift (H-H):	10 - 90 %
Antal HDMI-porte:	1
DVI-port:	Ja
Ethernet LAN-porte (RJ-45):	2
Antal USB 2.0-porte:	4
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	2
Udgange til hovedtelefoner:	1
Ethernet LAN:	Ja
Wi-Fi-standarder:	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Processorkerner:	2
Driftstemperatur (T-T):	0 - 40 °C
Ethernet LAN-datahastigheder:	10,100,1000 Mbit/s
Intern hukommelse:	4 GB
Operativsystem installeret:	Windows 8 Pro
Lyd-output kanaler:	5.1 kanaler
Certificering:	FCC, CE, BSMI, C-Tick, CB, BSMI, ETL, CCC
Bedste Wi-Fi standard:	Wi-Fi 4 (802.11n)
Kabelteknologi:	10/100/1000Base-T(X)
Indbygget kortlæser:	Ja
Intel® Wireless Display (Intel® WiDi):	Ingen
Understøttet placering:	Horisontal/vertikal
Strømforsyningens indgangsfrekvens:	50 - 60 Hz
Processorfrekvens:	1.1 GHz
Processorserie:	Intel® Celeron®
Processortråde:	2
Processor-cache:	2 MB
Processor cache type:	L3
Intern hukommelsestype:	DDR3-SDRAM
Maksimal intern hukommelse:	16 GB
Samlet lagringskapacitet:	60 GB
Lagermedie:	SSD
On-board grafikkort, model:	Intel® HD Graphics
Diskret grafikadaptermodel:	Ikke tilgængelig
On-board grafikkort:	Ja
Indbygget grafikadapterfamilie:	Intel® HD Graphics
Mikrofonindgang:	Ja
Intel® Hyper Threading Teknologi (Intel® HT Technology):	Ingen
Intel® Turbo Boost Teknologi:	Ingen
Lydsystem:	Realtek ALC 662
Hukommelsesstik:	2x SO-DIMM
Processorproducent:	Intel
Processormodel:	847
Drivere inkluderet:	Ja
Mus inkluderet:	Ingen
Antal installerede SSD'er:	1
SDD-kapacitet:	60 GB
SSD-grænsefladetype:	SATA
Optisk drevtype:	Ingen
Enhanced Intel SpeedStep Teknologi:	Ja
Udfør deaktivering af bit:	Ja
Idle status:	Ja
CPU-konfiguration (maks.):	1
Intel® VT-x with Extended Page Tables (EPT):	Ja
Indlejret tilgængelige muligheder:	Ingen
Intel® 64:	Ja
Intel® Virtualization Technology for Directed I/O (VT-d):	Ingen
Intel® Virtualization Technology (VT-x):	Ja
Skærm inkluderet:	Ingen
Strømforsyning indgangsspænding:	100 - 240 V
Beskyttelse af adgangskode:	Ja
Antal serielle porte:	2
Antal installerede processorer:	1
Bus type:	DMI
Intel® Flex Memory Access:	Ja
Intel® Trusted Execution Teknologi:	Ingen
Intel® Enhanced Halt State:	Ja
Intel® klar video teknologi:	Ingen
Konfliktfri processor:	Ingen
Strømforsyning:	65 W
Processor sokkel:	BGA 1023
Processor litografi:	32 nm
Thermal Design Power (TDP):	17 W
Maksimalt antal PCI Express-kanaler:	16
PCI Express slots version:	2.0
PCI Express-konfigurationer:	1x8, 1x16, 2x4, 2x8
Fejlkorrigerende kode understøttet af processor:	Ingen
Tjunction:	100 °C
Processor front side bus:	- MHz
Systembus-hastighed:	- GT/s
Processor driftstilstande:	64-bit
Processor kodenavn:	Sandy Bridge
FSB Paritet:	Ingen
Intel® InTru™ 3D Teknologi:	Ingen
Intel® Clear Video HD Teknologi (Intel® CVT HD):	Ingen
Intel® Insider™:	Ingen
Intel® My WiFi Teknologi (Intel® MWT):	Ingen
Intel® Anti-Theft Teknologi (Intel® AT):	Ingen
Intel® Quick Sync Video Teknologi:	Ingen
Intel® AES Nye Instruktioner (Intel® AES-NI):	Ingen
Intel® Demand Based Switching:	Ingen
Termiske overvågningsteknologier:	Ja
Intel® Dual Display Capable Teknologi:	Ja
Intel® FDI Teknologi:	Ja
Intel® Rapid Storage Teknologi:	Ingen
Intel® Fast Memory Access:	Ja
Intel® Clear Video Teknologi til MID (Intel® CVT for MID):	Ingen
Processor-pakke størrelse:	31.0 x 24.0 (BGA1023) mm
Grafisk og IMC litografi:	32 nm
Processor ARK ID:	56056
Hukommelseslayout (slots x størrelse):	- GB
Indbygget grafikadapter basefrekvens:	350 MHz
Indbygget grafikadapter dynamisk frekvens (maks.):	800 MHz
CPU-multiplikator (bus/kerneforhold):	11
Operativsystemets arkitektur:	64-bit
Understøttede instruktionssæt:	SSE4.x
Bundkort chipsæt:	Intel® NM70 Express
Ikke-fejlkorrigerende kode:	Ja
Hukommelseskanaler:	To-kanals
Tastatur inkluderet:	Ingen
Maksimal intern hukommelse understøttet af processor:	16 GB
Hukommelsestyper understøttet af processor:	DDR3-SDRAM
Hukommelsesurhastigheder understøttet af processor:	1066,1333 MHz
Hukommelsesbåndbredde understøttet af processor (maks.):	21.3 GB/sek.
Antal understøttede skærme (indbygget grafik):	2
Vandkølesystem:	Ingen
