Instructions

April, 2001

Supersedes Issue of

July, 2000

Siemens Energy & Automation, Inc. 1000 McKee Street Batavia, Illinois 60510

52-HPA8

Push Button & Accessories

Class 52

Cat No 52PA8, 52 PB9, 52ABT,

52AABA, 52ABW, 52PX

When installed as indicated, these

operators are suitable for use in Type

1, 3, 3R, 4, 12, or 13 enclosures.

Black Max (52PX) suitable for Type

4X enclosures.

For Engineering Reference Only - Rev. K

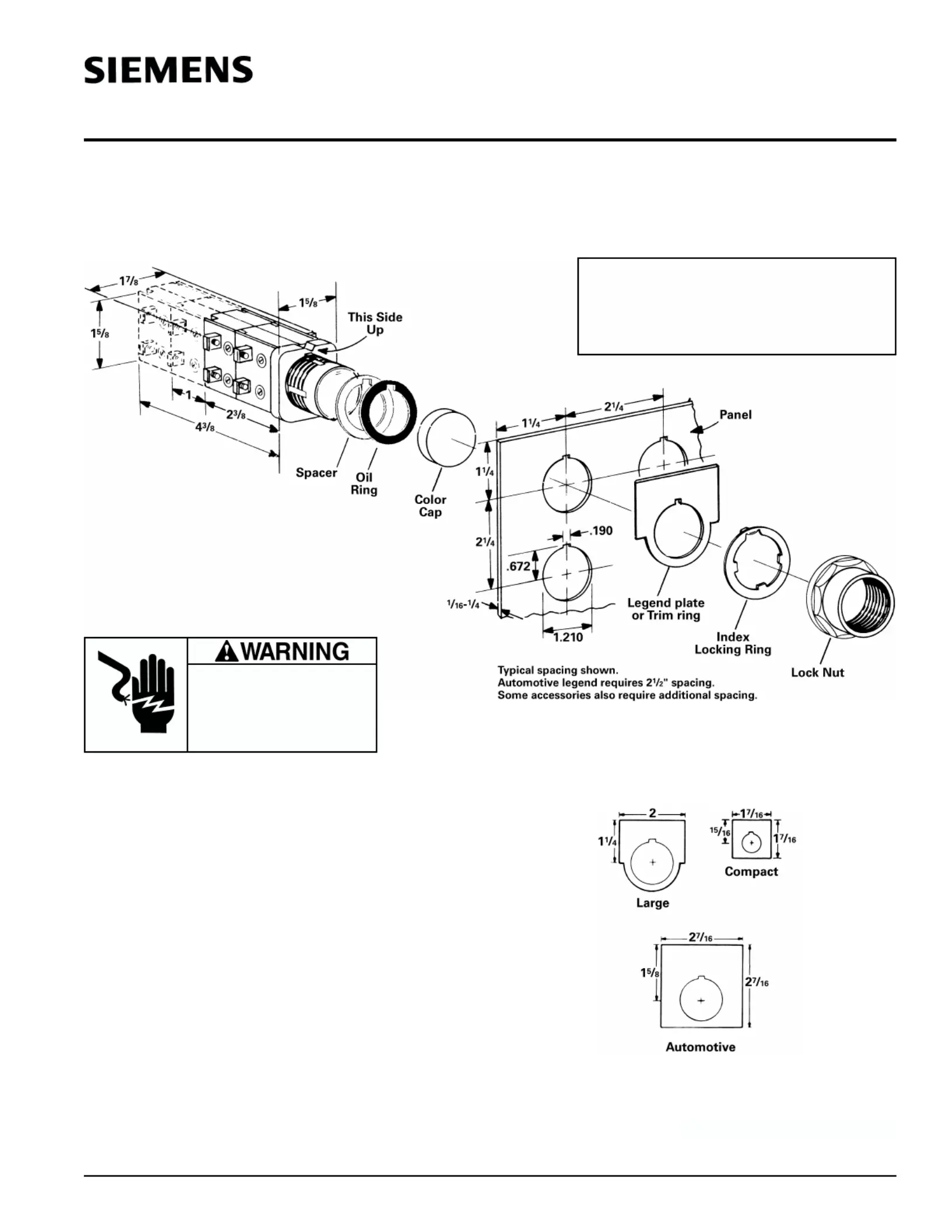

INSTALLATION

Units are assembled as shown.

1.* Assemble spacer.

2. Assemble oil ring.

3. Mount unit on panel as shown in illustration.

4.* Position trim ring or legend plate (trim ring is discarded

when legend plate is used).

5. Position index lockingring on unit as shown in illustration.

6. Assemble and tighten lock nut.

7. Position and press on color cap.

*Spacer and trim ring not used on BlackMax 4X devices.

Notes for BlackMax 4X devices:

* The trim ring is not needed or supplied.

* Only use the index locking ring when using a metal name

plate. Discard when not using a nameplate or when using a

plastic name plate.

* Use the locknut wrench, 52MAWB.

LEGEND PLATES

Hazardous voltage.

Can cause death, serious personal

injury, or property damage.

To avoid electrical shock, turn off

electrical power to controls before

performing installation maintenance.

Siemens Energy & Automation, Inc. 1000 McKee Street Batavia, Illinois 60510

52-HPA8

Page 2

April, 2001

Supersedes July, 2000

Instructions

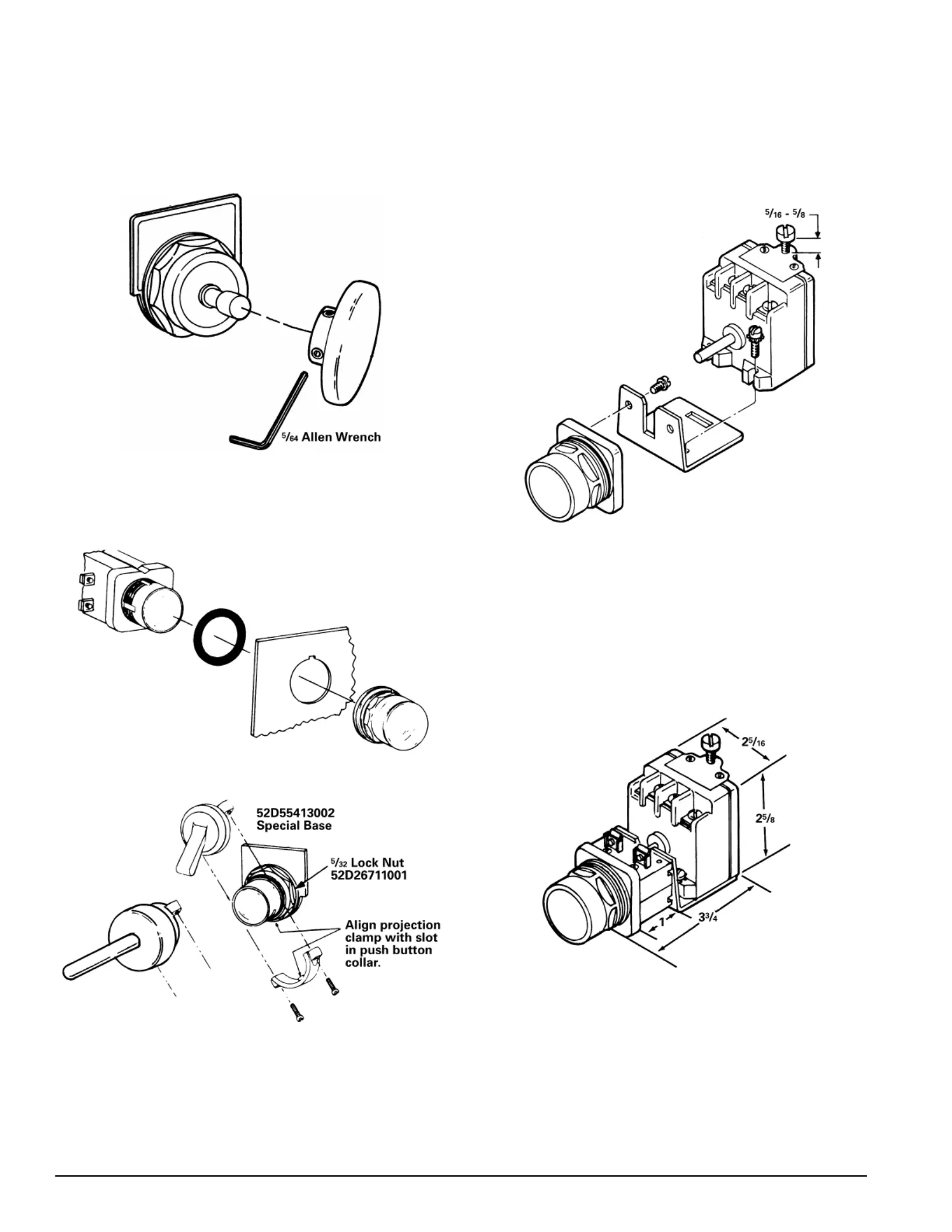

1. Loosen the two set screws, slip on shaft and tighten set

screws to a maximum of 8 in. lbs. torque with wrench

furnished.

Mushroon Button Operator

Pneumatic Timer

Double Break Contacts 1 NO & 1 NC

Protective Boot 52AABA

Timer Adjustment

Wobble Stick & Lever Operators

1. Loosen the two set screws, slip on shaft and tighten set

screws with wrench furnished.

2. Fasten the operator to support plate.

3. Fasten timer to support plate.

4. Two contact blocks (momentary instantaneous operation may

be added, see below. Contact blocks must be added together

first.

Timing is adjustable from 0.2 seconds to three minutes by turn-

ing the time adjustment screw clockwise to increase and coun-

terclockwise to decrease time.

These instructions do not purport to cover all details or variations in equipment, nor to provide for every possible contingency to be met in connection with installation, operation, or maintenance.

Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, the matter should be referred to the local Siemens-Furnas

Controls sales office.

The contents of this instruction manual shall not become part of or modify any prior or existing agreement, commitment or relationship. The sales contract contains the entire obligation of Siemens

Energy & Automation, Inc. The warranty contained in the contract between the parties is the sole warranty of Siemens Energy & Automation, Inc. Any statements contained herein do not create

new warranties or modify the existing warranty.
