Safety instructions

– The washing machine is heavy - take care when lifting.

– Caution: frozen hoses can crack/burst. Do not install the washing machine outdoors or in

areas exposed to frost.

– The washing machine could be damaged. Do not lift the appliance by protruding

components (e.g. the washing machine door).

– In addition to the instructions provided in this document, special regulations from the

relevant water and electric utility companies may apply.

– If in doubt, have a technician connect the appliance.

– The worktop must have no openings in the area around the washing machine.

– Route hoses and cables in such a way that there is no risk of tripping.

Environmentally-friendly disposal



– Dispose of packaging in an environmentally friendly manner.

– This appliance is labelled in accordance with European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment - WEEE.

The directive provides an EU-wide framework for the return and recycling of used

appliances.

Installation surface

– The machine must be stable so that it does not move around.

– The surface on which it is installed must be firm and level.

– Soft floors/floor coverings are not suitable.

Installation using slider sheets

Slide sheets make it easier to slide the

washing machine into the installation recess.

Order using spare part no. 66 1827

Before sliding in the machine, dampen the slide sheets with a

mixture of water and detergent. Do not use any fat and/or oil.

Installation under a high-level worktop -> Appliance dimensions, Page 3

– Adjustment strips: order no. WZ 20470, WMZ 20470, Z 7090X0

– Height adjustment kit: order no. WZ 20440, WMZ 20440, Z 7060X0

Installation on a pedestal

The front feet of the washing machine must be secured with holding brackets.

Order no. WMZ 2200, WX 975600, CZ 110600, Z 7080X0

Installation on a wood joist floor

– If possible, place the washing machine in a corner.

– Screw a water-resistant wooden plate (min. 30 mm thick) to the floor.

In doing so, take into account the height of the kitchen worktop.

– The feet of the washing machine must be secured with holding brackets.

* Order no. WMZ 2200, WX 975600, CZ 110600, Z 7080X0

Scope of delivery depending on model

Parts for assembly -> Page 8 - 13

Spanner

(depending on model)

Mains cable

Water inlet

Water outlet

Elbow

for securing the

water outlet hose

Covers

with hose clip

AquaäStop AquaäSecure Standard

Hose clamp

for securing the water drain

hose -> Page 5

Moisture inside the drum

is due to final testing.

Appliance dimensions depending on model

Hose and cable lengths depending on model

Left-hand connection

Right-hand connection

Note: Using hose clips limits the possible hose lengths.

Available from specialist retailers/the after-sales service:

– Extension for AquaäStop and cold water inlet hose (approx. 2.50 m).

Order no. WMZ2380, WZ10130, CZ11350, Z7070X0

Useful tools

– Spirit level for levelling

– Screwdriver

– Drill

59.8 cm

54.4 cm

82 cm

5.5 cm

15 cm

1.5 cm

81.8 cm

approx. 75 kg

87 cm

5 cm

87 cm

max. 100 cm

90 cm

130 cm

140 cm

130 cm

100 cm

min. * cm

* Standard and AquaäSecure models min. 60 cm - max. 100 cm

Aqua-Stop model 0 -max. 100 cm

Removing the transport safety devices

– Before using the appliance for the first time, the 4 transport safety

devices must be completely removed and kept safe.

– If you need to transport the appliance at a later date, always refit the

transport safety devices to prevent damage to the machine.

–> Page 6.

– Keep the screws and sleeves in a safe place.

1. Take the hoses (depending on model) out of the holders and the elbow.

Remove the elbow.

2. Unscrew and remove the bolts from all 4 transport safety devices.

3. Take the mains cable out of the holder. Remove the sleeves.

4. Insert the covers. Secure tightly by pressing on the snap-in hook. Insert the hose clip.

5. Secure the hoses in the hose clips.

Water connection depending on model

– Risk of electric shock. Do not immerse the Aqua-Stop safety device in water

(contains an electric valve).

– To prevent leaks or water damage, observe the instructions in this section.

– Caution: only operate the washing machine using cold drinking water.

– Do not connect to the mixer tap of an unpressurised hot-water boiler.

– Do not use a used inlet hose. Only use the inlet hose supplied or one which was

purchased from an authorised specialist retailer.

– If in doubt, have a technician connect the appliance.

Water inlet

Water inlet hose:

Caution: do not kink, squash, modify or cut through

(otherwise its strength is no longer guaranteed).

Optimum water pressure in the supply network: 100-1000 kPa (1-10 bar)

– Water flows at a rate of at least 8 l/min when the tap is turned on.

– If the water pressure is higher than this, a pressure reducing valve must be installed.

Model: AquaäStop

AquaäSecure

Standard

1. Connect the water inlet hose to the tap.

Only tighten the screw connections by hand.

2. Open the water tap carefully, checking the leak

tightness of the connection points.

Caution: the screw connection is under mains water

pressure.

Water outlet

Water outlet hose:

Caution: do not kink or pull lengthways.

Height difference between the installation surface and the drain:

– for AquaäSecure and Standard models: min. 60 cm - max. 100 cm

– for AquaäStop model: 0 - max. 100 cm

Drainage into a siphon:

Caution: the connection point must be secured with the hose clamp

provided, Ø 24-40 mm.

Levelling

Intense noise, vibrations and “wandering” may be the result of incorrect levelling.

All four appliance feet must be firmly on the ground.

The washing machine must not wobble.

Check the levelness of the washing machine with a spirit level and adjust if necessary.

The washing machine must not rest against the side panels of the installation recess.

The lock nuts of the front appliance feet must be screwed tightly against the housing.

max.

90°

max.

90°

min.

10 mm

min.

10 mm

3/4”

Electrical connection

The washing machine must only be connected to an alternating current via a properly

installed earthed socket.

The mains voltage must correspond to the voltage specifications on the washing machine.

-> Page 7; Technical data.

Connected load and required fuse -> Page 7; Technical data.

Make sure that:

– the mains plug fits the socket,

– the cable cross-section is adequate,

– the earthing system is properly installed.

The mains cable may only be replaced by a qualified electrician (if required).

Replacement mains cables are available from customer services.

Do not use multiple plugs/couplings and/or extension leads.

If a residual current circuit breaker is used, only use a type which displays this symbol: ‚.

Only this symbol guarantees compliance with the currently applicable regulations.

Mains plug:

– do not plug in to/pull out of the socket with damp hands.

– when removing the plug from the socket, pull the plug body only, not the cable.

– never pull the plug out during operation.

Transportation, e.g. when moving house

Before transporting the washing machine:

1. Turn off the tap.

2. Reduce the water pressure in the inlet hose a Instruction manual; filter in water inlet.

3. Drain residual water −> Instruction manual; drain pump.

4. Disconnect the washing machine from the power supply.

5. Disconnect the hoses.

Install the transport safety devices:

1. Remove the

covers.

2. Insert all 4 sleeves.

Clamp the mains cable to the holders. Insert and

tighten the screws.

After transportation, the transport safety devices must be removed. −> Page 4.

To prevent unused detergent from flowing straight into the drain during the next wash:

Pour 1 litre of water into compartment II and start the Empty programme.

1109 / 9000461166

*461166*

Technical data

Manufacturer (see instruction manual)

Weight 75 - 84 kg depending on model

Mains connection Nominal voltage 220-240 V, 50 Hz

Nominal current 10 A

Nominal power 2,300 W

Water pressure 100-1000 kPa (1-10 bar)

Test programme in accordance with the currently valid European

Standard 60456

After-sales service

If you cannot rectify a fault yourself aInstruction manual: What do to if ..., Page 12/13,

please contact our after-sales service. We can always find a suitable remedy, so that a

technician is not called out unnecessarily.

The contact details for your nearest after-sales service can be found here or in the After-sales

service directory (depending on the model).

Please give the after-sales service the product number (E no.) and the production number

(FD) of the appliance.

Product number Production number

This information can be found:

on the inside* of the washing

machine door and on the back

panel of the appliance

You can rely on the competence of the manufacturer. Please contact us.

This way, you can ensure the repair is carried out by trained service technicians who are

equipped with genuine spare parts.

Aqua-Stop warranty only for appliances with Aqua-Stop

In addition to warranty claims against the vendor from the purchase agreement

and in addition to our appliance warranty, we will pay damages under the following

conditions:

1. If a fault in our Aqua-Stop system causes water damage, we will reimburse

damages caused to private customers.

2. The liability warranty is valid for the service life of the appliance.

3. A warranty claim is only valid on condition that the appliance fitted with AquaäStop

has been correctly installed and connected according to our instructions. This

condition includes the correct fitting of an AquaäStop extension (genuine

accessory).

Our warranty goes not cover defective power cables or fittings between the

Aqua-Stop connection and the tap.

4. Appliances with Aqua-Stop do not need to be supervised during operation, nor

secured afterwards by turning off the tap.

The tap only needs to be turned off if you are away from home for a long period,

e.g. for several weeks' holiday.

max.

90°

min.10 mm

max.

90°

60 cm

58 cm

5 mm

1 mm

max.

12 mm

min. 25x

max.150x

min. 25x

max.150x

63.2-71.2 cm

33.8 cm

19.9 cm

2.1 cm

59.2-59.5 cm

52.3 cm

3.4 cm

33.8 cm

19.9 cm

63.2-71.2 cm

33.8 cm

19.9

2.1 cm

59.2-59.5 cm

52.3 cm

3.4 cm

33.8

19.9 cm

Ø 35 mm

12 mm

Ø 2 mm

12 mm

2.1 cm

2.6 cm

1.35 cm

0.2 cm

27.6 cm

53.4 cm

59.4...59.8 cm

Installation and

assembly instructions

Washing machine

Read these instructions before switching on the washing machine.

Also observe the separate Instruction manual.

Keep all the documents in a safe place for future reference, or to pass on to

the next owner.

Contents Page

ʋSafety instructions .............................................................................. 1

ʋEnvironmentally-friendly disposal ................................................... 1

ʋInstallation surface ............................................................................ 1

ʋScope of delivery................................................................................ 2

ʋAppliance dimensions ....................................................................... 3

ʋHose and cable lengths.................................................................... 3

ʋUseful tools.......................................................................................... 3

ʋRemoving the transport safety devices ........................................ 4

ʋWater connection .............................................................................. 5

ʋLevelling ..............................................................................................5

ʋElectrical connection ........................................................................ 6

ʋTransportation, e.g. when moving house ...................................... 6

ʋTechnical data ................................................................................... 7

ʋAfter-sales service ............................................................................. 7

ʋAqua-Stop warranty... ....................................................................... 7

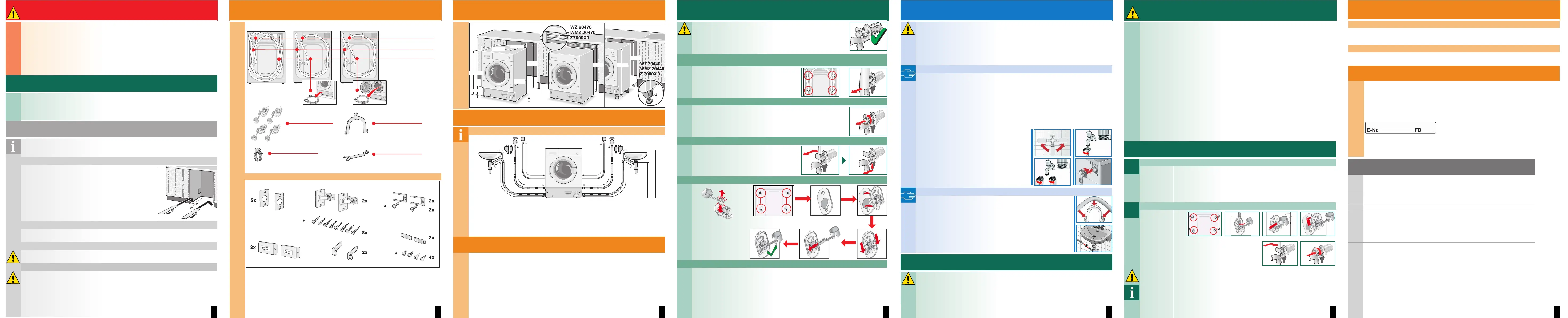

ʋAssembly instructions ................................................................ 8-13

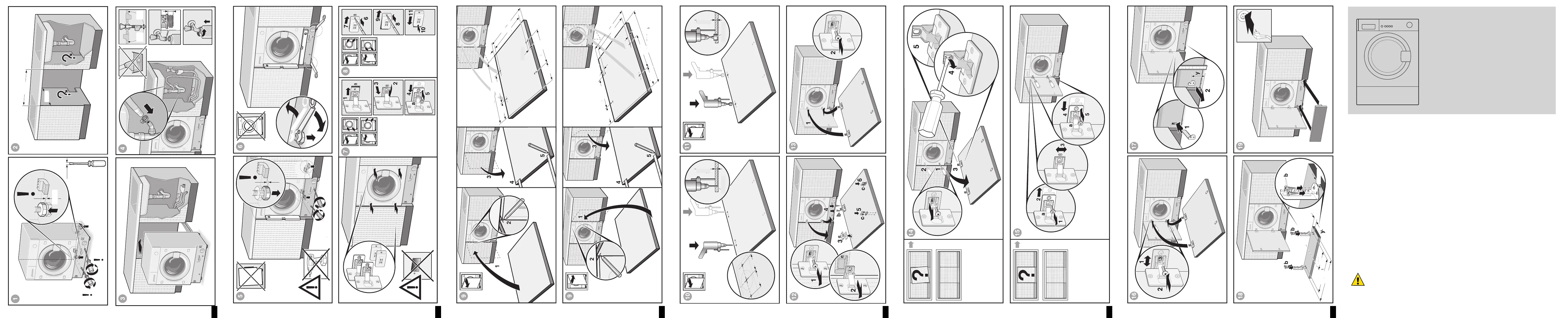

Image sequence 1-19

Produkt Specifikationer

Mærke:	Siemens
Kategori:	Vaskemaskine
Model:	WI14S440
Vekselstrømsindgangsspænding:	220 - 240 V
Bredde:	596 mm
Dybde:	574 mm
Højde:	818 mm
Vægt:	80000 g
Produktfarve:	Hvid
Indbygget skærm:	Ja
Pakkevægt:	81000 g
Energieffektivitetsklasse (gammel):	A+
Strømforbrug (typisk):	2300 W
Timer:	Ja
Placering af apparat:	Indbygget
Ilægningstype:	Front-læsning
Tromlekapacitet:	7 kg
Maksimal centrifugeringshastighed:	1400 rpm
Antal vaskeprogrammer:	8
Støjniveau (vask):	64 dB
Forsinket start-timer:	Ja
Vaskeprogrammer:	Hygiene/anti-allergy, Black
Energiforbrug ved vask:	0.75 kWh
Årligt energiforbrug vask:	218 kWh
Tromle volumen:	55 L
Dør farve:	Hvid
Spin-tørre klasse:	B
Vaskeklasse:	A
Årligt vandforbrug vask:	10560 L
Vandforbrug pr. cyklus:	75 L
Forsinket start (maks.):	24 t
Pakkens dimensioner (BxDxH):	880 x 660 x 690 mm
AquaStop funktion:	Ja
Effektkrav:	220-240 V 50 Hz
Rense plus funktion:	Ja
Brugerdefineret panel klar:	Ja
Dørpanel inkluderet:	Ingen
