Side 1/6

Safety instructions

– The washing machine is heavy - take care when lifting.

– Caution: frozen hoses may rip/burst. Do not install the washing machine in areas exposed

to frost or outdoors.

– The washing machine could be damaged. Do not lift the appliance by protruding

components (e.g. the washing machine door).

– In addition to the instructions provided in this document, special regulations from the

relevant water and electric utility companies may apply.

– If in doubt, have a technician connect the appliance.

– Lay hoses and cables in such a way that there is no risk of tripping.

Installation surface

– The machine must be stable so that it does not move around.

– The installation surface must be firm and level.

– Soft floors/floor coverings are not suitable.

Installation on a pedestal

– The feet of the washing machine be secured with holding brackets*.must

* order no. WMZ2200, WX9756, CZ110600, Z7080X0

Installation on a wood joist floor

– If possible, place the washing machine in a corner.

– Screw a water-resistant wooden board (min. 30 mm thick) to the floor.

– The feet of the washing machine be secured with holding brackets*.must

* order no. see above

Installing the appliance

Install the appliance before connecting it to the power supply.

Installation in a kitchenette (underneath the worktop or fitted in a cabinet)

– Recess width of 60 cm required.

– Only install the washing machine underneath a continuous worktop that is securely

connected to adjacent cabinets.

Installation underneath the worktop

Risk of electric shock.

– Instead of the appliance covering plate, you must have a metal cover * fitted by an expert.

* order no. WMZ2420, WZ10190

– Recess width of 60 cm required.

Scope of delivery depending on model

Also required, depending on the connection:

– 1 hose clamp Ø 24-40 mm (exclusive dealers) to connect to a siphon

a page 4; water connection.

Useful tools

– Spirit level for installation.

Hose and cable lengths depending on model

Left-hand connection or Right-hand connection

Available from specialist dealers/the after-sales service:

– Extension for Aqua-Stop or cold-water inlet hose (approx. 2.50 m).

order no. WMZ2380, WZ10130, CZ11350, Z7070X0

– Longer inlet hose (approx. 2.20 m) for standard model.

Mains cable

Water outlet

Water inlet

Elbow

for fixing the drainage

hose in place

Covers

quaä

ecure

Wrench

(depending on model)

~145 cm

~100 cm

~90 cm

~140 cm

~145 cm

min. 60 cm

~90 cm

max. 100 cm

Moisture inside the drum is

due to final testing.

Removing the transport braces

– Before using the appliance for the first time, make sure that you

completely remove transport braces and keep them for subsequent

transportation.

– If you need to transport the appliance at a later date, always re-affix the

transport braces to prevent damage to the machine page 6.a

– Store the screw and sleeve screwed together.

1. Take the hoses and elbow out of the holders, depending on model.

2. Loosen the bolts ....

... until they move freely in the sleeves.

3. Completely remove all 4 transportation protection devices (each bolt

together with sleeve) and take the main cable out of the holder.

Always displace bolt and sleeve together as shown in the illustration.

All bolts and sleeves must be removed.

4. Insert covers.

Water connection depending on model

– Do not immerse the Aqua-Stop safety device in water Risk of electric shock.

(contains an electric valve).

– To prevent leaks or water damage, observe the instructions in this

section.

– : only operate the washing machine using cold drinking water.Caution

– Do not connect to the mixer tap of an unpressurised hot-water boiler.

– Do not use a used inlet hose. Only use the inlet hose supplied or one which was

purchased from an authorised specialist dealer.

– If in doubt, have a technician connect the appliance.

Water inlet

Water inlet hose:

Caution: do not bend, squash, modify or cut through

(otherwise its strength is no longer guaranteed).

Optimum water pressure in the supply network: 100 1,000 kPa (1 10 bar)ä ä

– When the tap is on, the water flow is at least 8 l/min.

– If the water pressure is higher than this, a pressure reducing valve must be installed.

Model: Aqua Stopä

Aqua Secureä

Standard

1. Connect the water inlet hose to the tap.

Caution: only tighten the screw connections by

hand.

2. Open the water tap carefully, checking the leak

tightness of the connection points.

Caution:the screw connection is under mains water

pressure.

Water outlet

Water outlet hose:

Caution: do not bend or pull lengthways.

Height difference between the installation surface and the drain:

min. 60 cm - max. 100 cm

Outlet in a sink

Caution: secure the drain hose from slipping out.

Caution: the plug must not block drainage from the sink. During

pumping, check whether the water is draining away quickly enough.

The end of the drain hose must not be immersed in the water pumped

out. This risks water being sucked back into the washing machine.

Drainage into a siphon:

Caution: the connection point must be secured with a hose clamp,

Ø 24-40 mm (exclusive dealers).

max.

90°

max.

90°

min.

10 mm

min.

10 mm

3/4”

Manufacturer a Operating instructions

9401 / 9000440474

*440474*

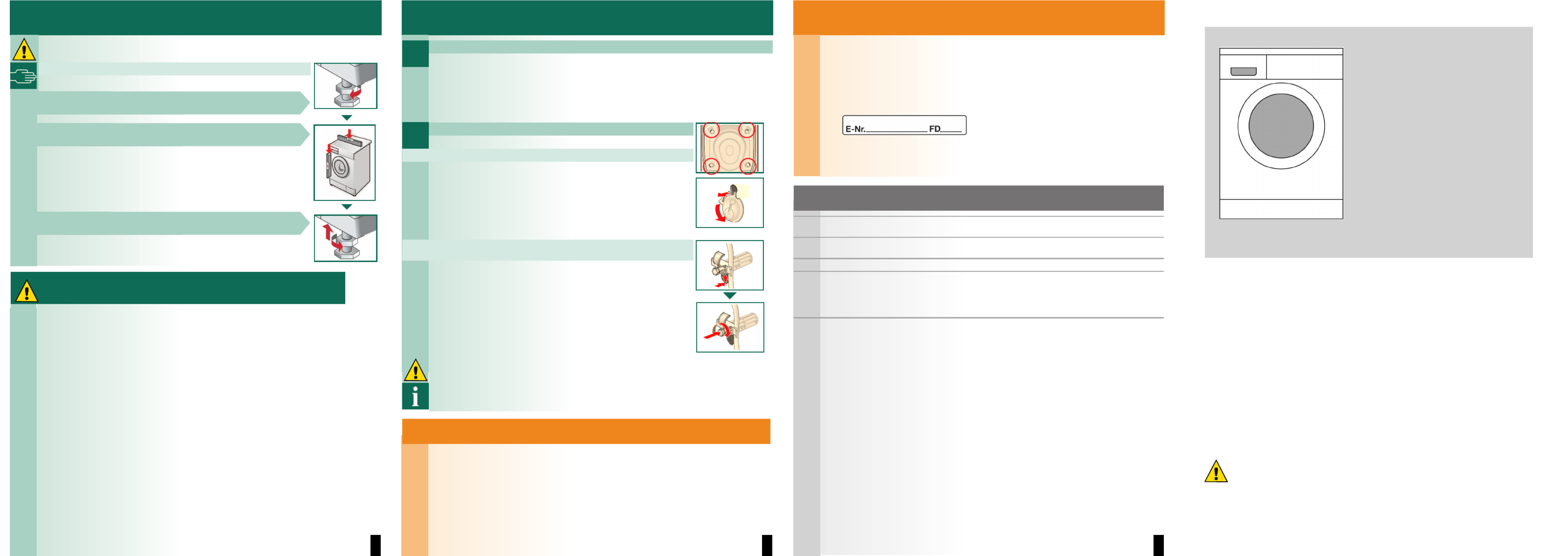

Alignment

Intense noise formation, vibrations and “wandering” may be the result of incorrect

alignment.

Aligning the washing machine with a spirit level

1. Loosen the lock nut using a wrench, by turning it in a clockwise direction.

2. Change the height by turning the appliance feet.

Caution: all four appliance feet must be firmly on the ground.

The washing machine must not wobble.

Check the alignment of the washing machine with a spirit level and adjust

if necessary.

3. Tighten the lock nut against the housing.

In doing so, hold the foot tight and do not adjust its height.

Caution: the lock nuts on all four appliance feet must be screwed tightly

against the housing.

Electrical connection

ʑThe washing machine must only be connected to an alternating current via a

properly installed earthed socket.

ʑThe power supply and voltage indicated on the washing machine (rating plate)

must be the same.

ʑThe connected load and fuse required are specified on the rating plate.

ʑMake sure that:

– the mains plug fits the socket,

– the cable cross-section is adequate,

– the earthing system is properly installed.

ʑ(If this is necessary), the mains cable may only be replaced by a qualified

electrician.

Replacement mains cables are available from the after-sales service.

ʑDo not use multiple plugs/couplings or extension cables.

ʑIf a residual current circuit breaker is used, only use a type which displays this

symbol: .‚

Only this symbol guarantees compliance with the currently applicable regulations.

ʑDo not plug in or unplug the mains plug with wet hands.

Pull the appliance plug out of the socket at the plug only, not by the cable.

Transportation, e.g. when moving home

Before transporting the washing machine:

1. Turn off the tap.

2. Release the water pressure in the inlet hose Maintenance - filtera Operating instructions;

in water inlet.

3. Drain residual water Maintenance - drain pump.a Operating instructions;

4. Disconnect the washing machine from the power supply.

5. Dismantle the hoses.

Preparing and installing transport braces:

1. Remove the covers.

2. Insert all 4 transportation protection devices and clamp the mains cable

to the holders. Tighten the bolts.

After transportation, the transport braces be removed 3must a page .

To prevent unused detergent from flowing straight into the drain during the next wash: Pour

1 litre of water into compartment II and start the programme.Empty

Technical specifications

ʑ Dimensions (width x depth x height) 60 x 59 x 84.2 cm

ʑ Weight 69 - 83 kg depending on model

ʑ Mains connection Nominal voltage 220-240 V, 50 Hz

Nominal current 10 A

Nominal power 2000 - 2300 W

ʑ Water pressure 100 1000 kPa (1 10 bar)ä ä

ʑ Test programmes According to currently valid IEC 60 456

After-sales service

ʑBefore you call the after-sales service, please make sure that you cannot remedy the fault

yourself What to do if...a Operating instructions;

ʑYou will be charged if a technician is called out, even during the warranty period.

ʑYou can find your nearest after-sales service in the enclosed list. Please give the after-sales

service the product number (E no.) and the production number (FD) of the appliance.

Product number Production number

You will find the identification plate containing

this information on the frame of the loading door

when the door is open, and in the thickly-

bordered area of the rating plate on the back of

the appliance.

ʑPlease help us to avoid unnecessary call-outs by quoting the product and production

numbers. This will also save you the associated additional costs.

Aqua-Stop warranty only for appliances with Aqua-Stop

In addition to warranty claims against the vendor from the purchase agreement and to our

appliance warranty, we will pay damages under the following conditions:

1. If a fault in our Aqua-Stop system causes water damage, we will reimburse damages caused

to private customers.

2. The liability guarantee is valid for the service life of the appliance.

3. It is a prerequisite of all warranty claims that the appliance with Aqua-Stop must have been

set up and connected correctly in accordance with our instructions; this also includes a

correctly fitted Aqua-Stop extension (original accessories).

Our warranty goes not cover defective power cables or fittings between the Aqua-Stop

connection and the tap.

4. Appliances with Aqua-Stop do not need to be supervised during operation, nor secured

afterwards by turning off the tap.

The tap only needs to be turned off if you are away from home for a long period, e.g. for

several weeks' holiday.

Washing machine

Contents Page

ʋSafety instructions . . . . . . . . . . . . . . . . . . . . 1

ʋInstallation surface. . . . . . . . . . . . . . . . . . . . 1

ʋInstalling the appliance . . . . . . . . . . . . . . . . 1

ʋScope of delivery. . . . . . . . . . . . . . . . . . . . . 2

ʋHose and cable lengths . . . . . . . . . . . . . . . 2

ʋRemoving the transport braces . . . . . . . . . . 3

ʋWater connection . . . . . . . . . . . . . . . . . . . . 4

ʋAlignment . . . . . . . . . . . . . . . . . . . . . . . . . . 5

ʋElectrical connection . . . . . . . . . . . . . . . . . . 5

ʋTransportation, e.g. when moving home . . . 6

ʋTechnical specifications. . . . . . . . . . . . . . . . 6

ʋAfter-sales service . . . . . . . . . . . . . . . . . . . . 7

ʋAqua-Stop warranty . . . . . . . . . . . . . . . . . . . 7

Installation

instructions

Read these instructions before switching on the washing machine.

Also observe the separate Instruction manual.

Keep all documents for use in the future or for the subsequent owner.

Produkt Specifikationer

Mærke:	Siemens
Kategori:	Vaskemaskine
Model:	WM12E226EE
Bredde:	600 mm
Dybde:	590 mm
Højde:	850 mm
Produktfarve:	Hvid
Kontroltype:	Buttons, Rotary
Indbygget skærm:	Ja
Skærmtype:	LCD
Strøm:	10 A
Ledningslængde:	1.6 m
Energieffektivitetsklasse (gammel):	A+
Strømforbrug (typisk):	2300 W
Timer:	Ja
Placering af apparat:	Fritstående
Dørhængsel:	Venstre
Ilægningstype:	Front-læsning
Tilløbsslange, længde:	1.5 m
Tromlekapacitet:	6 kg
Maksimal centrifugeringshastighed:	1200 rpm
Støjniveau (centrifugering):	76 dB
Støjniveau (vask):	59 dB
Forsinket start-timer:	Ja
Vaskeprogrammer:	Hygiene/anti-allergy, Black
Børnesikring:	Ja
Energiforbrug ved vask:	0.95 kWh
Årligt energiforbrug vask:	196 kWh
Tromle volumen:	53 L
Balance system:	Ja
Spin-tørre klasse:	B
Skum kontrol system:	Ja
Restfugtighed:	53 %
Vaskeklasse:	A
Årligt vandforbrug vask:	10120 L
Vandforbrug pr. cyklus:	- L
Forsinket start (maks.):	24 t
Udøsslange længde:	1.5 m
Effektkrav:	220 - 240V, 50Hz
Justerbar centrifugeringshastighed:	Ja
