Side 1/2

Important Instructions

• Suggest using IGMP Gigabit switches

• Do not mix up transmitter and receiver

before installation

• Channel of each transmitter(TX) must be

unique, otherwise, the system could break

down (including transmitter, receiver, IGMP

switch etc.)

Product Features

1. Resolution supported up to 1080p @60Hz

2. Transmission distance up to 120 meters (CAT6)

3. Support IR pass back function to control the

source device from RX location

4. Oers scalable TX/RX matrix conguration,

allows up to 256 total units, limited to 100

transmitters, additional transmitter units (part#

CE-H23B11) and receiver units (part# CE-

H23C11) sold separately

5. Supports computer control software to select

and switch between source devices

Package Contents

1. Transmitter unit

2. Receiver unit

3. User Guide

4. IR blaster extension cable

5. IR receiver extension cable

6. DC5V/2A power adapter (x2)

7. Remote control

8. 3 pin phoenix connector (x2)

9. Wall-mount kit (x2)

10. Screws (x8)

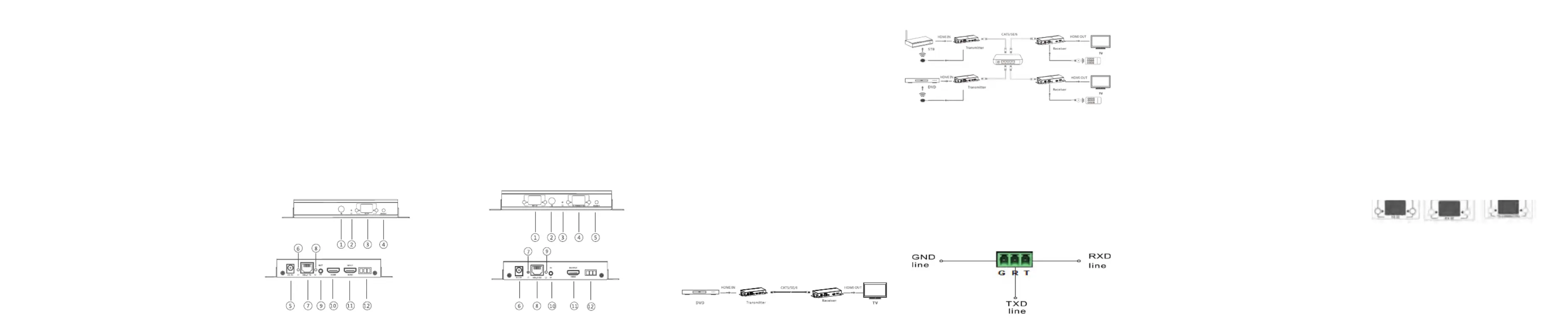

Layout

• Transmitter unit

OUTPUT GND RX TX

RS-232

1. IR window: remote control channel

2. Power indicator

3. TX ID: Indicator of the current TX’s number

4. Reset button

5. DC 5V/2A power jack

6. Data transmission indicator

7. RJ45 output

8. Connection indicator

9. IR blaster extension cable interface

10. HDMI local signal output

11. HDMI signal input

12. RS-232 connector

• Receiver unit

GND RX TX

RS-232

1. RX ID: Mark receiver unit as a number,

Indicator of the current RX’s number

2. IR window: remote control channel

3. Power indicator

4. TX connected: Indicator the input channel

as a number, and when the cahannel of

receiver as same as the channel of trans

mitter, transmission connected

5. Reset button

6. DC 5V/2A power jack

7. Data transmission indicator

8. RJ45 input

9. Connection indicator

10. IR receiver extension cable interface

11. HDMI signal output

12. RS-232 connector

Application

• Point to point

UTP UT

23 2

• Matrix conguration

Note: Dedicated LANs with IGMP Gigabit Ethernet switches are

recommended for reliable performance. Installing on mixed LANs

may adversly eect performance is not supported.

RS232 bi-direction function

• Baud rate

Different encoding mechanism can not mix-

connected, the baud rate of RS232 serial of these

transmitter unit and receiver unit, support 2400,

4800, 9600, 19200, 28800, 38400, 57600, and

115200

If the RS232 serial does not work by above con-

nection, please try to change the order of TXD

line and RXD line.

• Check baud rate:

I f y o u n e e d t o c h e c k t h e b a u d r a t e .

Before powering on, set the baud rate to

115200 on your se rial port test tool and

power on. When the RS232 serial of the product

c o n n e c t e d t o s e r i a l p o r t te s t to o l , t h e

s o f t w a r e w i l l r e a d o u t t h e b a u d r a t e .

E.g.: The software shows information “ Baud rate:

9600”, and it means 9600 is the current baud rate.

• Set baud rate

For example, the current baud rate of extenders

are 9600, but the baud rate of control equipment

is 19200. In this case, choose baud rate 9600 for

serial port tool, then input command “set: 19200”

in character format and send it out. (set: xxxxx

have to send all at once in command line)

IR use guide

• IR passback

IR blaster cable should be pluged into the IR-out

of Transmitter, and the IR receiver cable should

be pluged into the IR-in port of the Receiver. The

emitter of IR blaster cable should be as close as

possible to the IR receiver window of the signal

source device.

• IR remote control

Using the IR remote controll to set/select the

channel of this HDMI Extender.

Button control

The left button controls the value of the left

Nixie tube, and the right one to control the value

of the right Nixie tube. When the value of “TX

connected” on the RX unit matches the value of

“TX ID” on the TX unit, the devices will pair/link

successfully.

Reset device to default

“TX ID” on TX unit and “TX connected ”on the RX

unit. Press both buttons simultaneously and hold

them down for 3 seconds to reset to default.

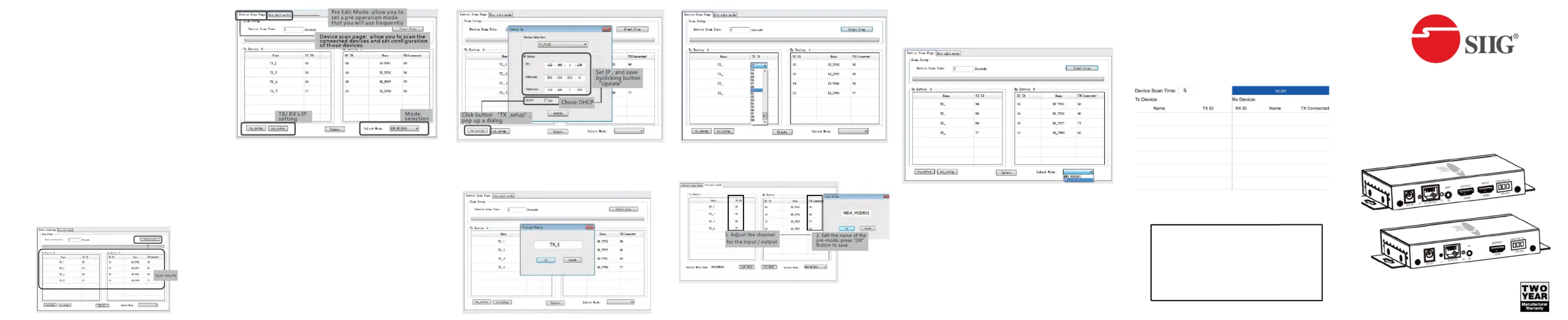

Computer control software (Windows)

1. HDbitT E-Matrix Download software “

Control center“ from http://www.hdbitt.

com/download-matrix/

2. Set PC’s IP to 192.168.1.xxx, then connect

your PC to the Ethernet switch which has

the same subnet with TX and RX units.

3. Open the software HDbitT E-Matrix Control

center and scan for devices.

• IP setting

TX and RX have their own default IP address, TX’s

IP is 192.168.1.238, and RX’s IP is 192.168.1.239.

Generally, there is no need to change the device

IP address, as the system can work normally

even though multiple TX units and multiple RX

units connected into the LAN have the same IP

address.

If IP change is required, follow the instructions on

the next page.

• Device setting

Set device name, ID, Channel then click "Update"

button to save conguration

• Pre-operation mode setting

Support

For more info or tech support

http://www.siig.com/support

HDMI Over IP Extender with IR

User Guide

04-1129A

• Operation mode selection setting

Click “Select Mode” button and choose the mode

needed, then click "Update" button

Wireless Control APP

Requires installing a wireless access point on your

dedicated IGMP LAN.

• Download the Android or Apple wireless APP at

www.hdbitt.com/download-matrix

• Connect to the wireless access point which has

the same subnet as the TX and RX units

• TX ID, RX ID, TX connected number can be

reset by this APP, along with editing the device

name

Produkt Specifikationer

Mærke:	SIIG
Kategori:	AV forlænger
Model:	CE-H23A11-S1
Type:	AV sender & modtager
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	133 mm
Dybde:	83 mm
Højde:	23 mm
Vægt:	2399 g
Brugervejledning:	Ja
Produktfarve:	Sort
Understøttede videotilstande:	480p, 720p, 1080i, 1080p
Opbevaringstemperatur (T-T):	-10 - 60 °C
Relativ luftfugtighed ved drift (H-H):	0 - 90 %
HDCP:	Ja
Driftstemperatur (T-T):	0 - 50 °C
Maksimal opløsning:	- pixel
Kabler inkluderet:	IR
Materiale:	Metal
Fjernbetjening inkluderet:	Ja
Forbindelsesteknologi:	Ledningsført
Certificering:	FCC, CE
DC-in-stik:	Ja
Udgangsstrøm:	2 A
AC-adapter inkluderet:	Ja
Video komprimeringsformater:	H.264
Bæredygtighedscertifikater:	RoHS
Driftsspænding:	5 V
Maksimal overførselsafstand:	120 m
Maksimal opdateringshastighed:	60 Hz
HDMI-version:	1.3
Monteringssæt:	Ja
HSMI-indgang:	1
RJ-45 indgangs-porte:	1
Antal HDMI-udgange:	2
HDCP-version:	1.4
Fjernbetjening (IR) indgang:	1
Fjernbetjening (IR) udgang:	1
Understøttede kabeltyper:	Cat5, Cat5e, Cat6
RJ-45 udgangs-porte:	1
