Side 1/5
February 4 , 2020

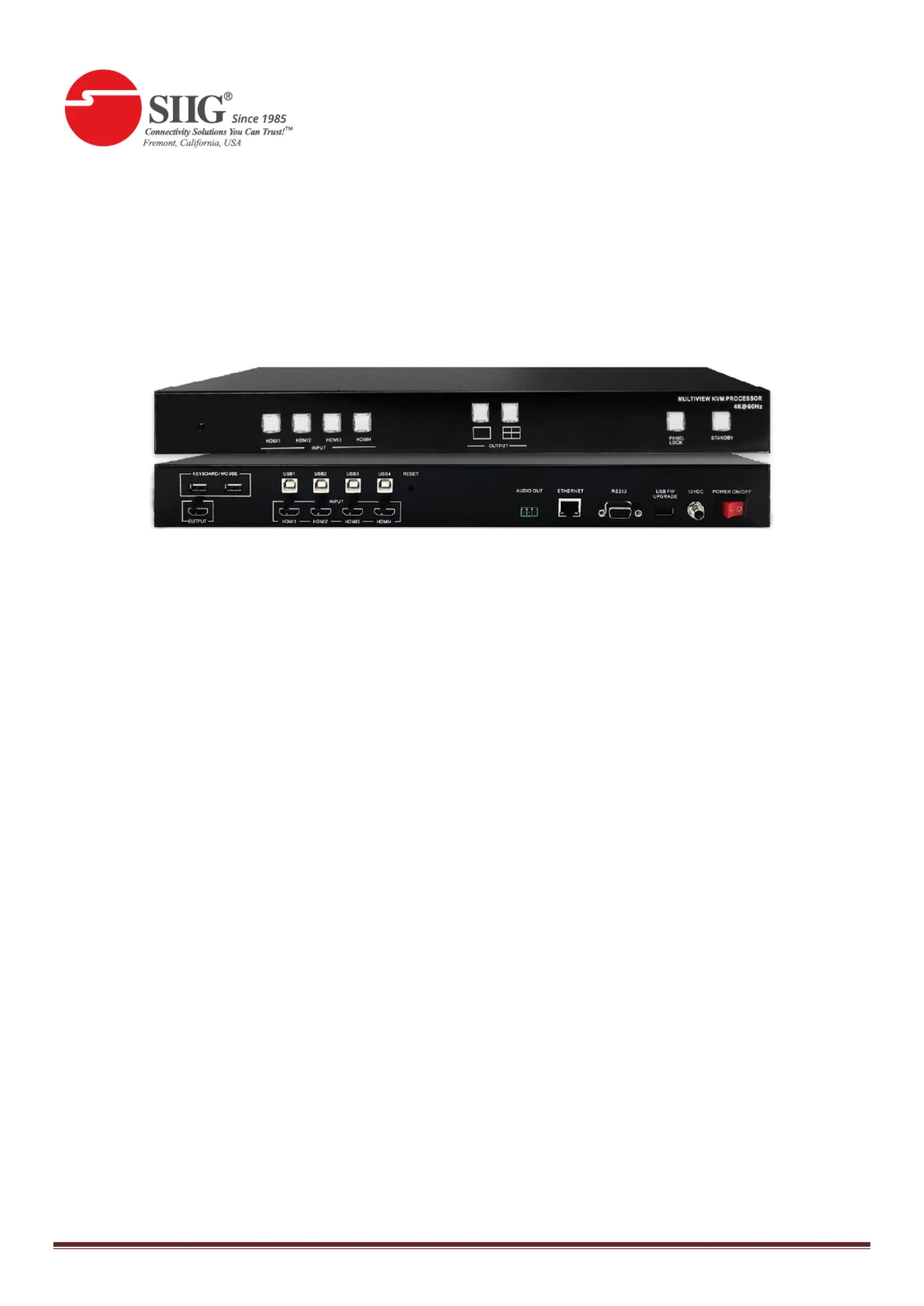

Quad-View HDMI 2.0 4K 60Hz KVM
MultiView Processor
<P/N: - 63 - > CE H2 11 S1
Features
⚫ Not only to switch 4 HDMI video sources to one display via HDMI output, but also real time control 4
host device by one set of keyboard and mouse
⚫ Supports mouse cursor to cross from one window to the other freely by moving the mouse without
pressing front panel button in quad view mode
⚫ Supports video screen layout included full screen mode and the very popular full quad view display
mode
⚫ Up to 5 unit of Multiview KVM processor can be cascaded and support up to 16 host devices to display
on a single display device
⚫ Supports 4K@60Hz full screen and quad view layout configuration
⚫ Supports Input/Output resolution up to 4K@60Hz 4:4:4 color sampling
⚫ Support upscaling up to 4K@60Hz 4:4:4 color sampling
⚫ Support Deep Color and HDCP 1.4/2.2
⚫ Fast switching between the input channels or the screen layout modes
⚫ Receive Dolby Digital 5.1, DTS 5.1 and uncompressed 7.1 linear PCM audio including stereo analog
audio input
⚫ Support stereo audio output
⚫ Support Keyboard/Mouse, front panel button, IR remote control, RS-232/Telnet and Web UI control
⚫ Supports USB port firmware upgrade
Package content
February 4 , 2020
⚫ Quad-View HDMI 2.0 4K 60Hz KVM MultiView Processor
⚫ Remote Control
⚫ DC 12V/2A output power adapter
⚫ Rack Mount Bracket (2)
⚫ Rubber Pad (4)
⚫ Screws bag
⚫ Quick Start Guide
Specifications
Product
Standard
HDMI 2.0, HDCP 2.2
Connector Type
4 x 19-Pin, HDMI, Input
4 x 4-pin, USB 2.0 Type-B, USB Host device
2 x 19-pin, HDMI, output
2 x 4-pin, USB 2.0 Type-A, Keyboard/Mouse
1 x 8-pin RJ-45, Ethernet, control
1 x 4-pin, USB 2.0 Type-A, for FW upgrade
1 x 9-pin RS-232 serial, control
1 x 3-pin terminal block, Audio output
Video resolution
3840x2160@60Hz 3840x2160@50Hz 3840x2160@30Hz ; ;
1920x1080@60Hz 1920x1200@60Hz;
1600x1200@60Hz; 1280x720@60Hz
640 x 480@60Hz
Audio
Stereo
LAN port
RJ-45 connector for 10/100 BASE-T CAT- extension5
Serial port
DB-9 RS-232 female connector
Operation Temperature
0 - degree C (32 to 112 degree F)45
Control
Front Panel buttons
IR remote control
RS-232 / Telnet
Web UI
Storage Temperature
-20 to 60 degree (-4 to 1 degree F)40
Relative Humidity
20%~90% RH
Power supply
DC 12V/2A, locking barrel connector
Power consumption
15W (Max)
ESD protection
Air gap discharge +-8KV, contact discharged +- 4KV
Dimension (W*H*D)
440.4 230 mm (17.32 1.77 9.06 x 45 x ” x ” x ”)
Net Weight
2. 80 kg
Product Layout
