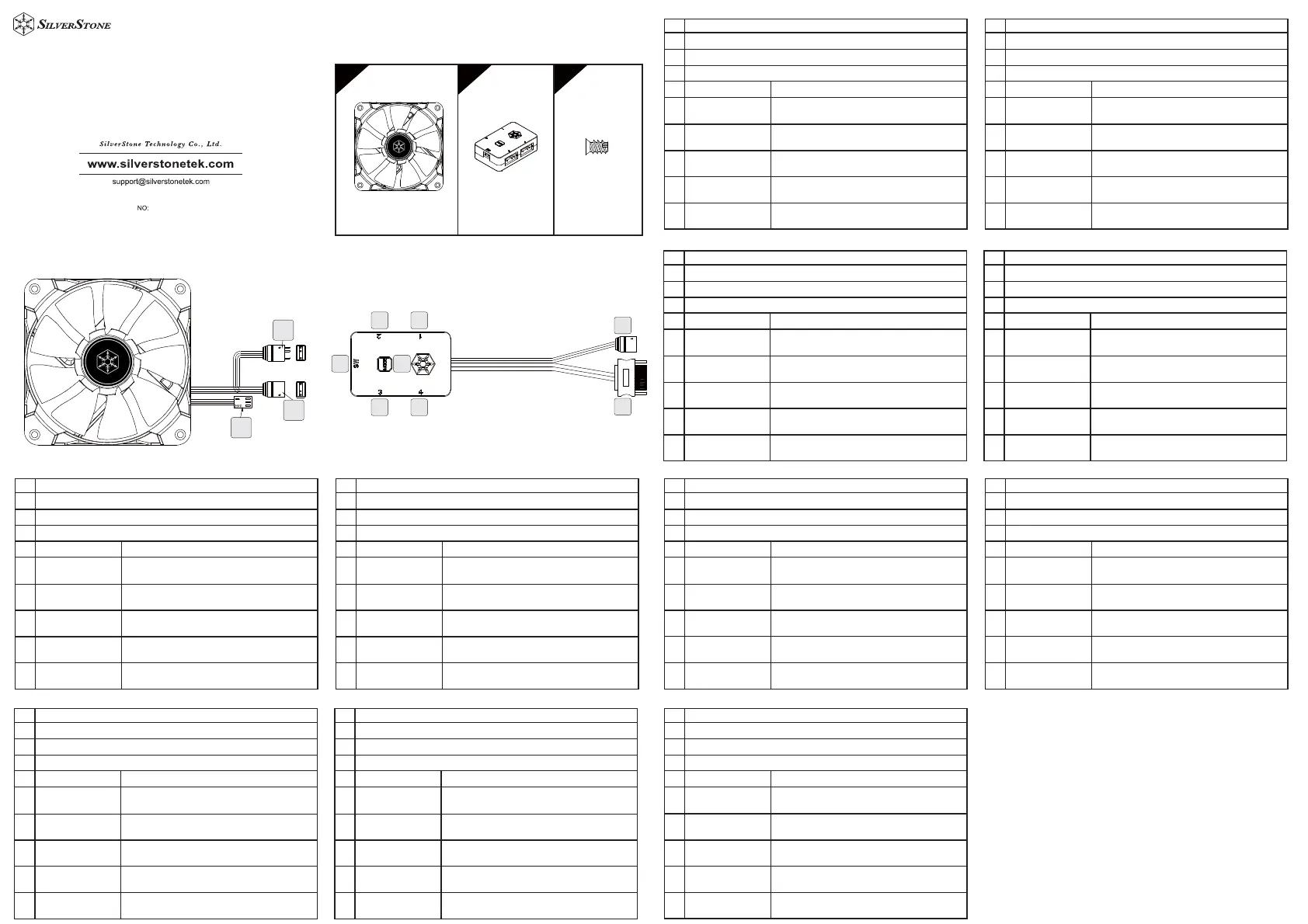

Brilliant 3-in-1 addressable RGB fan pack with controller
Air Blazer 120i Lite
a
bb
c
e
d
b b
x 3 x 1 x 12
1 2 3
G11237990
A
B
C
a2 pin header
ARGB 4-1 pin headers
Connect to case’s reset button connector to change
lighting mode by pressing on reset button
For connecting to ARGB devices
* Each port supports up to 48 LEDs
Mode button Short press: Switching lighting modes
Long press: Switching to motherboard syncing mode
SATA connector For powering the controller
4-1 Pin ARGB connector For connecting to motherboard to synchronize ARGB lighting
b
c
d
e
Name Function
A
B
C
3 pin fan connector
ARGB 4-1 pin header
ARGB 4-1 pin female connector
Connector
EN
a
b
c
d
e
A
B
C
Anschluss
DE
3-poliger Lüfteranschluss
4-1-polige ARGB-Stiftleiste
4-1-polige ARGB-Buchse
2-polige Stiftleiste
4-1-polige
ARGB-Stiftleisten
Zum Ändern des Lichtmodus durch Drücken der Reset-Taste mit
dem Anschluss der Reset-Taste des Gehäuses verbinden
Zur Verbindung mit ARGB-Geräten
* Jeder Anschluss unterstützt bis zu 48 LEDs
Modustaste Kurz drücken: Lichtmodus umschalten
Lange drücken: In Motherboard-Sync-Modus umschalten
SATA-Anschluss Zur Stromversorgung des Controllers
4-1-poliger
ARGB-Anschluss
Zur Verbindung mit dem Motherboard, ermöglicht
Synchronisierung der ARGB-Beleuchtung
Name Funktion
a
b
c
d
e
A
B
C
ES
Conector ventilador 3 pines
Conector ARGB 4-1 pines
Conector hembra ARGB 4-1 pines
Conector
Conector de 2 pines
Conectores
ARGB 4-1 pines
Conéctelo al botón de reseteo de la carcasa para cambiar el
modo de iluminación presionando el
Para conectar a dispositivos ARGB
- Cada puerto acepta hasta 48 LEDs
Botón de modo Presión corta: cambio de modos de iluminación
Presión larga: cambio a modos de sincronización de la placa base
Conector SATA Para proporcionar corriente al controlador
Conector ARGB 4-1 pines Para conectar a la placa base y sincronizar la iluminación ARGB
Name Función
a
b
c
d
e
A
B
C
FR
Connecteur de ventilateur 3 broches
Connecteur ARVB 4-1 broches
Connecteur ARVB femelle 4-1 broches
Connecteur
Connecteur 2 broches
Connecteurs
ARVB 4-1 broches
Connectez le connecteur du bouton de réinitialisation du boîtier
pour pouvoir changer le mode d'éclairage en appuyant sur le
bouton de réinitialisation.
Pour la connexion des périphériques ARVB
* Chaque port prend en charge jusqu'à 48 LED
Bouton Mode
Appui court : changement du mode d'éclairage
Appui long : changement vers le mode de synchronisation de la
carte mère
Connecteur SATA Pour l'alimentation du contrôleur
Connecteur
ARVB 4-1 broches
Pour la connexion à la carte mère pour synchroniser l'éclairage
ARVB
Nom Fonction
a
b
c
d
e
A
B
C
IT
Connettore ventola a 3 pin
Connettore ARGB a 4-1 pin
Connettore ARGB femmina a 4-1 pin
Connettore
Connettore a 2 pin
Connettori ARGB a 4-1 pin
Collegarsi al connettore del tasto di ripristino del case per
cambiare la modalità di illuminazione premendo il tasto di ripristino
Per il collegamento a dispositivi ARGB
* Ogni porta supporta fino a 48 LED
Tasto modalità
Breve pressione: commutazione delle modalità di illuminazione
Pressione prolungata: commutazione alla modalità di
sincronizzazione della scheda madre
Connettore SATA Per l'alimentazione del controller
Connettore ARGB a 4-1 pin Per il collegamento alla scheda madre per la sincronizzazione
dell'illuminazione ARGB
Nome Funzione
a
b
c
d
e
A
B
C
RU
Коннектор вентилятора 3 pin
Разъём ARGB 4-1 pin
Коннектор ARGB 4-1 pin
Коннектор
Разъём 2 pin
Разъёмы ARGB 4-1 pin
Подключите к разъёму кнопки сброса чтобы изменить , режим
освещения при на нажатии кнопку сброса
Для подключения к устройствам ARGB
• Каждый порт поддерживает до 48 светодиодов
Кнопка режима
Короткое нажатие переключение режимов освещения :
Длительное нажатие переключение в режим синхронизации :
материнской платы
Коннектор SATA Для питания контроллера
Коннектор ARGB 4-1 pin Для подключения к материнской и синхронизации плате
ARGB подсветки
Название Функция
a
b
c
d
e
A
B
C
TH
ขั้ ่อพัดลม พินวต 3
หัวต่อ พิน ARGB 4-1
ขั้วต่อตัวเมีย พิน ARGB 4-1
ขั้วต่อ
หัวต่อ พิน 2
หัวต่อ พิน ARGB 4-1
เชื่อมต่อไปยังขั้วต่อปุ่มรีเซ็ตของเคส เพื่อเปลี่ยนโหมดแสงโดยการกดปุ่ ีเซ็ต มร
สาหรับการเชื่อมต่อไปยังอุปกรณ์ ARGB
* ขั้วต่อแต่ละตัวรองรับหลอด LED สูงถึง 48 หลอด
ปุ่มโหมด กดปกติ การเปลี่ยนโหมดแสง:
กดค้าง การเปลี่ยนไปยังโหมดการซิ ์เมนบอร์ด: งค
ขั้วต่อ SATA สาหรับจ่ายไฟให้กับตัวควบคุม
ขั ้วต่อ พิน สาหรับการเชื่อมต่อไปยังเมนบอร์ดเพื่อซิงโครไนซ์ระบบแสง ARGB 4-1 ARGB
ชื่อ ฟังก์ชั่น
a
b
c
d
e
A
B
C
KR
3 핀 팬 커넥터
ARGB 4-1 핀 헤더
ARGB 4-1 핀 암 커넥터
커넥터
2핀 헤더
ARGB 4-1 핀 헤더
리셋 버튼을 눌러 조명 모드를 바꾸기 위해 케이스의 리셋 버튼
커넥터를 연결하십시오.
ARGB 장치에 연결
각 포트는 최대 48 LED를 지원
모드 버튼
짧게 누름 : 조명 모드 변경
길게 누름 : 마더보드 동기화 모드로의 변경
SATA 커넥터 컨트롤러에 전력 공급
4-1 핀 ARGB 커넥터 ARGB 조명의 동기화를 위해 마더보드에 연결
명칭 기능
a
b
c
d
e
A
B
C
JP
3Pinファンコネクタ
ARGB4-1Pinオスコネクタ
ARGB4-1pinメスコネクタ
コネクタ名称
2pinボタンヘッダ
ARGB4-1ピンヘッダ
Resetボタンに接続してライティングモード変更可能
ARGBデバイスの接続
*各ポートは最大48個のLEDをサポート
モードボタン 短プッシュ：ライティングモード切り替え
長プッシュ：マザーボード同期モードに切り替え
SATAコネクタ コントローラへの電力供給
4-1Pin同期コネクタ マザーボードに接続してライティング同期効果
名称 機能
a
b
c
d
e
A
B
C
CN
风扇 3 Pin 接头
ARGB 4-1 Pin 公头
ARGB 4-1 pin 母头
接头名称
2 pin 按键接头
ARGB 4-1 Pin 接头
可连接Reset按键切换灯光模式
ARGB装置连接
*单一接头最多支援48 LED讯号输出
模式按键 短按：切换灯光模式
长按：切换主板同步模式
SATA供电接头 控制器供电
4-1 Pin同步接头 连接主板同步灯光效果
名称 功能
a
b
c
d
e
A
B
C
TW
風扇 3 Pin 接頭
ARGB 4-1 Pin 公頭
ARGB 4-1 pin 母頭
接頭名稱
2 pin 按鍵接頭
ARGB 4-1 Pin 接頭
可連接Reset按鍵切換燈光模式
ARGB裝置連接
*單一接頭最多支援48 LED訊號輸出
模式按鍵 短按：切換燈光模式
長按：切換主板同步模式
SATA供電接頭 控制器供電
4-1 Pin同步接頭 連接主機板同步燈光效果
名稱 功能
FAN Installation
A
ARGB Lighting Connection 1
M/B ARGB
C
B
ARGB Lighting Connection 2
Warrant
Warranty Information
This product has a limited 1 year warranty in North America and Australia.
For information on warranty periods in other regions, please contact your reseller or SilverStone authorized distributor.
本产品自购买之日起，于中国地区（不包含澳门，香港特别行政区）享有一年有限责任保固（部分产品为二年，三年或五年）。
详细保固年限请参照官方网站 公布之产品型号为依据。https://silverstonetek.com.cn/
1. Product component defects or damages resulted from defective production is covered under warranty.
Defects or damages with the following conditions will be fixed or replaced under SilverStone Technology’s jurisdiction.
a) Usage in accordance with instructions provided in this manual, with no misuse, overuse, or other inappropriate actions.
b) Damage not caused by natural disaster (thunder, fire, earthquake, flood, salt, wind, insect, animals, etc…)
c) Product is not disassembled, modified, or fixed. Components not disassembled or replaced.
d) Warranty mark/stickers are not removed or broken.
Loss or damages resulted from conditions other than ones listed above are not covered under warranty.
2. Under warranty, SilverStone Technology’s maximum liability is limited to the current market value for the product (depreciated value, excluding
shipping, handling, and other fees). SilverStone Technology is not responsible for other damages or loss associated with the use of product.
3. Under warranty, SilverStone Technology is obligated to repair or replace its defective products. Under no circumstances will SilverStone
Technology be liable for damages in connection with the sale, purchase, or use including but not limited to loss of data, loss of business, loss of
profits, loss of use of the product or incidental or consequential damage whether or not foreseeable and whether or not based on breach of warranty,
contract or negligence, even if SilverStone Technology has been advised of the possibility of such damages.
4. Warranty covers only the original purchaser through authorized SilverStone distributors and resellers and is not transferable to a second hand
purchaser.
5. You must provide sales receipt or invoice with clear indication of purchase date to determine warranty eligibility.
6. If a problem develops during the warranty period, please contact your retailer/reseller/SilverStone authorized distributors or SilverStone
. http://www.silverstonetek.com
Please note that: (i) You must provide proof of original purchase of the product by a dated itemized receipt; (ii) You shall bear the cost of shipping
(or otherwise transporting) the product to SilverStone authorized distributors. SilverStone authorized distributors will bear the cost of shipping
(or otherwise transporting) the product back to you after completing the warranty service; (iii) Before you send the product, you must be issued a
Return Merchandise Authorization (“RMA”) number from SilverStone. Updated warranty information will be posted on SilverStone’s official website.
Please visit for the latest updates.http://www.silverstonetek.com
Warranty terms & conditions
Additional info & contacts
For North America (usasupport@silverstonetek.com)
SilverStone Technology in North America may repair or replace defective product with refurbished product that is not new but has been functionally tested.
