IMPORTANT. Do not use this template if it has been rescaled by copying or
prinng. If this is not the original, or is a print from a le, please check the
dimension lines below are to scale before use.
IMPORTANT. Ne pas uliser ce gabarit s’il a été photocopié ou imprimée en
format réduit ou agrandi. Si ce gabarit n’est pas un original, ou si c’est une
version imprimée d’un chier PDF, veuillez vérier qu’il est à l’échelle avant de
l’uliser.
IMPORTANTE. No ulizar esta planlla si p1-ha sido reajustada por fotocopiadora
o por impresora. Si esta no es la planlla original, o es una impresión desde un
archivo, por favor verique que las líneas de dimension están a escala antes de
su uso.
WICHTIG. Diesen Vordruck nicht verwenden, wenn er durch Kopieren oder
Drucken im Maßstab verändert wurde. Sollte es nicht das Original oder ein PDF-
Ausdruck sein, müssen untenstehende Zeilen vor erwendung an den richgen
Maßstab angepasst werden.
BELANGRIJK. Gebruik deze mal niet indien de schaal is veranderd doordat het is
gecopieerd of gedrukt. Indien deze mal niet het origineel of een print van PDF
is, controleer dan of de onderstaande lijnen de juiste schaal zijn voordat u ze
gebruikt.
IMPORTANTE. Não ulize este gabarito se a escala do mesmo ver sido alterada
por cópia ou impressão. Se não for o original ou uma cópia impressa de um
arquivo PDF, verique as linhas abaixo, para acertar a escala antes da ulização.
VIKTIGT. Använd inte denna mall om den skalats om genom utskri eller
kopiering. Om dea inte är originalet eller en utskri från en PDF, kontrollera
a linjalen stämmer med skalan innan det används.
IMPORTANTE. Non ulizzare questo modello se è stato ridimensionato
copiandolo o stampandolo. Se questo non è l’originale o la stampa di un le
PDF, vericare se le linee che seguono devono essere dimensionate prima di
essere ulizzate.
TÄRKEÄÄ. Älä käytä tätä kaaviota, jos sen miakaava on muuunut kopio-
idessa tai tulostaessa. Jos tämä ei ole alkuperäinen tai PDF tuloste tarkista rajat
miakaavasta alla ennen käyöä.
注意：请尽量不要使用本安装挖孔尺寸模版图的复印件。如果使用复印
件，则在使用之前请确认其比例一定要与原件大小必须一致。
중요: 복사나 출력으로 크기가 조정 된 경우 이 템플릿을 사용하지
마십시오. 원본이 아니거나 인쇄물이면, 사용하기 전 아래 치수선의
눈금을 확인 해 주십시오.
注：このテンプレートは印刷やコピーによって縮尺がーわっていることが
ありますので使用しないで下さい。テンプレートがオリジナルのもので
ない場合には、下の寸法線を使って縮尺を確認してください。
ВНИМАНИЕ: Не используйте эту инструкцию, если она была
изменена в размерах при копировании или распечатке.
Если вы используете не оригинал, а распечатку из файла,
убедитесь в соответствии размеров линейки в нижней части
инструкции с действительными размерами.
Check dimensions before cutting
10"
250 mm
Parts included
1. Display unit
2. Corner clips
3. Bracket mounting kit
• Bracket
• 4x screws, self-tapping
#10 X 3/4 PN HD SS
4. Cable and fuse kit
• Power cable
• Fuse and holder
5. Skimmer transducer
6. Document package
4.
*988-12381-001*
CRUISE 5
INSTALLATION GUIDE
1.
A.
Mounting template (2/2)
Wiring
2.
B.
6.
10.4 to 17.0 V DC
< 12.2 W (3 A fuse)
5.
Compliance statements
The relevant Declaration of conformity is available in the
product’s section at:
This product complies with:
• CE under RED Directive 2014/53/EU
• the requirements of level 2 devices of the Radio
communications (Electromagnetic Compatibility)
standard 2017
Warning
The user is cautioned that any changes or modications not
expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
www.simrad-yachting.com
Accessories (sold separately)
A. Sun cover
Part no.: 000-15067-001
B. Panel mounting kit
Part no.: 000-15070-001
3.
¼Note: The panel mounting kit is sold separately.

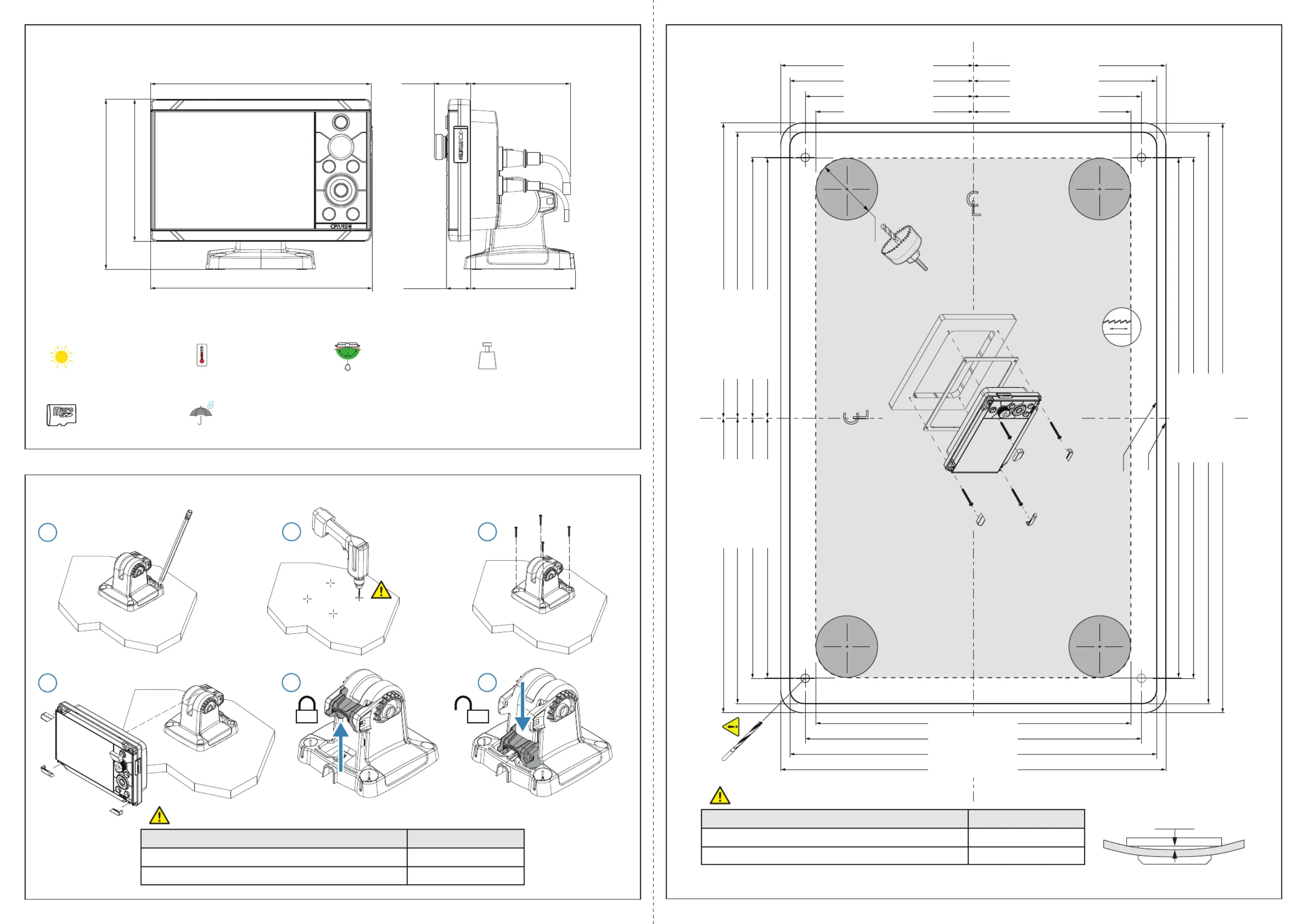

Mounting template (1/2)
Details
1x card reader slot
Micro SD
IPX6
IPX7
-15°C to +55°C
+5°F to +131°F
70°/50°, top/bottom
70°/70°, left/right
0.63 Kg
1.39 lbs
Sunlight readable Kg
185.5 mm
(7.30”)
184.4 mm
(7.26”)
142.3 mm
(5.60”)
118.7 mm
(4.67”)
30.5 mm
(1.20”)
83.25 mm
(3.28”)
20.5 mm
(0.81”)
87.4 mm
(3.44”)
Bracket mounting
132
TM
Material 10# screw
Soft materials e.g. Plywood Ø 3.7-4.0 mm (5/32”)
Hard materials e.g. Fiberglass, Acrylic, Hardwoods Ø 4.1-4.7 mm (3/16”)
Recommended pilot holes.
A B
4
Maximum curve of the dash
0.5 mm (0.02”)
REMOVE SHADED AREA
SUN COVER
PRODUCT OUTLINE
Ø20.0 mm (0.79”)
166.9 mm (6.59”)
167.3 mm (6.57”)
183.5 mm (7.23”)
189.4 mm (7.46”)
101.2 mm (3.99”)
108.0 mm (4.25”)
117.9 mm (4.64”)
123.8 mm (4.87”)
50.6 mm (1.99”)
54.0 mm (2.13”)
59.0 mm (2.32”)
61.9 mm (2.44”)
50.6 mm (1.99”)
54.0 mm (2.13”)
59.0 mm (2.32”)
61.9 mm (2.44”)
83.5 mm (3.29”)
83.7 mm (3.29”)
91.8 mm (3.61”)
94.7 mm (3.73”)
83.5 mm (3.29”)
83.7 mm (3.29”)
91.8 mm (3.61”)
94.7 mm (3.73”)
L
C
L
C
Material #6 screw
Soft materials e.g. Plywood Ø 2.3-2.5 mm (3/32”)
Hard materials e.g. Fiberglass, Acrylic, Hardwoods Ø 2.7-3.1 mm (7/64”)
Recommended pilot holes.
¼Note: The panel mounting kit is sold separately.
