www.lowrance.com www.simrad-yachting.com www.bandg.com

*988-13008-002*

NMEA 0183

INTERFACE

INSTALLATION GUIDE

A NMEA 0183

Interface

B NMEA 2000

T-joiner

Parts included

Disclaimer

This product is not a substitute for proper training and prudent seamanship. It is the owner’s sole responsibility to install and use the equipment in a manner that will not cause

accidents, personal injury or property damage. The user of this product is solely responsible for observing maritime safety practices.

Navigational features that appear in this guide are not a substitute for proper training and prudent seamanship. They do not replace a human navigator and SHOULD NOT be

relied on as a sole or primary source of navigation. It is the operator’s sole responsibility to use more than one navigational methods to ensure the route suggested by the system

is safe.

NAVICO HOLDING AS AND ITS SUBSIDIARIES, BRANCHES AND AFFILIATES DISCLAIM ALL LIABILITY FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY CAUSE

ACCIDENTS, DAMAGE OR THAT MAY VIOLATE THE LAW.

This manual represents the product as at the time of printing. Navico Holding AS and its subsidiaries, br

anches and afliates reserve the right to make changes to the product and/

or specications at any time without notice. Please contact your nearest distributor if you require any further assistance.

Compliance statements

Australia and New Zealand

Complies with the requirements of level 2 devices of the Radiocommunications (Electromagnetic Compatibility) standard 2017.

Europe

NMEA 0183

Interface complies with CE under EMC Directive 2014/30/EU. The relevant Declaration of conformity is available in the product’s section at the following website:

www.lowrance.com, www.simrad-yachting.com, www.bandg.com.

United Kingdom

NMEA 0183

Interface complies with UKCA under The Electromagnetic Compatibility Regulations 2016. The relevant Declaration of conformity is available in the product’s

section at the following website: www.lowrance.com, www.simrad-yachting.com, www.bandg.com.

United States of America

Warning: The user is cautioned that any changes or modications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

Trademarks

Reg. U.S. Pat. & Tm. Off, and ™ common law marks. Visit www.navico.com/intellectual-property to review the global trademark rights and accreditations

for Navico Holding AS and other entities.

Warranty

The warranty card is supplied as a separate document. In case of any queries, refer to the

brand website of your unit or system: www.lowrance.com, www.simrad-yachting.com,

www.bandg.com.

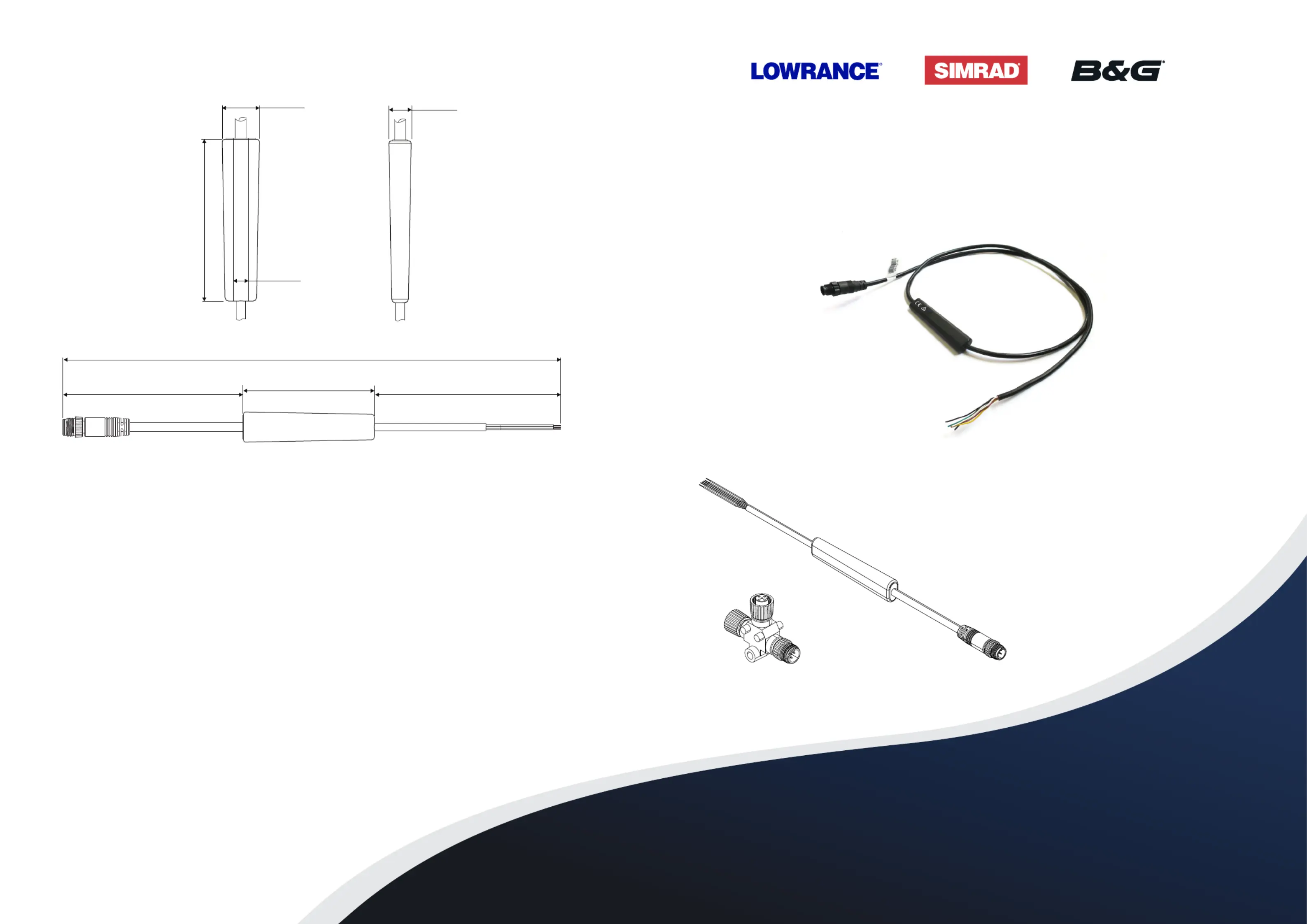

Dimensional drawing

1270.0 mm (50”)

600.0 mm (23.62”)

87.7 mm (3.45”)

582.3 mm (22.92”)

87.7 mm (3.45”)

20.0 mm

(0.78”)

8.0 mm

(0.31”)

12.0 mm

(0.47”)

Power

The converter is designed to be powered by the NMEA 2000

network at 12 V DC via an NMEA 2000

Micro-C connector

(Male).

Software

The converter will decode NMEA 0183

and convert the data to NMEA 2000

and vice-versa.

This device can be congured from a compatible multi-function display (MFD) or instrument display via the device list and

conguration tab.

A GPS sensor

B MFD

C NMEA 0183

device

D NMEA 0183

Interface

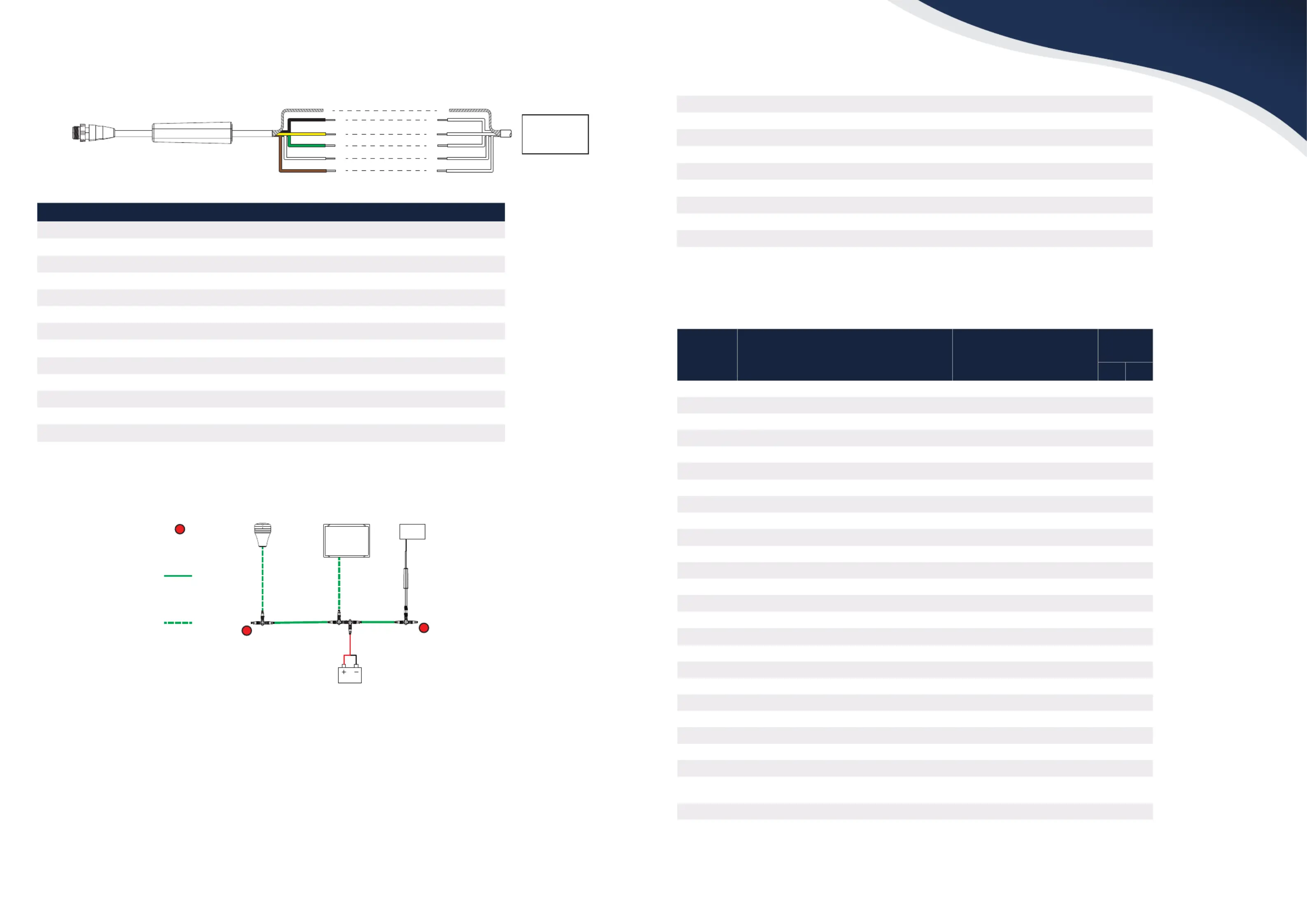

Wiring

System wiring example

B H

Color Description

ABare Shield

BBlack

NMEA 0183

- Ground

CYellow Rx_A (Listener A)

DGreen Rx_B (Listener B)

EWhite Tx_A (Talker A)

FBrown Tx_B (Talker B)

GBare Shield

HUnknown color

NMEA 0183

- Ground

IUnknown color Tx_A (Talker A)

JUnknown color Tx_B (Talker B)

KUnknown color Rx_A (Listener A)

LUnknown color Rx_B (Listener B)

M-

NMEA 0183

device

12 V DC

NMEA 2000®

BACKBONE

NMEA 2000®

DROP CABLES

NMEA 2000®

TERMINATOR

Technical specications

Environmental

Operating temperature -15°C to +55°C (5°F to 131°F)

Waterproof rating IP67

Electrical

Power supply voltage

12 V DC

Operating voltage 9 V DC - 18 V DC

Power consumption

2 LEN, 0.48 W (40 mA at 12 V)

Reverse polarity protection Yes

Baud rate 4800 (default), 9600, 19200, 38400, 57600, 115200

Physical

Weight 0.1 kg (0.2 lbs)

Supported sentences

Sentence Description PGN

NMEA

0183

RX TX

AAM

Waypoint arrival alarm 129284

 

APB

Heading/track controller (autopilot) sentence B 129283, 129284

 

BOD Bearing - Origin to destination 129284



BWC Bearing and distance to waypoint - Great circle 129284

 

DPT

Depth 128267

 

GGA

Global positioning system (GPS) x data 129025, 129029

 

GLL

Geographic position - Latitude/longitude 129025, 129029

 

GSA

GNSS DOP and active satellites 129539

 

GSV

GNSS Satellites in view 129540

 

HDG

Heading, deviation and variation 127250

 

HDT

Heading true 127250

 

MTW

Water temperature 130310, 130312, 130316

 

MWD

Wind direction and speed 130306



MWV

Wind speed and angle (Relative wind and True wind) 130306

 

RMA

Recommended minimum navigation information 129025, 129026, 127258



RMB

Recommended minimum navigation information 129283, 129284

 

RMC

Recommended minimum navigation information 127258 , 129025, 129026, 129033

 

ROT

Rate of turn 127251



THS

Heading - True data 127250

 

VBW

Dual ground/Water speed 128259

 

VDR

Set and Drift 130577



VHW

Water speed and heading 127250, 128259

 

VLW

Dual ground/water distance 128275



VTG

Course over ground and ground speed 129026

 

XDR Transducer data

127245, 127257, 130310, 130312,

130314, 130316

 

XTE

Cross-track error - measured 129283

 

ZDA

Time and date 129033

 

¼Note: NMEA 0183

RX/TX default supported sentences are indicated with a check mark in the table.

¼Note: By default, not all NMEA 0183

sentences are congured to send or receive data. The conguration of sentences

can be changed via a compatible MFD or instrument display.
