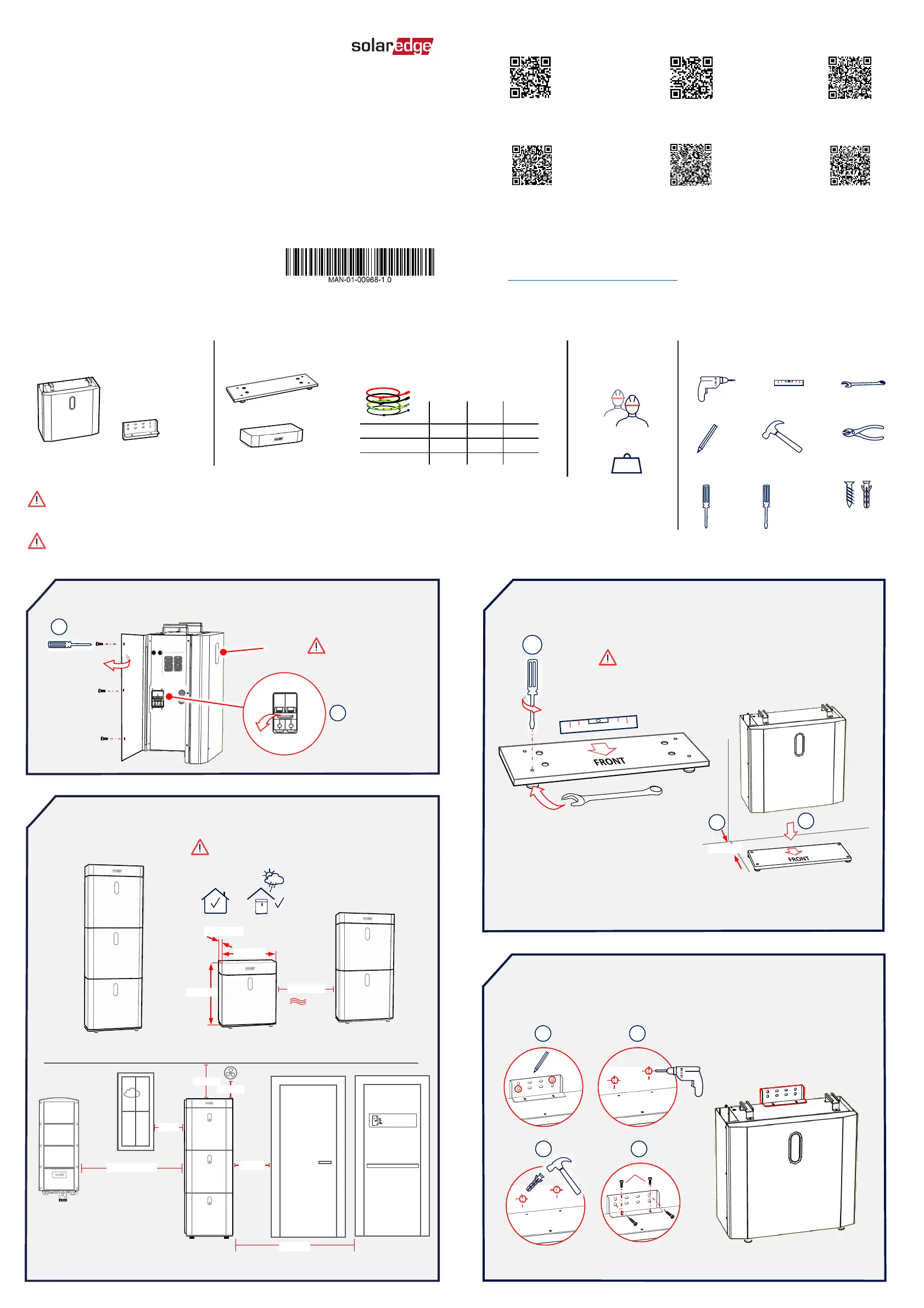

What’s in the Package
SolarEdge Home Battery
Low Voltage
Used with SolarEdge inverters
Quick Installation and Operation Guide
for Europe
Ordered Separately
WARNING!
Before installing or operating the SolarEdge Home Battery, read the Safety and Handling instructions at the back of this page.
Drill
Min 2 qualified installers
Level
Phillips
screwdriver
WARNING!
This symbol denotes a hazard. It calls attention to a procedure that if not correctly performed or adhered to could result in injury or loss of life.
Do not proceed beyond a warning note until the indicated conditions are fully understood and met.
© SolarEdge Technologies, Ltd.
All rights reserved.
Version: 1.0, August 2022
Subject to change without notice.
Support Contact Information
In case of any technical issues with SolarEdge
products, please contact us at:
https://www.solaredge.com/service/support
Emergency Response
guide, including emergency
phone numbers
Safety
Datasheet
1
Floor Stand
Flat-Blade
screwdriver
18 mm Wrench
SolarEdge Home Battery
Mounting Bracket
and Screws
WARNING!
Make sure that the circuit
breakers of the battery are
in the OFF position and all
LEDs are turned off
Hammer
Pencil
Wire Cutter
Mounting screws and
studs - max M10
min 2
54.7KG
Wiring
video
Unpacking and
mounting video
Battery
Datasheet
Battery Installation
Manual
Turning off the Battery Power
LEDs
1
2
OFF
ON
Battery Top Cover
3
4
Floor Stand Positioning and Leveling
1 2
3 4
Installing the Mounting Bracket
2.5 Nm
3-5 cm
2
3
1
WARNING!
Mount the battery on a stable surface
NOTE: Use a minimum of two wall screws to
install the bracket. Use additional screws to
reinforce installation according to wall
condition.
Planning and Considerations
WARNING! Connect no more than 5 batteries per inverter.
Use no more than 3 batteries per battery tower.
30-50 cm
H: 54 cm
D: 24 cm
W: 50 cm
30 cm
30 cm
Max 500 cm
25 cm
EMERGNCY EXIT
20 cm
2
Inverter
100 cm
Tools and Materials Required
Personnel
NOTE: Before installing batteries on top of each
other, checked that the max tilt of the wall is 1.5%
Battery to
inverter
Tower to
Tower
Battery to
Battery
260 cm260 cm57cmDC cables
260 cm170 cm55cmGround cable
260 cm170 cm57cmCommunication cable
Available Cables
